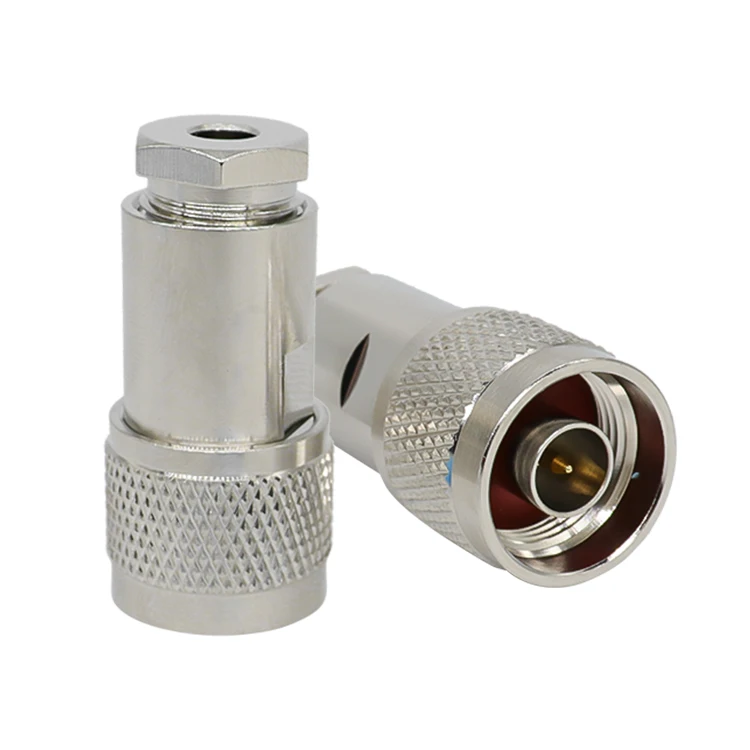

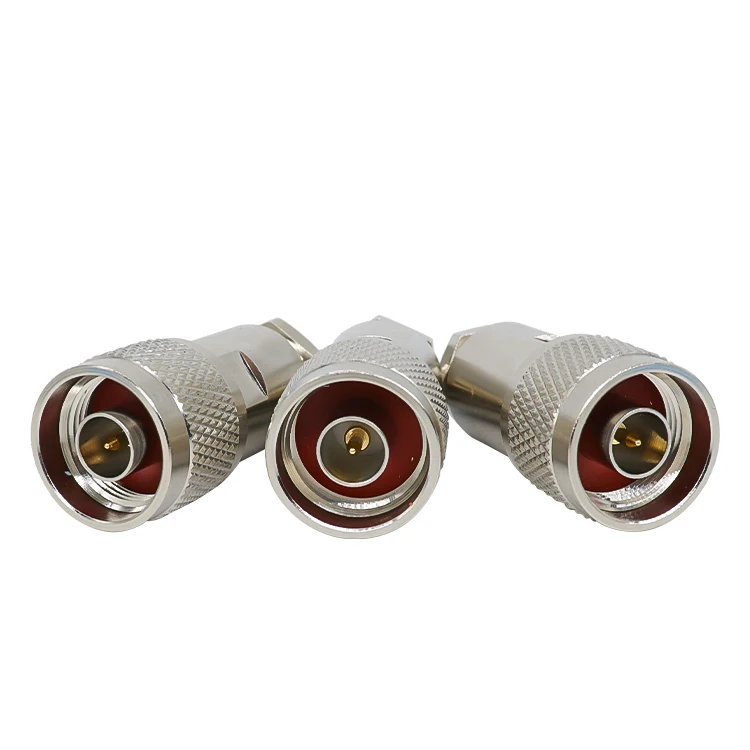

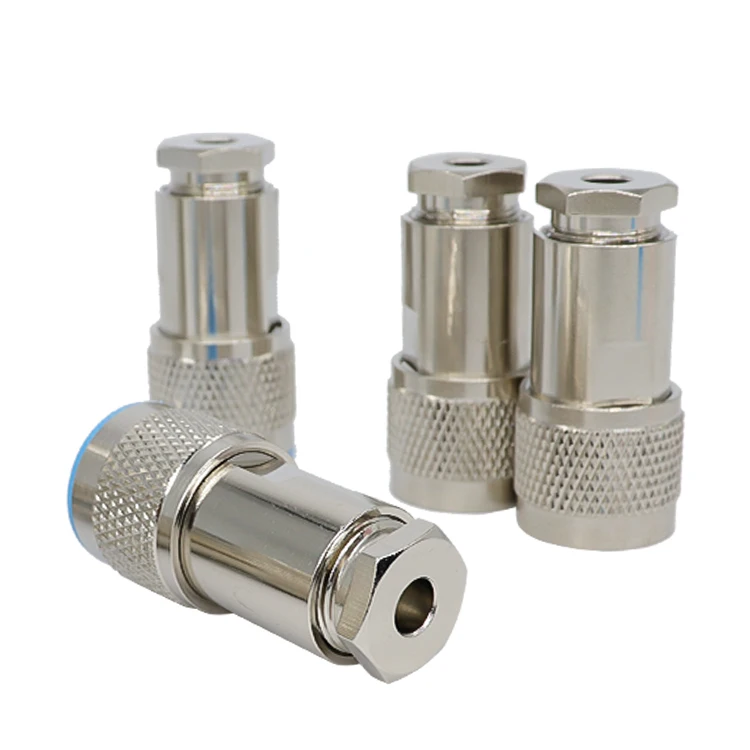

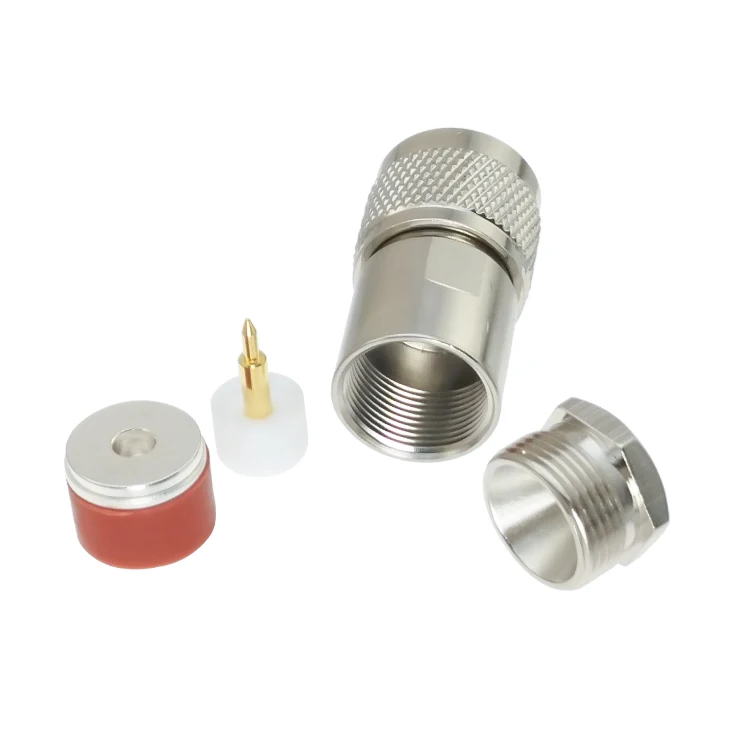

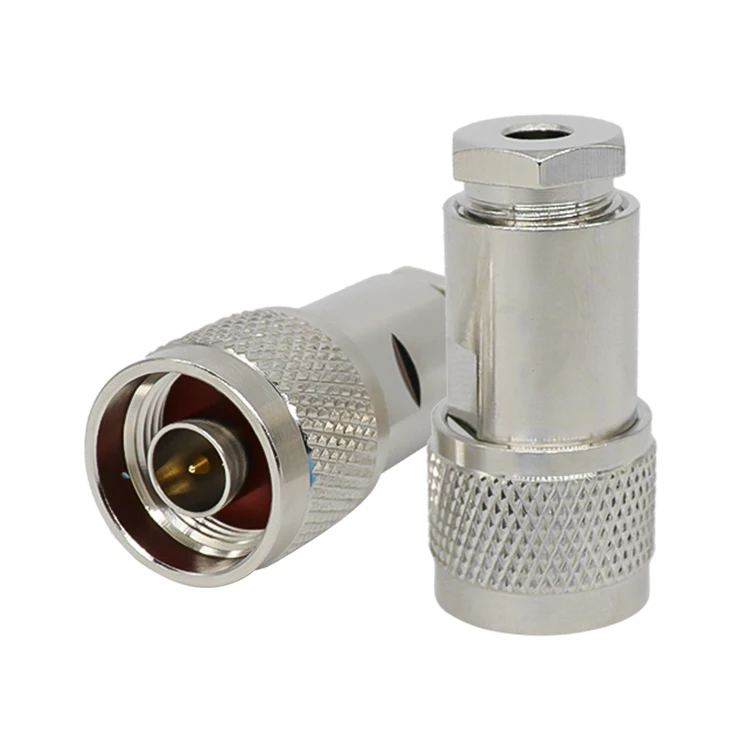

N Male Plug Crimp RG58 RG142 LMR195 RG400 Coaxial Cable Straight Connector
- Category: >>>
- Supplier: Shenzhen Hongsense Technology Co. Ltd.
Share on (1600460668727):
Product Overview
Description
Product Description
Specification
Electrical Performance | ||
Impedance | 50 Ohms | |
Frequency Range | DC-11GHz | |
Voltage Rating | 500V | |
Dielectric Withstanding Voltage | 1500V | |
VSW Straight: Right-Angle: | 1.25@6GHz Max. 1.3@6GHz Max. | |
Contact Resistance Center contact: Outer contact: | 1.50m Ohms Max. 1.00m Ohms Max. | |
Insulation Resistance | 5000Mohms | |
Insertion Loss | 0.24dB @ 3GHz Max. | |
Material Specifications | ||
Bodies | Nickel-plated Brass | |
Pin Contact | Gold-plated Brass | |
Socket Contact | Gold-plated Beryllium copper | |
Insulator | PTFE(Telfon) | |
gasket | Silicone Rubber | |
Crimp Ferrule | Copper alloy | |
Durability | 500matings | |
Environmental Date | ||
Temperature Range | -65~+165 | |
Thermal Shock | MIL-STD-202 methord | |
Vibration | 100m/s, 10g | |
Water Proof | Heat shrink tube or Silicone Rubber Gasket | |
Corrosion | 5% salt-solution 48Hours Min. | |
IP | 67 | |
