Product Overview

Description

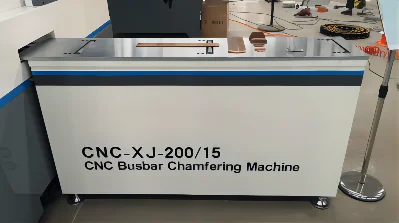

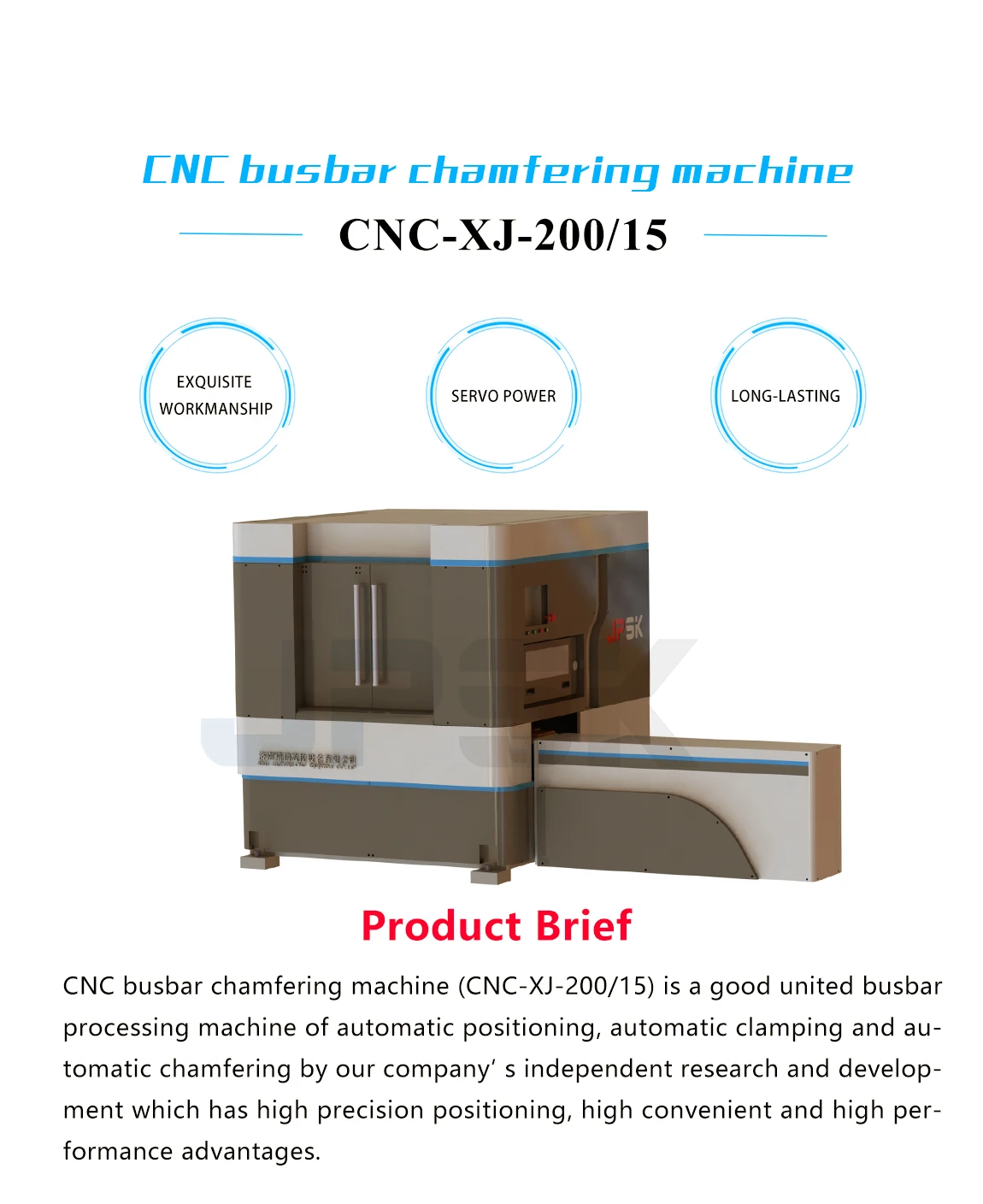

CNC Bus Bar Chamfering (Arc Milling) Machine(CNC-XJ-200/15) is a good united busbar processing machine automatic positioning,automatic clamping and automatic chamfering by our company’s independent research and  development which has high precision positioning ,high convenient and high preformance advantages.





 Main Characters:

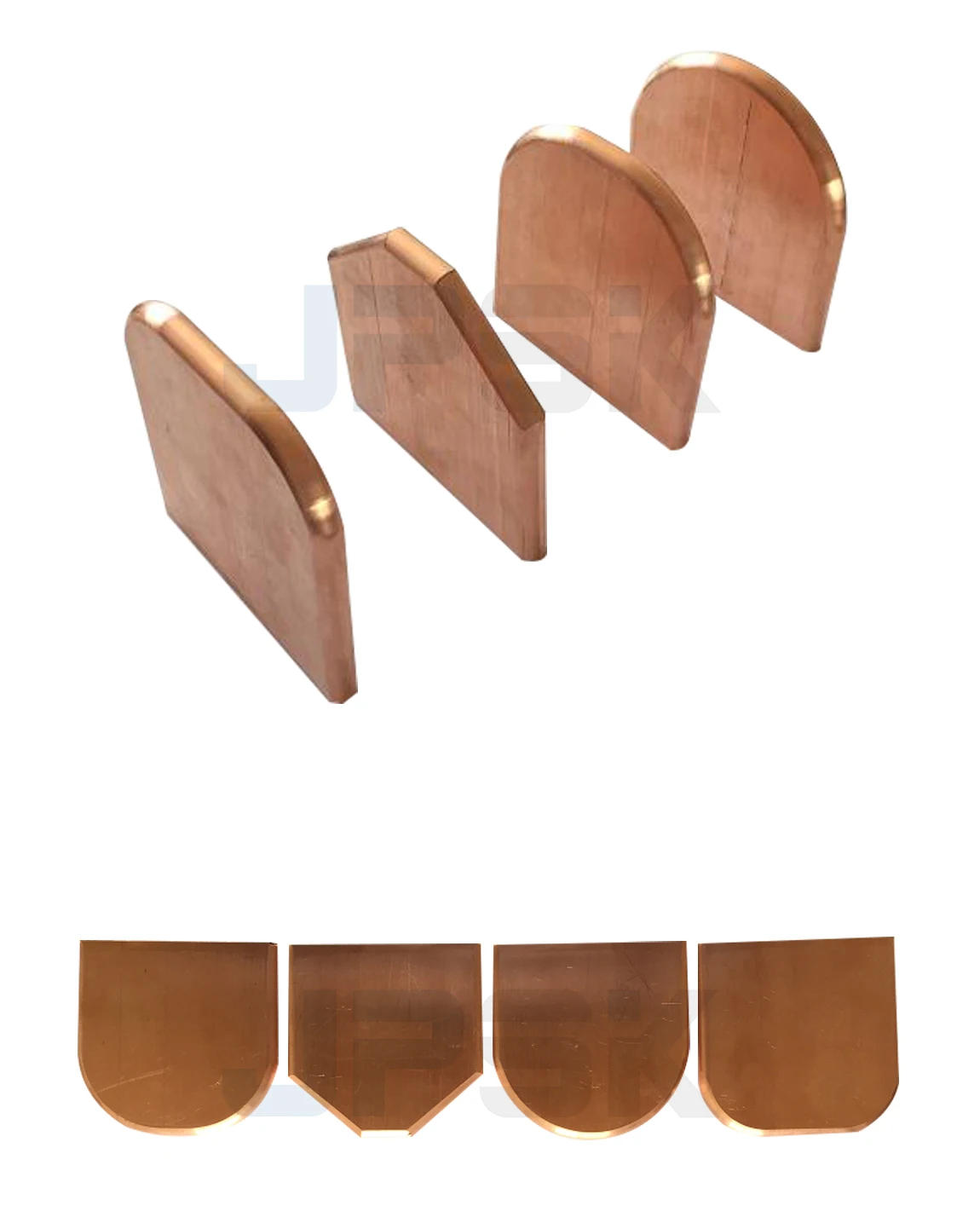

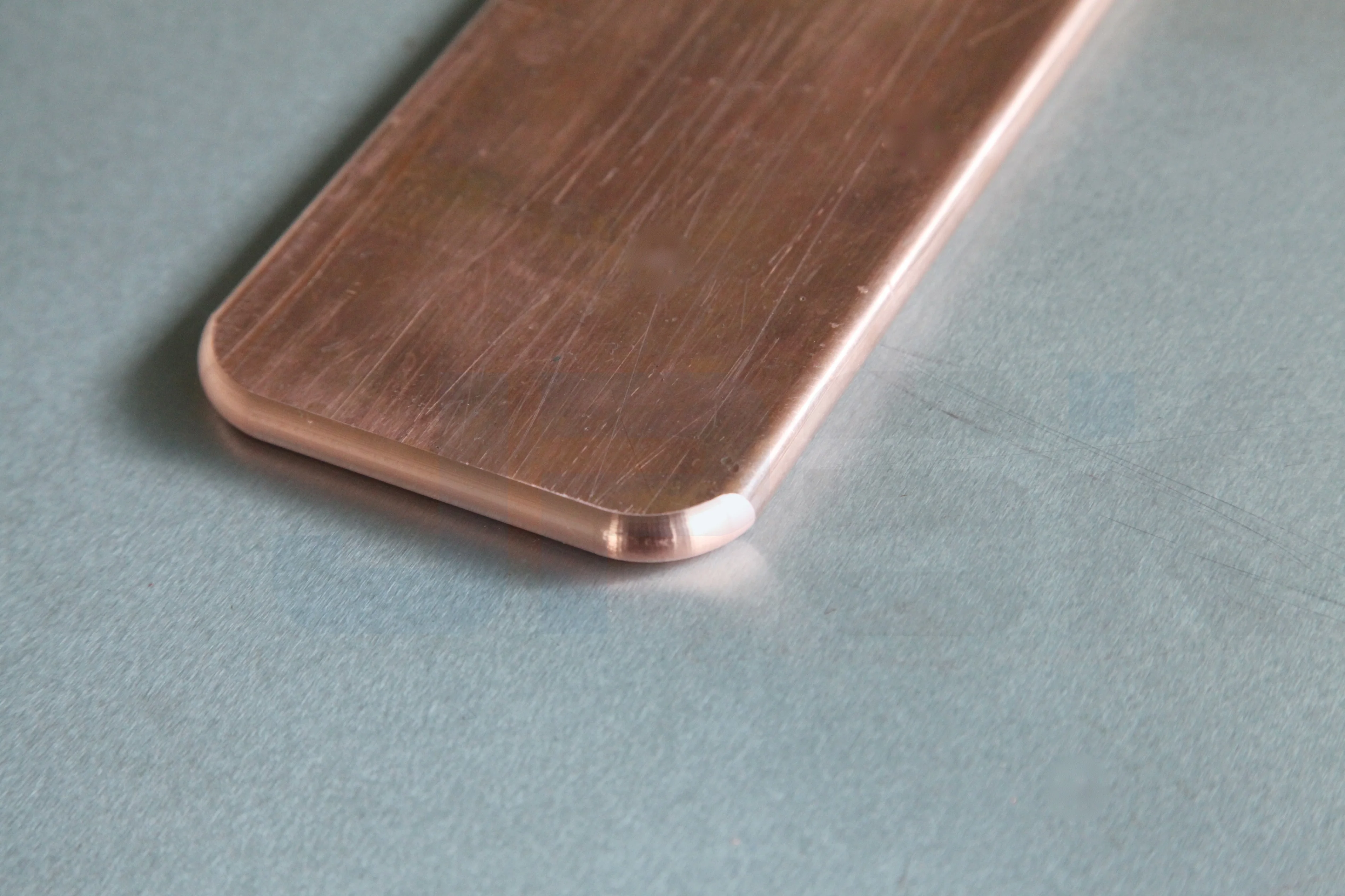

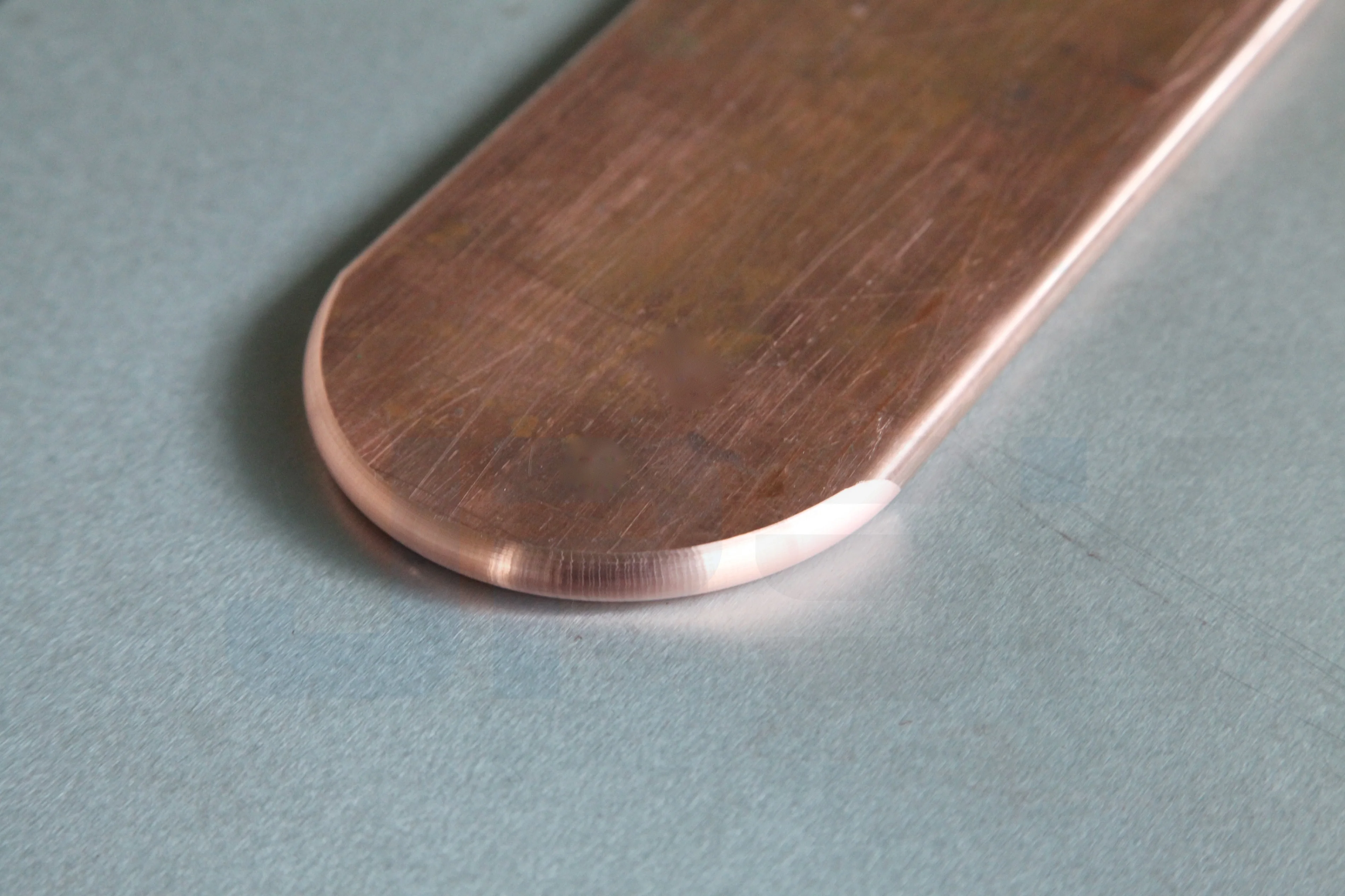

1. This busbar chamfering machine can make automactic arc processing for various common busbar.

2. The automatic alignment technology makes the jig always align the center line of the busbar indenter.

3. The indenter plate adopt 4-axis positioning, which insures the good combination of the busbar and the indenter, make the best chamfering effect.

4. Adopt international standard BT40 tool holders, easy to change, good rigid, high accuracy.

5. X, Y axis adopts high power Panasonic AC servo motor, Taiwan HIWIN ball screw and linear guide transmission, low noise, low vibration.

6. Adopt touch-sreen program software, programming automation. No need to understand the G code, just input the parameters according to the graphics you want to chamfer, the system will automatic generate the internal processing code, then it works.
