Product Overview
Description
Prices vary by configuration, for more details please contact the customer service.
Products Description

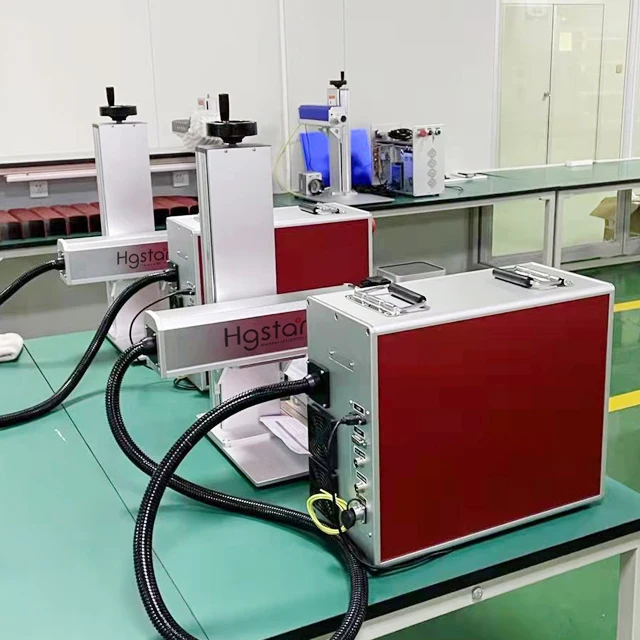

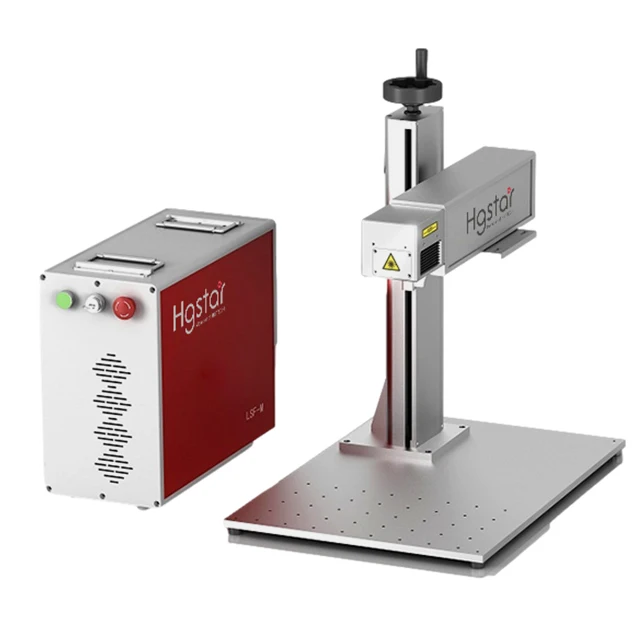

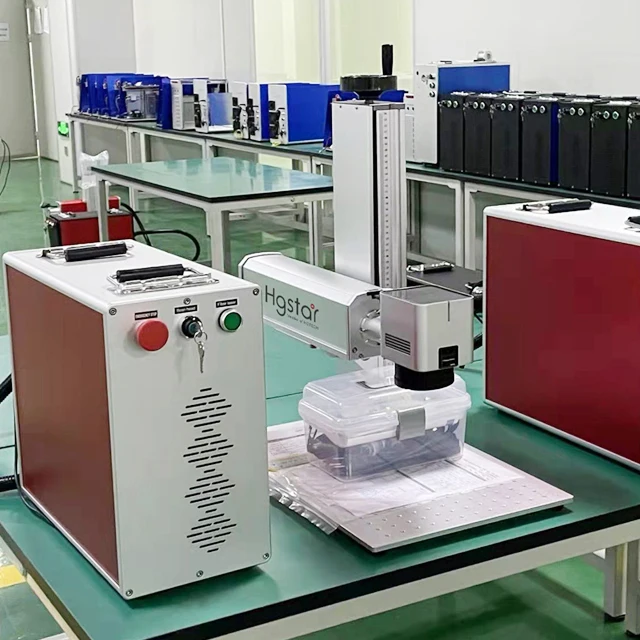

With compact size and flexible processing,SMART - HM Portable Fiber Laser Marking Machine has ditinctive performance for fast laser marking tasks.The light-sealed optical block do well in dust-proof and anti-vibration. The small cabinet can be highly integrated into the production line. The portable fiber laser marking machine makes your efficient marking unconstrained.
Product Paramenters
No. | Description | Parameters |
1. | Name | Laser Marking Machine |
2. | laser power | 10W/20W/30W |
3. | Wave length | 1060nm |
4. | Marking Material | Metal, alloy, HDPE, film, smart card, etc |
5. | laser repetition rate | ≤ 100 KHZ |
6. | Standard Marking Scope | 110 *110 mm |
7. | Optional Marking Scope | 50 x 50/100 x 100/150 x 150mm |
8. | Marking Depth | 1.2mm |
9. | Marking Speed | ≤ 12000mm/s |
10. | Minimum line Width | 0.01mm |
11. | Minimum character | 0.05mm |
12. | Repeated accuracy | ±0.001mm |
13. | Power supply | 0.5KW/AC220V/50Hz |
14. | Cooling type | Air cooling |

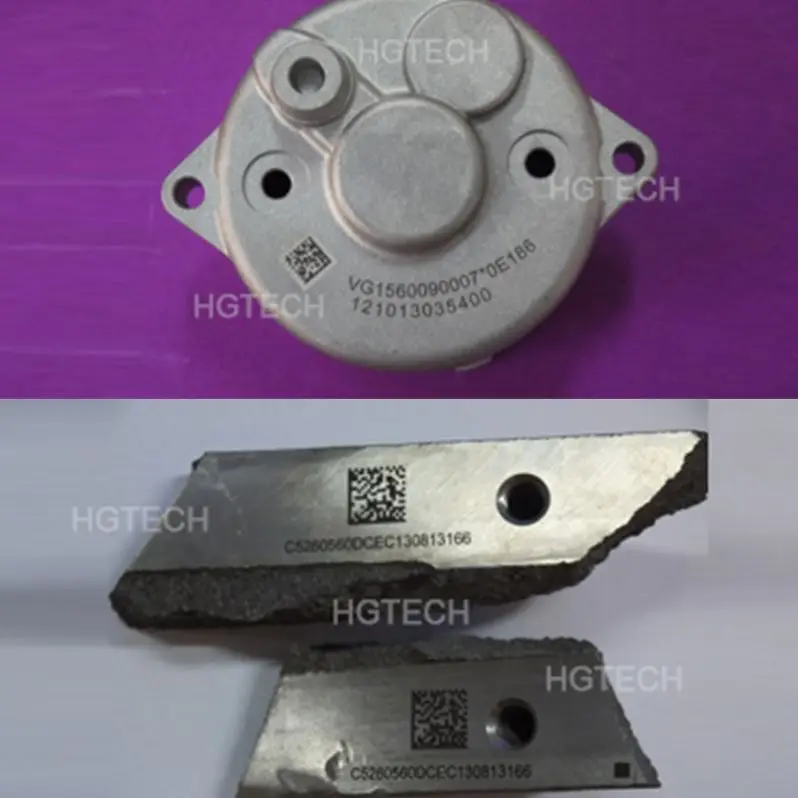

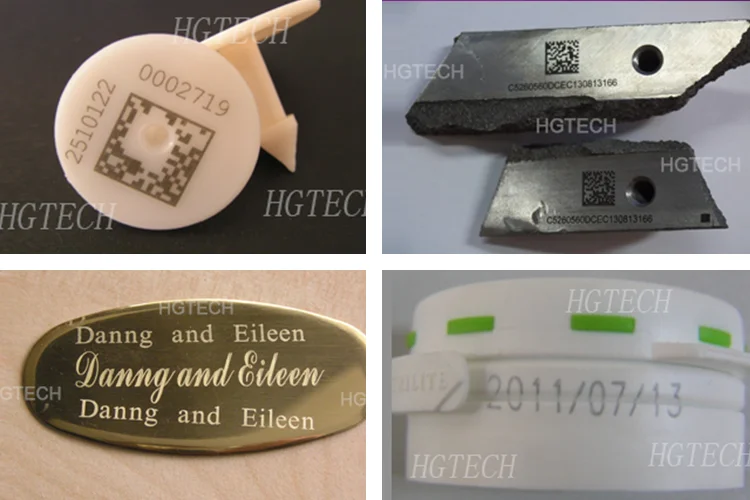

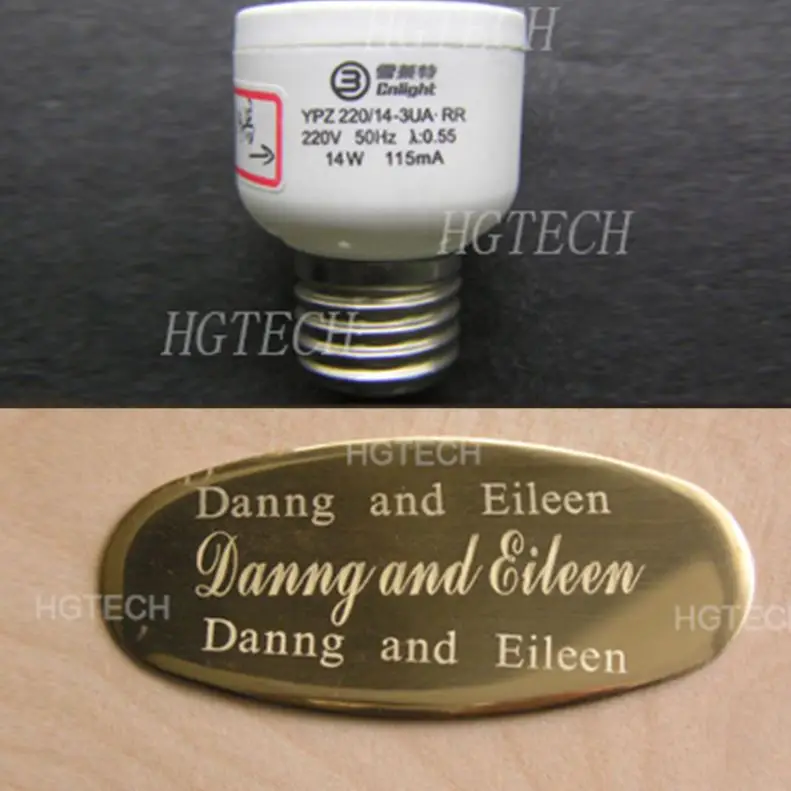

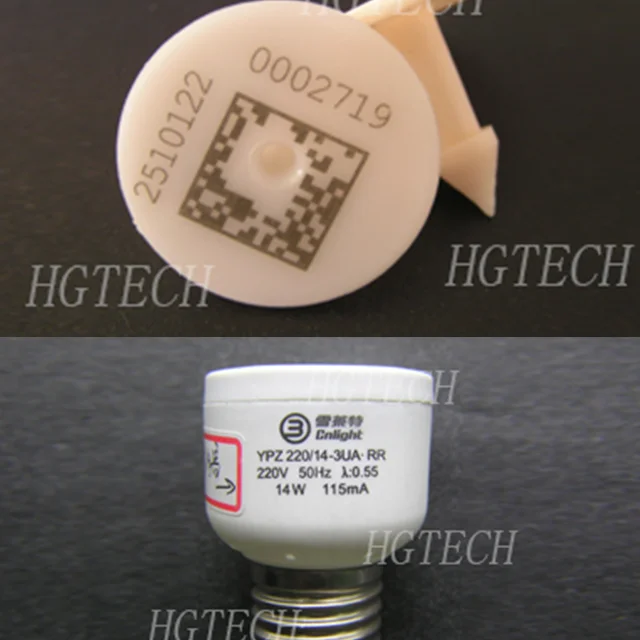

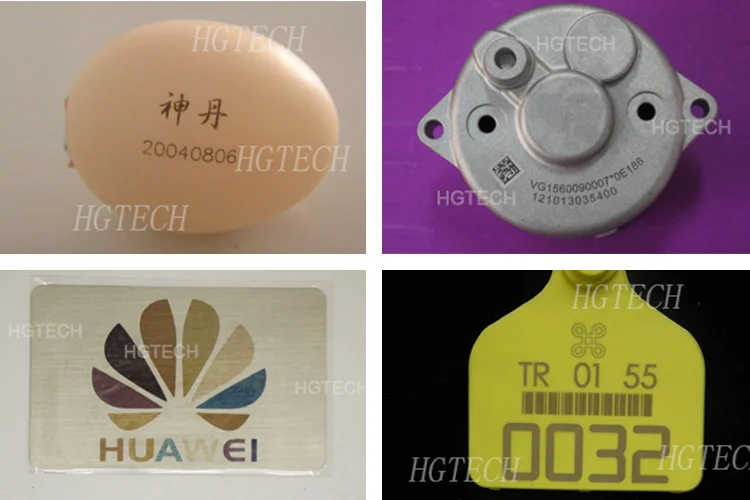

Marking Samples
Samples
Applicable to cutting carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
Service Delivery Process
1
Machine Inspection
2
Component Fixing
3
Protective Film Wrapping
4
Wooden Boxseal
5
Edge Reinforcement
6
Separate Packaging
7
Lifting Rail Transfer
8
Container Loading
9
Transportation
