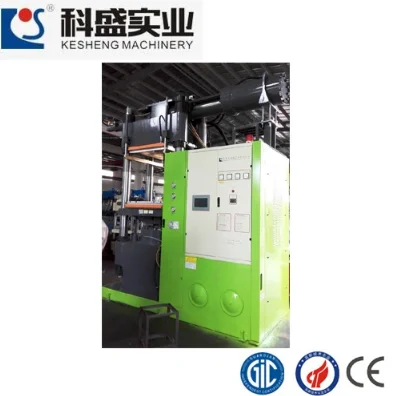

First in first out horizontal silicone injection molding machine for Rubber Silicone Products

First in first out horizontal silicone injection molding machine for Rubber Silicone Products

Category: Other Plastic & Rubber Machinery >>>
Supplier: Dongguan Kesheng Intelligent Equipment Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

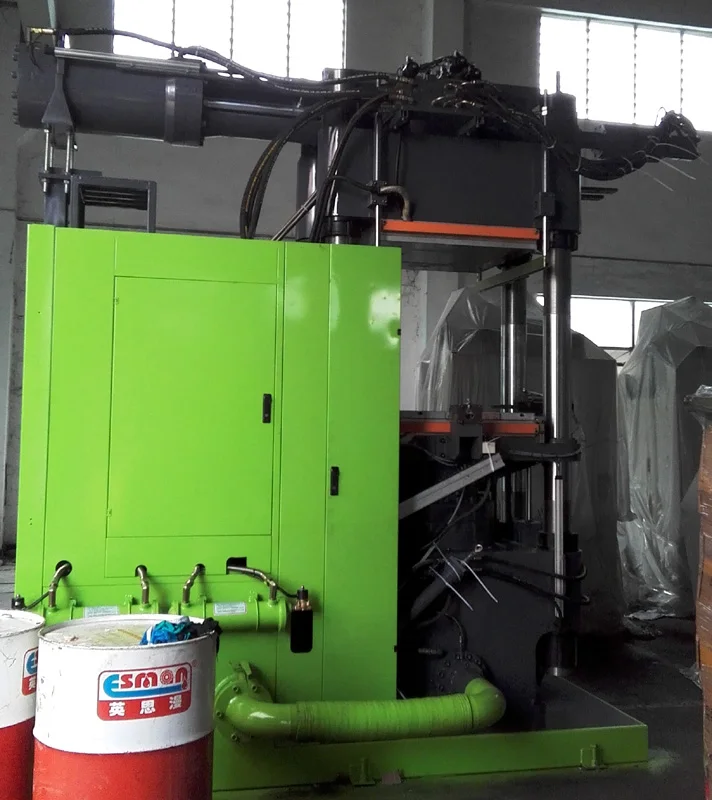

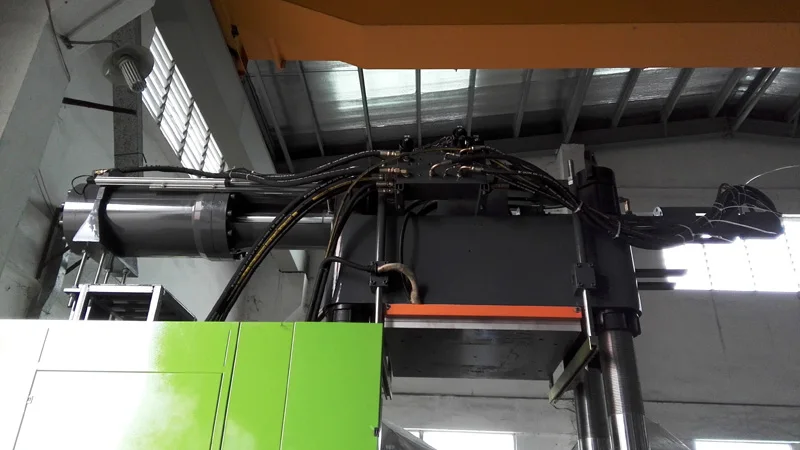

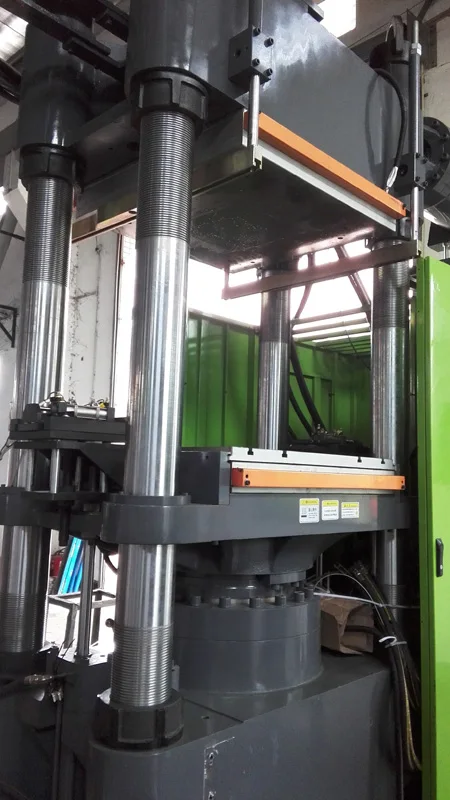

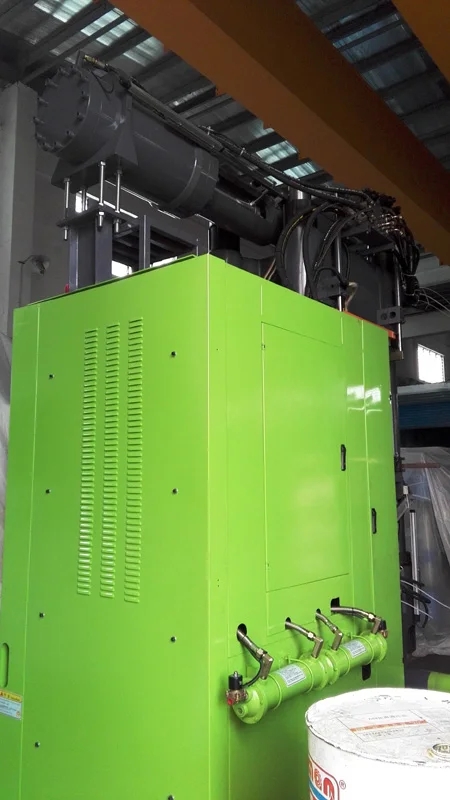

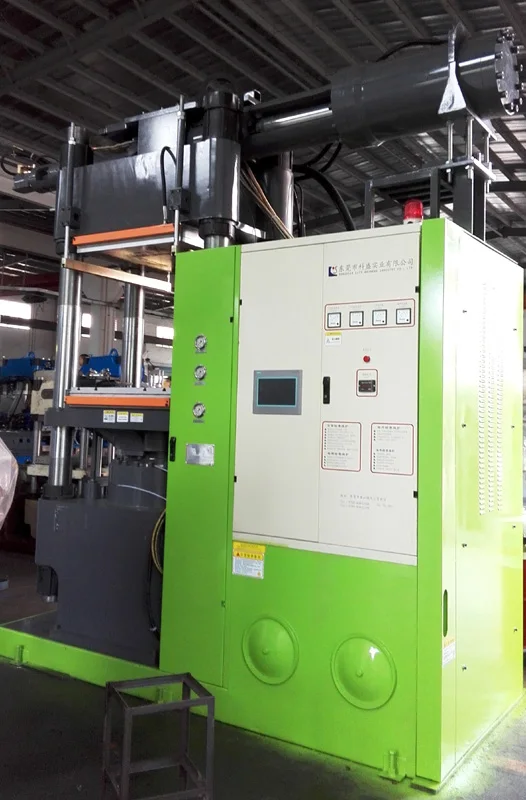

400TON First in last out horizontal injection molding machine, full automatic, hign precision, 3 layer mould open style large plate injection machinery.

Machine main feature:
1. Full-scale oil system
2. Streamlined no dead material back check valve design
3. A full range of computer display control system
4. Precision optical ruler control injection quantity, matching with three-stage injection control
5. With Japan made high-tech infrared safety electric eye
6. Double helical loop temperature control system
7. Multi-stage design to eliminate bubbles during feeding material
8. Can match with cold and hot runner for run material model
9. Silicone large capacity feeding barrel, can feed material 20kg-25kg one-time

Applicable products:
Applied to silicone craft products, electrical insulation products, sex products, medical products, sporting products, cookware.

Parameter

Main parts instruction for Rubber Injection machine

NO.	Item	Branch/Material	Remarks
1	Motor	Taiwan Tatung	Large torque type, quiet and silent
2	Oil Pump	Japan YUKEN	Collective style circuit design
3	PLC	Germany's Siemens	Independent written, easy to operate
4	LCD touch screen	Germany's Siemens	Clear and intuitive, convenient, easy to operate
5	Heating pipes	Taiwan branch	Nickel-chromium alloy wire, never rust
6	Oil seal	Japan NOK	Wear-resistant, durable, no leakage
7	Solenoid valve	Northman	Controlled fast, long life
8	Other electrical configuration	Germany's Siemens	Performance and stability
9	Thermocouple Module	Germany's Siemens	Using PID correction, temperature uniform distribution, the error value at ± 3 ºC
10	Pressure sensor	Denmark TRAFAG	Conduction pressure accurate, unbiased, and easy to use
11	Heating control system	Taiwan Solid State Relays	temperature uniform distribution, the error value at ± 3 ºC
12	Machine body casting	FCD50 Ductile Iron	Aging passivation, high tensile strength
13	Column	Carbon Steel	Hardness up to HRC55--58
14	Screw barrel	Zhejiang Huaye
15	Proportional flow pressure valve	Japan YUKEN	Specific pressure ratio flow control system, precise control of flow and pressure
16	Digital modules Analog Modules	Germany's Siemens	Can accurately input and output

Applicable products:
Applied to silicone craft products, electrical insulation products, sex products, medical products, sporting products, cookware.

Parameter:

Model	KSA-200T	KSA-300T	KSA-500T
Clamping force(Ton)	200	300	500
Stroke(mm)	480	550	650
Heating plate size(mm)	503*508	580*600	750*700
Main cylinder diameter(mm)	350	450	560
Injection volume	2000	3000	10000
Electrical power(KW)	16	18	27
Horse power(HP)	15	20	30
Gross weigt(KG)	6000	86000	13800
Machine size(LWH mm)	340022602400	350023602500	490029003100
