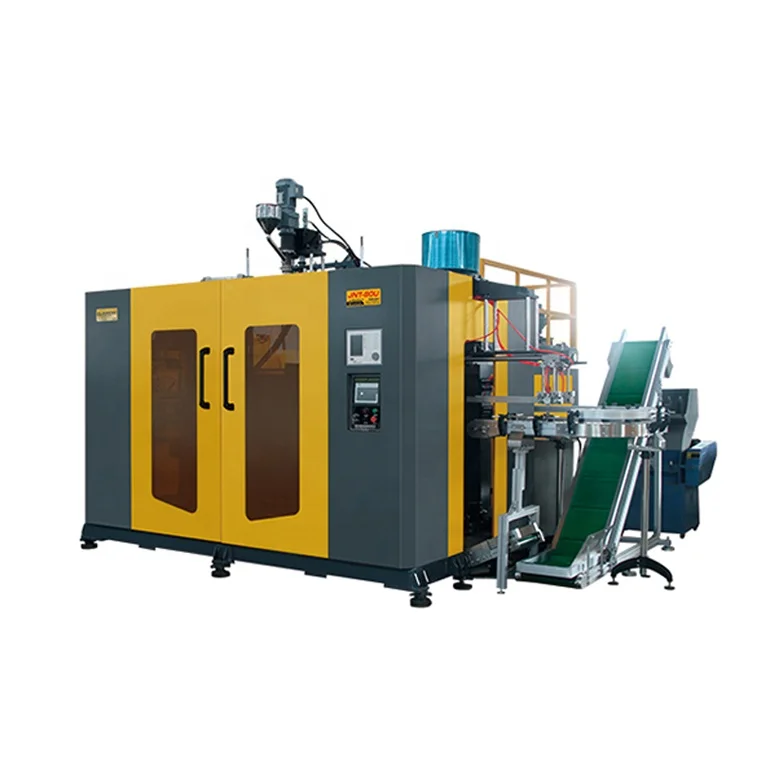

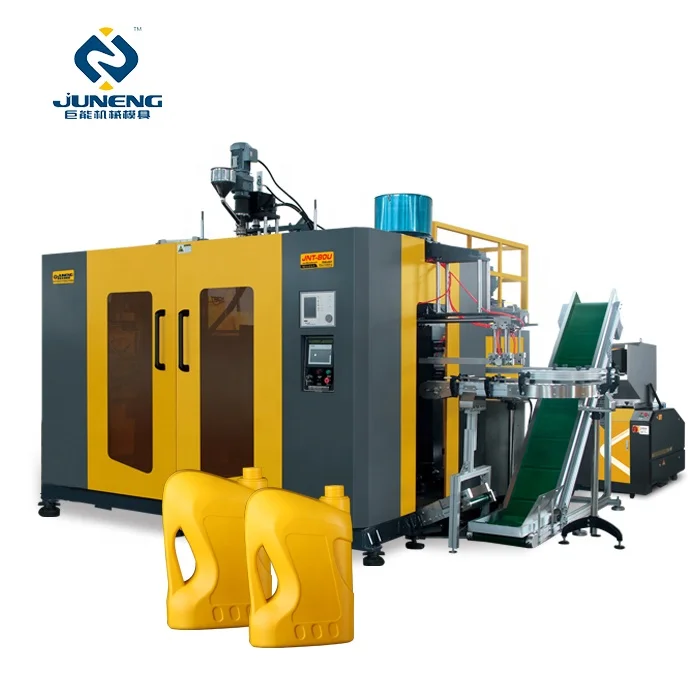

5L 10L Plastic bottles Making Machine full automatic extrusion blow molding JNT 90U
- Category: >>>
- Supplier: Taizhou Huangyan Juneng Machine & Mould Co. Ltd.
Share on (1600460676480):
Product Overview
Description
90U 10L Plastic Pallets Making Machine For Detergent Containers
| Max. Product Volume | L | 12L/1;5L/2 |
| Dry cycle | PC/H | 600x2 |
| Screw diameter | MM | 90 |
| screw L/D ratio | L/D | 25 |
| screw motor power | KW | 37 |
| screw heating capacity | KW | 6.8 |
| No. of heating zone | Zone | 4 |
| output of HDPE | KG/H | 130-150 |
| oil pump driver power | KW | 18.5 |
| clamping force | KN | 160 |
| mold stroke | MM | 240-600 |
| size of mold(W*H) | MM | 550x500 |
| Moving distance | MM | 600 |
| Max. Die diameter(W*H) | MM | 220 |
| Die heat capacity | KW | 3.5-5.3 |
| Blowing pressure | MPA | 0.6-0.8 |
| Air volume | M3/Min | 0.8 |
| Cooling water pressure | MPA | 0.5 |
| water consumption | L/Min | 80 |
| weight of machine | Ton | 12 |
| size of machine | M | 4.5x3.3x2.8 |
