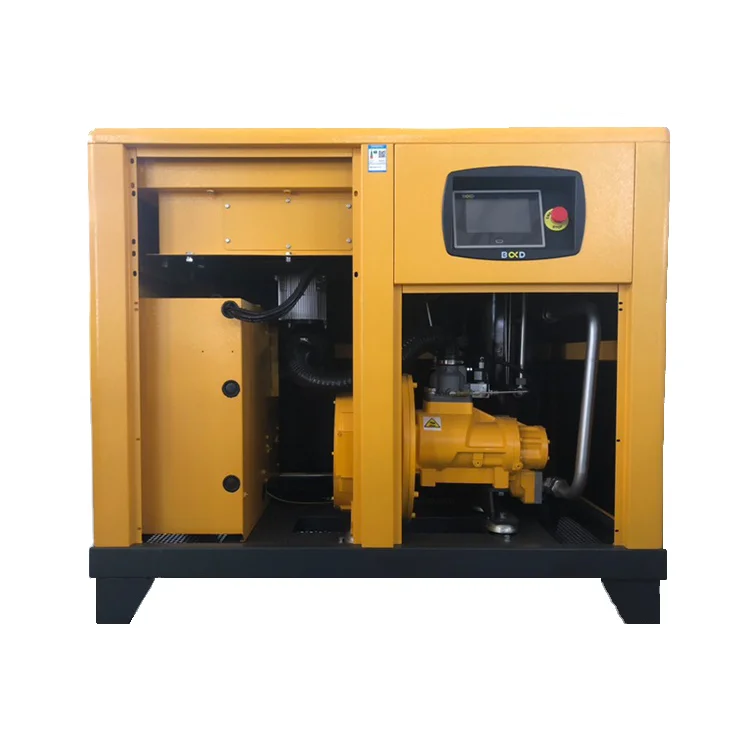

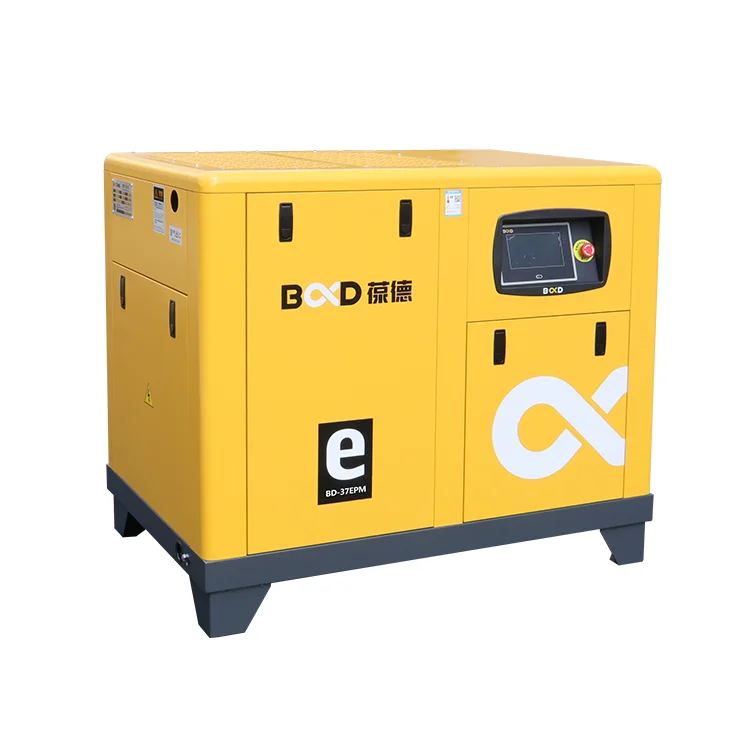

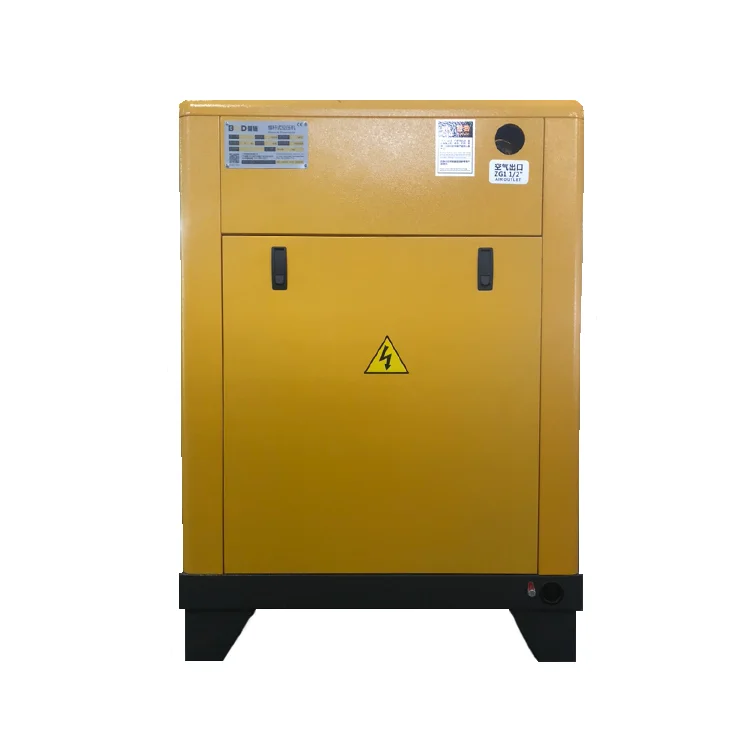

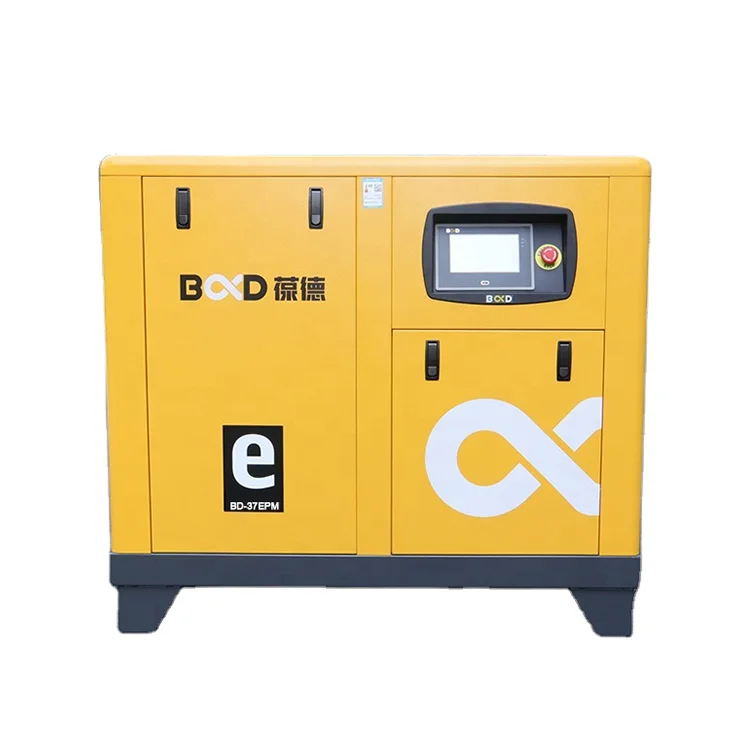

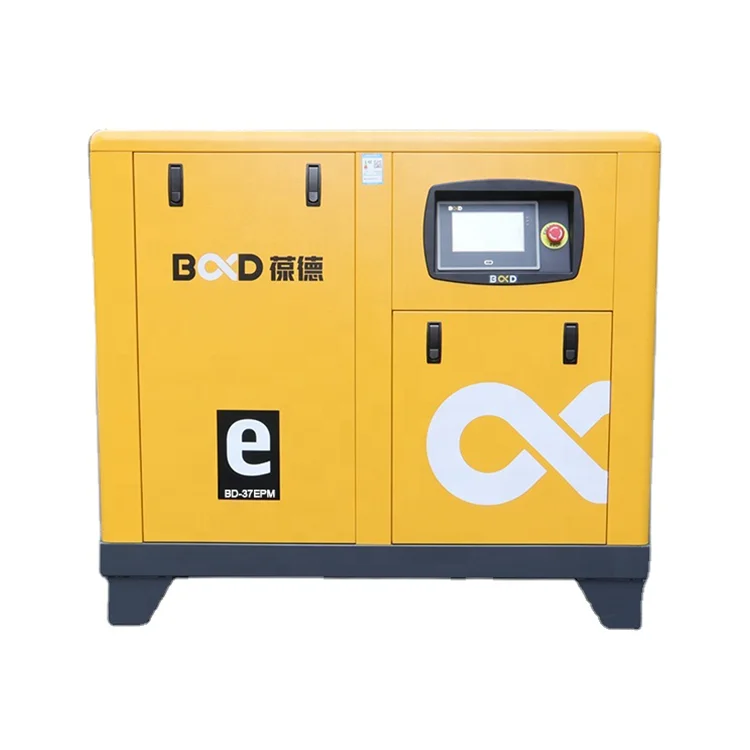

BD 37EMP Air Compressor Specification 37KW 30 Litre Air Compressor Smart Air Compressor
- Category: >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (1600460688010):
Product Overview
Description
Intelligent PM VSD Screw Air Compressor
EPM Series
EPM Series
●With lots of technology patents.
●Remote control system provided.
●With latest air end and one-shaft structure make it more compact,stable and effective.
●High-efficiency PM motor saves about 6-7% more energy comparedwith 3 phase asynchronous motor.
●Due to the intelligent VSD technology,this air compressor saves42% more energy than a fixed speed one.
Digital Management System
0ur digital management “B&DCloud”", which contains powerful functions and built-in perfect algorithm,is equipped in all models of EPM series torealize real-time digital management and humanized operation of compressors.
0ur digital management “B&DCloud”", which contains powerful functions and built-in perfect algorithm,is equipped in all models of EPM series torealize real-time digital management and humanized operation of compressors.

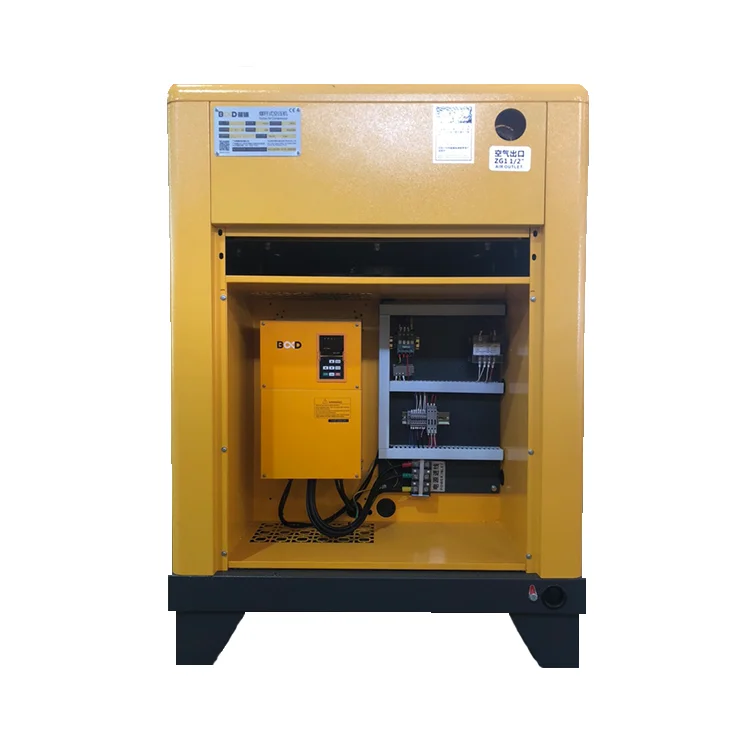

VSD + Electric Cabinet
VSD+ compressors are more energy-saving. The electronic components are cooled well, so the service lifetime are longer.And the inverter isinstalled separately from other electronic control parts, so it is with good heat dissipation.
Permanent Magnet Variable Frequency Motor
Automatic control of power consumption,
Energy-saving control can significantly reduce operating costs.
Automatic control of power consumption,
Energy-saving control can significantly reduce operating costs.
Twin Screw Host
High-quality screw host, high efficiency, low speed
Low noise, low energy consumption, low maintenance cost.
High-quality screw host, high efficiency, low speed
Low noise, low energy consumption, low maintenance cost.
High Efficiency Oil Separator
Upright oil separation tank design, low oil content loading/unloading
Reduce the loss of compressed air during the cycle.
Upright oil separation tank design, low oil content loading/unloading
Reduce the loss of compressed air during the cycle.
Efficient cooling system
High heat dissipation efficiency to ensure continuous operation in high temperature and high humidity environment.
High heat dissipation efficiency to ensure continuous operation in high temperature and high humidity environment.
Reliable Air Filter
It can filter the tiny solid particles in the air to ensure the normal operation and service lifetime of the equipment.
It can filter the tiny solid particles in the air to ensure the normal operation and service lifetime of the equipment.
Model FAD(m³/min) Pressure(Mpa) | BD-7.5EPM | BD-11EPM | BD-15EPM | BD-22EPM | BD-30EPM | BD-37EPM | BD-45EPM | BD-55EPM | |||||||||
0.7/0.6-0.8 | 0.54~1.35 | 0.72~1.8 | 1.04~2.6 | 1.52·3.8 | 2.08~5.2 | 2.72~6.8 | 3.36~8.4 | 4.4~11.0 | |||||||||
1/0.85-1 | 0.41~1.03 | 0.54~1.34 | 0.83~2.07 | 1.28~3.21 | 1.78~4.45 | 2.28~5.69 | 2.9~7.24 | 3.56~8.9 | |||||||||
1.25/1.1-1.25 | 0.33~0.83 | 0.41~1.03 | 0.7~1.76 | 1.12~2.79 | 1.57~3.39 | 2.03`5.07 | 2.48~6.21 | 3.14~7.86 | |||||||||
Ambient Temperature | ℃ | -5-+40℃ | |||||||||||||||
Cooling Mode | Air-Cooling | Air-or Water-Cooling | |||||||||||||||
Discharge Temperature | ≤10℃Environment Temp+ 10℃<40℃ | ||||||||||||||||
Lubricant | Liter | 4 | 9 | 16 | 20 | 30 | 55 | ||||||||||
Noise | dB(A) | 62±2 | 65±2 | 68±2 | |||||||||||||
Driven mode | Permanent Magnet Synchronous | ||||||||||||||||
Electricity ( v/ph/Hz) | 220V/380V/415V/440V/460V/480V/3ph/50Hz/60Hz | ||||||||||||||||
Power | KW | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | 55 | ||||||||
Starting mode | VSD Starter | ||||||||||||||||
Dimension mm | Length | 900 | 1020 | 1250 | 1450 | 1600 | |||||||||||
Width | 600 | 710 | 800 | 900 | 1150 | ||||||||||||
Height | 820 | 1020 | 1120 | 1250 | 1370 | ||||||||||||
Weight | kg | 190 | 286 | 300 | 430 | 580 | 585 | 780 | 950 | ||||||||
Air Outlet Pipe Diameter inch | ZG1" | ZG1/4" | ZG2" | ||||||||||||||
Model FAD(m³/min) Pressure(Mpa) | BD-75EPM | BD-90EPM | BD-110EPM | BD-132EPM | BD-160EPM | BD-185EPM | BD-220EPM | BD-250EPM | |||||||||
0.7/0.6-0.8 | 5.44~13.6 | 6.72~1.68 | 8.6~21.5 | 9.6~24 | 11.88~29.7 | 13.44~33.6 | 16.16~40.4 | 18.4~46 | |||||||||
1/0.85-1 | 4.8~12 | 5.63~14.07 | 7.12~17.79 | 8..48~21.21 | 10.14~25.34 | 11.59~28.97 | 13.32~33.31 | 15.64~39.1 | |||||||||
1.25/1.1-1.25 | 4.14~10.34 | 5.05~12.62 | 6.12~15.31 | 6.95~17.38 | 8.48~21.21 | 9.93~24.83 | 11.79~29.48 | 13.66~34.14 | |||||||||
Ambient Temperature | ℃ | -5-+40℃ | |||||||||||||||
Cooling Mode | Air-or Water-Cooling | Air-or Water-Cooling | |||||||||||||||
DischargeTemperature | ℃ | ≤10℃Environment Temp+ 10℃<40℃ | |||||||||||||||
Lubricant | Liter | 65 | 9 | 90 | 16 | 120 | 30 | 144 | |||||||||
Noise | dB(A) | 68±2 | 75±2 | 78±2 | |||||||||||||
Driven mode | Permanent Magnet Synchronous | ||||||||||||||||
Electricity ( v/ph/Hz) | 220V/380V/415V/440V/460V/480V/3ph/50Hz/60Hz | ||||||||||||||||
Power | KW | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | 55 | ||||||||
Starting mode | VSD Starter | ||||||||||||||||
Dimension mm | Length | 900 | 1020 | 1250 | 1450 | 1600 | |||||||||||
Width | 600 | 710 | 800 | 900 | 1150 | ||||||||||||
Height | 820 | 1020 | 1120 | 1250 | 1370 | ||||||||||||
Weight | kg | 190 | 286 | 300 | 430 | 580 | 585 | 780 | 950 | ||||||||
Air Outlet Pipe Diameter inch | ZG2" | ZG1" | DN80 | ZG1/4" | DN100 | DN125 | |||||||||||
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(30.00%),North America(28.00%),South Asia(20.00%),South America(10.00%),Africa(4.00%),Mid East(3.00%),Domestic Market(3.00%),Eastern Europe(00.00%),Southern Europe(00.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Screw Air Compressor,Scroll Air Compressor,Air Treatment Equipment
4. Why should you buy from us not from other suppliers?
20 years R&D experience
Leader in PM air compressor
On-time delivery and after-sale service
Worldwide sales network
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(30.00%),North America(28.00%),South Asia(20.00%),South America(10.00%),Africa(4.00%),Mid East(3.00%),Domestic Market(3.00%),Eastern Europe(00.00%),Southern Europe(00.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Screw Air Compressor,Scroll Air Compressor,Air Treatment Equipment
4. Why should you buy from us not from other suppliers?
20 years R&D experience
Leader in PM air compressor
On-time delivery and after-sale service
Worldwide sales network
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
