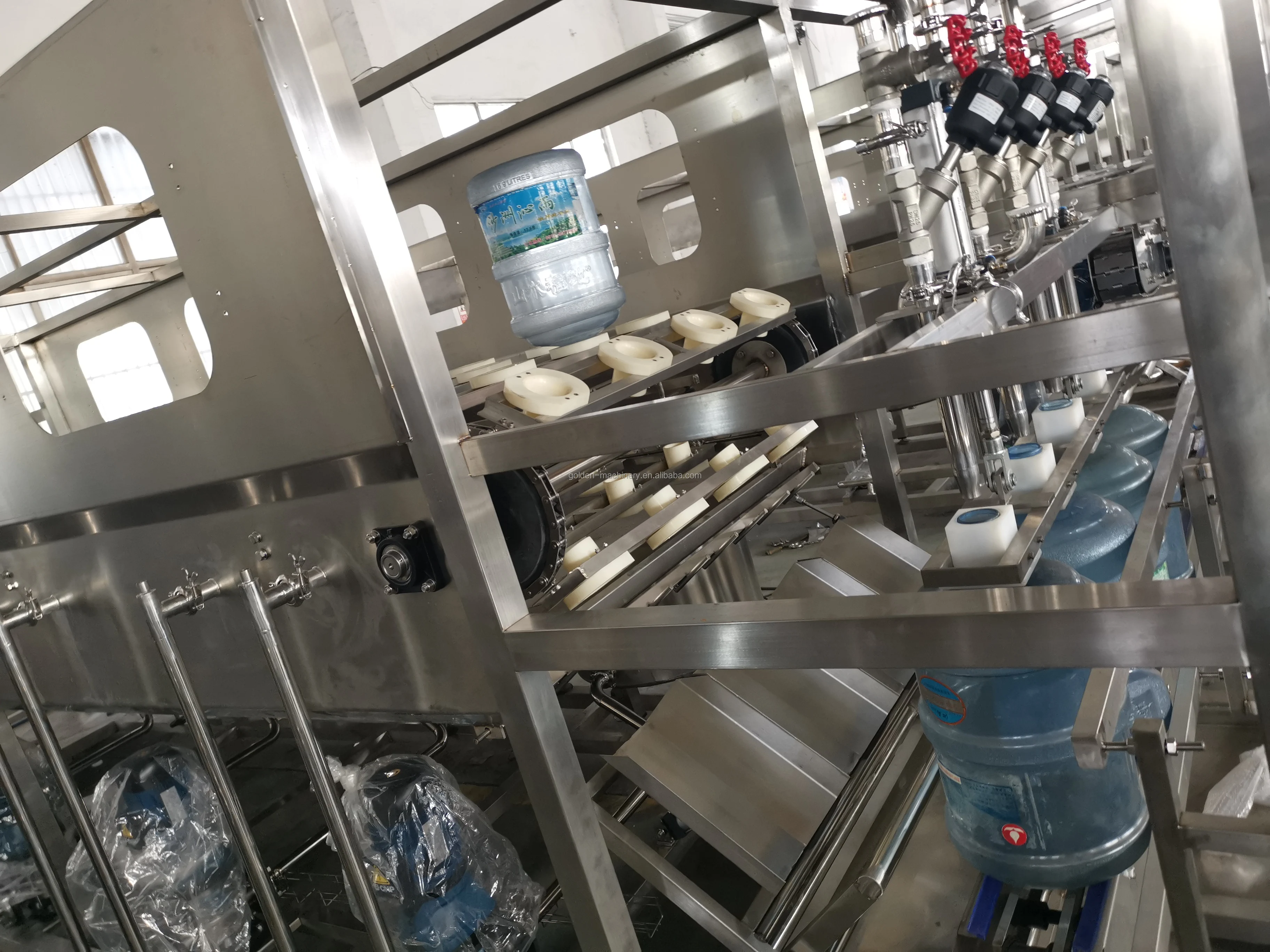

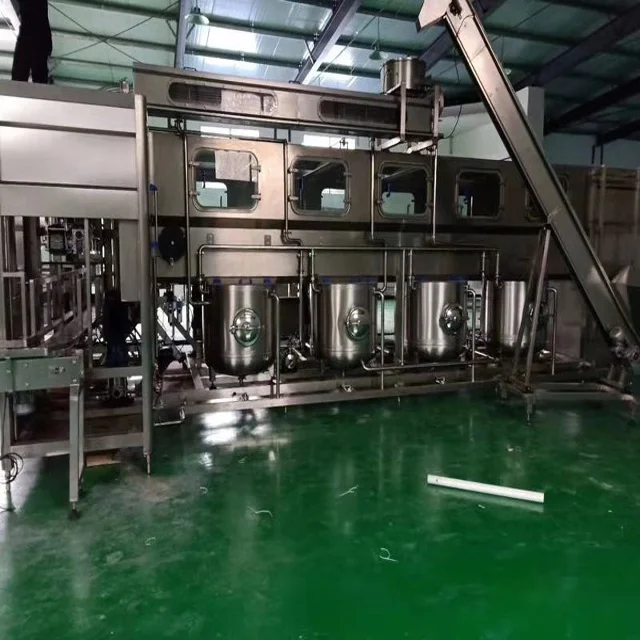

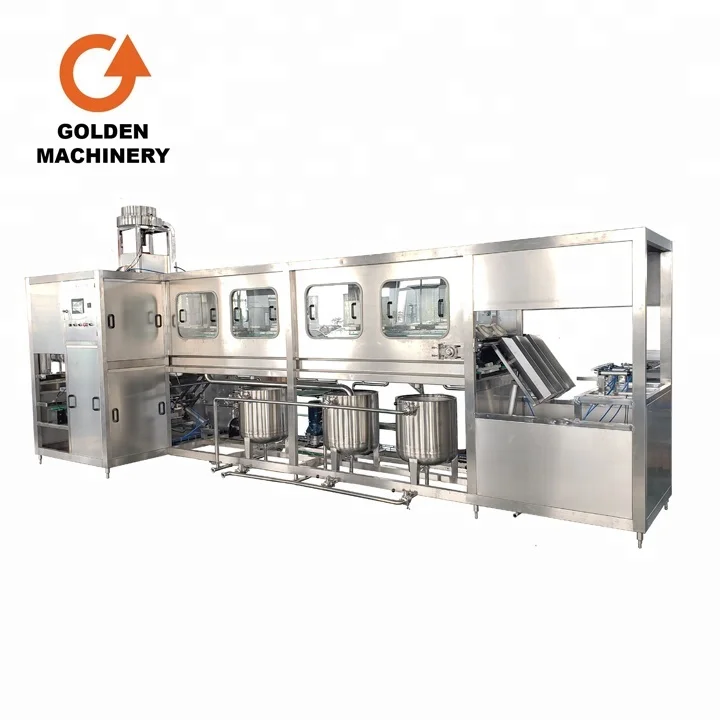

5 Gallon Drinking Water Filling Machine/18.9 liter Bottle Filling Line

Product Overview

Description

5 Gallon Drinking Water Filling Machine/18.9 liter Bottle  Filling Line

In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging. It is a new kind of barreled water auto-producting line, which integrates mechanism, electricity and pneumatics technologies together.



Main Technology Parameter:

Model	QGF-120	QGF-240	QGF-450	QGF-600	QGF-900	QGF-1200
Filling Heads	1	2	3	4	6	8
Volume(L)	18.9
Barrel Size(mm)	φ270×490
capacity(b/h)	120-150	240-300	400-450	500-600	700-800	1000-1200
Gas Pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas Consumption(m 3 /min)	0.37	0.6	0.8	1	1.2	1.5
Moto Power(kw)	1.38	1.75	3.8	7.5	9	13.5
Rated Voltage(V)	380V/50Hz
Weight(kg)	680	1200	1600	2000	3500	4500

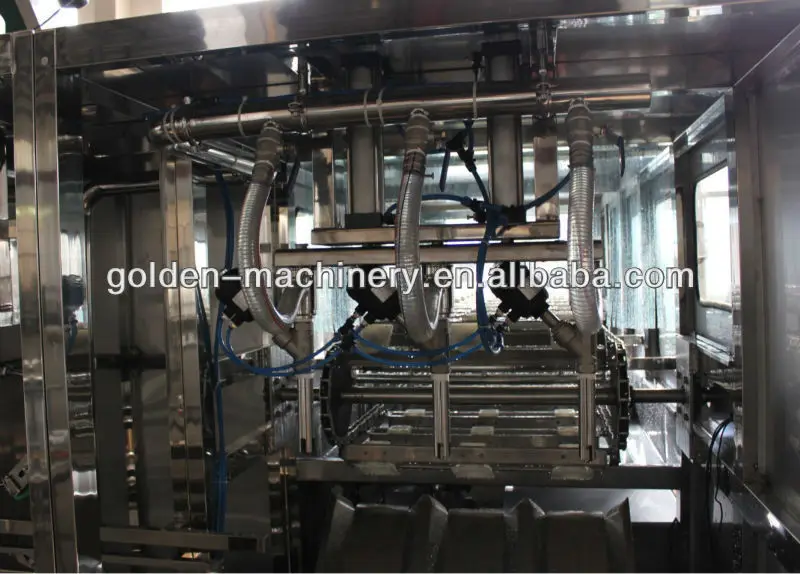

Automatic Filling System





 Automatic Washing System







 Automatic Capping System

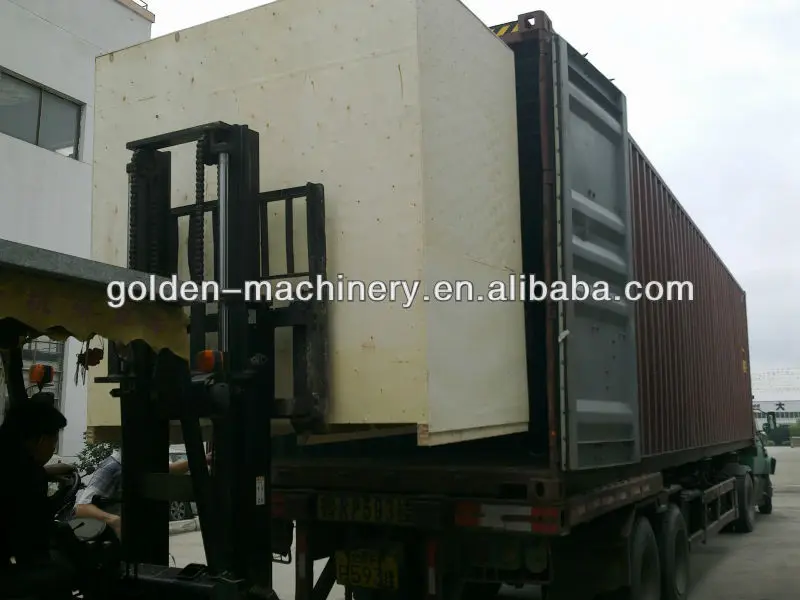

 Container Loading
