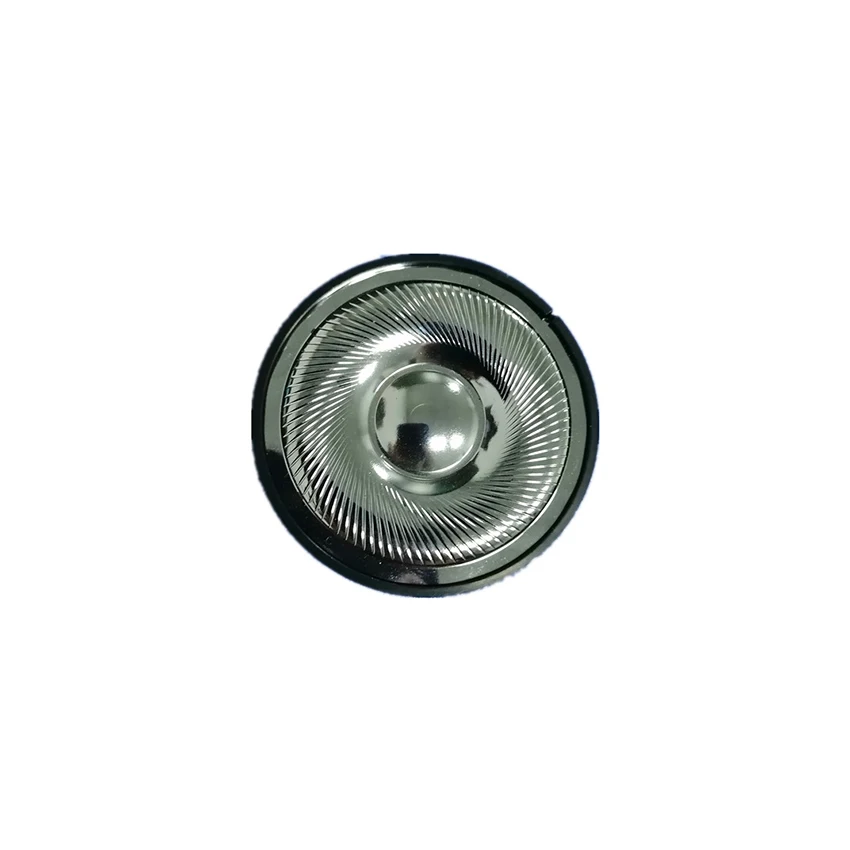

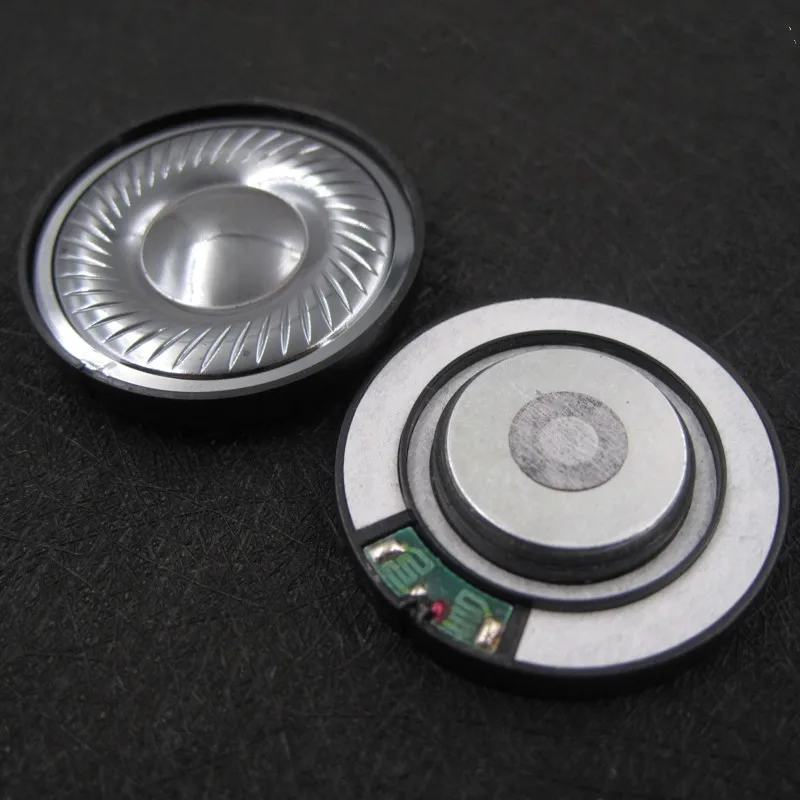

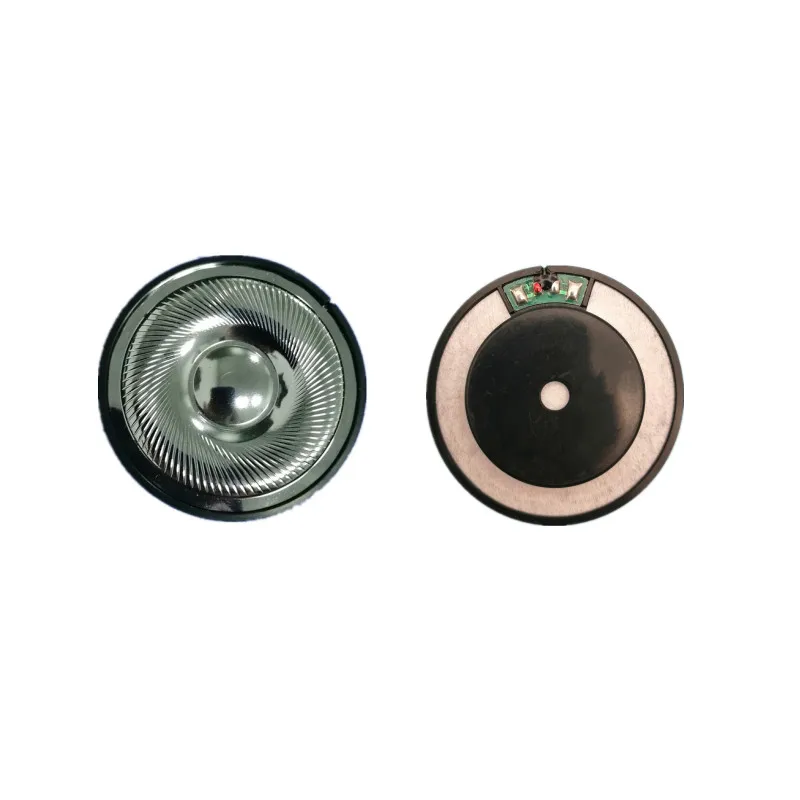

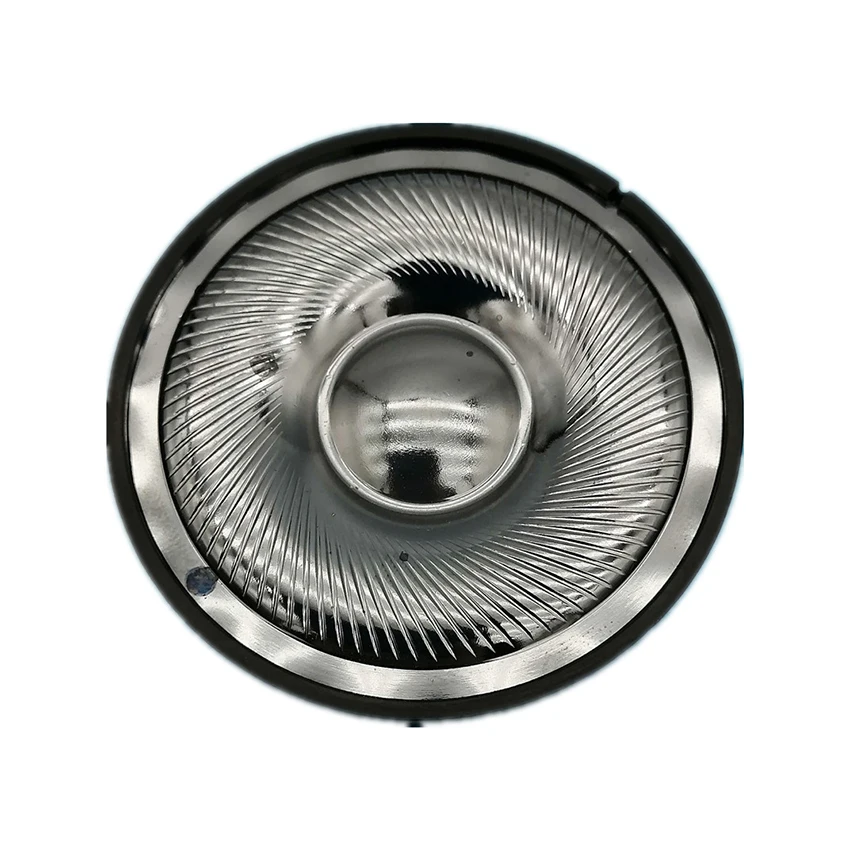

40mm Beryllium Coated Diaphragm Speaker Unit 30 Ohm 3 Way Balanced Earphones Driver
- Category: >>>
- Supplier: Zhuhai Fine Acoustics Electronic Technology Co. Ltd.
Share on (1600460702537):
Product Overview
Description
1. Diaphragm
Diaphragm of various materials. Such as PET, PEK, PEN, etc.2. Magnet
N52, N54, N48 etc as option.
3. Voice coil
Copper wire, aluminum wire, CCAW etc as option.
There are many high quality elements and electronic components. We will supply you with competitive prices and outstanding quality and best service. Customized according to your requirements.Welcome send you inquiry to us.
Product Description
Item Description | 40mm Beryllium Coated Dynamic Driver |
Transducer Type | Dynamic Driver |
Diaphragm | Ø40MM |
Buzze&Rattles | Should be 0.4V in free air at 20HZ~20KHz no noise |
Impedance | 30Ω±15% at1KHz input:1mW |
SPL (Sound Pressure Level ) | 111±3dB (0dB=20μPa) at 1mW /IEC318 |
Frequency Response Range | 200000±20%Hz, input:1mW(In free air) |
THD (Total Harmonic Distortion) | 1KHz≤2% |
Rate noise power | 5mW |
Max short term power | 10 mW |
Beryllium Coated Advantages in mass Production of Speakers
This technology is a technique to make speaker diaphragm implanted into Beryllium coated molds (the voice coil can be added in the future).
1.High consistency
Beryllium mold accuracy is much higher than that of hand-fitted cone and surround.
2.Stable quality
Production precision is achieved by machine and mold, replacing manual glue and assembly, so the quality of batches is stable.
3. Widely applied automation
Parts can be implanted and removed in an automated manner, reducing manual use.
4.Competitive cost
Higher than traditional process yields and labor-saving production can provide competitive prices.
Details Images
What is application of Beryllium Technology.
The Assembly of Process is >>1. Magnet System >>2. Vibration System >>3. magnetizing >>4. Soldering & Function Test.
What Benefit of Beryllium Technology for Speaker Building.
Beryllium material is the hardest, lightest and fastest transducer material in the existing headphone diaphragm, which can greatly extend the high frequency range and stabilize the low frequency effect, mid-frequency has high sensitivity, and decrease distortion. Ensure deep bass music.
FREQUENCY RESPONSE CURVE 1/6 OCT
DISTORITION CURVE
IMP CURVE FOR SPEAKER/Figure
Related Products
Packing&Shipping
Company Introduction
FAQ
Q1: How is your customized service?
We can customize for you from raw materials (membrane, voice coil, driver…) to finished earphone/headphone.
Q2:Can I brand my own logo?
A: Yes. Pls send us your design. 18 Years on OEM service,tracking step by step on your order.If you do not have own logo, we have professional designer can help.
Q3:Can I get sample?
A:Yes. If you want to test the quality, you can place a sample order or a small order for the first time.
We can customize for you from raw materials (membrane, voice coil, driver…) to finished earphone/headphone.
Q2:Can I brand my own logo?
A: Yes. Pls send us your design. 18 Years on OEM service,tracking step by step on your order.If you do not have own logo, we have professional designer can help.
Q3:Can I get sample?
A:Yes. If you want to test the quality, you can place a sample order or a small order for the first time.
Q4:Do you have any quality guarantee?
A: The quality warranty is 24 months. When you found defective products, please collect pictures or video and send to us. Our quality department will check what is reason. If defectives in the quality warranty range, we will arrange replacements with next orders.
Q5. What Payment Terms can we accept?
-->Payment: T/T, Western Union, Ali pay; 30% deposits, 70% balance before delivery.
-->For sample order, payment in advance 100%.
Q6. What's the standard MOQ?
-->Wholesale order : 100pcs
-->OEM Order :500pcs, some models 1000-5000pcs
A: The quality warranty is 24 months. When you found defective products, please collect pictures or video and send to us. Our quality department will check what is reason. If defectives in the quality warranty range, we will arrange replacements with next orders.
Q5. What Payment Terms can we accept?
-->Payment: T/T, Western Union, Ali pay; 30% deposits, 70% balance before delivery.
-->For sample order, payment in advance 100%.
Q6. What's the standard MOQ?
-->Wholesale order : 100pcs
-->OEM Order :500pcs, some models 1000-5000pcs
