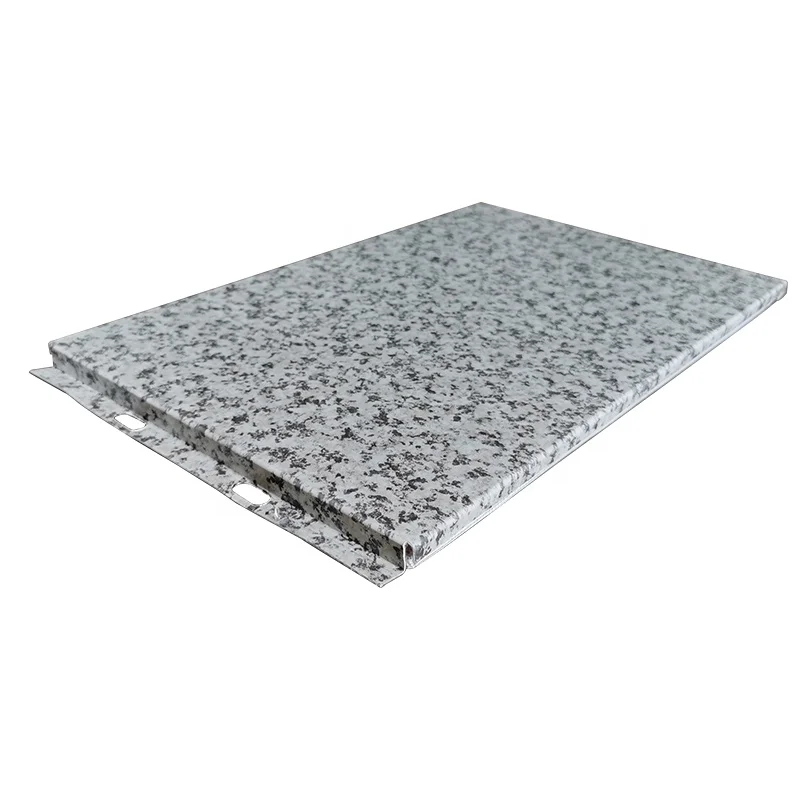

Exterior Wall Insulation Decorative Integrated Finished Composite Board

Share on (1600460729091):


Price:

Quantity:


Product Overview

Description



We provide customized services and samples, please contact us for specific prices.
Welcome to your inquiry!









Product Description

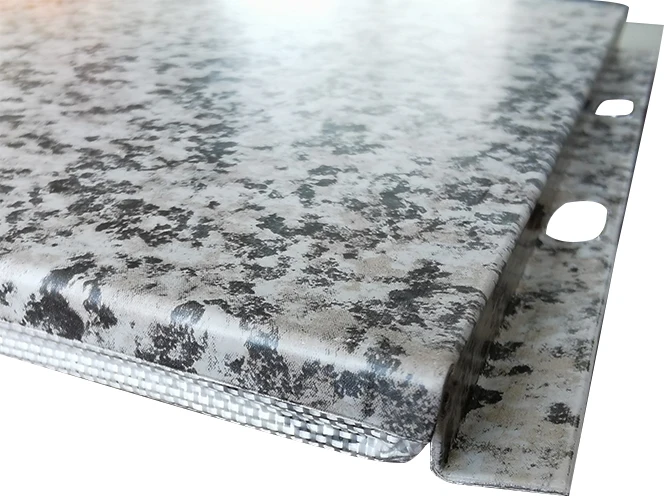

Insulation and decoration integrated board
The thermal insulation and decoration integrated board is divided into metal surface and non-metallic surface. The metal surface is composed of aluminum-magnesium-manganese board with fluorocarbon coating and vacuum insulation board. The non-metallic surface is composed of marble board, calcium silicate board and vacuum insulation board. compound. The thermal insulation and decoration integrated board has high safety, strong corrosion resistance, Class A non-combustibility, good thermal insulation effect, green energy saving and environmental protection, and is the best choice for internal and external wall thermal insulation decoration.


Specification


item
value
Material
Composite Material
Product Name
Aluminum vacuum insulation decorative board
Material
Vacuum Insulation Panel Composite Aluminum Veneer
Thickness
10mm-40mm can be customized
Thermal Conductivity
≤0.008 W/mK
Burning class
Class A
Thermal resistance
≥4mk/w
service life
>50 years
Usage
Exterior/Interior Wall Insulation


Product application


External wall insulation
Inner wall insulation


Product features


High security
The reduced dead weight improves the overall safety of the system. The dead weight of the traditional one-piece panel is 15kg/m2, while the dead weight of the modified thermal insulation decorative panel is less than 10kg/m2. The decorative panel is fixed by the wing plate and the wall preparation, and the security of the fixing method has been greatly improved.


High fire rating
The thermal insulation materials used in the decorative integrated board are all inorganic materials whose combustion performance reaches Class A, thus improving the fire resistance.


Good thermal insulation performance
The insulation layer adopts vacuum insulation technology,Thermal conductivity≤0.008w/(m.k),
The thermal insulation effect is 8-10 times that of traditional thermal insulation materials of the same thickness.


High weather resistance
The thermal insulation and decoration integrated board adopts metal plates such as aluminum plate, aluminum-magnesium-manganese plate, and aluminum-zinc plate. The surface is coated with a fluorocarbon sprayer as a protective layer, so the durability is greatly improved, and the system can reach the same life as the building.


Increase the usable area
The thermal insulation performance is 8-10 times higher than that of traditional thermal insulation materials.
The same thermal insulation effect, the thermal insulation and decoration integrated board only needs 10-20mm, while the traditional material needs 80-100mm. In the project, the thermal insulation thickness is calculated in the shared area, so the selection of this material can reduce the shared area and increase the building. usable area.

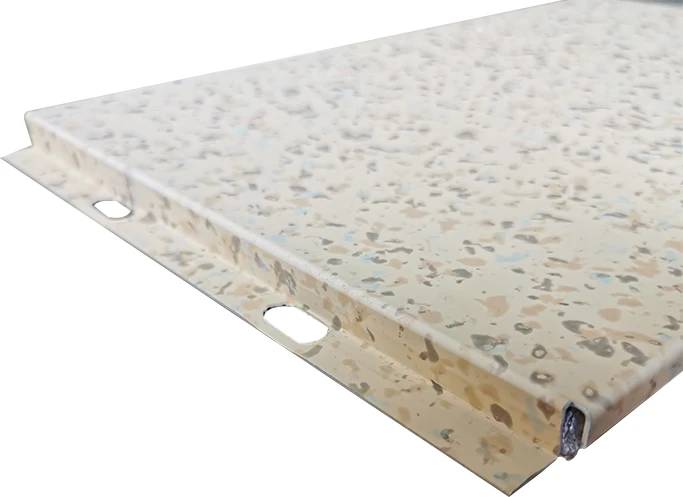

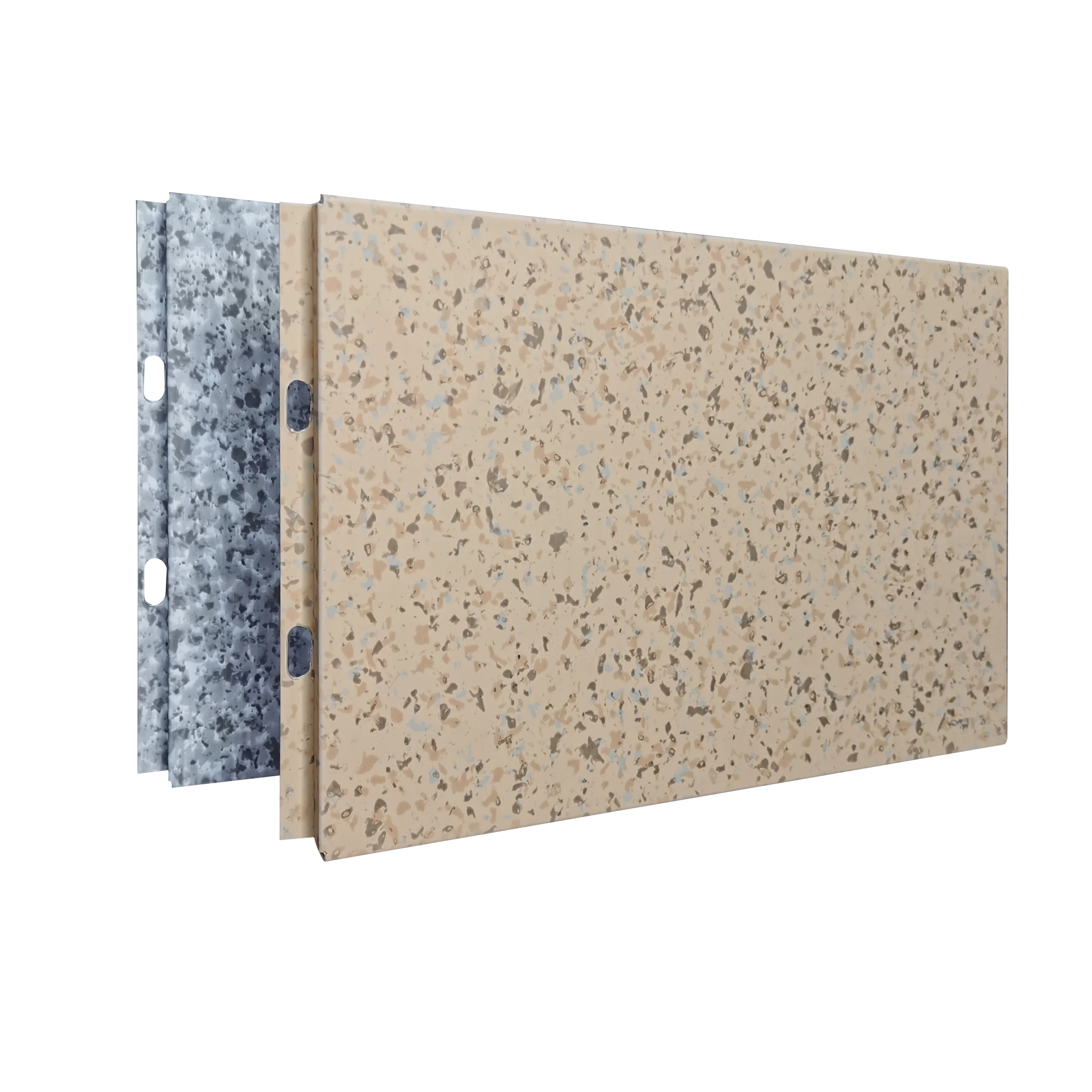

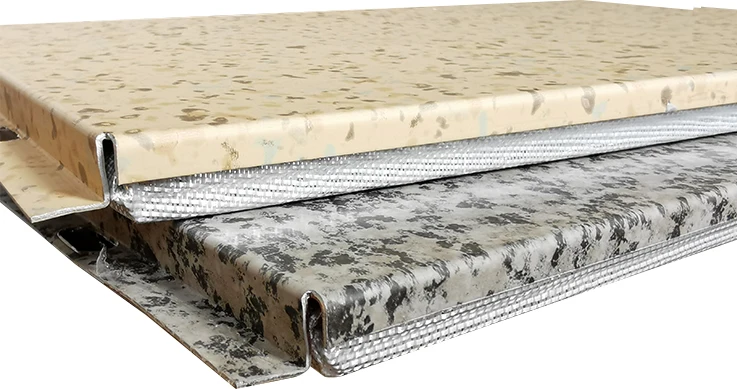

Product details

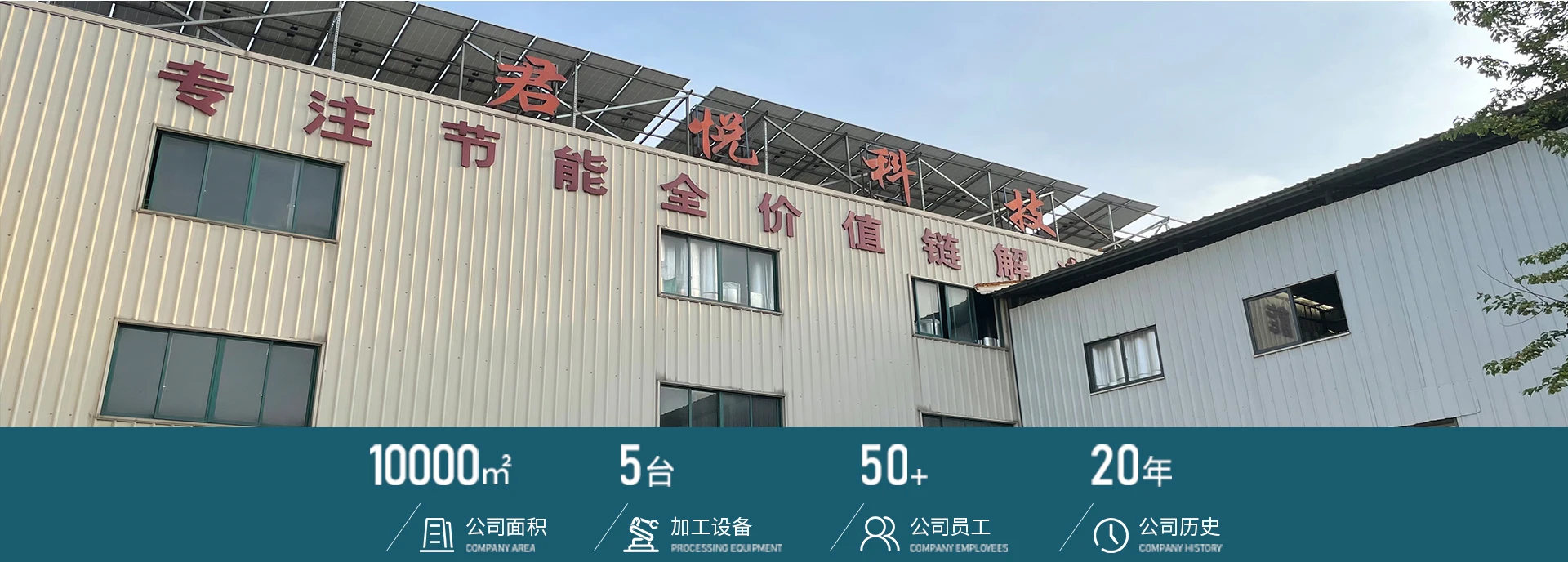

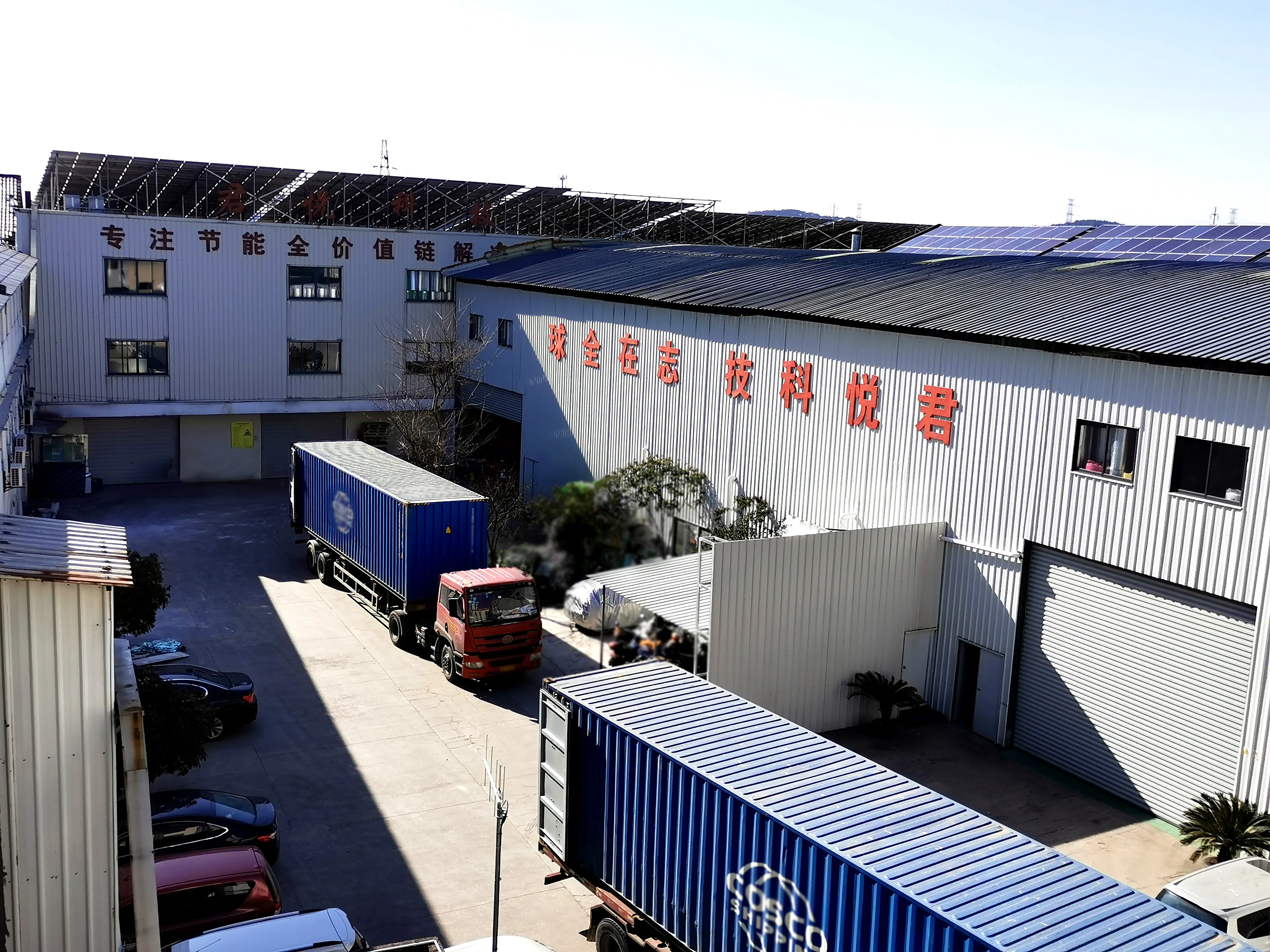

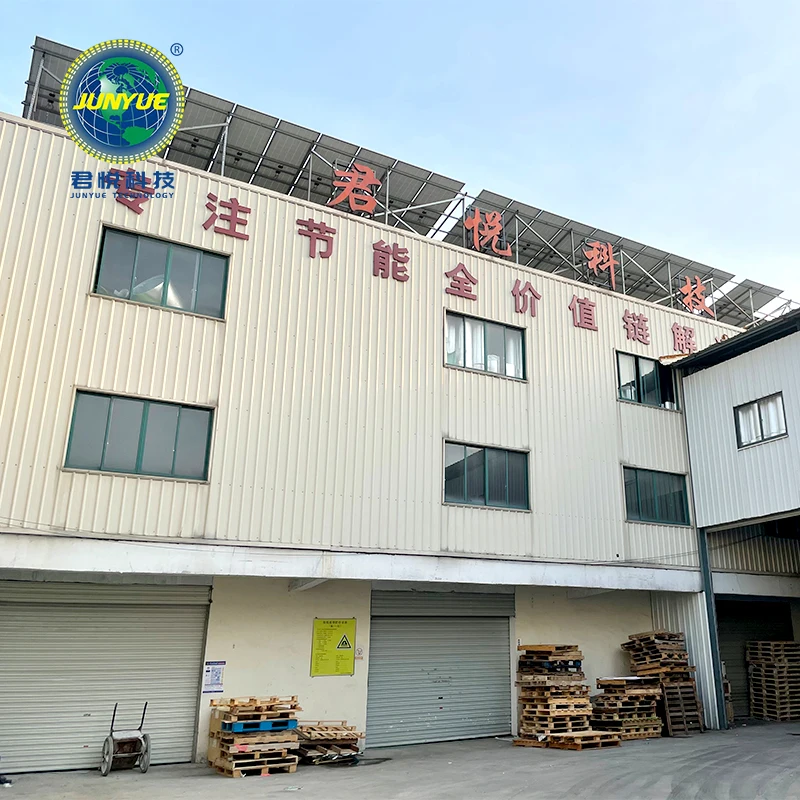

Company Profile




Established in 1999 and headquartered in Suzhou, which is called as a paradise on the earth, Junyue Group has been continuously growing by offering quality products and excellent services. Currently, the core business covers urban water supply, urban sewage treatment, finance, tourism, culture, new material research and manufacture and other fields. Junyue Group is a diversified large-scale group.

Suzhou Junyue New Material Technology Co., Ltd. (called as "Joy You" hereinafter), as a subsidiary company of Junyue Group, has been dedicated to researching and developing urban-based environmentally friendly new materials since our foundation. We are specialized in manufacturing various heat insulating materials used in constructions, anti-static bags and composite bubble bags, auto heat insulating materials, special corrosion-resistant composite films and other new materials. We are a professional manufacturer, integrating the research and development and sale at the same time.

Joy You has a creative R&D team, which has rich experience of project development. We have cooperated with ASTRI Chinese Academy of Sciences Institute for Nanotechnology, East China University of Science and Technology and Shanghai Jiao Tong University for project cooperation. Furthermore, we have retained many famous experts and professors as our technical consultants. All these have provided strong technical support and innovation source, and improved our R&D capability at the same time. We can develop and produce different kinds of fire-retardant, heat insulating and explosion-proof membranes, other special explosion-proof membranes and other special composite membranes. We can also make anti-static packing bags according to your requirements.

We have been actively implementing total quality management system since our foundation, and we have gained ISO9001 and ISO14001 certifications till now. We are also in the leading position in terms of European RoHS standard execution and green packaging design in mainland China.

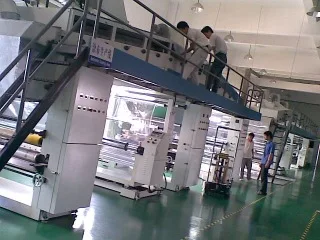

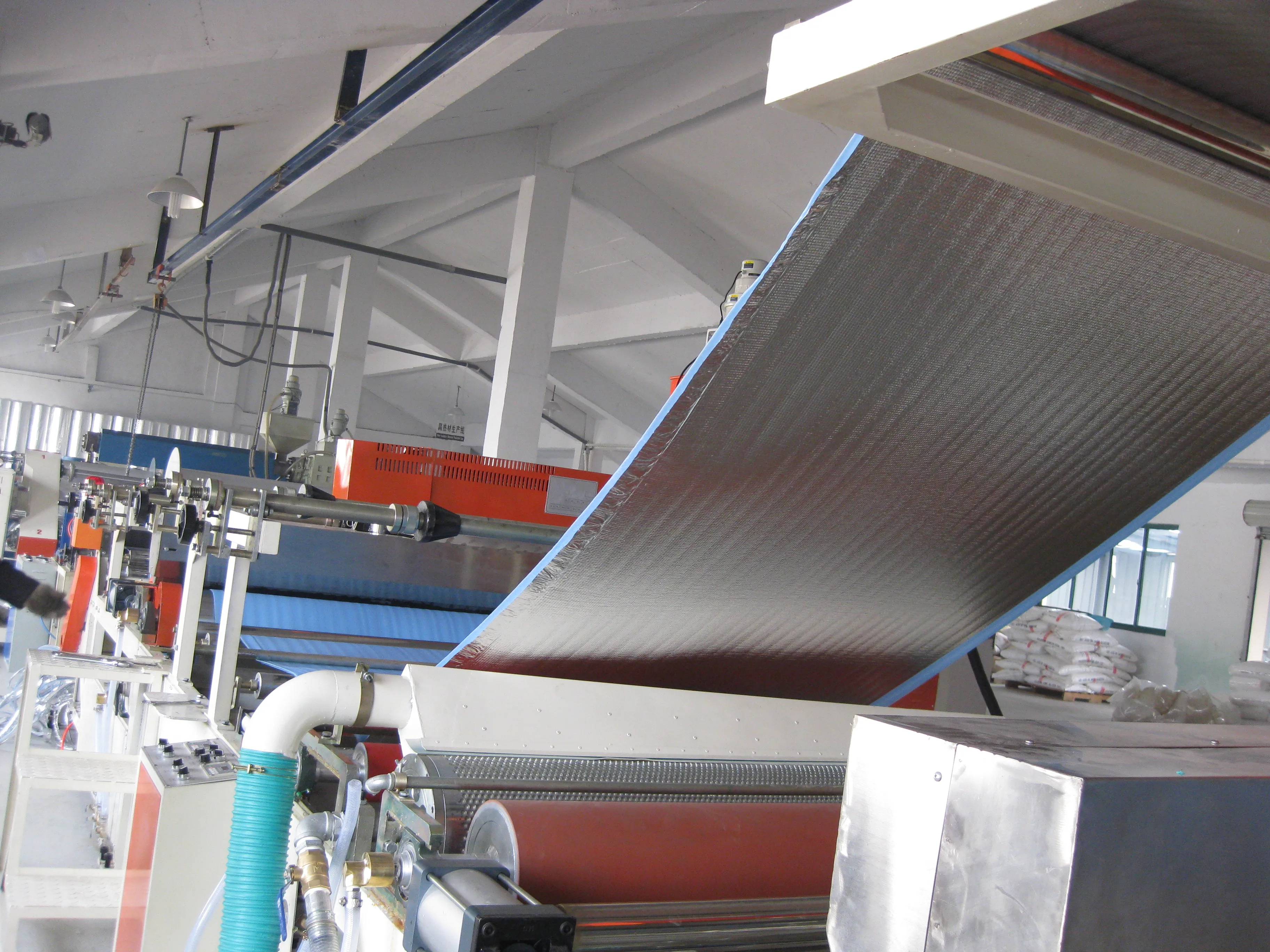

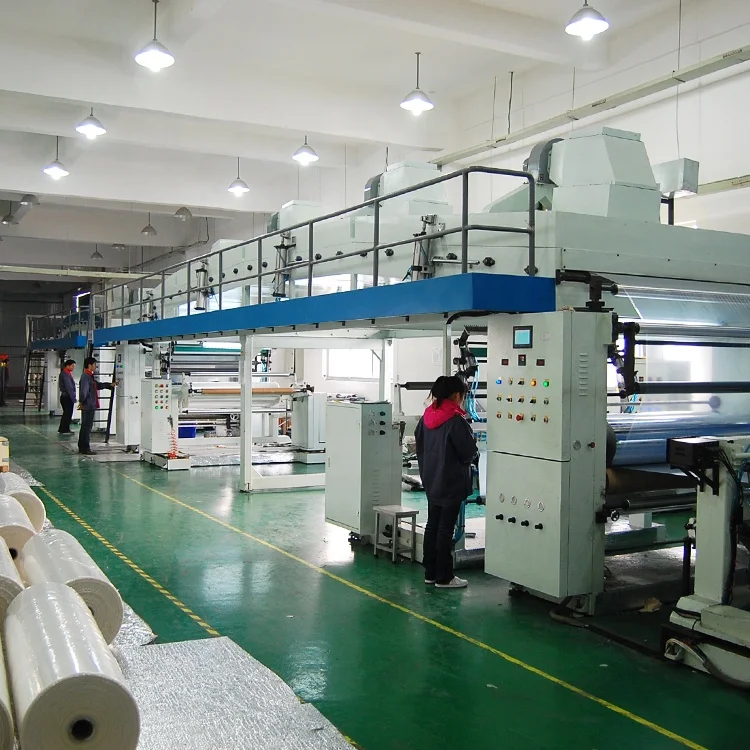

Junyue has imported numbers of advanced composite insulation material production lines and anti-static packaging production lines, which provide lean production for raw materials and finished goods. We have a full range of testing systems, with quality guarantee and on time delivery. Our products have been exported to clients in Europe, the U.S. and other countries and regions up to now.
