ETCR8100B Non Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current
ETCR8100B Non-Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current
ETCR8100B Non-Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current
ETCR8100B Non-Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current
ETCR8100B Non-Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current
ETCR8100B Non-Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current
ETCR8100B Non-Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current

ETCR8100B Non Contact Transformer Core Earth Resistance Current Tester For Ac Leakage Current

Share on (1600460743252):


Price:$162.65 - $209.12

Quantity:


Product Overview

Description





Model
ETCR8100B Transformer Core Earth Current Tester
Power Supply
DC 9V alkaline dry battery LR6 1.5V×6

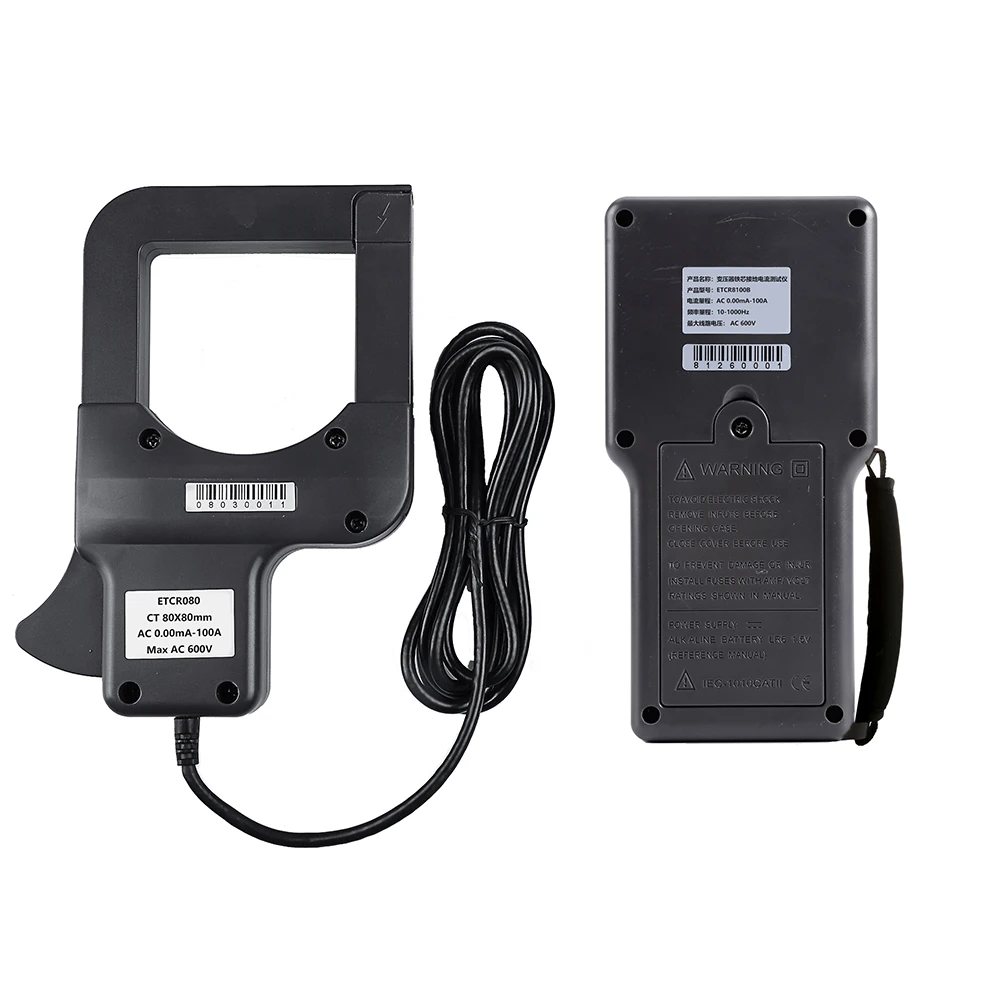

CT Caliber
80mmx80mm
Current Range
AC 0.00mA ~100A
Min Resolution
0.01mA
Accuracy
±0.5%rdg±5dgt
Frequency Range
10HZ~1000Hz
Display Mode
3.5 inch color touch LCD screen (320dots x 240dots);display area:71mm x 53mm
Operation Mode
Simultaneously have intelligent touch and button control mode
Host Dimension
198mmx100mmx45mm
CT Size
194mmx145mmx40mm
Weight
3kg(include accessories)
Sampling Rate
2 times /second
Data Storage
200 groups (Power down and replace the battery will not lose the data)
Date and Clock
With date and clock setting function
Sample Serial Number
With test point serial number settig function
Automatic Shutdown
With automatic shutdown or not setting function, default 5 minutes after power on will automatic shutdown.
USB Interface
With USB interface to import storage data into the computer
Alarm Settings
Aarm threshold setting range: 10mA～99.9A
Alarm Indication
When the test value exceeds the alarm threshold, the LCD flashes and the buzzer sounds
Line Voltage
Below AC 600V circuit measurement
Overflow Display
Exceed measure range overflow function: “OL” symbol display
Battery Voltage
When the battery voltage lower than 7.2V ± 0.1V, low battery voltage symbol display, and remind to replace the battery
Rated Current
Max 180mA
Lead Cable Length
Current clamp lead cable length 2M
Accessories

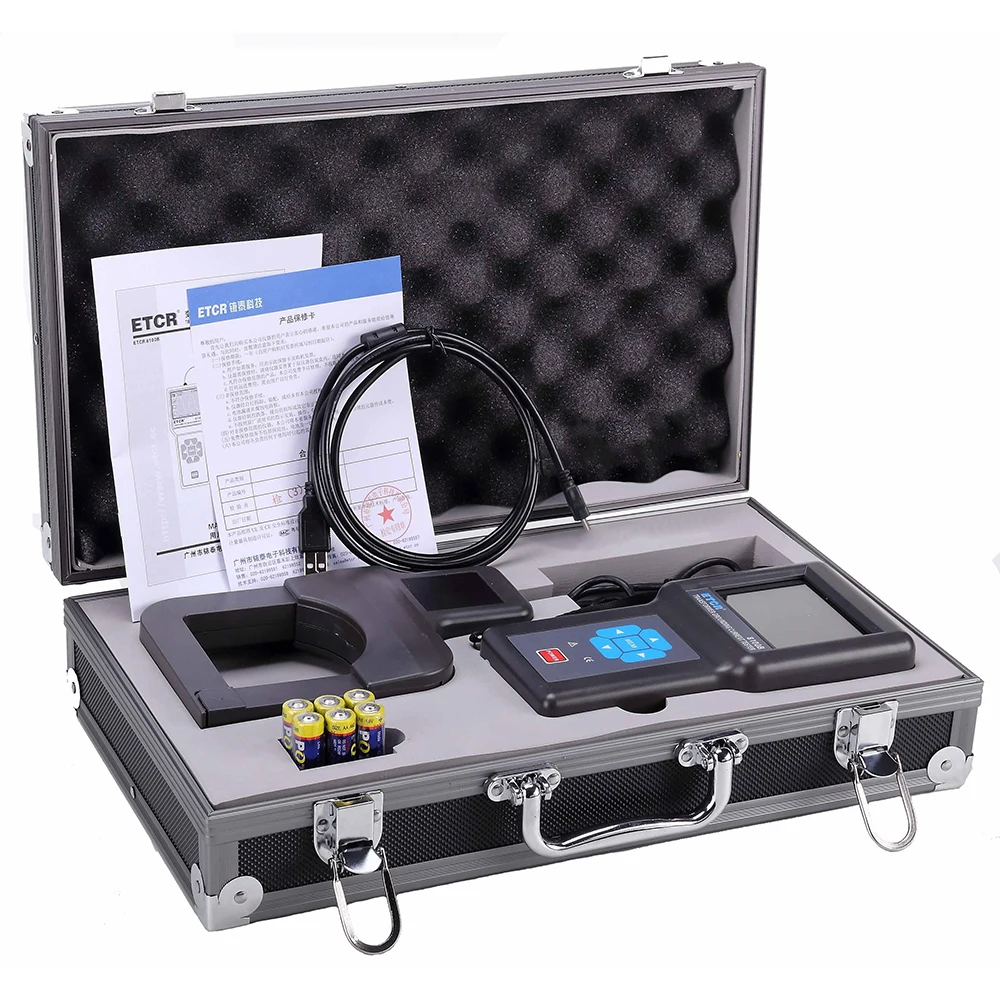

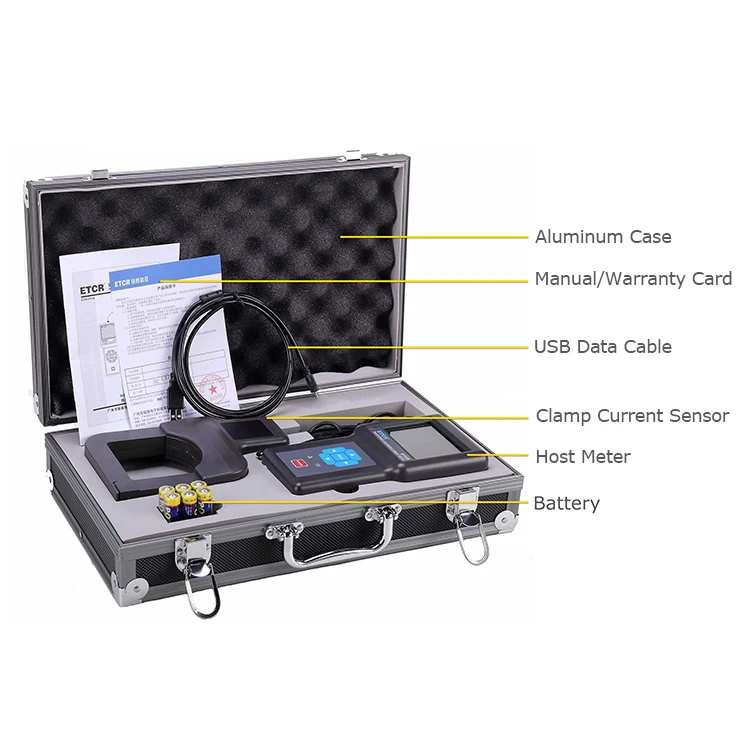

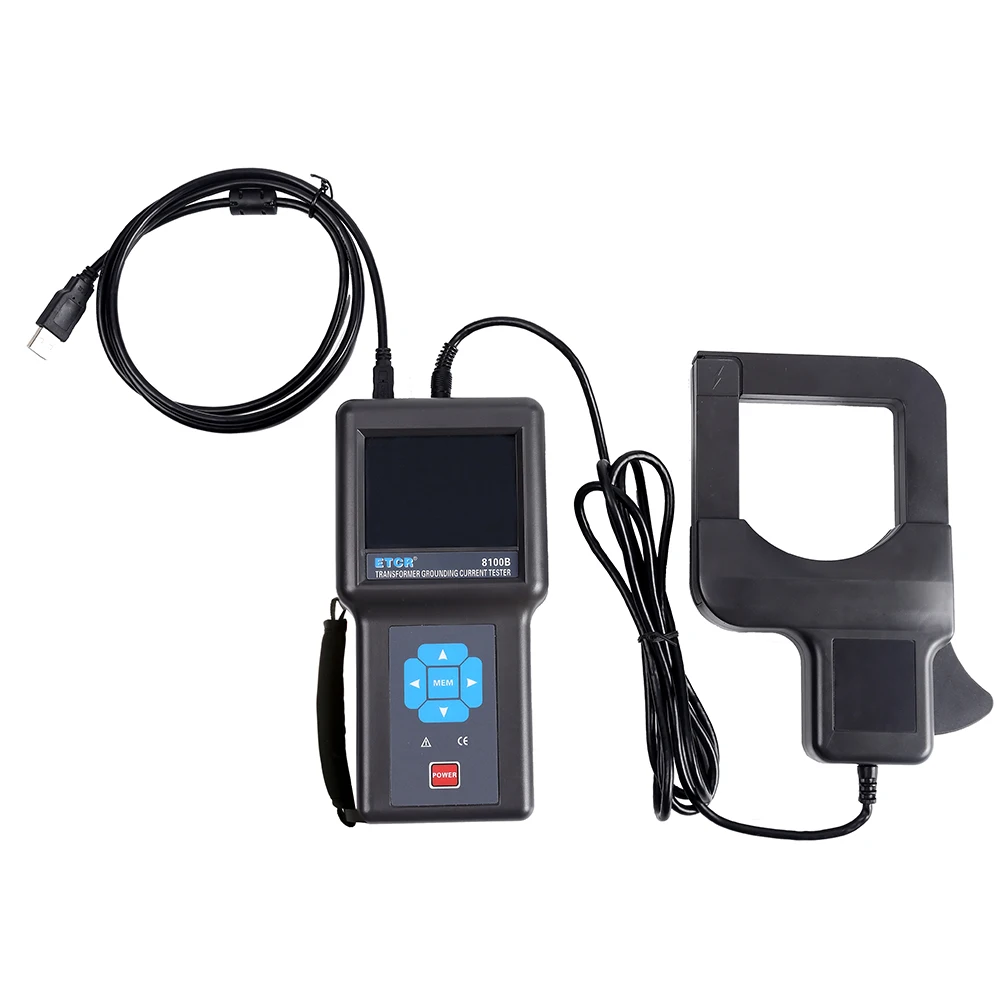

Host: 1PCS; Current Clamp: 1PCS; USB communication cable: 1PCS; Aluminum case: 1PCS








Product Function
Transformer core earth current test; Online testing of AC leakage current, current, frequency




Product Feature
1.It is mainly used for leakage current test of iron core and clamps of transformer, reactor and other electrical equipment. It can discover the latent faults of transformer in time, and is the main tool to ensure the safe operation and normal maintenance of transformer.

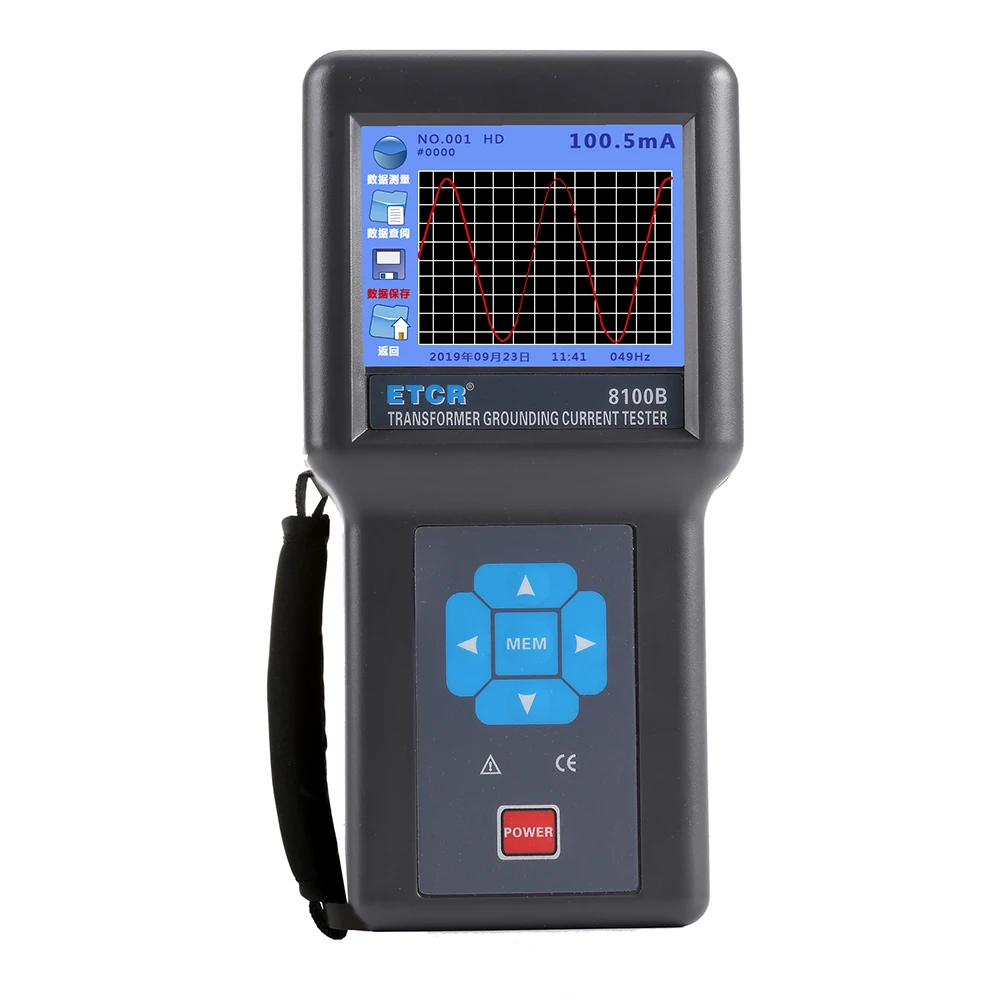

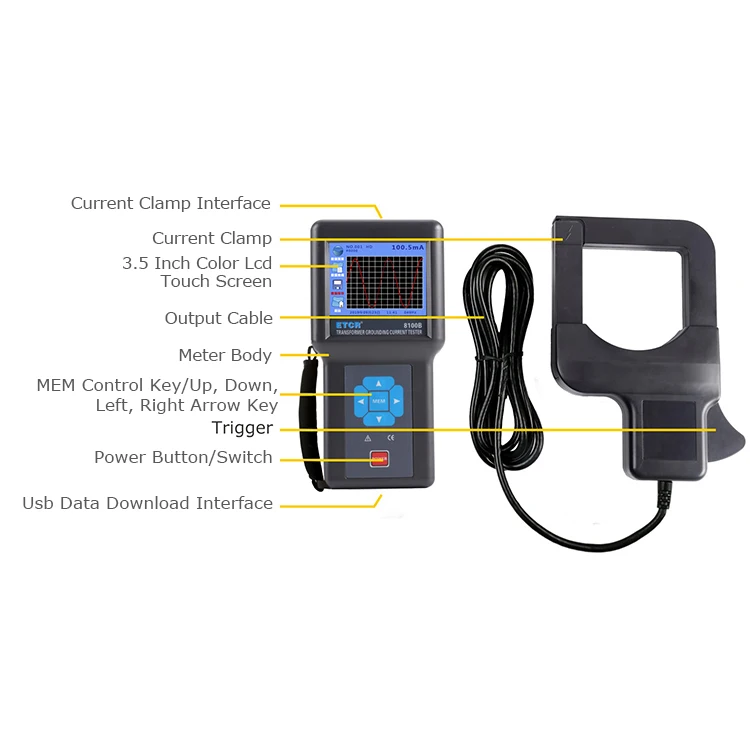

2.Adopts 3.5 inch color touch screen, real-time display the measured current value and waveform, convenient to operation.
3.Large caliber current clamp, no need to disconnect the tested line, easy to carry especially suitable for online testing in
field. Non-contact measurement, fast, safe and reliable.

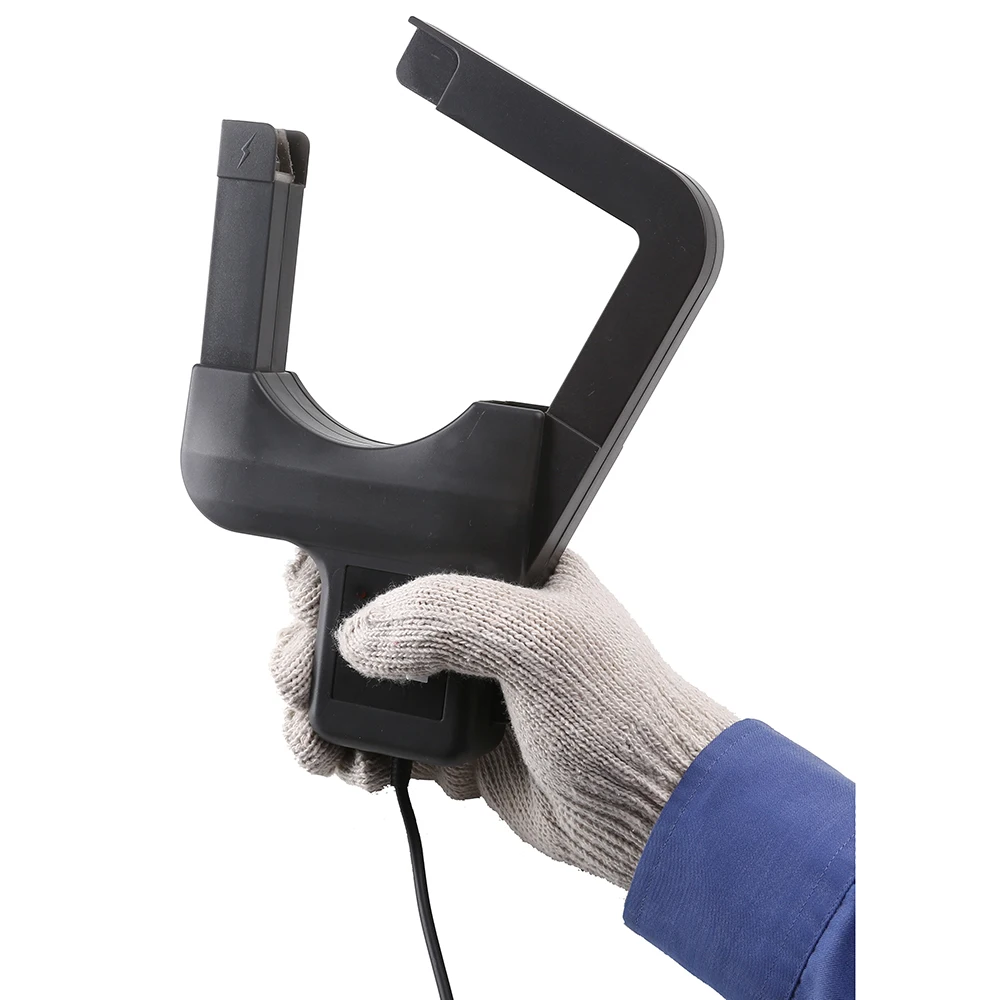

4.The current clamp adopts Permalloy iron core and CT double-layer shielding technology, which performance stability, high accuracy and strong anti interference ability, suitable for complex interference environment.
5.Alarm function, data storage function, time setting function, serial number setting function.
6.With USB interface, communication cable and software, monitoring software has online real-time monitoring and historical data reading, consulting, saving, report and other functions.
