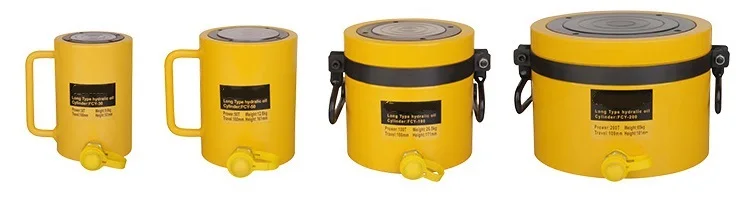

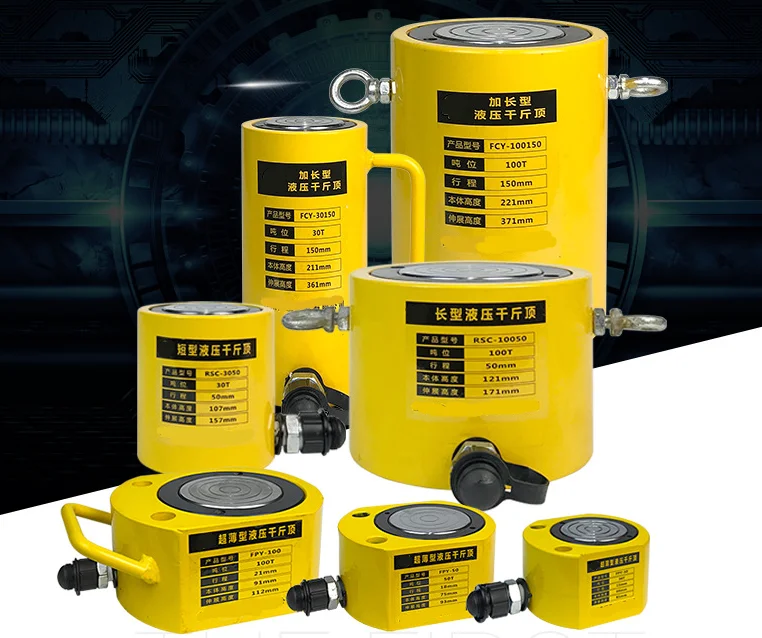

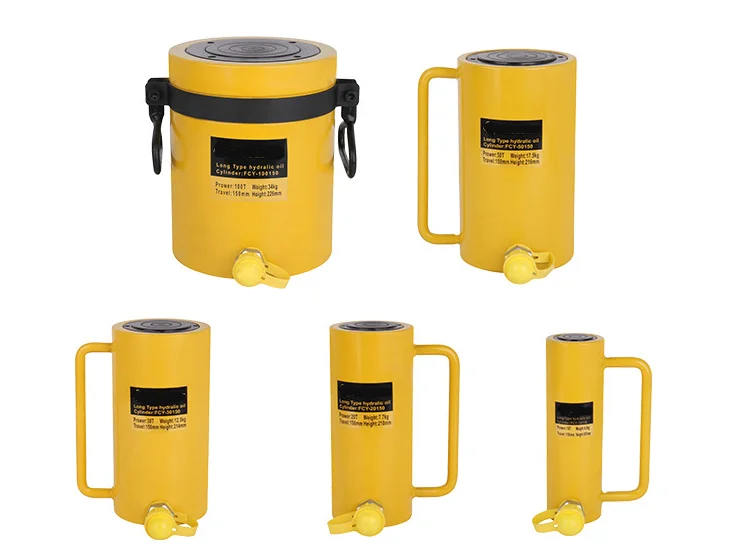

single double acting separate split ram Industrial hydraulic lifting cylinder

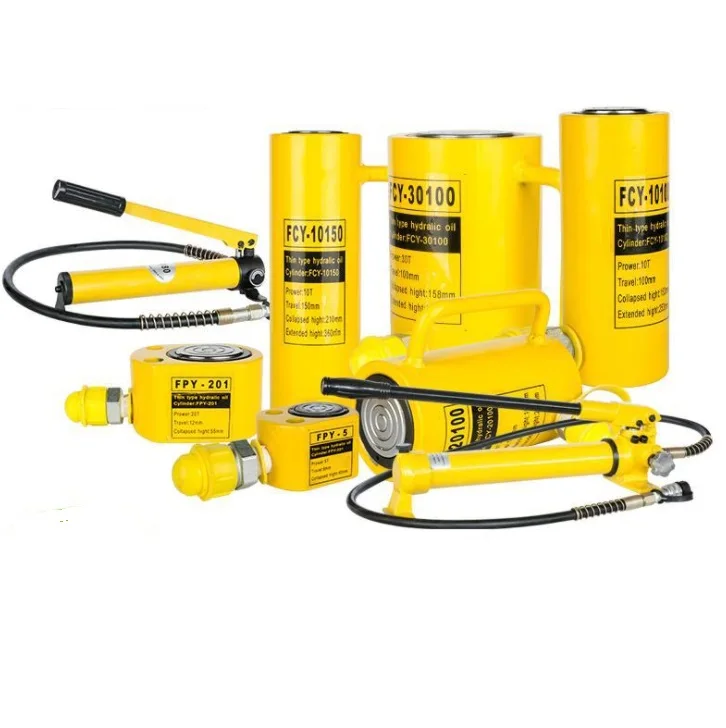

The jack is a combined kit.The hydraulic pump and the jack are separated,which is linked by a hydraulic hose.Which is easy to carry or move .

The heavy-load jacks use a uniform quick connector,which can firmly fix the hydraulic hose and the jack,and equipped with a dust cover to prevent dust from entering

A hydraulic cylinder can be double acting or single acting.
With a double acting hydraulic cylinder,the hydraulic oil drives the cylinder in both directions.
A single acting hydraulic cylinder uses hydraulic oil in one direction and and external force (spring,gravity,leverage etc).to
the return of cylinder in the opposite direction.

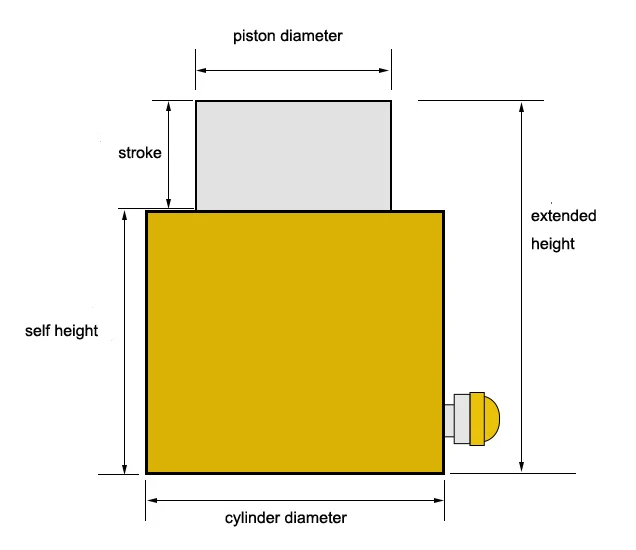

Specification






Model
Tonnage/T
effective area/cm2
Out dia/mm
inner
dia/mm
stroke
/mm
collapsed/mm
plunger
dia /mm
N.W/kg

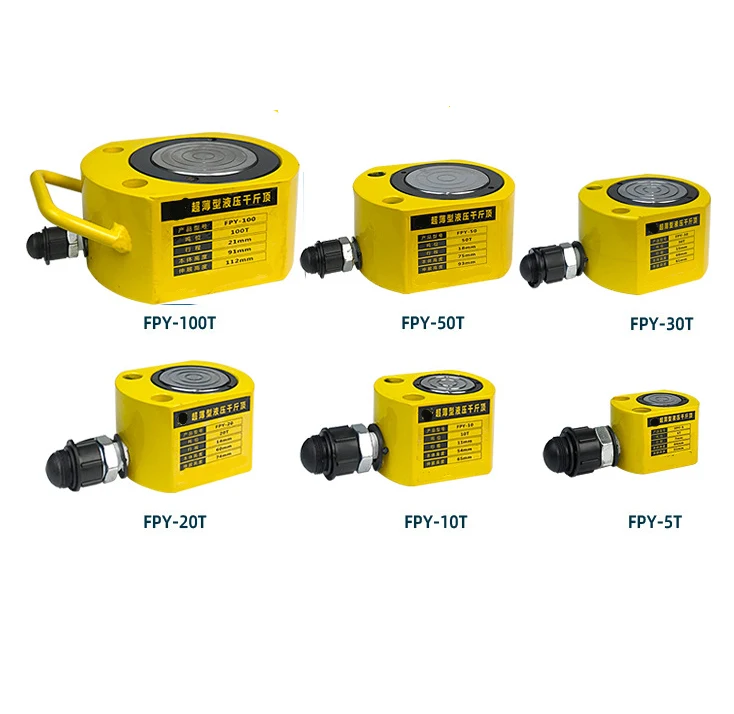

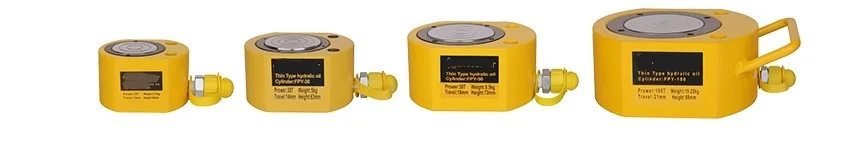

FPY-5
5
9.61
64*50
35
7
41
30
0.9
FPY-10
10
15.9
83*65
44
11
53
38
1.9
FPY-20
20
33.16
99*85
64
13
61
52
3.4
FPY-30
30
50.24
123*105
78
14
66
64
4.4
FPY-50
50
78.5
148*130
98
18
77
80
8.8
FPY-100
100
143.06
198*175
135
21
93
100
20.6
FPY-150
150
226.8
208
168
21
88
135
21.6
FPY-200
200
302.5
248
196.3
21
101
158
35.9




Model
Tonnage/T
effective area/cm2
Out dia/mm
inner
dia/mm
stroke
/mm
collapsed/mm
plungerdia/mm
weight
/kg

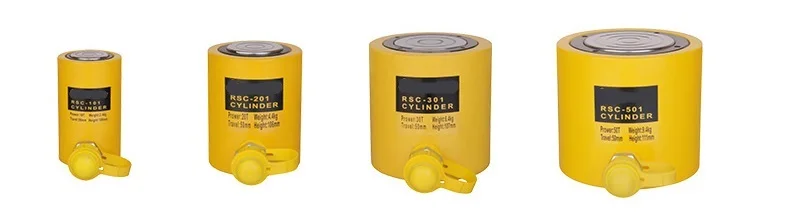

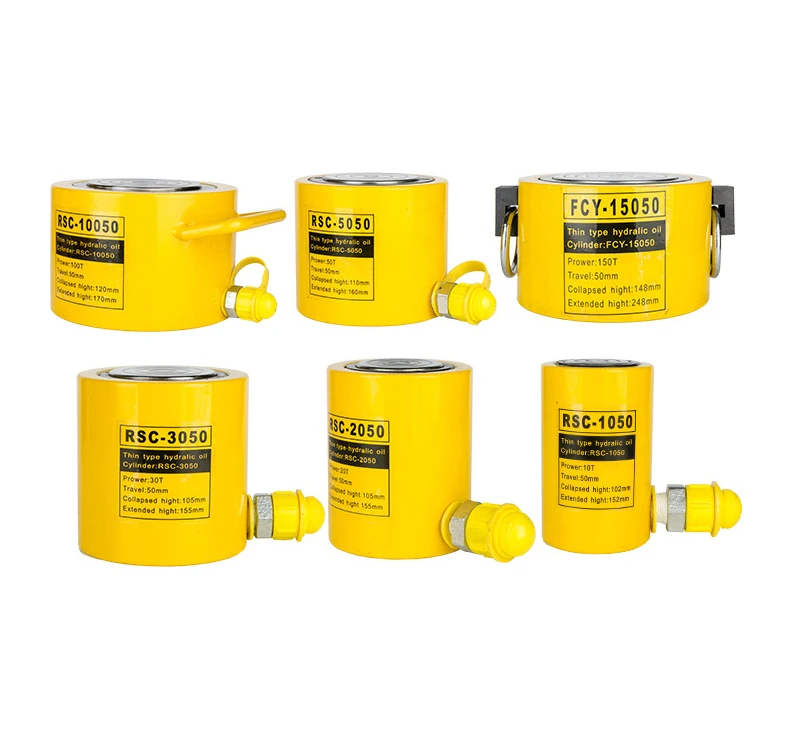

RSC-101
10
15.9
64
44
50
107
38
2.5
RSC-201
20
33.16
88
64
50
111
52
4.5
RSC-301
30
50.24
108
78
50
111
64
6.4
RSC-501
50
78.5
124
98
50
116
80
9.0
RSC-1001
100
143.06
178
135
50
126
100
21.2
RSC-15050
150
226.8
208
168
50
126
135
29.8
RSC-20050
200
302.5
248
196.3
50
131
158
44.1




Model
Tonnage/T
effective area/cm2
Out dia/mm
inner
dia/mm
stroke/mm
collapsed/mm
plungerdia/mm
net
weight/kg
FCY-10
10
15.9
64
44
100
157
38
3.6
FCY-20
20
33.16
88
64
100
160
52
6.3
FCY-30
30
50.24
108
78
100
164
64
9.7
FCY-50
50
78.5
124
98
100
166
80
12.7
FCY-100
100
143.06
178
135
100
176
100
28.8
FCY-150
150
226.8
208
168
100
176
135
38.9
FCY-200
200
302.5
248
196.3
100
181
158
57.4




Model
Tonnage/T
effective area/cm2
Out dia/mm
Inner
dia/mm
stroke
/mm
collapsed/mm
plunger
dia/mm
net weight/kg
FCY-10150
10
15.9
64
44
150
207
38
4.7
FCY-20150
20
33.16
88
64
150
210
52
8.1
FCY-30150
30
50.24
108
78
150
214
64
11.3
FCY-50150
50
78.5
124
98
150
216
80
15.9
FCY-100150
100
143.06
178
135
150
226
100
34.9

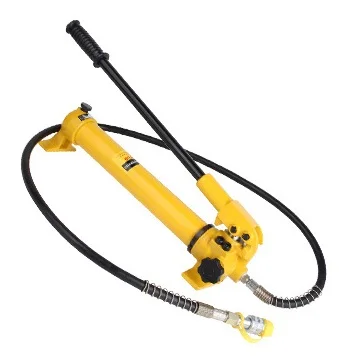

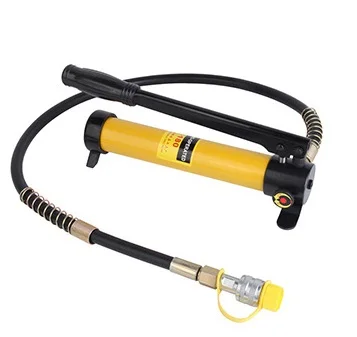

Model
CP-180
CP-700
CP-700-2
CP-800
Max pressure rating
700kg/cm2
10000psi
700kg/cm2
10000psi
700kg/cm2
10000psi
700kg/cm2
10000psi
low pressure
20kg/cm2
20kg/cm2
20kg/cm2
high pressure
700kg/cm2
700kg/cm2
700kg/cm2
oil amount per minute
at low pressure
13cc
13cc
13cc
oil amount per minute
at high pressure
2.3cc
2.3cc
2.3cc
reservoir capacity
400cc
900cc
900cc
2800cc
size
310*210*150mm
510*140*150mm
510*140*150mm
550*150*200mm
weight
5kg
12kg
13
16
type
manual
manual
manual
manual
