ZLPG Series Spray Dryer
Making powder machine for Chinese Traditional Medicine Extract
Product Description
A. Description
1.The machine adopts full seal form.2.All parts are made of Stainless steel.3.Equipped with 3 grades of purifying apparatus.4. The filtered air reaches the requirement of 100 grades.5.With cooling appetities of wall at the cylinder body and top. It makes the wall temp.<80℃.6.Air sweeping device inside the drying tower.7.No phenomenon of carbonization and degeneration.8. No phenomenon of medicine mixing and wall staying.

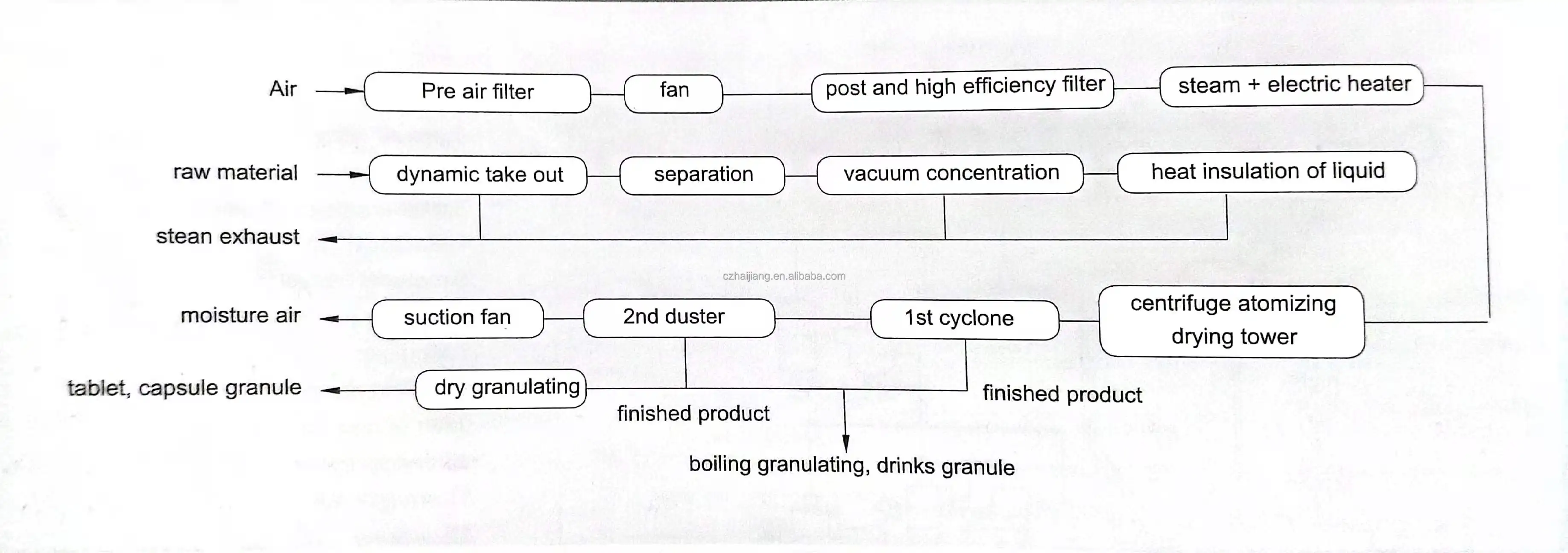

B. Principle:
High-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuuge atomizing technique.It is a high-speed atomizing dryer. The following problems are solved.
1.Raw material is stick to the wall and the rate of powder collecting is low.
2.Long staying time of raw material, with phenomenon of burnt and degeneration.
3.Hard to clean.
4.Low in output.
C. Features
1. 3 grade air purification, inlet air reaches 300 thousand grade.
2. Wall cooling device, temp. of inner wall:80℃, no carbonized phemomenon.
3. Whole volume: 3.5 times of standard LPG Spray dryer.
4. Quick washing device.
5.2 grades cyclone duster/one-stage cyclone+ Damper remover, no powder out.
6. Air sweeping device, Auto-virating and beating device
7. 2 sets of atomizer with VFD
8. PLC+Touch Screen Controlling device.
9. Washing device(optional)
10.Dry air trasport in sealed way.

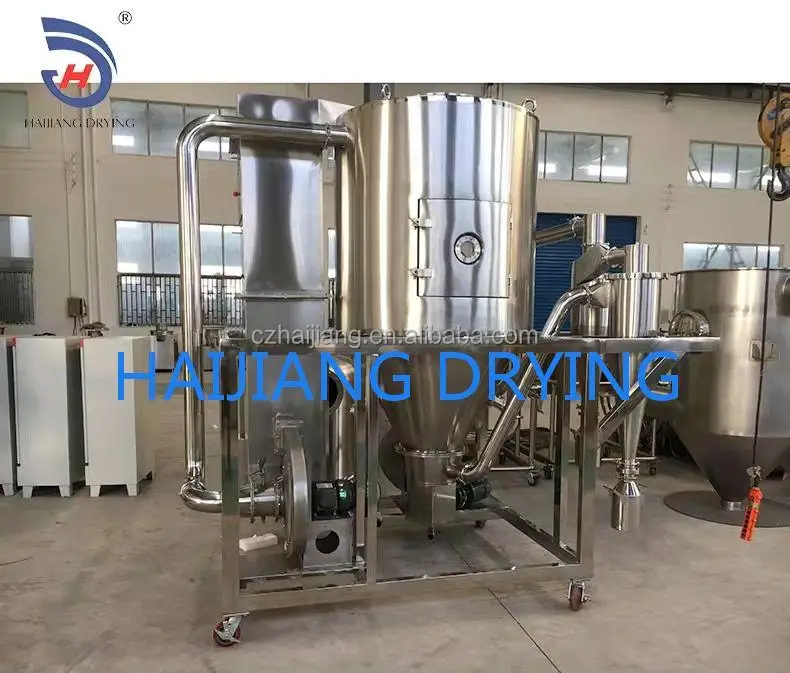

D. Detailed picture

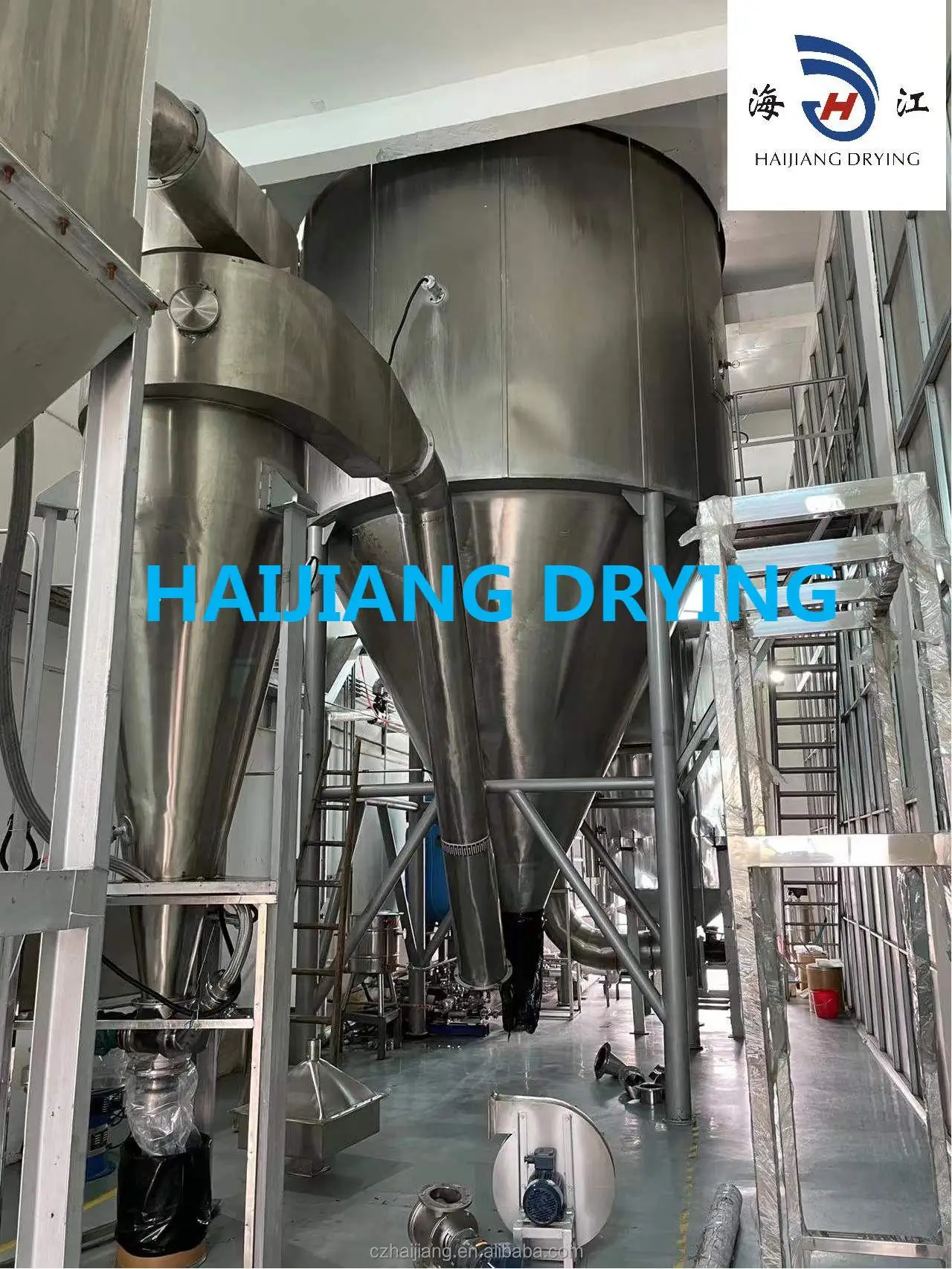

E. Application Site
Technical Parameter
| Model | ZLPG-5 | ZLPG-10 | ZLPG-25 | ZLPG-50 | ZLPG-80 | ZLPG-100 | ZLPG-150 | ZLPG-200 | ZLPG-300 |
Evaporated capacity (kg/h) | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 |
Liquid capacity (kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 |
Powder output (kg/h) | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 24-42 | 36.8-56.4 | 55-85 |
Solid content in liquid (%) | 18-25 | ||||||||
Water content in liquid (%) | 3-5 | ||||||||
Electric power (kw) | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 |
Heating source | Steam+Electricity | ||||||||
Collecting way | 1. 2 grades cyclone duster>95% or 2.one-stage cyclone+ Damper remover >95% | ||||||||
| Auto-control meters&instruments | Air inlet & outlet temp.---Auto-control Temp. device | ||||||||
| Air inlet(℃) | 150-200 | ||||||||
| Air outlet(℃) | 80-100 | ||||||||
| L(mm) | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| W(mm) | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 |
| H(mm) | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 |
Brands
Packaging & Shipping
Our Services
Pre-sales service
1) Professional advice and rich experience help to choose machine.
2) Inquiry and consulting support
3) View our factory
After-sales service
1) Training how to install and use the machine
2) Engineers available to service machinery overseas.
3)one year warranty,whole life service. Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
