Price:$480.00 - $520.00

Quantity:


Product Overview

Description



Product Description

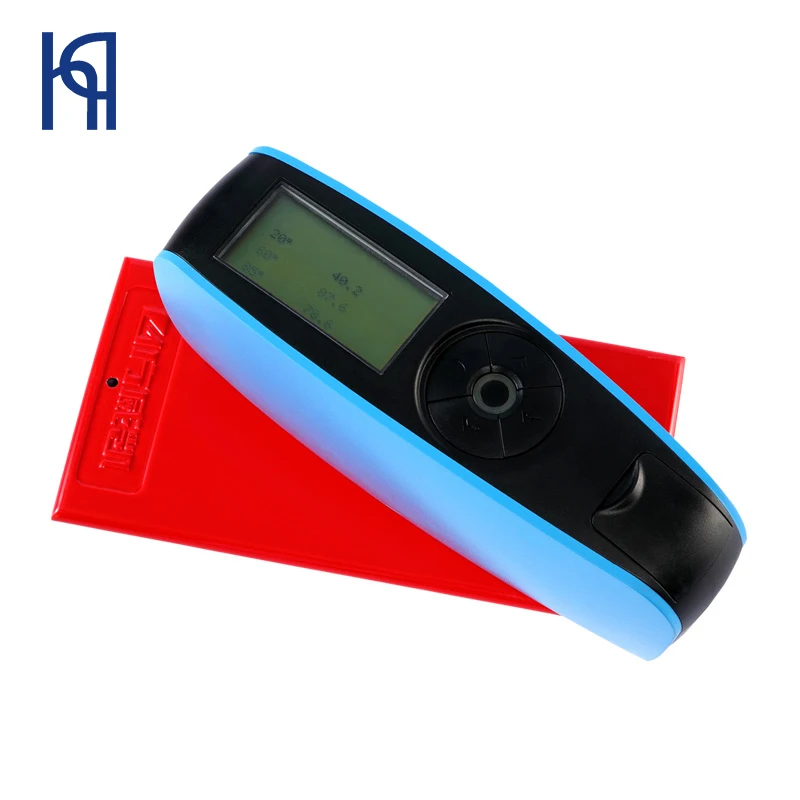

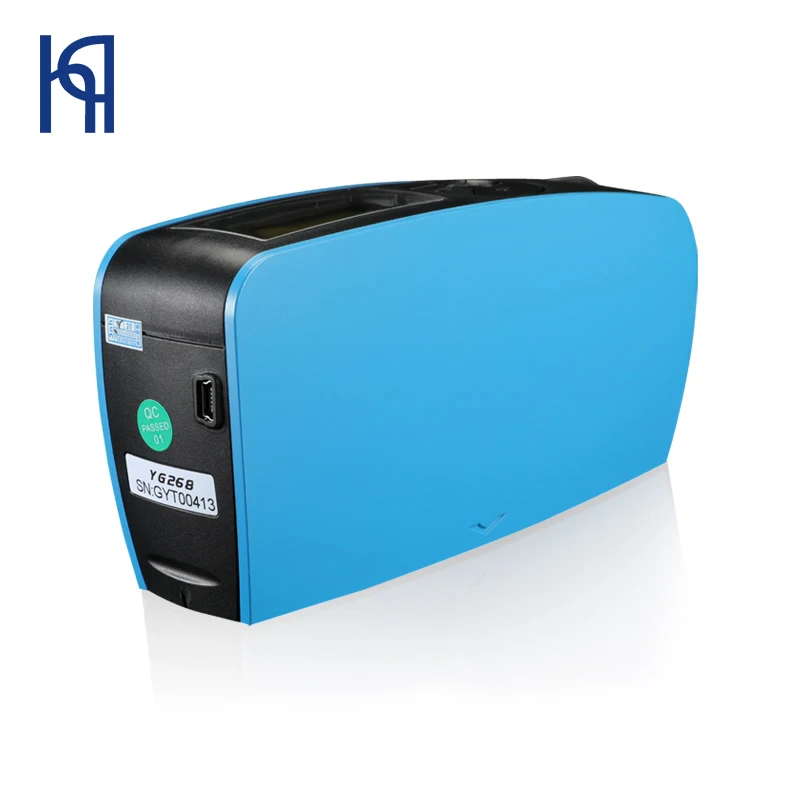

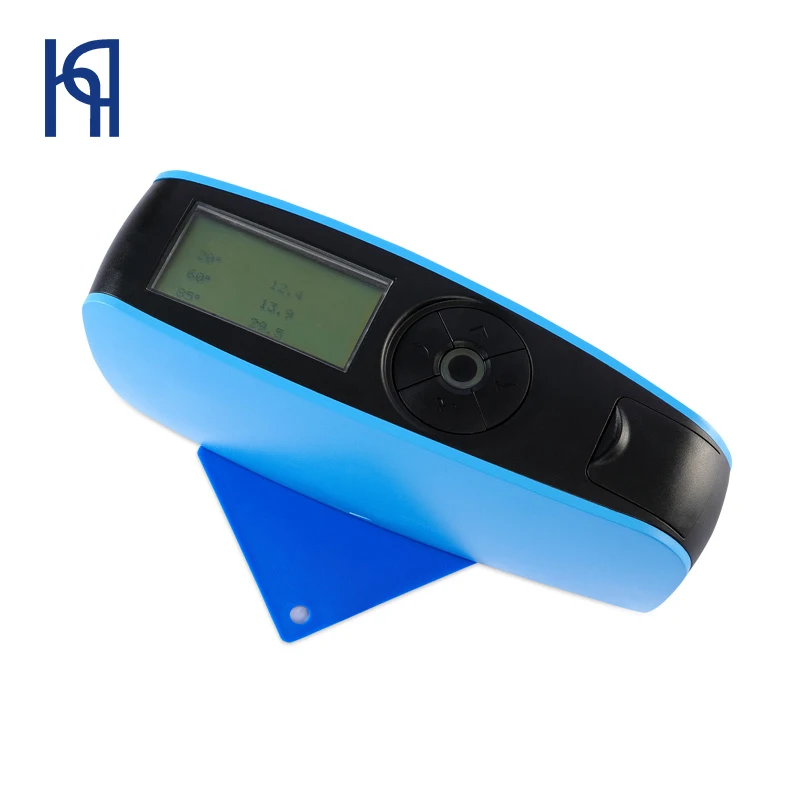

3nh YG268 high gloss standard three angles Gloss Meter digital Ceramic Floor Marble Glossmeter

Product Description
1. YG268 three angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
2. YG268 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.

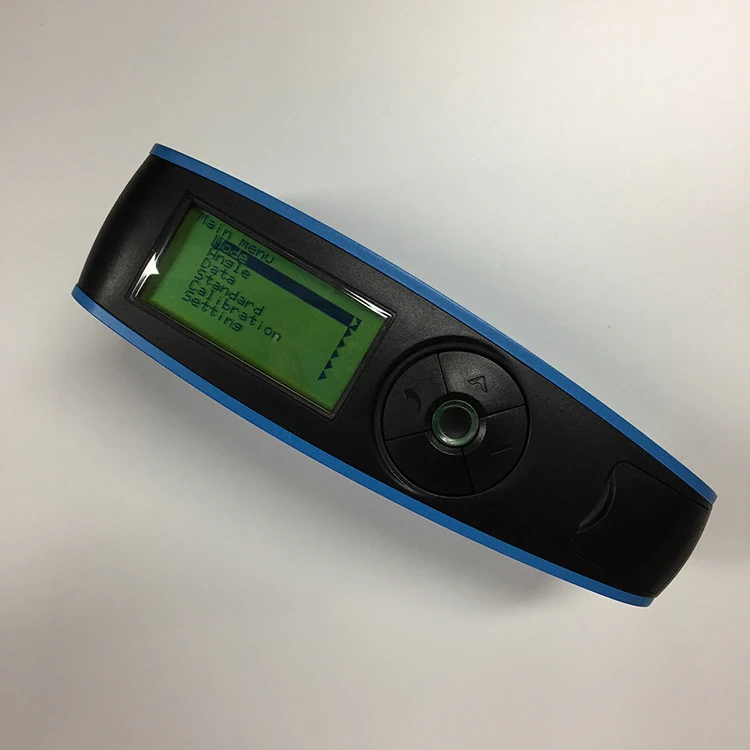

3. YG268 has four measuring modes. Basic Mode, the simplest sample measurement mode;
Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting. QA Mode, for quality control at production line.
4. Now YG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.



Product Paramenters


YG Series Specification Parameter
Model
YG60S 60°Economic Gloss Meter
YG60 60°Accurate Gloss Meter
YG268 Tri-angle Gloss Meter
Measuring Angle
60°
60°
20° 60°85°
Measuring Area
60°: 0-200GU
60°
20°: 0-2000GU,60°: 0-1000GU,85°: 0-160GU
Division Value
1GU
0.1GU
Measuring Modes
Basic mode
Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time
0.5S
Repeatability
0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU
0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate
Conform with JJG696 second grade requirements of gloss meter
Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time
30s
Within 30s-120s
Long-time Calibration
/
Automatically check and made the calibration
Language
Chinese & English
Storage
/
35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display
2.3 inch white and black screen
Size
160*52*84mm
Power Supply
1pc dry-cell battery(can measure 10000 times) or use USB Charge
Weight
About 300g
Interface
USB
USB & Bluetooth 2.1 version
PC Software
/

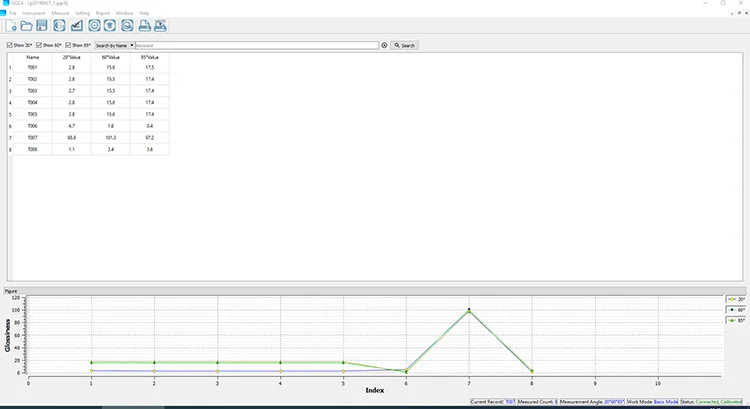

GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range
0-40℃(32-104° F)
Storage Temperature Range
-20-50℃(-4-122° F)
Humidity Range
< 85% RH, without condensation
Standard Accessories
User manual, calibration plate
USB cable, user manual, calibration plate, QC software
Optional Accessories
Miniature printer
Notification: the technical parameter is only for reference


Features
1.Elegant Design combined with aesthetics and ergonomics;
2.With auto-calibration function;
3.Meet the first grade requirements of JJG696;
4.Large storage to save over 35000 data;
5.Auto Power-off within optional 30-120 seconds;
6.Comply to ISO2813,ASTM523, GB/T9754;
7.With PC software for quality report, more extend functions;
8.With multi working modes and multi-functions for most customers’ requirements.

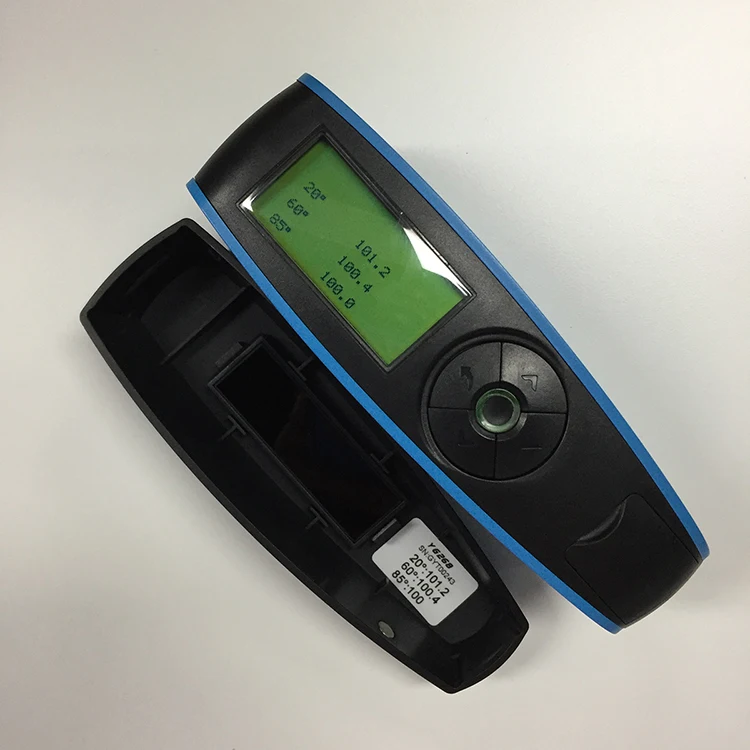

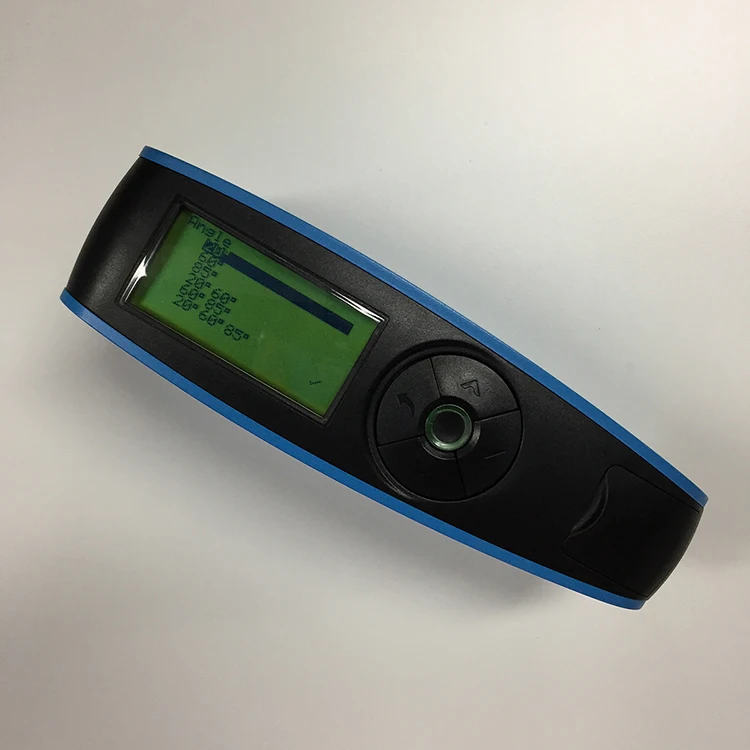

Details Images








Certifications




Company Profile


Shenyang Huiqi Optics Technology Co.,Ltd. is a professional manufacturer of industrial optical lab equipment, located in Shenyang,China. Huiqi Optics focused on the development and production of various types of optical lab equipment. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

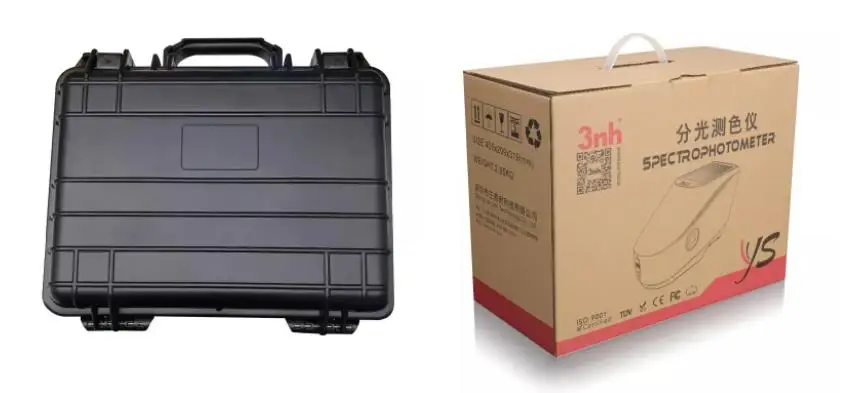

Packing & Delivery






FAQ


1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
If you arevery urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samplesplacing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. Werespect every customer as our friend and we sincerely do business and make friends with them.
