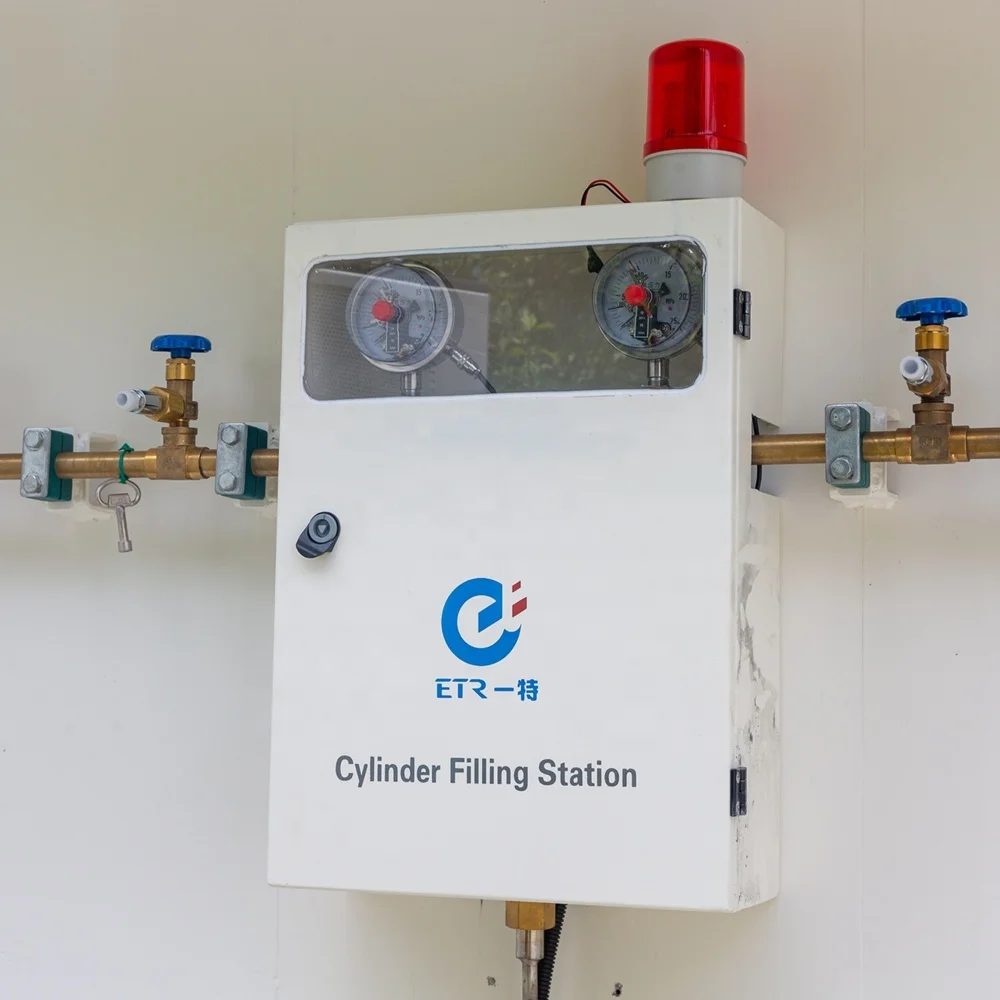

Hospital control medical gas monitoring and alarming system

1.Meet the standards of GB 50751-2012 Technical Specification for Medical Gas Engineering;
2.Being developed,designed and produced independently,installed in the nurse station of ward building or the intelligence panel in operating room;
3.Monitor the air supply pipeline pressure: when the pressure is higher or lower than the set value,the system will alarm by acousto-optic signals automatically;
4.Pressure gauge with transparent window design: visual pressure gauge reading and related state ;
5.It can test whether all gases'alarms work normally.

6.Monitor the pressure of the gas supply, and the pressure is high or low to alarm;
7.Monitor the moisture content/oxygen concentration/CO content in oxygen , giving alarm against any deviation from standard set value.
8.Powerful data post-processing function, real-time storage history; intelligent monitoring, with remote data transfer function;

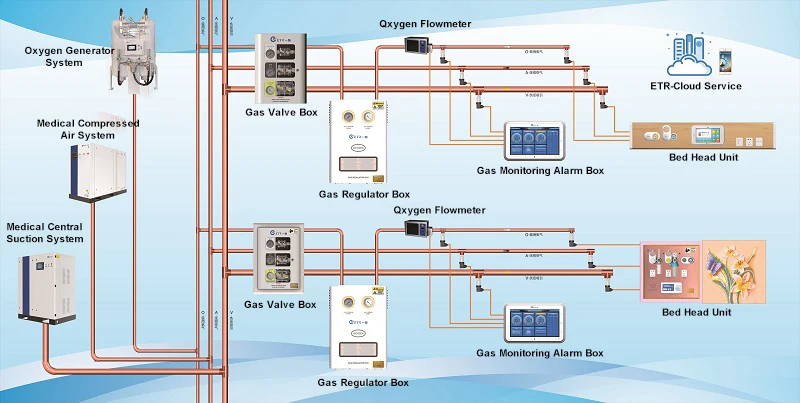

Medical Gas Supply System Fittings

Zone Valve Box	Gas Regulator Box	Monitoring alarm box

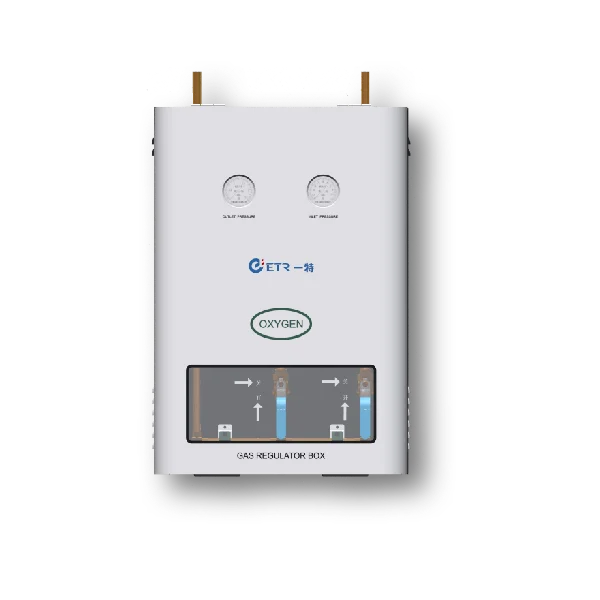

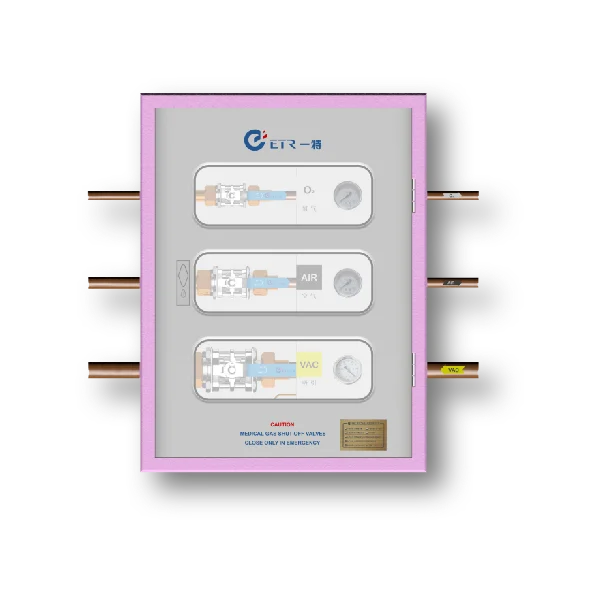

1,Used to control the on and off of medical gases in the area; 2,1~6 channels of medical gas can be controlled according to user requirements; 3,Silver and copper welding to prevent leakage; 4,Transparent window for easy operation and maintenance; 5,Each gas is marked with a national standard color for easy identification.	1,Used to provide a pressure-stable source of gas for the clinic; 2,With dual circuit design, it can be maintained without stopping the gas; 3,Use a large flow reducer to ensure pressure stability; 4,Emergency door lock device to close the valve in an emergency; 5,Transparent window for easy operation and maintenance;	1,Monitor the pressure of the gas supply, and the pressure is high or low to alarm; 2,Monitor the moisture content/oxygen concentration/CO content in oxygen , giving alarm against any deviation from standard set value. Powerful data post-processing function, real-time storage history; 3,intelligent monitoring, with remote data transfer function;

hospital gas valve box Management

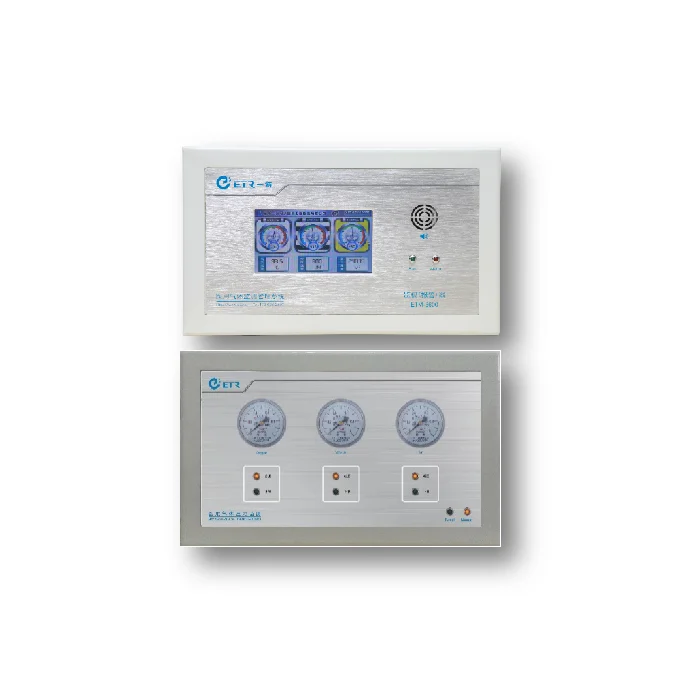

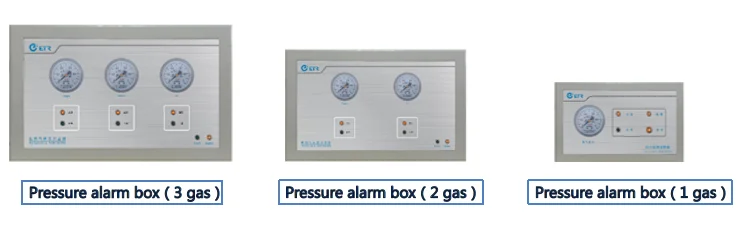

The pressure monitoring alarm box is used to monitor the pipeline pressure of the medical center air supply system and respond to pressure changes through a digital microprocessor. When the pressure is higher or lower than the set value, the system will automatically alarm by sound and light, etc., to remind the management to timely process the medical center air supply system.

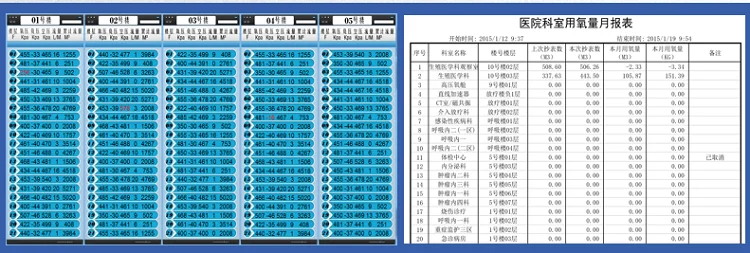

Comprehensive data collection: monitoring of the source gases and gas-consuming areas in the hospital.

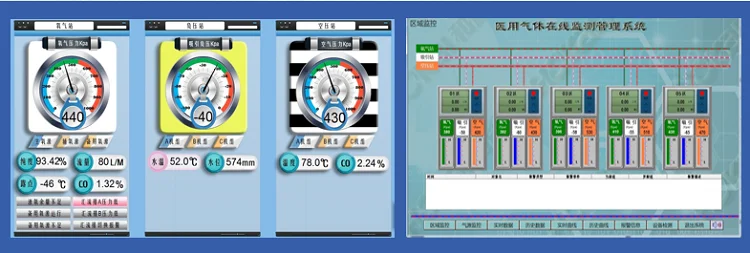

Central monitoring: central monitoring of gas sources and gas-consuming areas, enabling comprehensive data browsing and operation curve analysis.

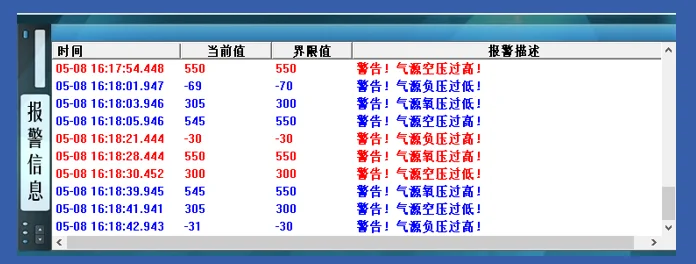

Fault early warning: abnormal data analysis and trend analysis.

ETR can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified English-speaking engineer at site. ETR shall obtain all permits and licenses required to perform the services under this Agreement.
