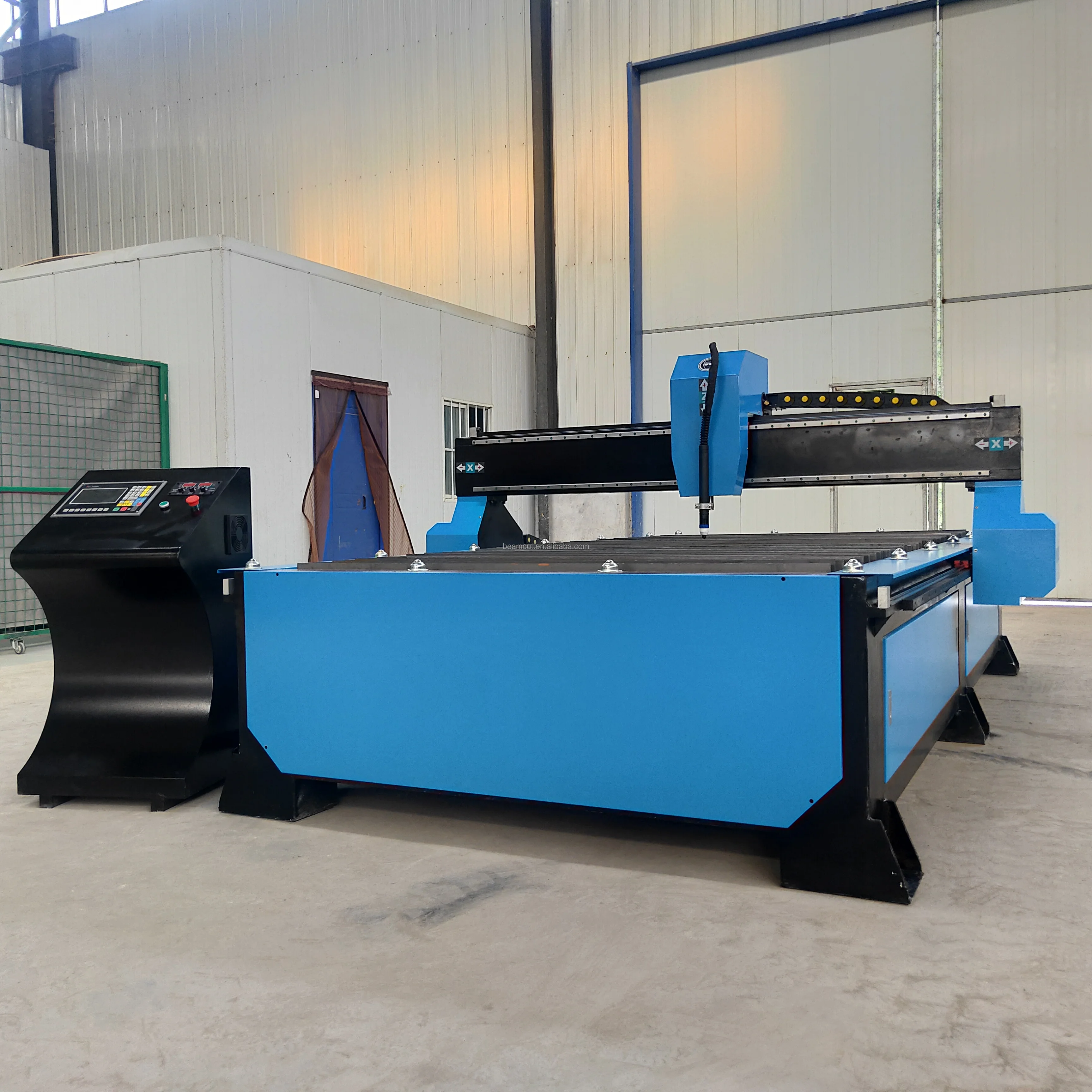

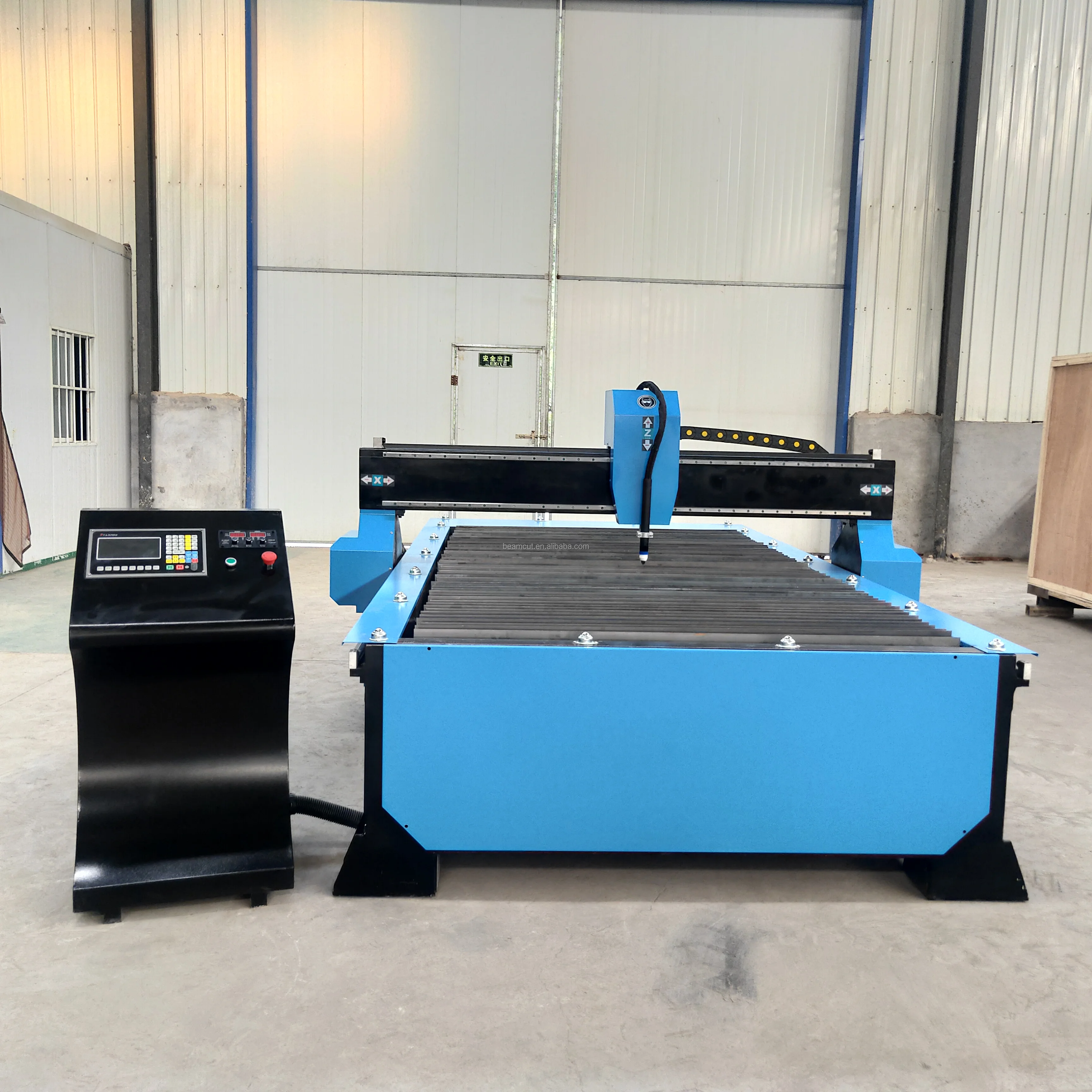

home hobby high definition cnc metal plasma cutter manufacturers computer controlled plasma air cutting
- Category: >>>
- Supplier: Shandong Pcl Group Intelligent Equipment Co. Ltd.
Share on (1600460770113):
Product Overview
Description
Product Description
Advantages of CNC Plasma Cutter/Plasma Cutting Machine:
1. Welded lathe bed of thick profiled steel, more solid and stable.
2. Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath. The level difference of platform remains in 0-1.5mm.
3. Advanced material inclined discharging design.
4. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
5. Support Fastcam, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such as AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
6. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
Prices are for reference only, please inquire for specific prices
Technology parameters
| Item | Descriptions | Specification |
| Machine Body | Table Width (mm) | 2000 |
| Rail length (mm) | 3800 | |
| Effective Cutting Area(mm) | 1500x3000 | |
| Drive motor | Dual-drive / Panasonic AC servo motor | |
| Max traveling speed(mm/min) | 9000mm/min | |
| Flame Torch | Flame Cutting Torch Number | 1 Set Flame torch |
| Flame Cutting Thickness(mm) | 6-50mm | |
| Flame Torch Height Sensor | PCL Torch Height sensor | |
| Flame Cutting Speed(mm/min) | 50-800mm/min | |
| Flame cutting Gas Pressure | Oxygen:0.5-0.8MPa Flow:1.0M 3 /Min Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa | |

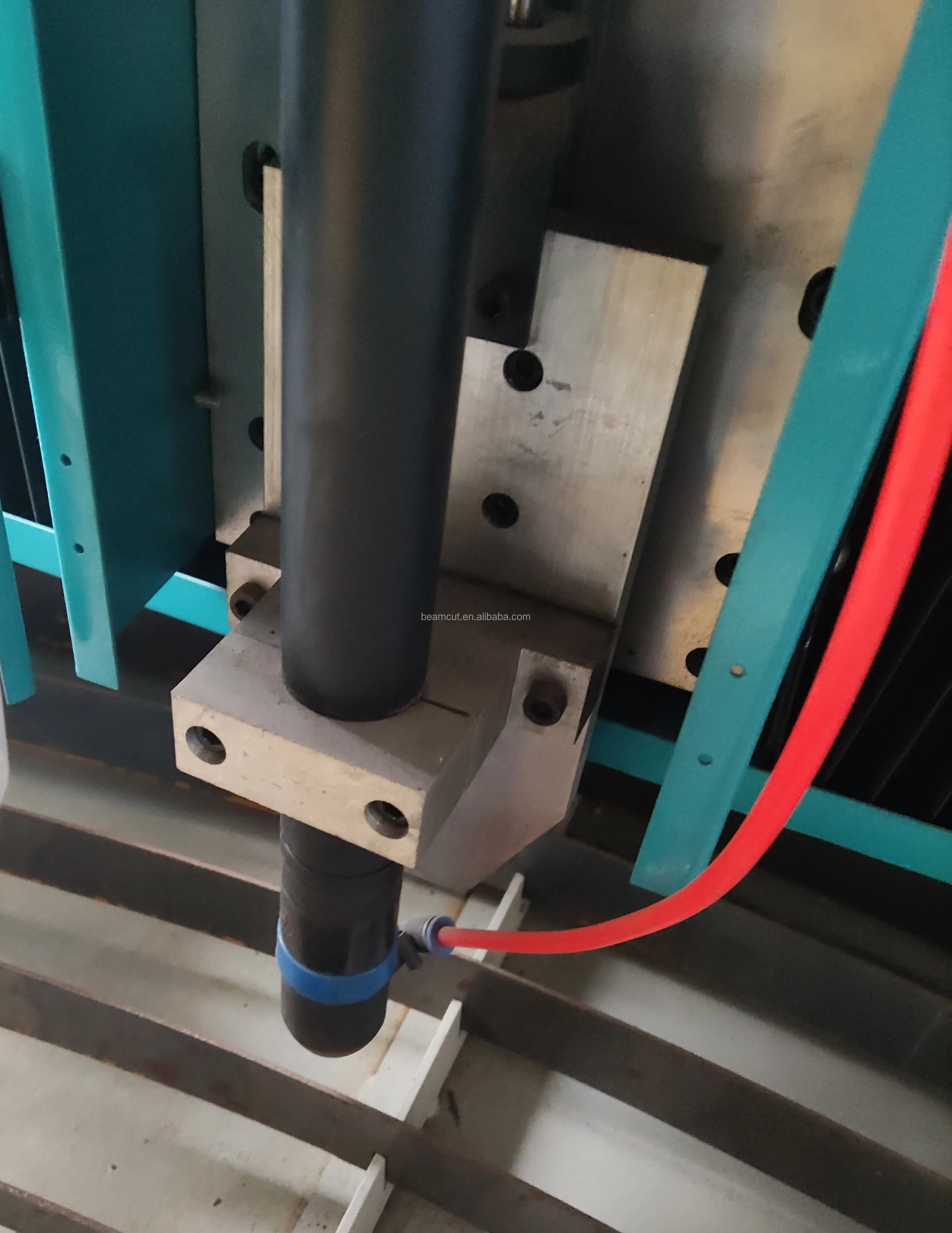

| Plasma Torch | Plasma Cutting Torch Number | 1 Set Plasma torch |
| Plasma Torch Height Sensor | Sensor THC | |
| Plasma Torch Anti-Collision Holder | PCL Group | |
| Plasma Cutting Speed(mm/min) | 50-4000mm/min | |
| Model | Hypertherm/LGK | |
| Plasma Cutting Thickness(mm) | 25mm(carbon steel) | |
| Country of origin | Made in USA/China | |
| Max current output | 125A | |
| Power | 20KW | |
| Duty cycle | 100% | |
| CNC Controller | SJTU | F3200 |
| Nest Software | Nest Software | FASTCAM (Australia) |
| Electrical Components | PLC | DELTA TAIWAN |
| Electric Components | Schneider | |
| Cables | CE approached cable |

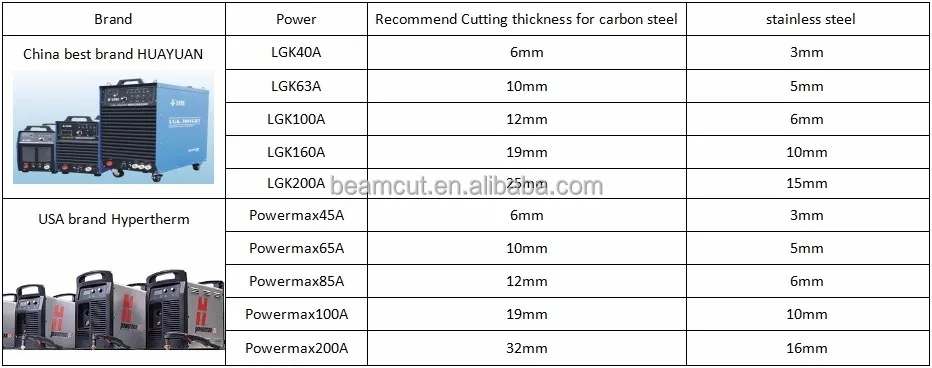

Plasma cutting system you can choose

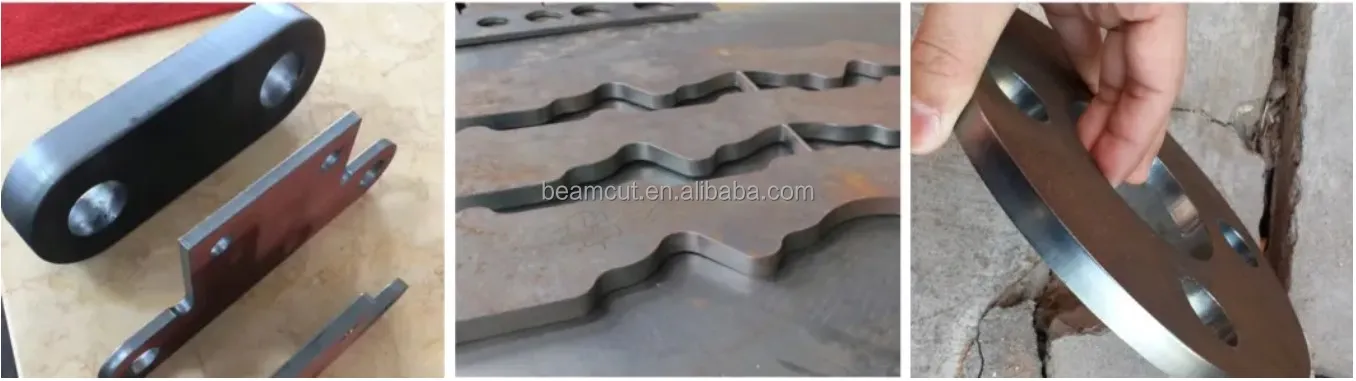

Cutting Samples
Contact us
Keyword:portable cnc plasma cutting machine,plasma cutting machine,plasma cutting machine price
Warranty and service
Ø 2 years guarantee of the whole machine, 2 years for laser system.
Ø CE and ISO certificate, the machines are produced according to standard.
Ø Internet service by emails and live videos.
Ø Door to door technical group service, go to buyer’s site for machine installation and training. (the local transport, food, accommodation, translation should be borne by the buyer. these expenses are not included in the quotation)
Related Products
 |  |  |  |

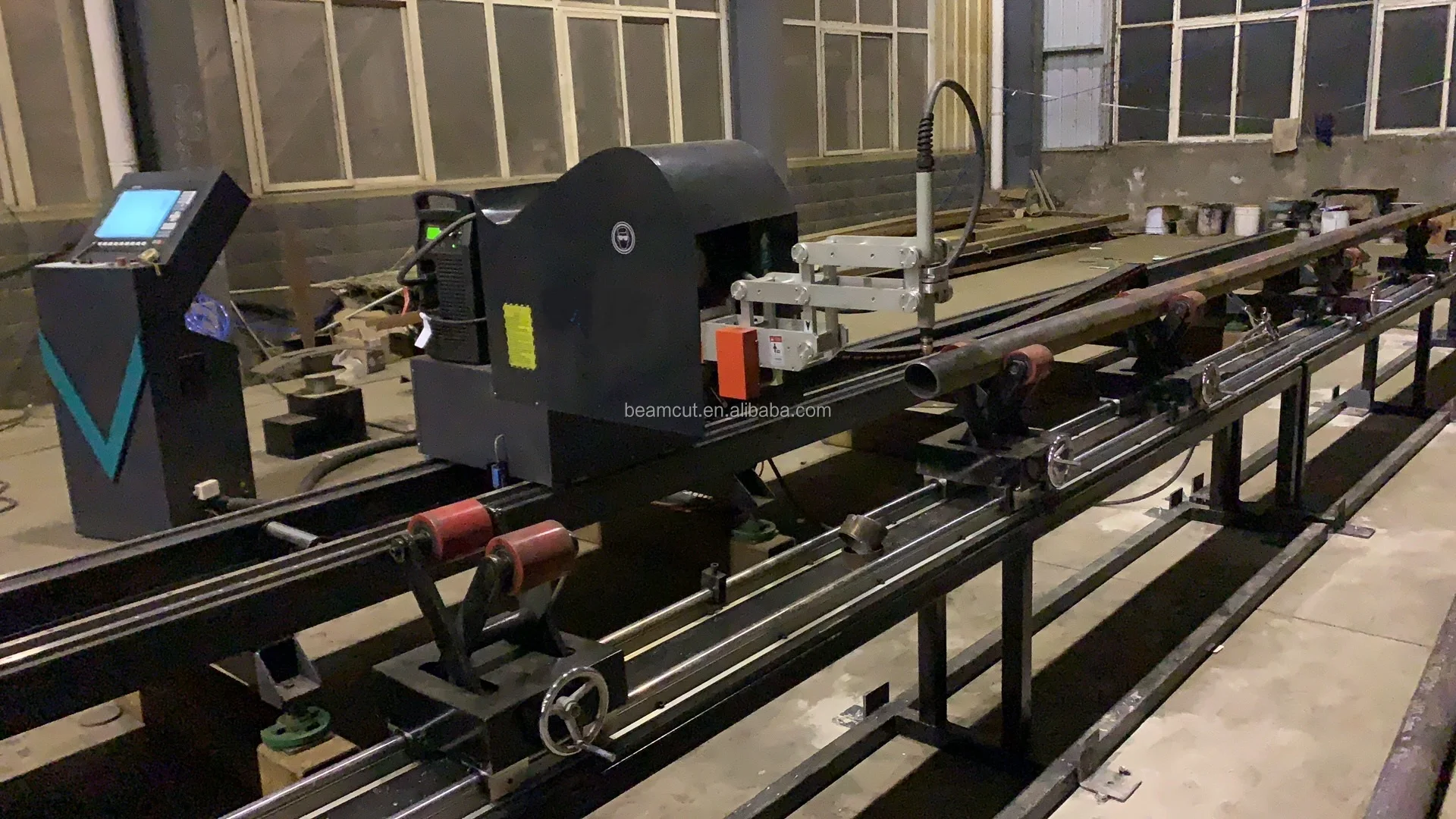

| CNC Plasma cutting machine | CNC metal laser cutting machine | Pipe and beam cutting machine | CNC pipe cutting machine |
FAQ
1 :Our workers can't operate the machine, how to train the staff?
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days,if you want door-to-door service,We can arrange local service in 48 hours
2 : I don’t know which one is suitable for me ?
A2: Please provide the terms as following
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
4 :I don’t know how to use after I receive Or I have problem during use,how to do?
A5:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype, and provide Door service if you need.
