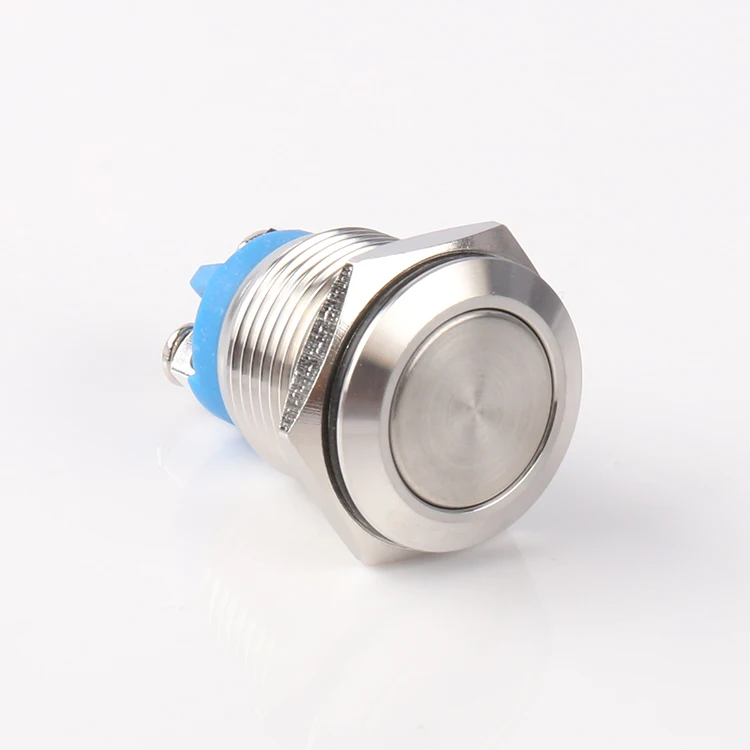

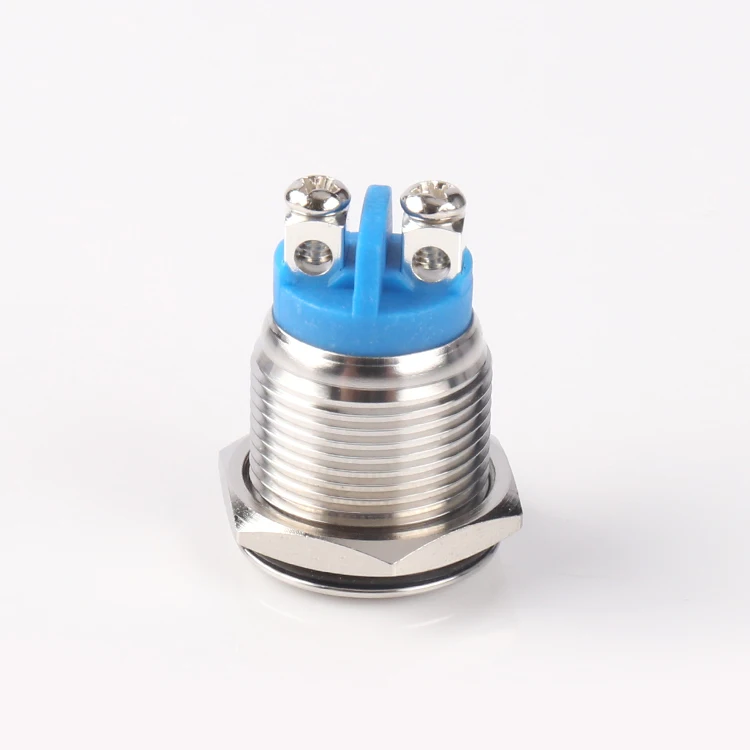

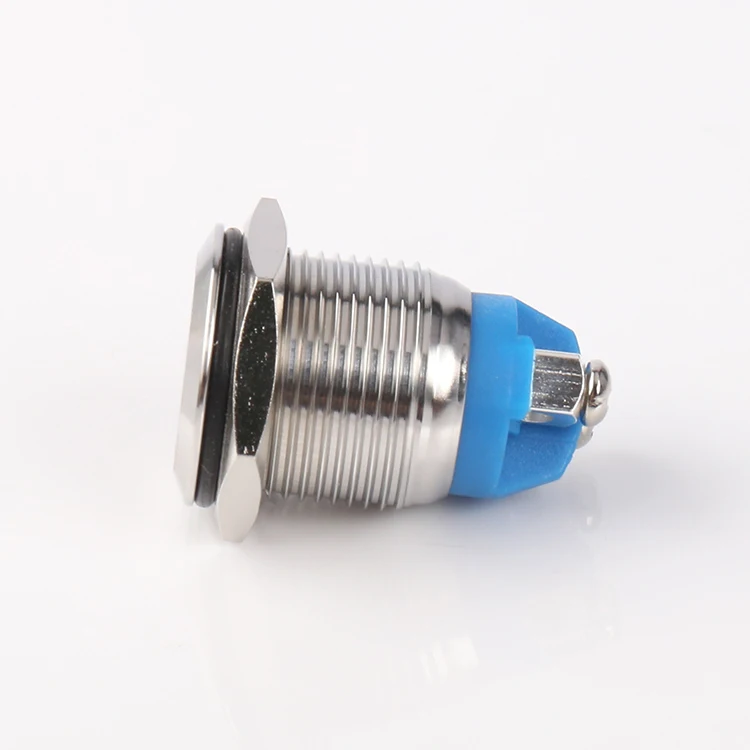

Hot Selling 16mm 16mm Normally Open 1no Metal 16mm Push Button Momentary
- Category: >>>
- Supplier: Wenzhou Baijin Electronic Co. Ltd.
Share on (1600460770175):
Product Overview
Description
welcome
Honest marketing
1. Professional production of metal button switch, supporting connectors, indicator lights, emergency stop switch.
2. independent development, design team and processing workshop.
3. Management system certification:ISO9001.
4. Product Safety Certification:CE,CQQ,IP67,ROHS.
5. Source enterprises, direct sales of manufacturers.
Product Description
| 1. Product name | Metal push button switch | |||
| 2. Product model | Q16A | |||
| 3. Electrical parameters | 3A /250VAC | |||
| 4. Operating temperature range | -20℃~+55℃ | |||
| 5. Level of protection | IP65,IK10,IP40 | |||
| 6. Switch combination | 1N0 | |||
| 7. Type of operation | self-reset | |||
| 8. LED VDC | ||||
| 9. Life of lamp bead | ||||
| 10.Performance | ||||
| mechanical property | project | experimental condition | specification | |
| Operation Force | Load the beginning slowly in the vertical direction | 4~6N | ||
| mechanical life | At a speed of 30 times per minute without loading | The number of operation cycles reached 500,000 times | ||
| weldability | Soldering temperature 230±5℃ immersion time 3±0.5S | The tin area is more than 90% of the impregnation circle | ||
| heat resistance | Soldering temperature 260±5℃ immersion time 5±1S | No abnormal electrical and mechanical properties | ||
| behaviour of electricity | contact resistance | 6V.DC | ≤ 50mΩ | |
| insulation resistance | 500V.DC for 1min | ≥1000mΩ | ||
| technical requirements | ||||
| AC Withstand Voltage Tester | test condition | Requirement | ||
| Micro disconnect | 1000Vac/50Hz,for 1min | No flashover and no breakdown | ||
| basic insulation | 1000Vac/50Hz,for 1min | |||
| Durability Test | overload test | 3A/250VAC,6-10times/min,a total of 50 times | Function should be OK | |
| durability test | 3A/250VAC,6-10times/min,a total of 10000 times | |||
| Temperature Test | 3A/250V, power on continuously for 1h until temperature rise is stable, connection wire size: 18AWG | Terminal temperature ≤30K | ||
| Descriptions | This 16mm self recovery |
| push button is Stainless Steel | |
| The front button is Stainless Steel | |
| Applications | Shipping |
| Security Equipment | |
| Household appliance | |
| Medical equipment | |
| Starter | |
| bathroom | |
| Access control |
