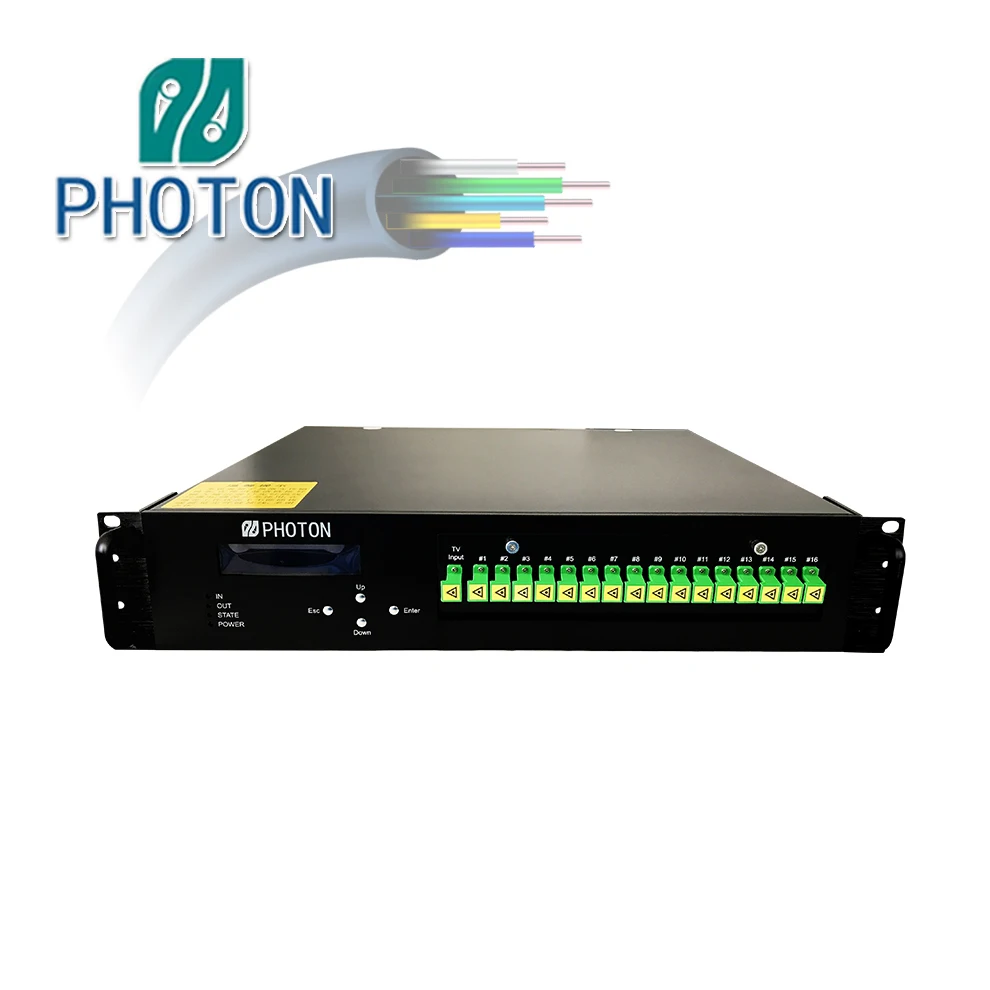

Ftth Optical Equipment 1550NM 16 Ports Optical Amplifier Mini EDFA

Product Overview

Description

Ftth Optical Equipment 1550NM 16 Ports Optical Amplifier Mini EDFA

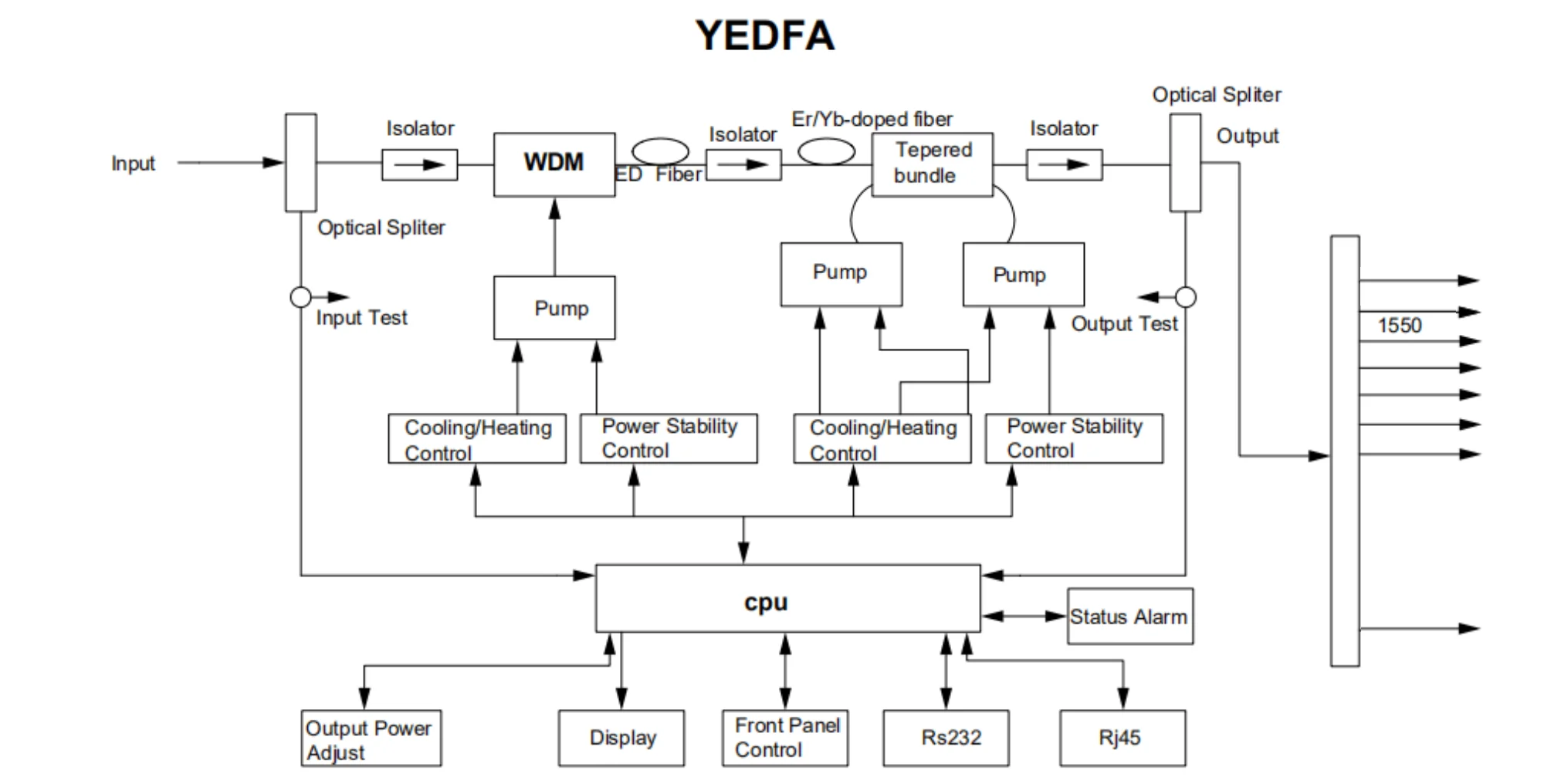

The PTA5102Y-* series Ytterbium and Erbium Doped Fiber Amplifiers (YEDFA) are designed for using in CATV,FTTX and HFC application. It is optimized for 1550nm wavelength and is packaged in a 2U 19 inch rack housing. The product is flexible enough to perform all the requirements of CATV,F1TTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget.



The PTA5102Y series products also provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the LCD front panel display &Web or remotely via Ethernet based-SNMP NMS. The device also support multiple optical output by build-in PLC splitter, which minimizes the investment cost.



        2.Features

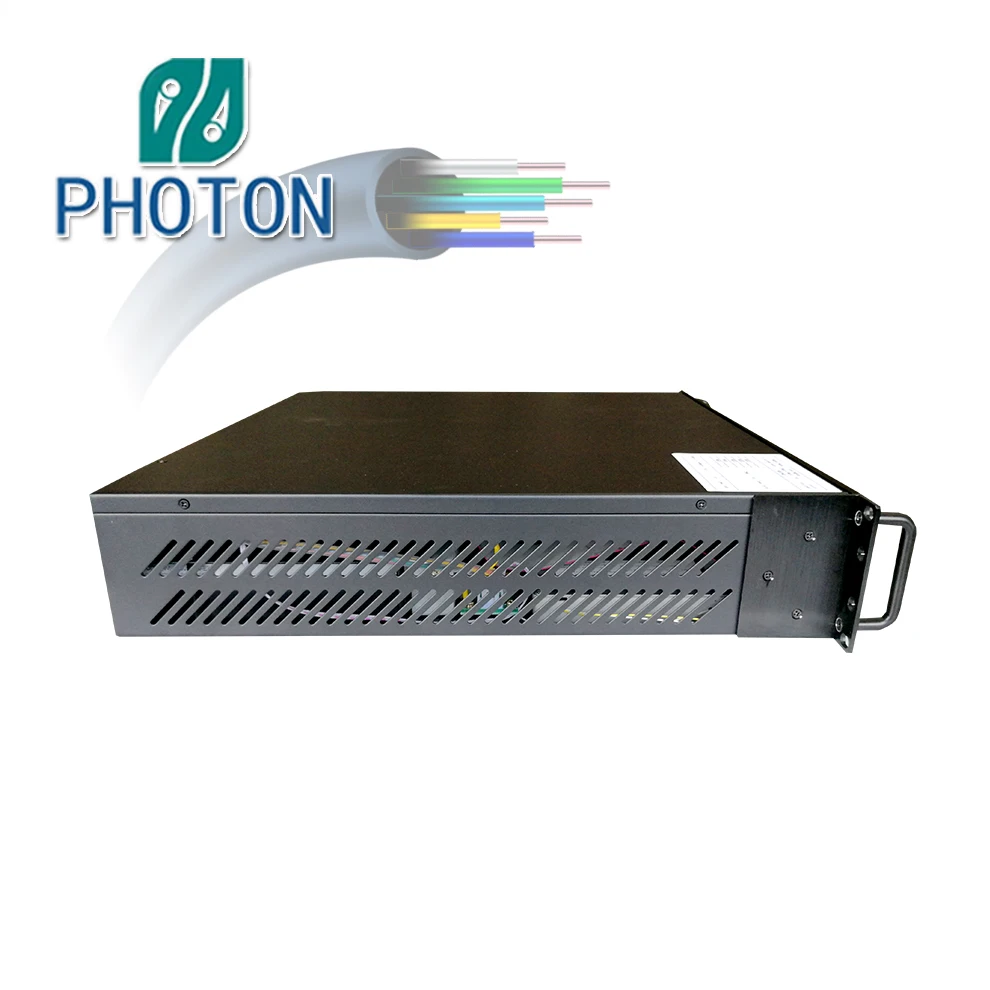

Ø Standard 19 inch 2U Rack YEDFA

Ø 8/16/32 output ports optional

Ø Output powers rang from 8/16/32*16, 8/16/32*19, 8/16/32*22dBm

Ø Output optical power adjustable -3~0dB

Ø Wide input dynamic range(0 to +10dBm)

Ø High Isolation input & output(30dB for max)

Ø Web browser management

Ø Automatic Power Control (APC) or Automatic Current Control (ACC)

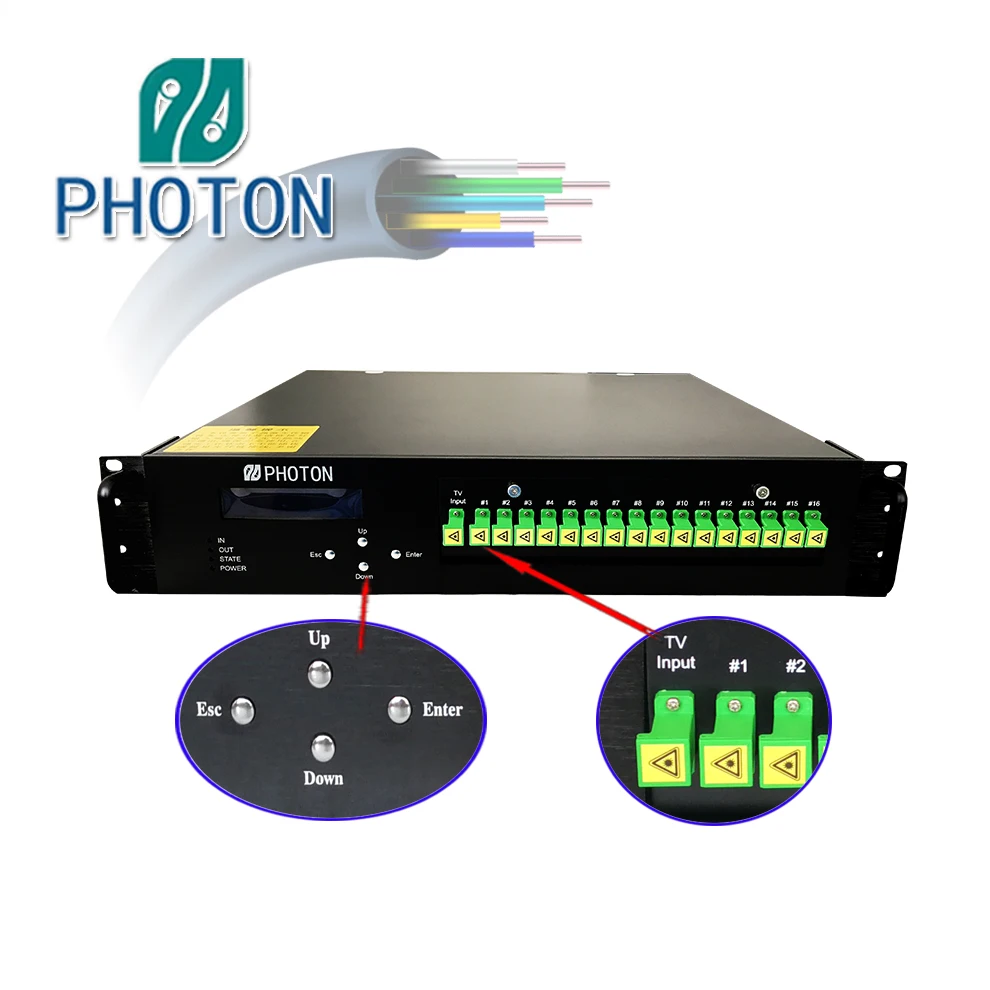

Ø LCD front panel display for local monitor

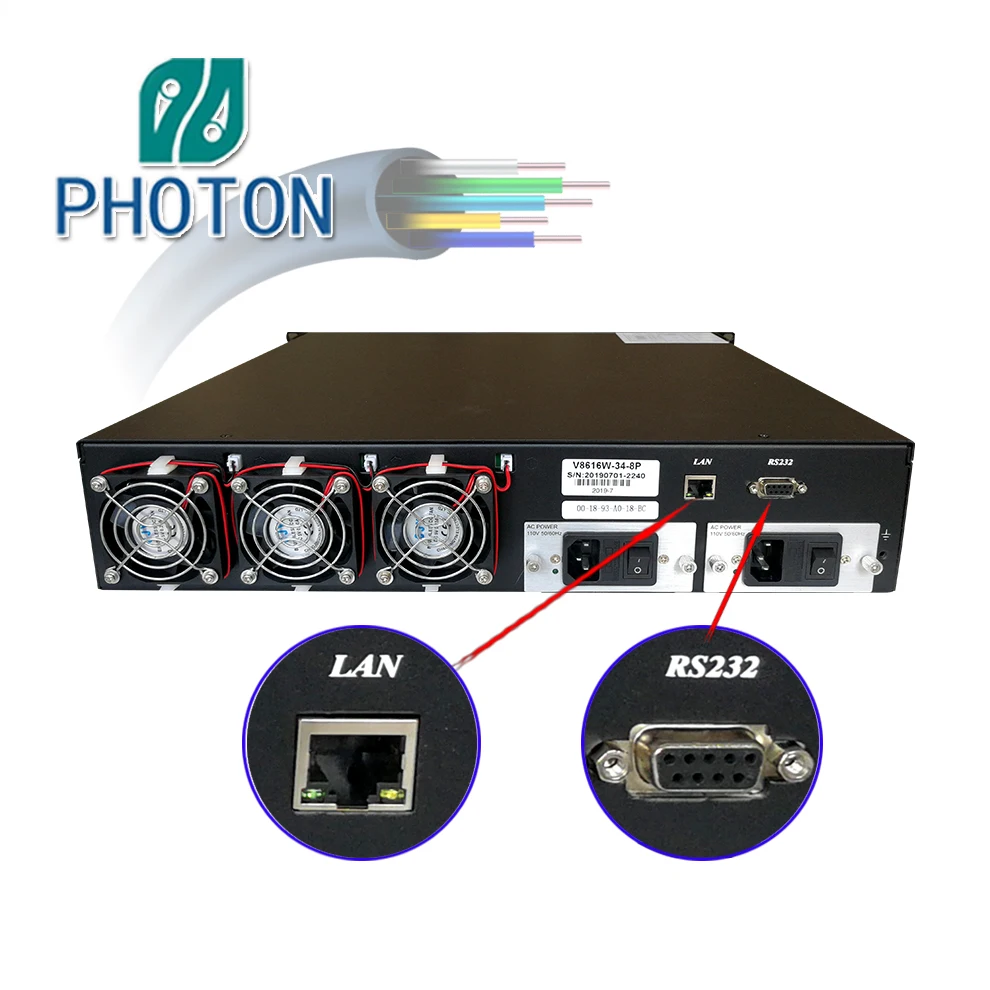

Ø Remote management via SNMP (Ethernet Interface)

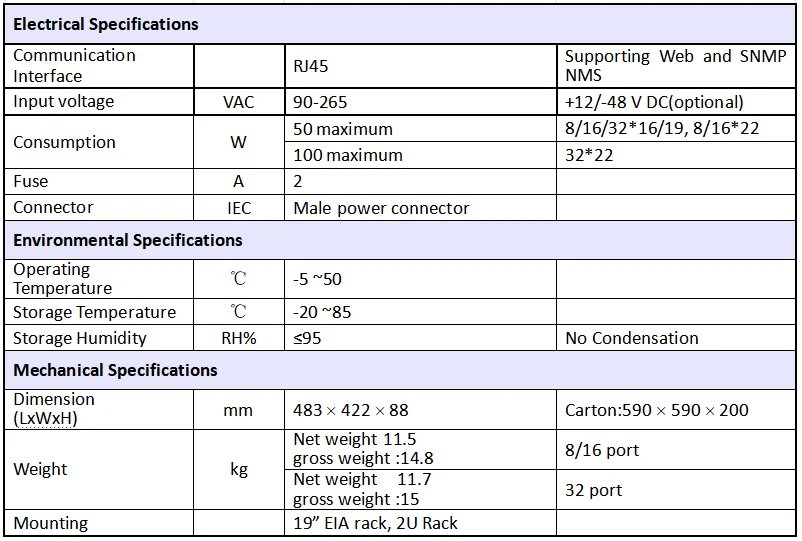

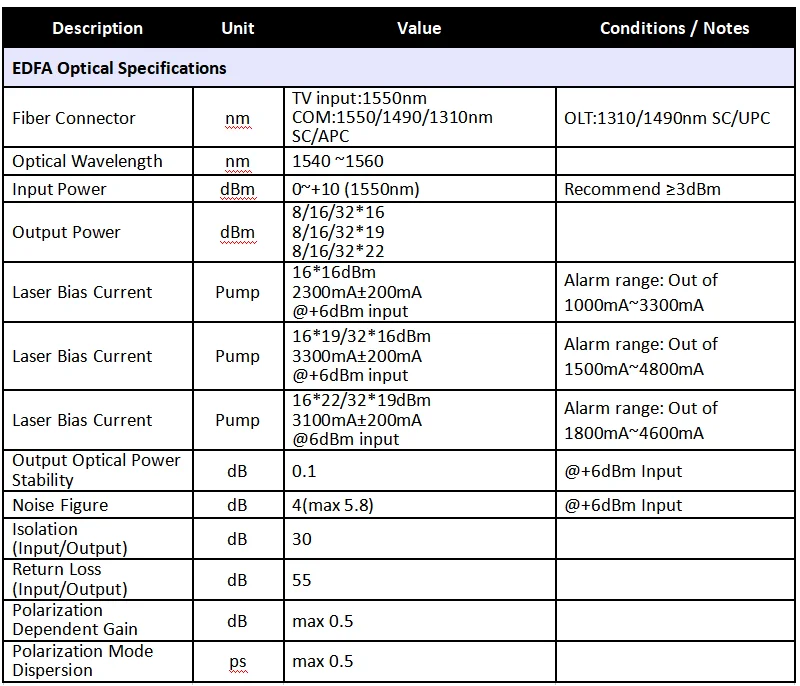

3.Technical parameters



Ø Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.

Ø Packaging: standard carton which suitable for air/ sea transportation.
