Ce Standard Open Table Type 3015 1kw 2000w Raycus Metal Pipe Sheet Fiber Laser Cutting Machine With Rotary Attachment
- Category: >>>
- Supplier: HG STAR TECHNOLOGY CO. Ltd.
Share on (1600460780596):
Product Overview
Description
Prices vary by configuration, for more details please contact the customer service.
Products Description

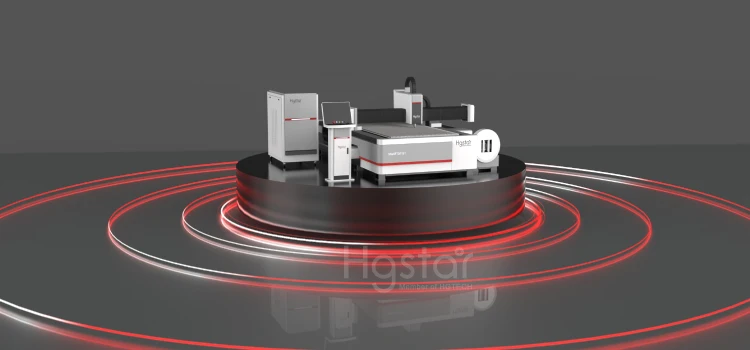

Ce Standard Open Table Type 3015 1kw 2000w Raycus Metal Pipe Sheet Fiber Laser Cutting Machine With Rotary Attachment
Smart series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w) for cutting steel, aluminum, titanium, alloys, brass, copper, iron and etc. Now this budget laser cutting machine offers low price with the best service and support.
VR
Product Paramenters
MODEL | SMART - 3015 / 4015 / 6015 |
Cutting Area (L×W) | 3000mm×1500mm,4000mm×1500mm,6000mm×1500mm |
Laser Source | Fiber & 1000W – 6000W |
CNC System | FSCUT |
Laser Cutting Head | F150mm |
Max Moving Speed | 80m/min, Acceleration is 1.0G |
Position Accuracy (X and Y axis) | 0.02mm |
Reposition Accuracy (X and Y axis) | 0.03mm |
Power Supply Requirement | 380V 50/60Hz |
Electricity demand | 1KW/1.5KW-AC220V/50/60Hz 2KW-AC380V/50/60Hz |

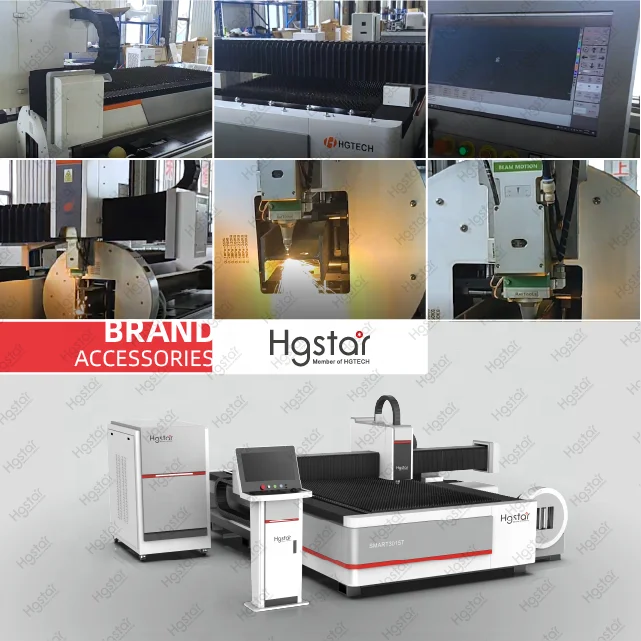

Standard Configuration
Dual Purpose and Cost-Effectiveness
Not only can the HGstar fiber laser cutting machine cut metal plates, but it can also cut metal pipes. It has a wide range of applications and can save up to 50% of available space, resulting in increased productivity.
High strength machine bed
The machine bed is processed with a stress relief annealing method at 600°C,
which ensures a strong structure rigidity
Beam made of cast aluminum
The beam is formed by integral steel die and die casting technology to improve processing efficiency and quality.
Higher photoelectric conversion efficiency
Second generation optical fiber transmission system Better and more stable beam quality
Ability Excellent function
Vibration Suppression
One key quick setting can easily solve the vibration problem of thick plate processing
Intelligent obstacle avoidance
Intelligently avoid random raised areas in the cutting process and reduce the risk of head collision
Exclusive tuning database
All you need to do is a simple touch, and the complicated operations are handed over to us
Membrane removal process
The sequence of film removal and pre perforation can be set flexibly and make workpiece cutting more perfect
Three point edge finding
The inclination angle and origin of sheet metal are sensed through automatic edge-finding to avoid waste and save time
Partition dust removal
Through fine setting, the dust removal tuyere can be opened and closed with the movement of the cutting head. the dust removal effect is effectively enhanced
Ability Cutting parameter

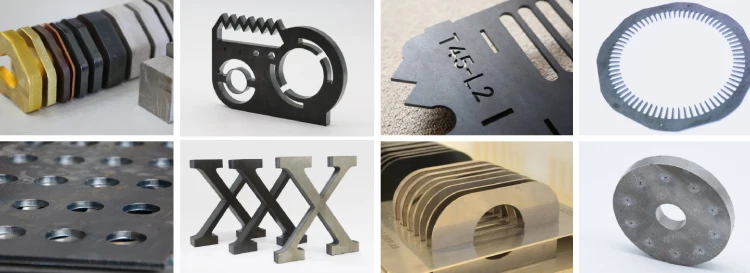

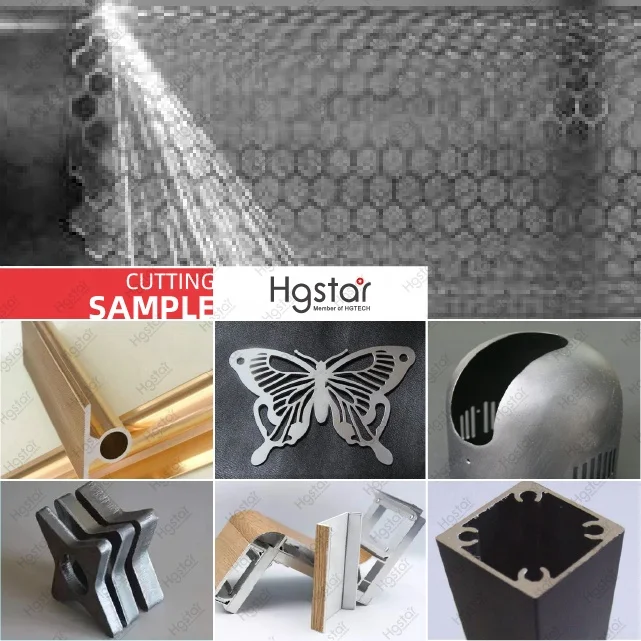

Cutting Samples
Applicable to cutting carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
Service Quality Inspection
Bed Foot Installation
Adjust the height of the feet
according to the test results of the strip level to ensure the accuracy of subsequent installation
according to the test results of the strip level to ensure the accuracy of subsequent installation
Rail Installation
Use photoelectric autocollimator to detect the straightness and flatness of the guiderail to ensure that the detection value is within the standard range
Rack Installation
The relative position of the guide rail and the guide rail is locked and clamped by the measuring rod. Statistics and analysis of measurement data to ensure that they are parallel
Beam Installation
After the beam is installed . use a three-coordinate measuring
instrument to check the coaxiality to ensure the relative perpendicularity of the X / Y / Z three-axis
instrument to check the coaxiality to ensure the relative perpendicularity of the X / Y / Z three-axis
Positioning Accuracy Inspection
The laser interferometer tests the X-axis positioning accuracy to ensure the accuracy of the whole machine
Positioning Accuracy Inspection
The laser interferometer tests the Y-axis positioning accuracy to ensure the accuracy of the whole machine
Positioning Accuracy Inspection
The laser interferometer tests the Z-axis positioning accuracy to ensure the accuracy of the whole machine
72h Machine Aging Test
Simulate the high-intensity test of various harsh conditions in the actual use of the equipment , and at the same time , according to the requirements of use , rationalize the improvement to ensure the factory pass rate and improve the reliability of the equipment
Pack And Ship
Adopt sealed composite aluminum foil moisture-proof low-pressure packaging and thick wooden boards to protect the fuselage to prevent bumps and collisions during shipping , and minimize unnecessary mechanical losses that may occur during transportation
Service Delivery Process
1
Machine Inspection
2
Component Fixing
3
Protective Film Wrapping
4
Wooden Boxseal
5
Edge Reinforcement
6
Separate Packaging
7
Lifting Rail Transfer
8
Container Loading
9
Transportation
Company Profile
Q1. What's the difference between you and HGTECH?
A1.Hgstar is a subsidiary of hgtech. Considering the needs of users, hgstar mainly aims to improve the cost performance of products,smart series mainly focus on 1000w-6000w laser cutter ,and hgtech focus on high power laser equipment
Q2. How long is the delivery date？
A2.Each machine has 20 sets in stock and can be delivered quickly，if not in stock,the standard machine can be completed in 10-20 days，Customized models take about 30 days to be ready to ship.
Q3. What about machine warranty?
A3:5-year warranty，If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q4. How to install and use?
A4.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q5. What about after-sales problems?
A5.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q6. What about wholesale price?
A6:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price
A1.Hgstar is a subsidiary of hgtech. Considering the needs of users, hgstar mainly aims to improve the cost performance of products,smart series mainly focus on 1000w-6000w laser cutter ,and hgtech focus on high power laser equipment
Q2. How long is the delivery date？
A2.Each machine has 20 sets in stock and can be delivered quickly，if not in stock,the standard machine can be completed in 10-20 days，Customized models take about 30 days to be ready to ship.
Q3. What about machine warranty?
A3:5-year warranty，If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q4. How to install and use?
A4.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q5. What about after-sales problems?
A5.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q6. What about wholesale price?
A6:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price
