Heavy Lift Crane XCT130 130 Ton Hydraulic Truck Crane for sale
- Category: >>>
- Supplier: Shanghai Super-Above Industry Holdings Co. Ltd.
Share on (1600460788425):
Product Overview
Description
Products Description

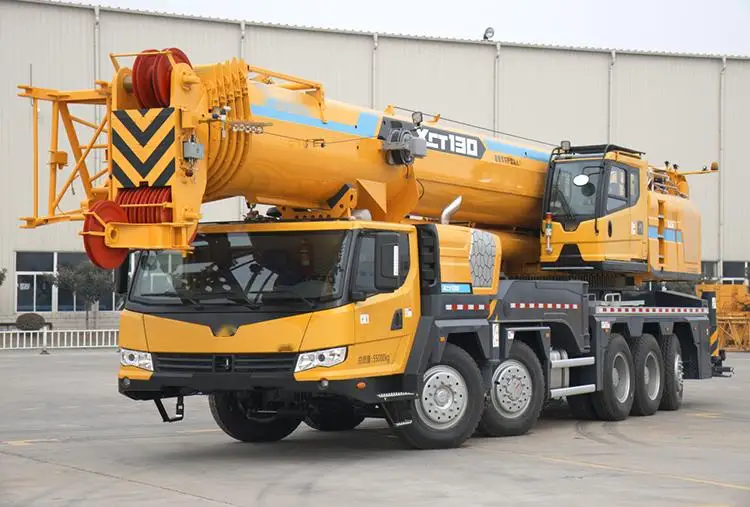

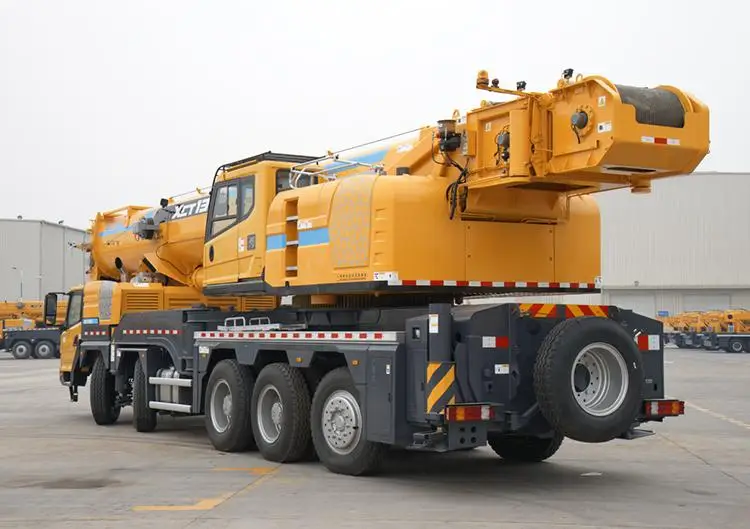

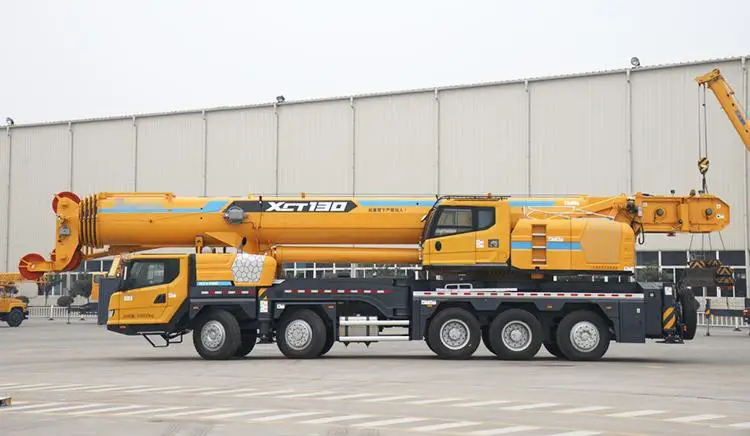

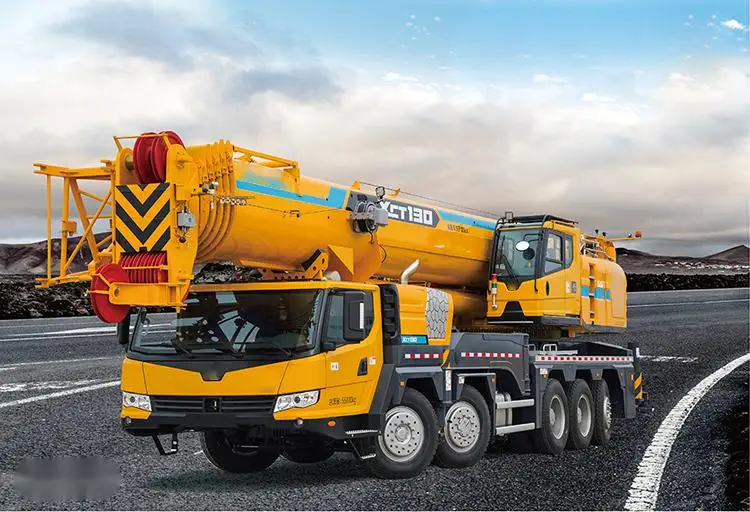

Heavy lift Crane XCT130 130 ton hydraulic Truck Crane for sale

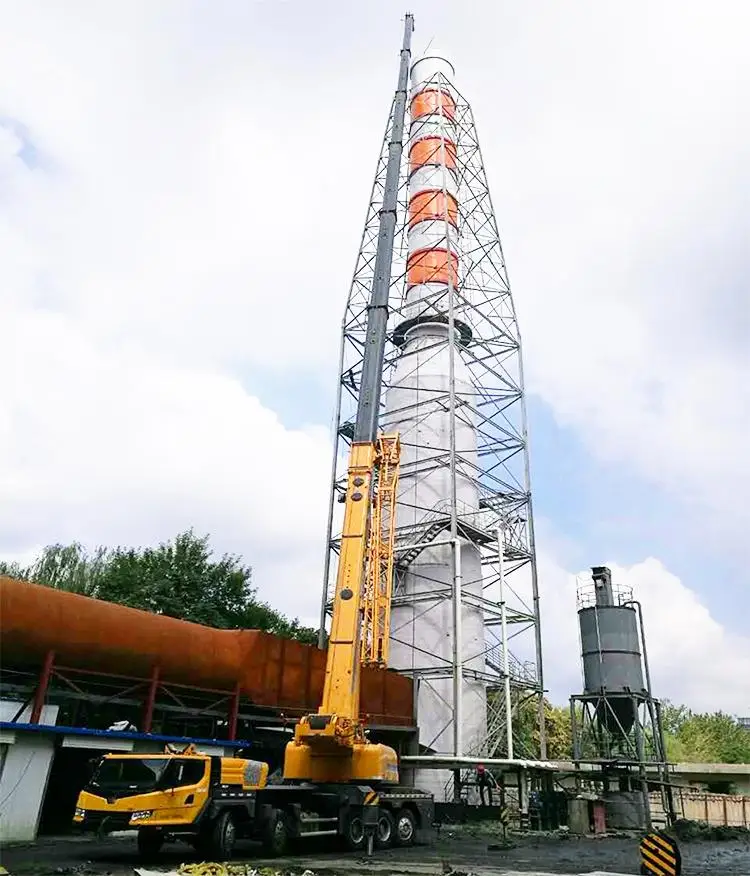

XCT130 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
* 6-section boom of 61 m with U-type profile is adopted; the max. lifting load is 130 t; the max. lifting height is 85.3 m; the max. working radius is 70 m; The performance takes the lead comprehensively.
* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in gradability.
* Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.
* 6-section boom of 61 m with U-type profile is adopted; the max. lifting load is 130 t; the max. lifting height is 85.3 m; the max. working radius is 70 m; The performance takes the lead comprehensively.
* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in gradability.
* Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.
Technical parameters
Item | Specification | Unit |
Overall Length | 15195 | mm |
Overall Width | 3000 | mm |
Overall Height | 3970 | mm |
Wheel Base | 2449/2449/2315/2315/2449 | mm |
Total vehicle mass in travel configuration | 54990 | kg |
Front Axle Load | 16200 | kg |
Rear Axle Load | 26000 | kg |
Engine Model | WP6G240E330 | |
Engine rated power | 190/2200 | kw/(r/min) |
Engine rated torque | 1000/1200-1600 | N.m/(r/min) |
Max. travel speed | 85 | km/h |
Min. travel speed | 2.5~3 | km/h |
Min. turning diameter | 23 | m |
Details Images
Sales Service
About Us
Packaging & Shipping
FAQ
1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
