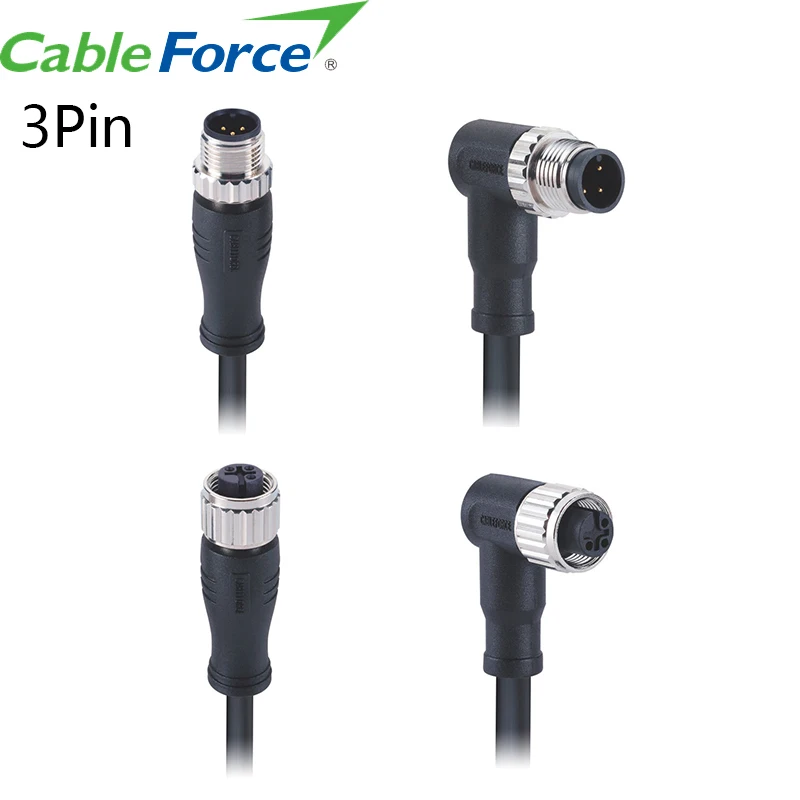

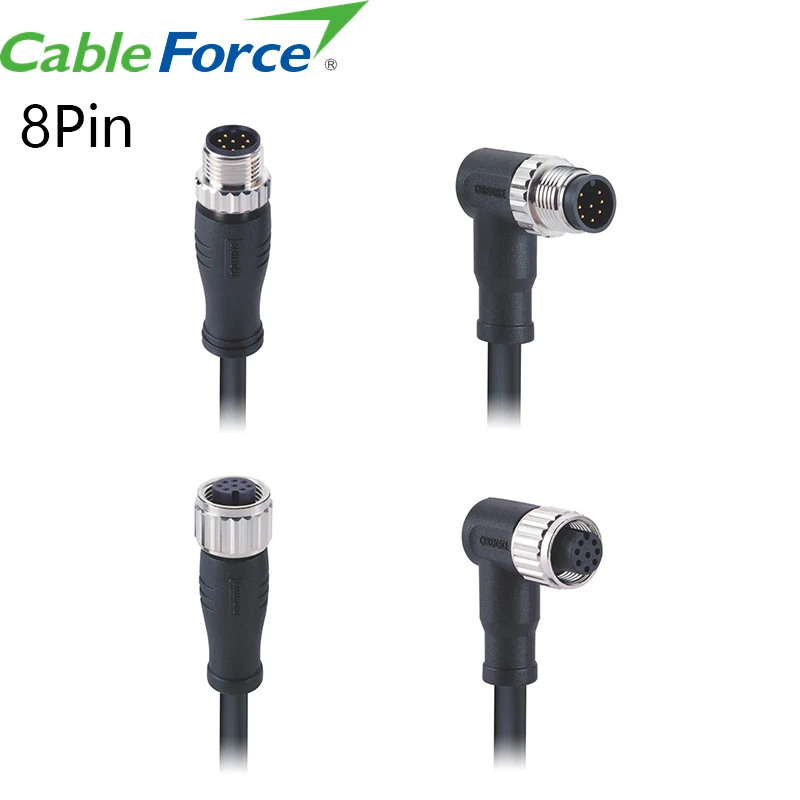

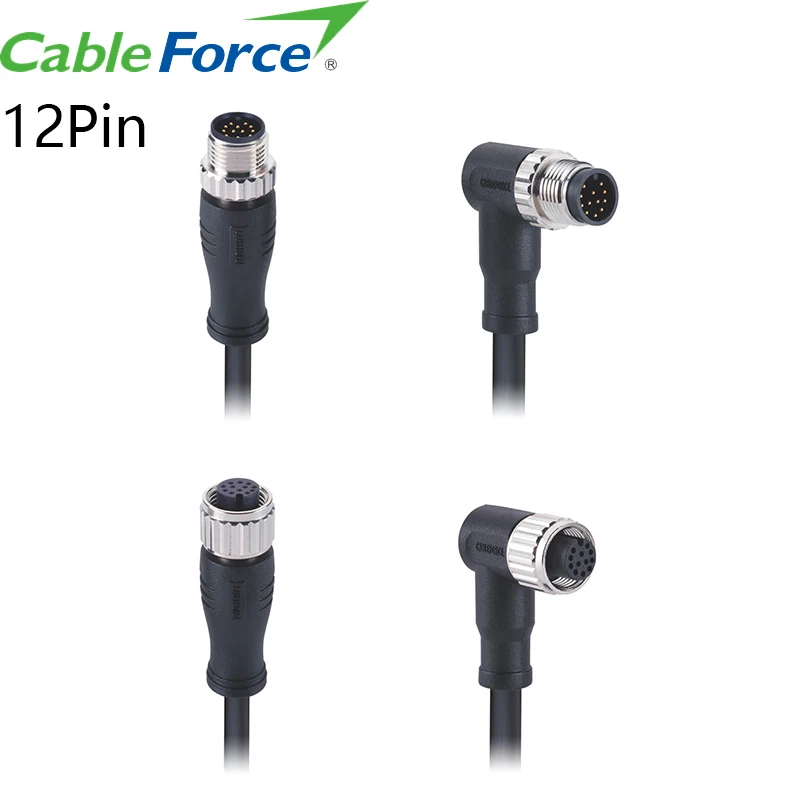

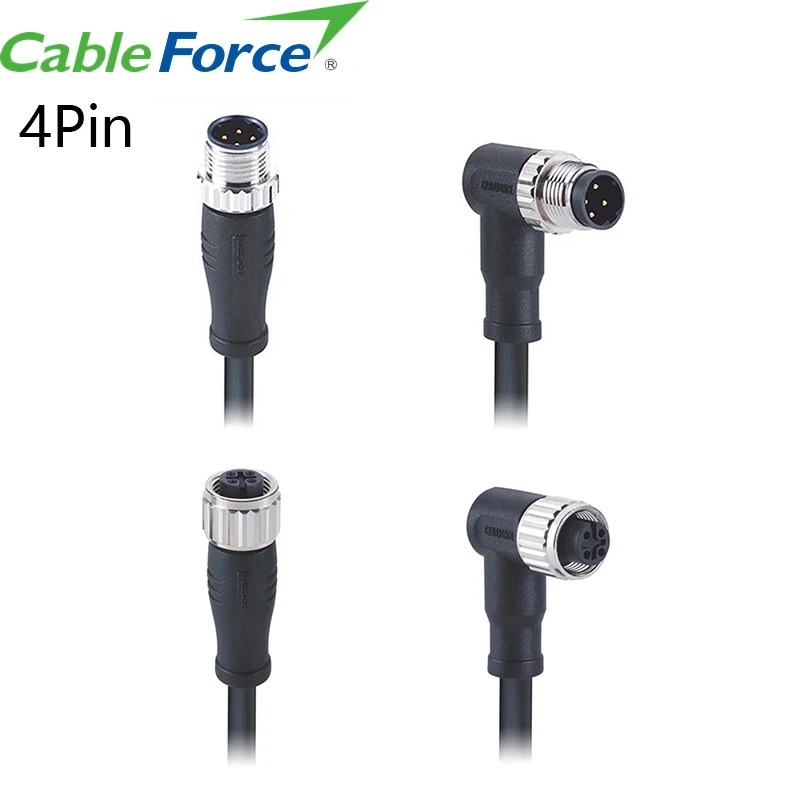

CableForce China Supplier ODM OEM M12 A Code Waterproof Male Female Circular Molding Cable Connector 2 3 4 5 8 12 17 Pin
- Category: >>>
- Supplier: Dongguan Cableforce Connector Co. Limited.
Share on (1600460800368):
Product Overview
Description
Products Description
CableForce China Supplier ODM OEM M12 A Code Waterproof Male Female Circular Molding Cable Connector 2 3 4 5 8 12 17 Pin
Connector Technical Data | ||||||||||||||
Contacts poles | 2Pin | 3Pin | 4Pin | 5Pin | 8Pin | 12Pin | 17Pin | |||||||
Rated current | 16A | 4A | 2A | 1.5A | ||||||||||
Rated voltage | 630V | 250V | 60V | 30V | ||||||||||
Impulse voltage | 5000V | 1500V | 800V | 500V | ||||||||||
Locking system | M12×1.0 screw | |||||||||||||
Tightening Torque | Recommend: 0.4Nm, Max: 0.8Nm | |||||||||||||
Termination | Soldering | |||||||||||||
Wire gauge | 1.5mm²(AWG16)+(AWG22) | 0.34mm²(AWG22) | 0.25mm²(AWG24) | 0.14mm²(AWG26) | ||||||||||
Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ | |||||||||||||
Insulation resistance | ≥100MΩ | |||||||||||||
Contact resistance | ≤5mΩ | |||||||||||||
Over-molding | TPU | |||||||||||||
Contact carrier | TPU+GF | |||||||||||||
Screw nut | Brass, CNC, Nickel-plated | |||||||||||||
Contact | Brass | |||||||||||||
Contacts plating | Au(Gold) | |||||||||||||
O-ring | FKM/Silicon | |||||||||||||
Protection degree | IP67, IP68 | |||||||||||||
Pollution degree | 3 | |||||||||||||
