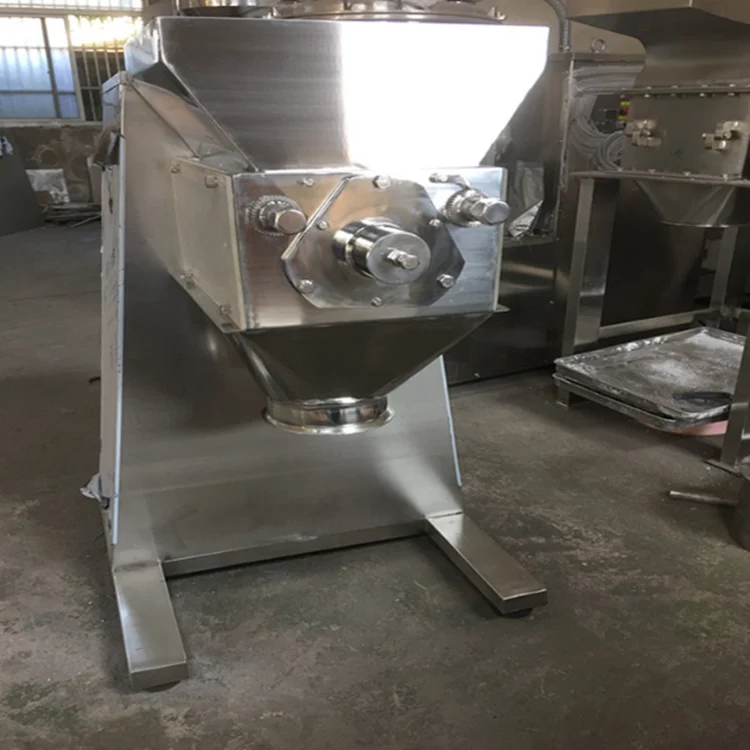

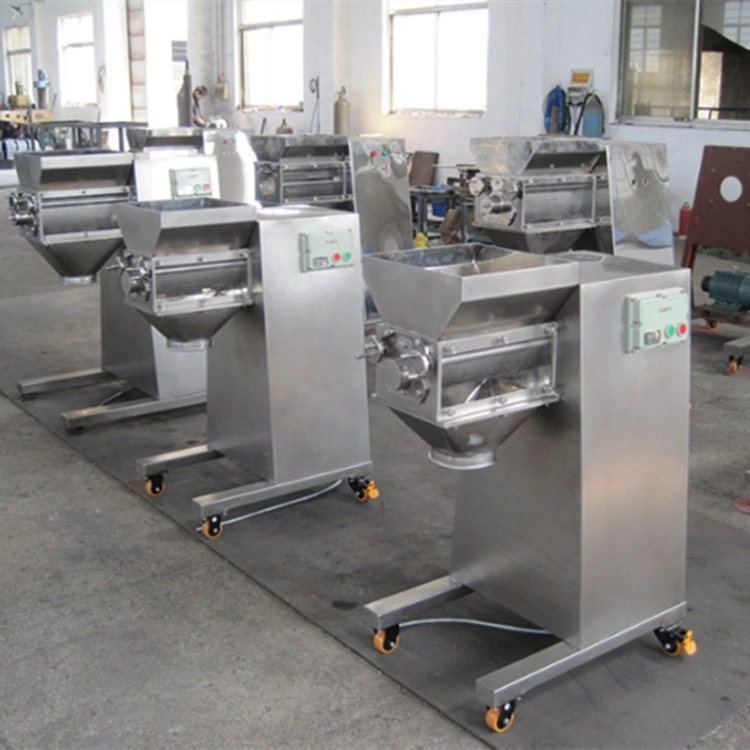

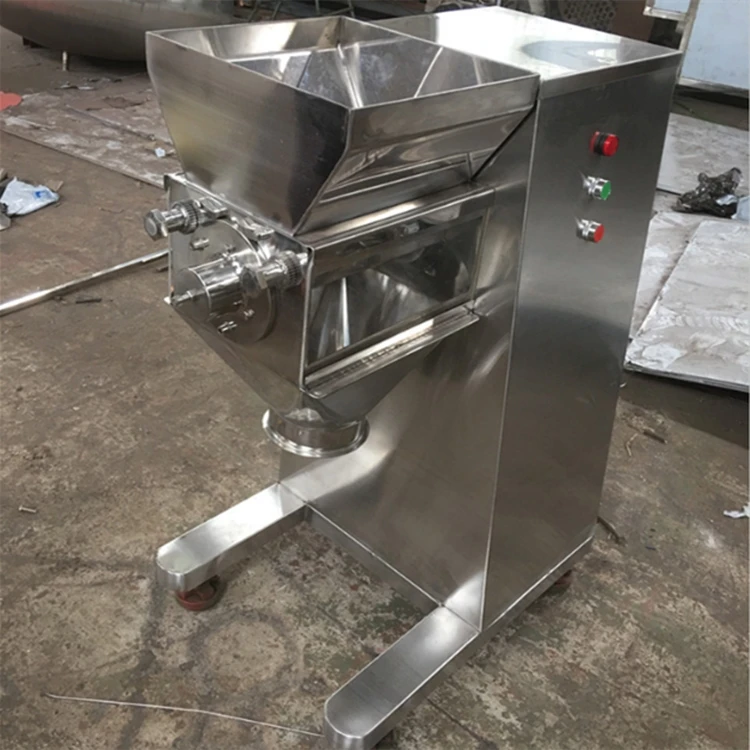

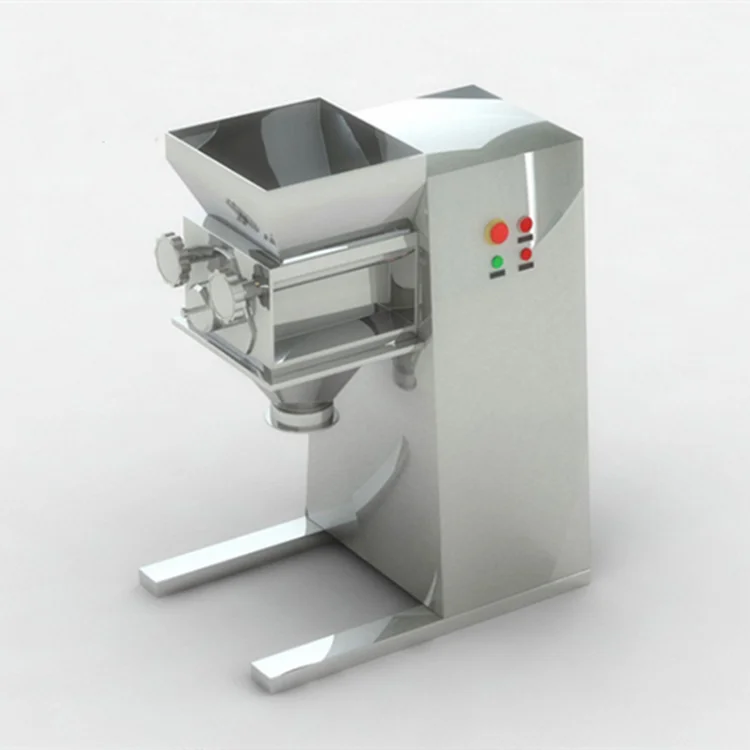

Oscillating Granulator Yk 160 Lab Swing Oscillating Granulator Machine With Price
- Category: >>>
- Supplier: Liaoning SINOPES Machinery Co. Ltd
Share on (1600460833292):
Product Overview
Description
Product Description
Product Description
The oscillating granulator can make particles from a mixture of powders, or from lumpy dry matter into the desired particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories
It has a wide range of applications, uniform particles produced, no need for particle screening, thereby increasing production efficiency, reducing production costs and increasing production. Compared with powder, pellets are easy to take, store and transport. The machine is driven by mechanical transmission to swing the cylinder back and forth. The material is extruded into particles from the screen. As long as the screen mesh of different numbers is replaced, the coarse and fine particles are made. The drum does not need to be disassembled, the screen is easy to disassemble and is very light. The cleaning parts are only part of the granulating cavity, and the cleaning is very convenient. The particles made by the system contain less powder and particle size, convenient operation, simple control and long service life, which meet the requirements of GMP specification.
Working method:
The swing granulator is a mechanical drive. Under the action of friction, the drum rotates, and powdery materials are discharged from the screen hole and sent out of the machine under the action of positive and reverse rotation of the rotating drum. The particle size and density can be controlled to a certain extent by adjusting the tightness of the screen and the speed of the drum
The swing granulator is a mechanical drive. Under the action of friction, the drum rotates, and powdery materials are discharged from the screen hole and sent out of the machine under the action of positive and reverse rotation of the rotating drum. The particle size and density can be controlled to a certain extent by adjusting the tightness of the screen and the speed of the drum
Features:
1.This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.
2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
3. It is not suitable for solid, fluid medium, paste or pulverizing.
4.Its mesh number of sieve should be prepared by users, according to the size of granule.
All datas are used for reference only. According to the condition of material, there will be no further notification if any modification.
MODEL | YK-60 | YK-90 | YK-160 | YK-160C |
Production capacity | 20~30KG / H | 50~100KG / H | 200`300 KG / H | 200`300 KG / H |
Hob diameter | 60 mm | 90 mm | 160 mm | 160 mm |
Hob rotating speed | ±46rpm | ±50rpm | ±55rpm | ±46rpm |
Hopper section size(L*W) | 210*209mm | 300*280mm | 410 x 430mm | 408×380mm |
Motor power | 250W | 550W | 2200W | 2200W |
Machine net weight | 65 KG | 150 KG | 310 KG | 360 KG |
Dimension | 650*370*720mm | 670*440*790mm | 560x970x1240 mm | 950×560×1240mm |

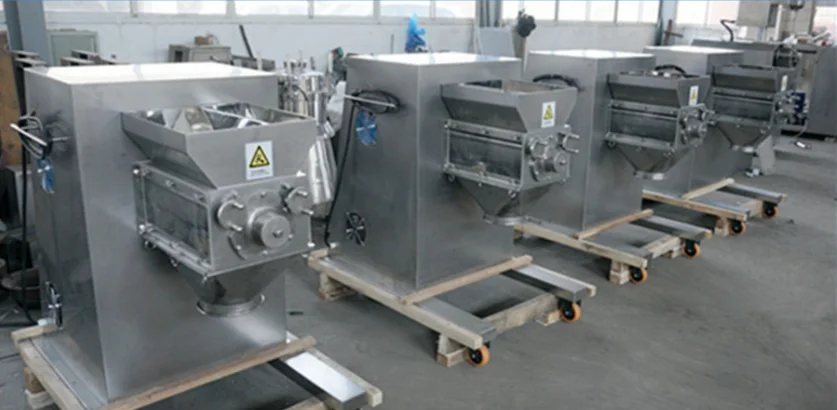

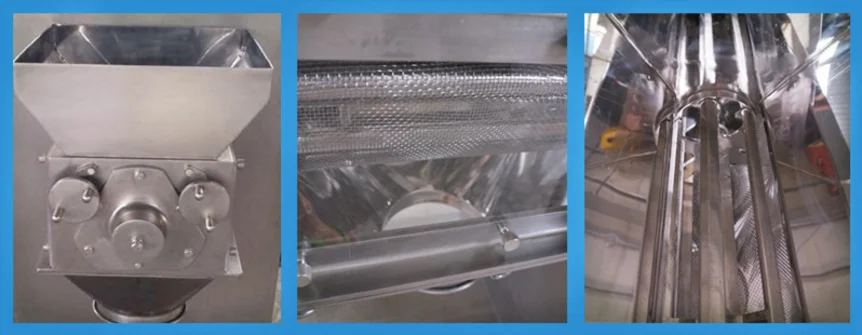

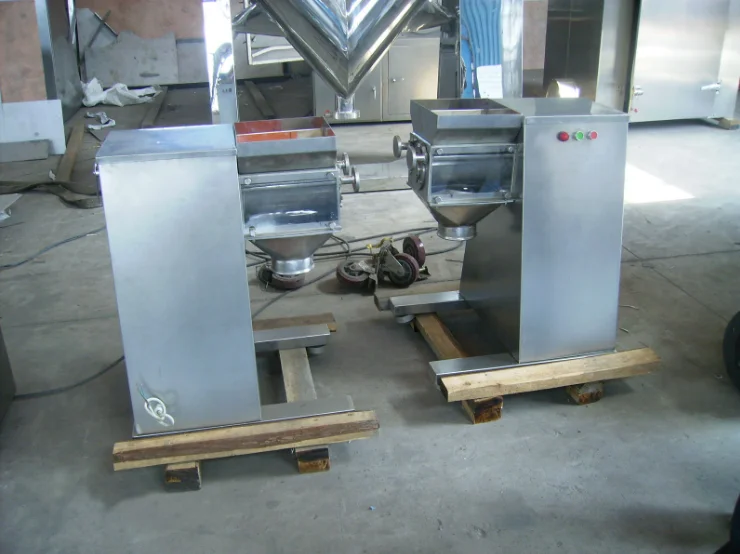

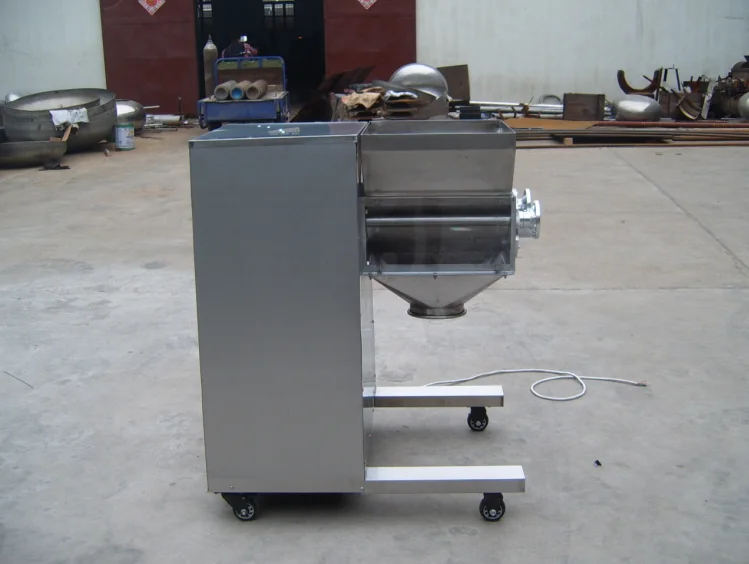

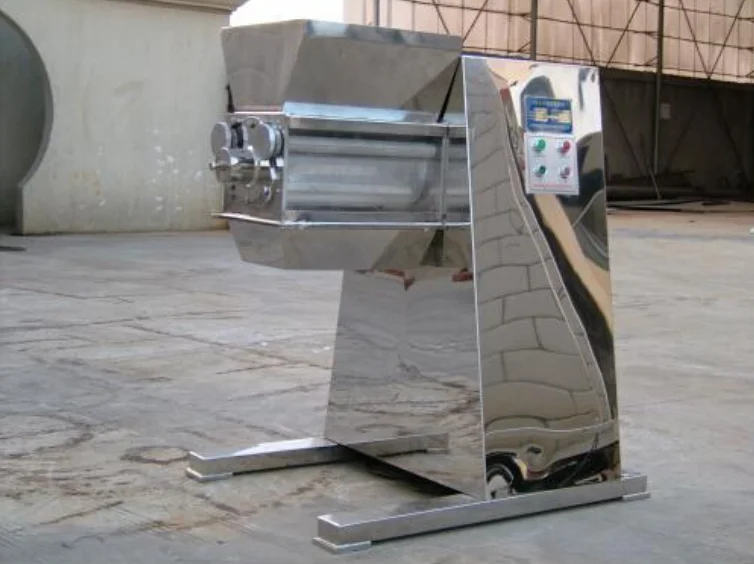

Detailed Images
Detailed Images
Company introduction
LIAONING SINOPES Machinery Co.,Ltd,is located in liaonig is the company specialized in design and manufacturing of high performance packing solution.Our products includes vertical packing machine,horizontal packing machine,powder Packaging Machine,Grain Packaging Machine,Liquid Packaging Machine,and package production line.It is widely used in food, hardware,industrial, plastic, paper,chemicals, agriculture products,daily necessities, disposable supplies,and so on.
