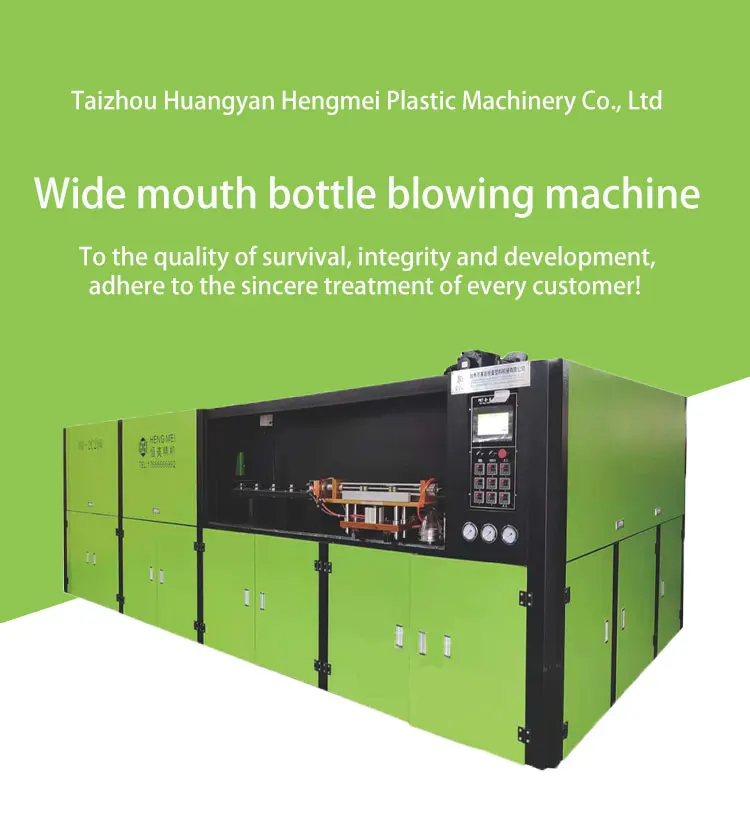

Small plastic blow molding machine with customizable logo can be used to blow multi standard PET beverage bottles
- Category: >>>
- Supplier: Taizhou Huangyan Hengmei Plastic Machinery Co. Ltd.
Share on (1600460877183):
Product Overview
Description
Taizhou Huangyan Hengmei Plastic Machinery Factory is a modern China Products manufacturers and Products factory,which specializing in the production of blow molding machines.We focus on the production of automatic wide mouth blowing machine,blowing mold,preform mold,injection mold and related ancillary products.Our Products are for sale with low price.They are in line with international standards,and are mainly exported to Europe, America, Japan, etc. We survive by quality, develop by honesty and insist on treating every customer with sincerity!
Made in china fully automated pet blowing machine wide mouth 38mm output can be custom
It can blow PET cans, screw cans, hydroponic plant bottles, pesticide bottles, domestic medicine bottles of various specifications and shapes, with the output of 1300-1800 bottles per hour, which will be slightly reduced according to the size of the bottle.
Machine features：
1. This machine has low energy consumption, small volume and convenient maintenance.
2. Simple and convenient operation.
3. Main parts are imported parts.
Product Live Shot
Product Paramenters
Main Specifications | ||||
Output | According to bottle shape | 800-1300bph | ||
Finished Bottle | Bottle body diameter | 45-120mm | ||
bottle height | 50-260mm | |||
bottle neck diameter | 45-100mm | |||
Mold | Cavity | 2 Cavity | ||
Mold thickness | 200mm ±0.05 | |||
Max. stretching distance | 450*380mm | |||
Power | Power voltage | 3 Phase 380V 50Hz | ||
Installed power | 38Kw | |||
Actual power | 18Kw | |||
Air souce | High pressure air compressor voltage | 2.4m/min 3.0MPa | ||
Low pressure air compressor | 1.0m3/min 1.0Mpa | |||
Cooling water | Water yield | 15L/min | ||
Blower dimension | Length * width * height | 3850*2200*1900mm | ||
Weight | 3500Kg | |||
Final Products
Finished Bottle | Bottle body diameter | 45-120mm |
Bottle height | 50-260mm | |
Bottle neck diameter | 45-100mm |
Details Images

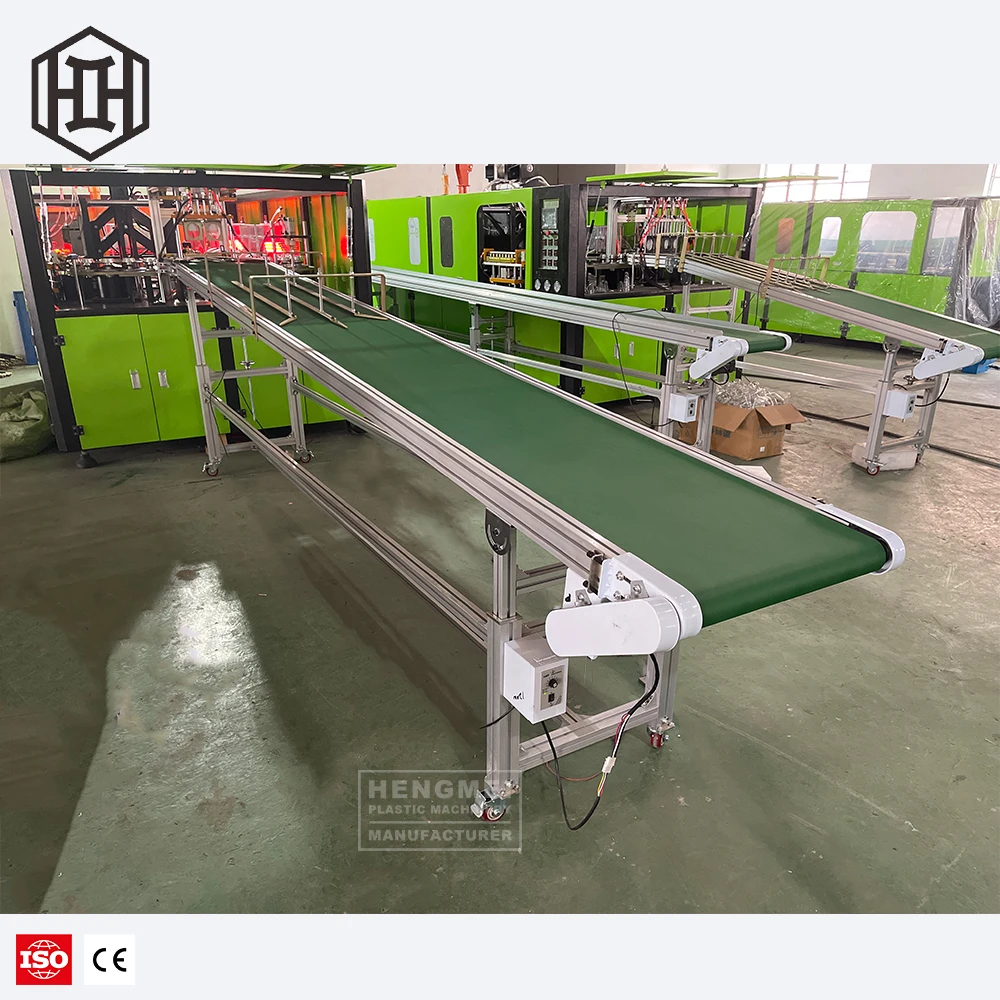

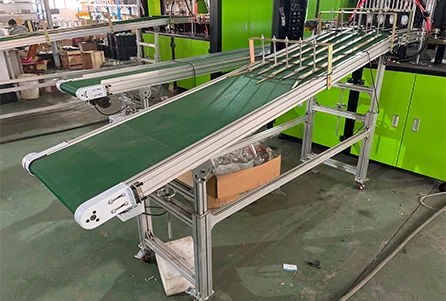

This equipment is used to transfer
preforms.The belt assembly conveyor line is an economical logistics conveying equipment that is indispensable for forming a rhythmic assembly line. Its operation is high-speed, stable, low noise, and can be conveyed up and
down.
down.

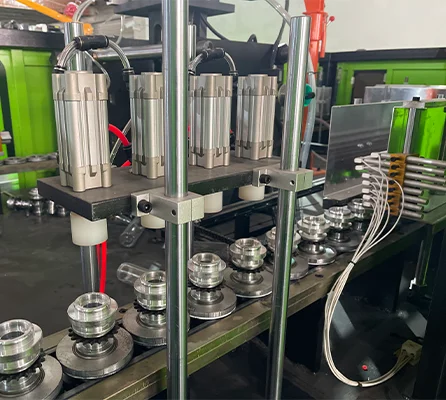

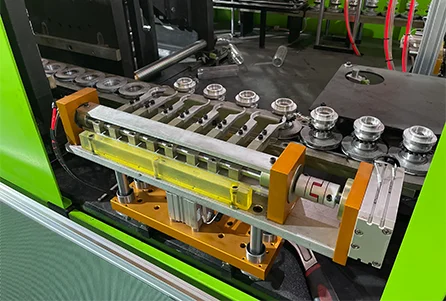

Clip the finished bottle embryo from the conveyor belt to the conveyer rail.
Let the bottle embryo be better fixed on the transmission rail.

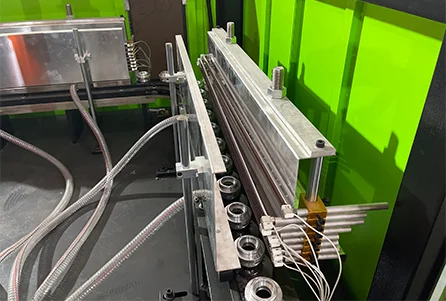

Preform uniform heater
The preform uniform heater reflects the light of the heating device through the reflector, so that both sides of the preform can
be evenly heated, thereby improving the heating quality of the preform.
be evenly heated, thereby improving the heating quality of the preform.

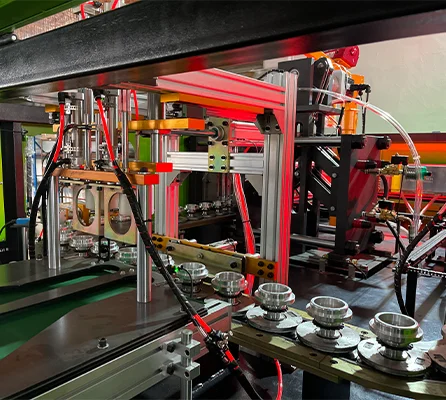

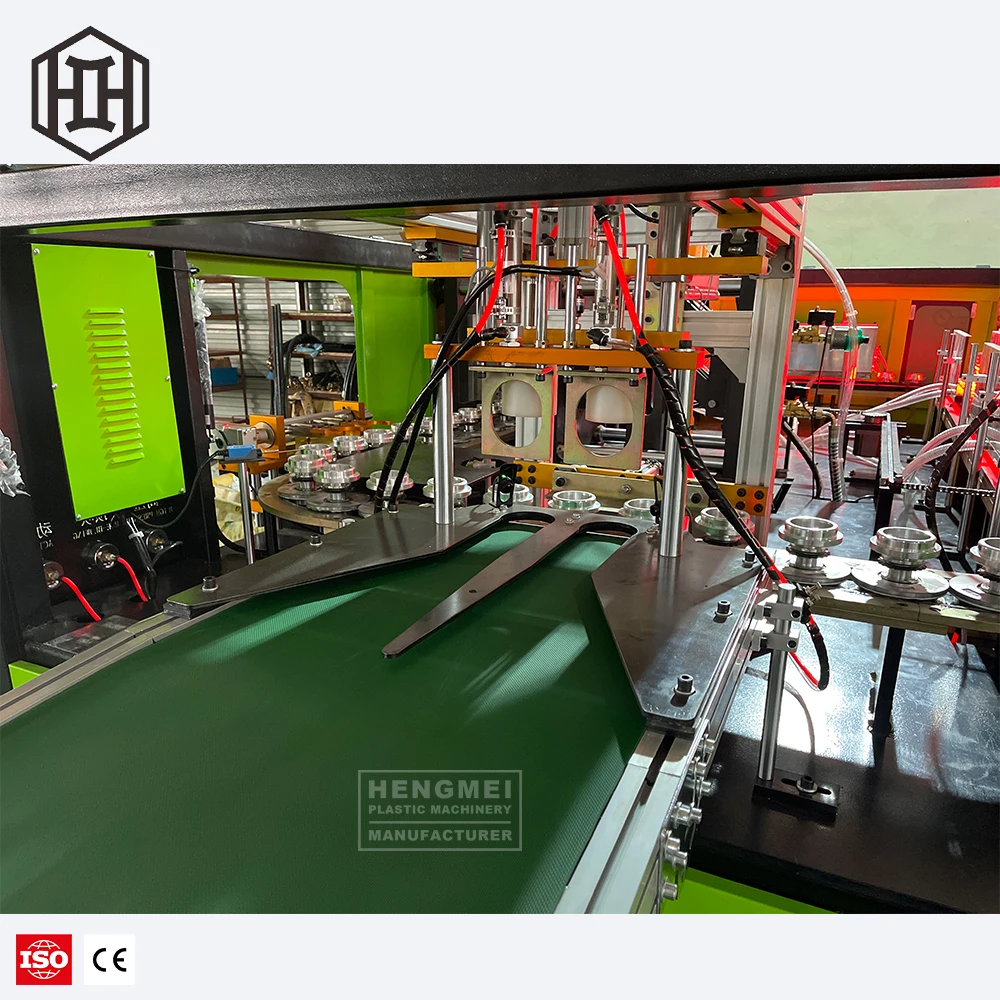

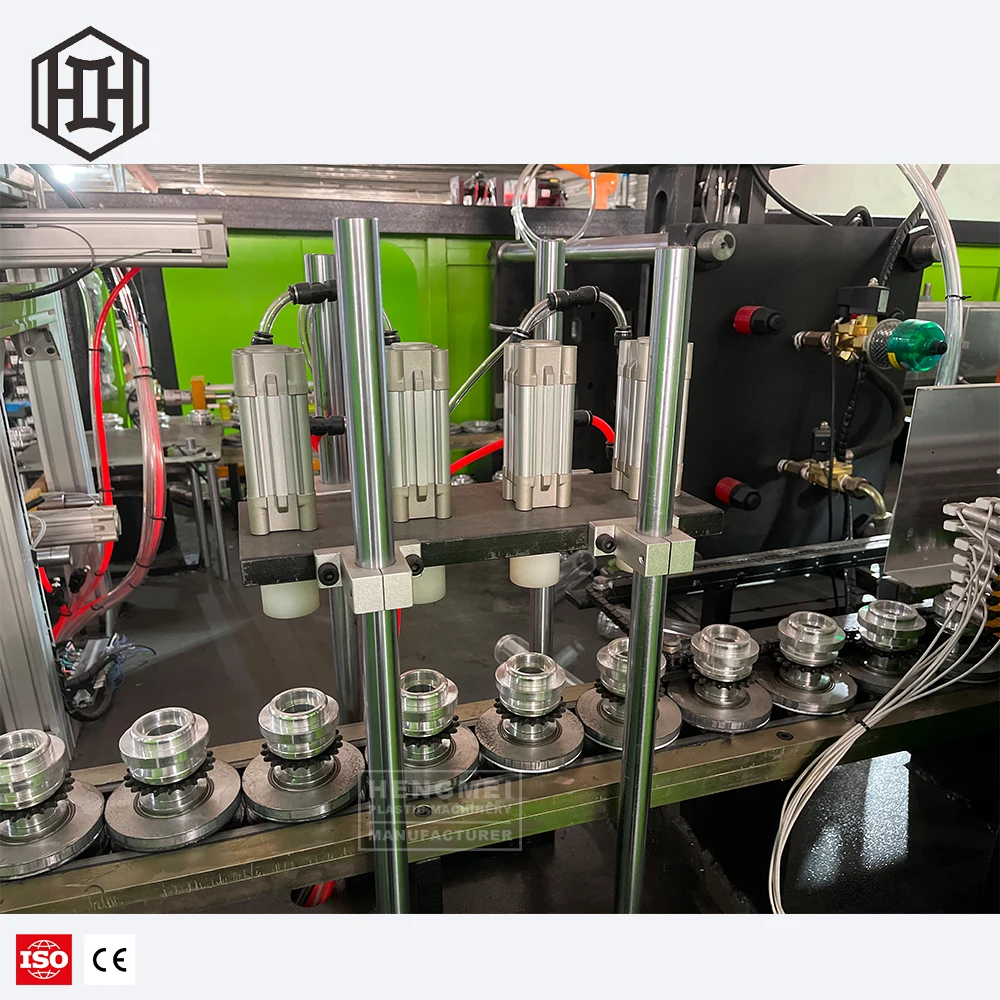

Remove the blown bottle from the conveyer rail .

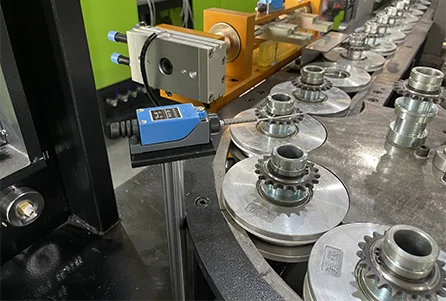

To detect whether the formed bottle is falling normally.

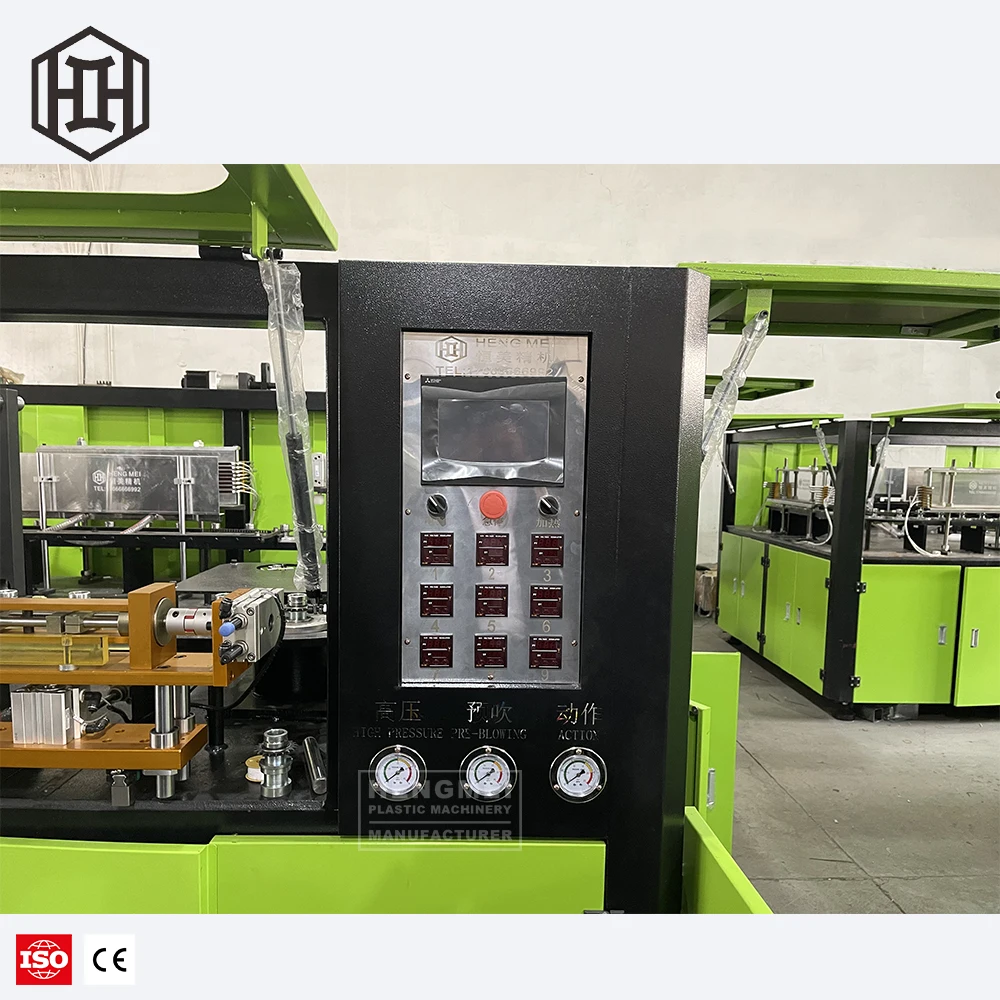

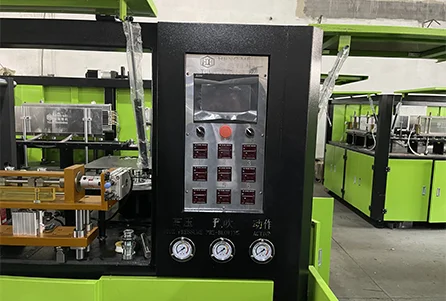

PLC control panel
Programmable logic controller, an electronic device designed for industrial production to operate digital operations. It uses a
programmable memory for its internal storage programs to perform logical operations, sequence control, timing, counting and
arithmetic operations And other user-oriented instructions, and control various types of machinery or production processes through
digital or analog input/output. It is the core part of industrial control.

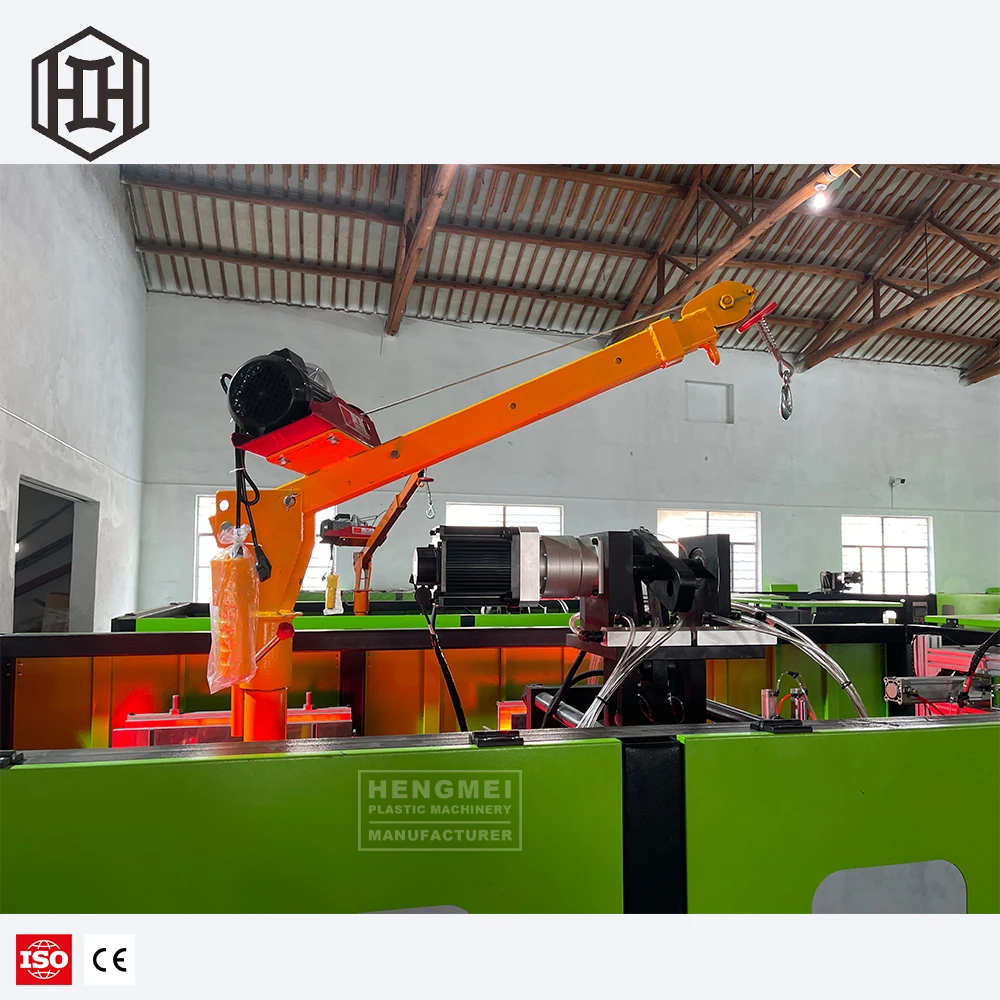

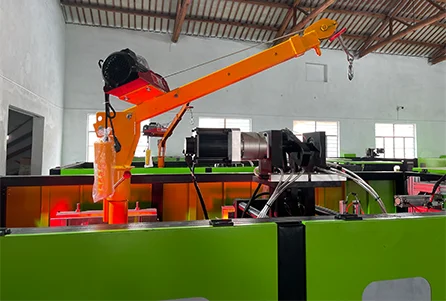

Because the mold is too heavy, the speed of replacing the mold with the boom is fast, which can increase the mechanical production
efficiency to a certain extent
efficiency to a certain extent
Main configuration list | ||||||||||
Electrical components | PLC | Japan Mitsubishi | Servo motor | servo control | Taiwan Xinjie | |||||
touch screen | Japan Mitsubishi | Cylinders | clamping servo motor | Taiwan Xinjie | ||||||
relay | Germany Schneider | preform-feeding flipping cylinder | Taiwan AirTac | |||||||
circuit breaker | Germany Schneider | bottle-takeout flipping cylinder | Taiwan AirTac | |||||||
air switch | Germany Schneider | preform-separating cylinder | Taiwan AirTac | |||||||
start button | Germany Schneider | mainpulator cylinder | Taiwan AirTac | |||||||
two-position switch | Germany Schneider | high pressure blowing valve | Taiwan AirTac | |||||||
scram button | Germany Schneider | high pressure exhaust valve | Taiwan AirTac | |||||||
power supply | Germany Schneider | Valves | high pressure one-way valve | Japan SMC | ||||||
proximity switch | JAPAN OMRON | low pressure muffler | Japan SMC | |||||||
photoelectric switch | JAPAN OMRON | high pressure muffker | Japan SMC | |||||||
Air Filtration | low pressure oil-water separator | JAPAN OMRON | low pressure operating valve | Taiwan AirTac | ||||||
low pressure press-reguleting valve | JAPAN OMRON | |||||||||
low pressure lubricator | JAPAN OMRON | |||||||||
Recommend Products
Automatic PET Bottle Blowing Machine
Semi-Automatic PET Bottle Blowing Machine
Blowing Mould
Injection Mold
Why Choose Us
Taizhou Huangyan Hengmei Plastic Machinery Factory.
Taizhou Huangyan Hengmei Plastic Machinery Factory is a modern manufacturer specializing in the production of blow molding machines. If you know us early, you will find that you can reduce a lot of unnecessary input costs. If you know us early, you will find that we can make you earn more money faster. With stable performance and superior cost performance, our products are sold well in domestic and foreign markets. We strive for going at the forefront to make our customers earn more money, and make the impossible possible with constant innovation, which you don't understand is your loss! We survive by quality, develop by honesty and insist on treating every customer with sincerity! Our integrity, strength, and quality got recognition from the industry. Our company would like to sincerely invite global prospective customers to pay a visit and have good cooperation for a splendid future together.
To build a advanced famous brand in PET Plastic bottle blowing machine.
Team Concept.
Adhering to the principle of good faith, standard and efficient work, the company wins themarket with technology, and obtains credit by creating service. It will provide the customers with high quality, high efficiency and fast service.Focing the future, we should adhere to the independent innovation.
Comprehensive Service.
The range of service covers from consultations, selection proper machine technology, plan, design, implementation and experimental operation of injection molding machine and the entire production equipment, to the support and maintenance of applied technoloth, to spare parts service on the phone and worldwide network as well as effective training.

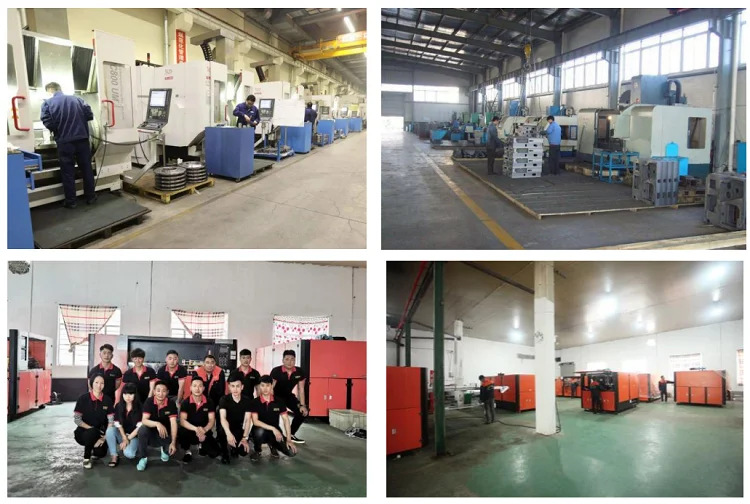

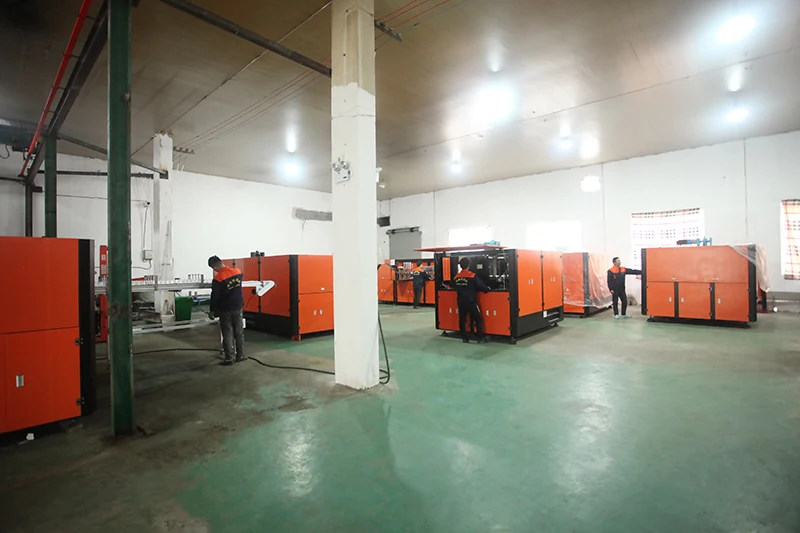

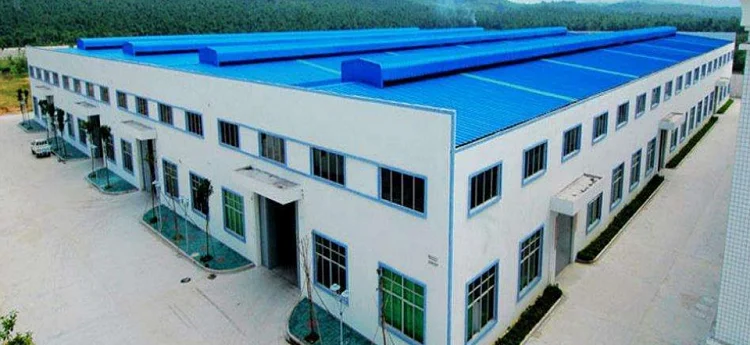

Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
* Inspect and improve connection jobs together with your team .
* Guide your staff to operate machines , and explain how to operate and maintain machines .
* Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity .
The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery.
During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 What`s your delivery term?
We provide FOB,CIF ... etc delivery terms.
Q 7 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 8 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 9 Are you a trading company or a manufacturer?
We are a manufacturer(our factory name is Taizhou Huangyan Hengmei Plastic Machinery Co.,Ltd. ), we offer the factory direct supply price machine with good quality, welcome to visit us !
Q 10 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory.
And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 11 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 12 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 13 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 14 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high-quality machines with 1-year guarantee and supply life-long technical support for free.
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
* Inspect and improve connection jobs together with your team .
* Guide your staff to operate machines , and explain how to operate and maintain machines .
* Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity .
The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery.
During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 What`s your delivery term?
We provide FOB,CIF ... etc delivery terms.
Q 7 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 8 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 9 Are you a trading company or a manufacturer?
We are a manufacturer(our factory name is Taizhou Huangyan Hengmei Plastic Machinery Co.,Ltd. ), we offer the factory direct supply price machine with good quality, welcome to visit us !
Q 10 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory.
And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 11 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 12 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 13 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 14 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high-quality machines with 1-year guarantee and supply life-long technical support for free.
