LED LCD Universal TV Backlight Constant Current Backlight Lamp Driver Board Boost Step Up Module 10.8 24V to 15 80V 14 37 Inch
- Category: >>>
- Supplier: Shenzhen TCT Electronics Co. Ltd.
Share on (1600460881547):
Product Overview
Description
Specification
item | value |
Model Number | boost module |
Type | Original standard |
Place of Origin | China |
Guangdong | |
Brand Name | TCT |
Brand Name | LED LCD TV backlight driver board |
Configuration | Original standard |
Current | Original standard |
Voltage | n |
Voltage - Isolation | Original standard |
Package / Case | Original standard |
Manufacturer | Original standard |
Cross Reference | Original standard |
Product Name | boost module |
Keyword | LED LCD TV backlight driver board |
Shipping By | DHL\\UPS\\Fedex\\EMS\\HK Post\\TNT |
Payment | Paypal\\TT\\Western Union\\Trade Assurance |
Part number | boost module |
Application | notebook mobile power supply |
Leadtime | 5-7 |
Original from | China |
Supply Voltage | 12-24V |
Product Description
Description:
1.14-37 inch LED Backlight Lamp Driver Board Constant current board
2.BOOST structure,Conversion efficiency reached more than 92%
3.Low heat of the Device, stability,have a longer service life
4.The PCB is small,Slim design,Current control error within ± 5%
5.This product is constant current board, voltage is automatically adapted
Specifications:

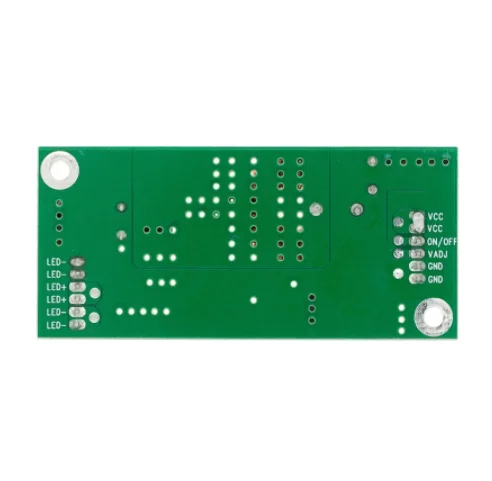

Common Electronic symbolic code of Backlight:
VCC: The positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V)
ON/OFF,ON,EN,ON_BL: Switch signal pin
PWM,PDIM,VDAJ,BL-PWM: Brightness adjusting pin
GND: Ground (negative electrode)
LED+: the positive electrode of Light emitting diode (lamp)
LED-: the negative electrode of Light emitting diode (lamp)
The temperature rise is controlled at about 25degrees (Temperature rise = device surface temperature - ambient temperature)
Limit parameters:
When to 24V input: Vout = 75V Iout= 720mA maximum or 60W
When to 12V input: Vout = 75V Iout = 400mA maximum or 30W
You can use the 12V power supply to reduce the system cost
Warm Tip
Limit parameter refers to the the maximum capacity when product in the application process.In fact,please under the limit
parameters to ensure product reliability when using.
PCB size: about 6.80*3.0cm/2.68"*1.18"
2.BOOST structure,Conversion efficiency reached more than 92%
3.Low heat of the Device, stability,have a longer service life
4.The PCB is small,Slim design,Current control error within ± 5%
5.This product is constant current board, voltage is automatically adapted
Specifications:
Common Electronic symbolic code of Backlight:
VCC: The positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V)
ON/OFF,ON,EN,ON_BL: Switch signal pin
PWM,PDIM,VDAJ,BL-PWM: Brightness adjusting pin
GND: Ground (negative electrode)
LED+: the positive electrode of Light emitting diode (lamp)
LED-: the negative electrode of Light emitting diode (lamp)
The temperature rise is controlled at about 25degrees (Temperature rise = device surface temperature - ambient temperature)
Limit parameters:
When to 24V input: Vout = 75V Iout= 720mA maximum or 60W
When to 12V input: Vout = 75V Iout = 400mA maximum or 30W
You can use the 12V power supply to reduce the system cost
Warm Tip
Limit parameter refers to the the maximum capacity when product in the application process.In fact,please under the limit
parameters to ensure product reliability when using.
PCB size: about 6.80*3.0cm/2.68"*1.18"
