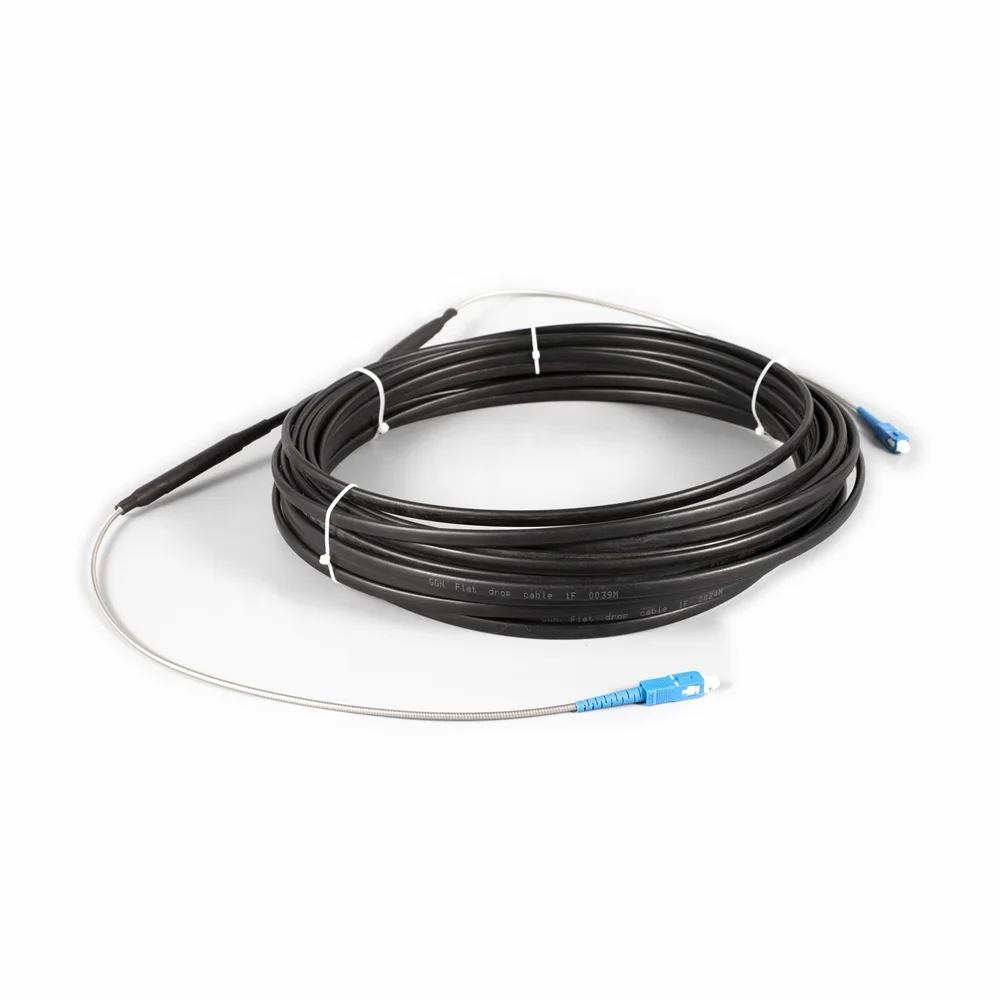

FTTX Fiber Toneable Indoor/Outdoor mini LT flat locatable drop cable Hardened incorporate SC/APC connector
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (1600460892821):
Product Overview
Description
Product Description

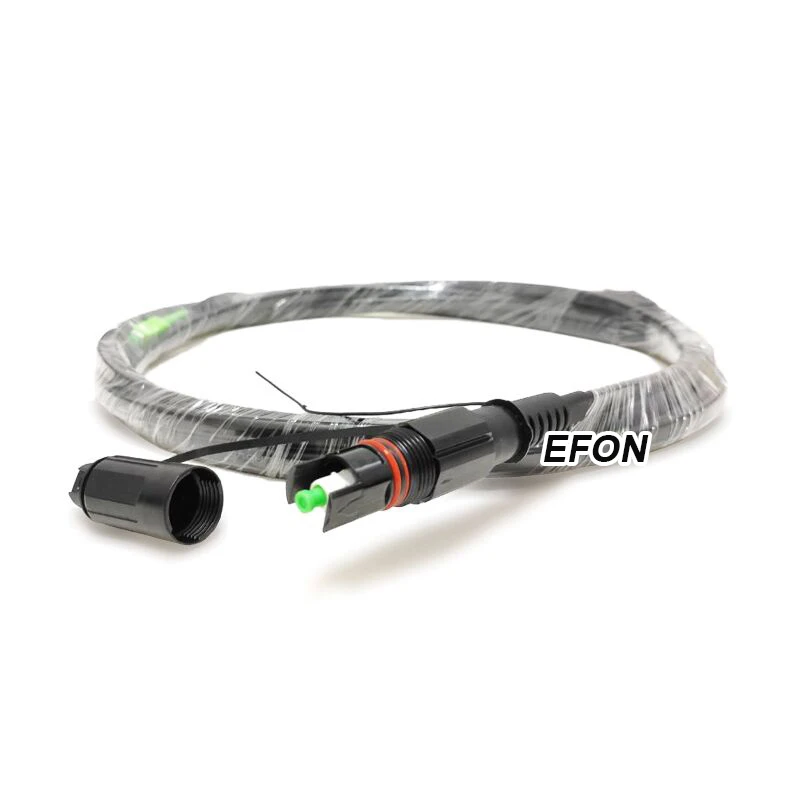

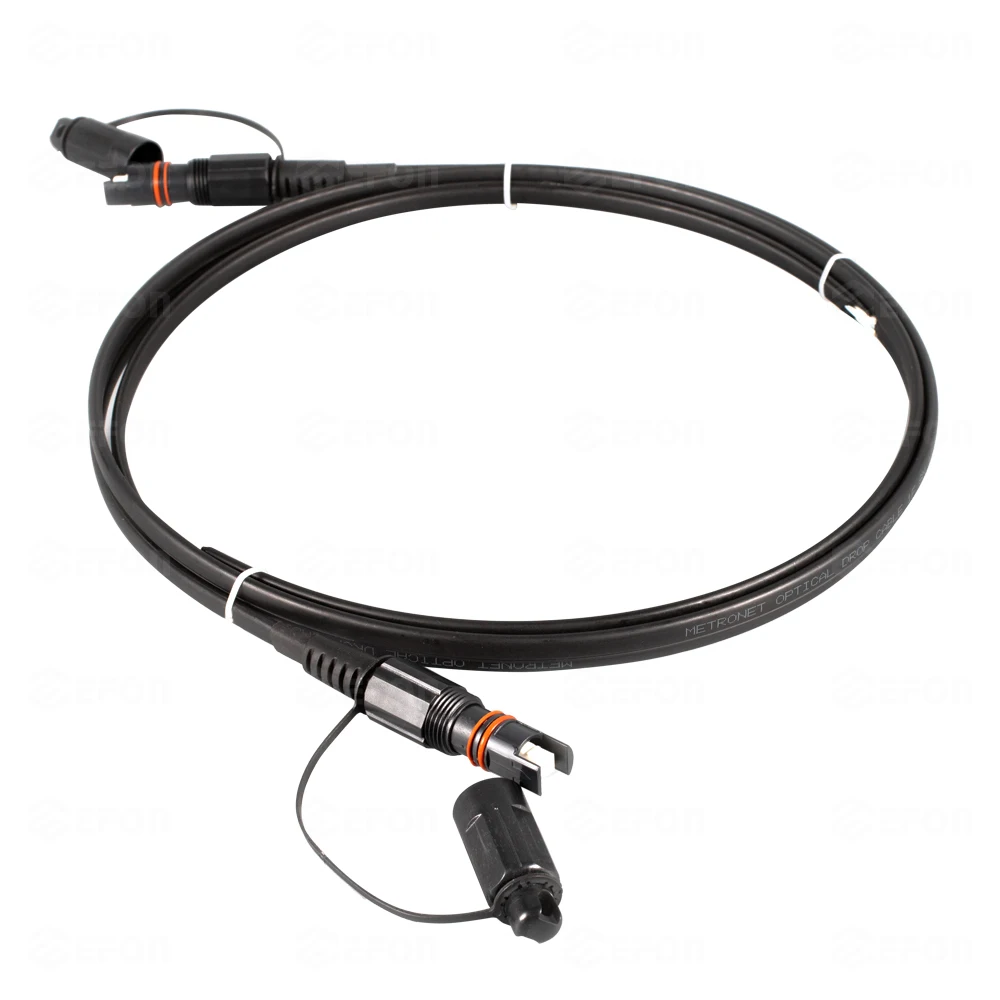

Fiber optic H connector SC Patch Cord
Fiber optic H connector SC Patch Cord Compatible Corning OptiTap Jumper .
H connector assemblies provide a robust and sealedconnection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates a SC type connection within aslim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC connectors mate to a standard adapter providing a common interface for FTTX applications.
The OptiFit Advantage Cable Assembly is specifically designed to significantly reduce required drop cable installation time for
subscriber connection, therefore reducing the total installed cost of connectorization. It also provides superior durability and
reliability in the drop segment of the network.
The OptiFit Advantage Cable Assembly is specifically designed to significantly reduce required drop cable installation time for
subscriber connection, therefore reducing the total installed cost of connectorization. It also provides superior durability and
reliability in the drop segment of the network.
Specification
item | value |
Model Number | Flat cable |
Type | Fiber Optic Cable |

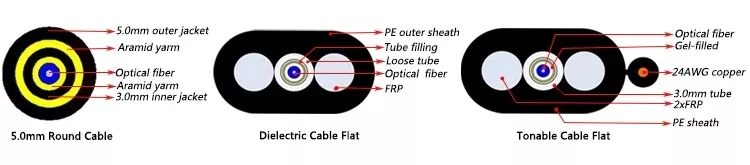

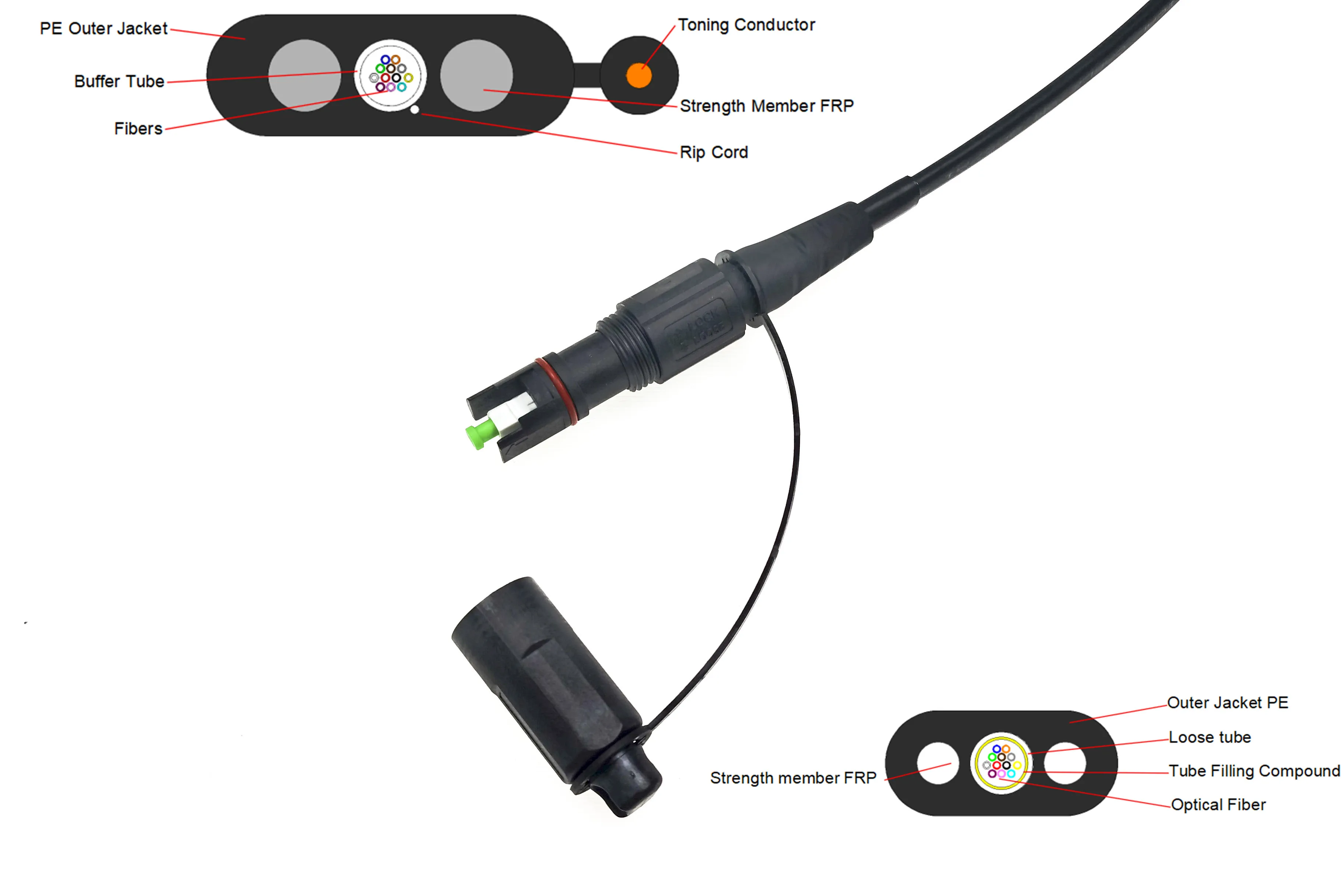

Cable Structure | uni-tube/loose tube |
Application | Outdoor duct and conduit |
Fiber options | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
Fiber count | 12 Cores |
Strength member | Fiberglass reinforced plastic (FRP) |
Material of jacket | PE/LSZH |
Feature
-Unique design reduces the total installed cost of drop cable deployment
- Single-fiber, single-mode SC APC or SC UPC drop cable assemblies
- Available with one or both ends connectorized
- Cable available in SST-Drop™ (dielectric or toneable)
- Cable design for aerial, direct-buried or duct installation
- Standard lengths available in 15 ft increments from 90 to 180 ft (longer assemblies available upon request)
- Environmentally sealed connector housing permits rapid connection to external flush-mounted bulkhead adapters on
terminals or closures. Terminal or closure entry is not required for drop cable installation
Robust design keeps connector intact during installation
- Can be pulled through 1.25-in conduit
- Integral pulling eye/connector cap designed for 100 lbf maximum pulling tension
- Single-fiber, single-mode SC APC or SC UPC drop cable assemblies
- Available with one or both ends connectorized
- Cable available in SST-Drop™ (dielectric or toneable)
- Cable design for aerial, direct-buried or duct installation
- Standard lengths available in 15 ft increments from 90 to 180 ft (longer assemblies available upon request)
- Environmentally sealed connector housing permits rapid connection to external flush-mounted bulkhead adapters on
terminals or closures. Terminal or closure entry is not required for drop cable installation
Robust design keeps connector intact during installation
- Can be pulled through 1.25-in conduit
- Integral pulling eye/connector cap designed for 100 lbf maximum pulling tension
