Pipeline External Field Joint Coating Polypropylene for 3LPP coated Pipe Wrapping Tape
- Category: >>>
- Supplier: CYG Changtong New Material Co. Ltd.
Share on (1600460906356):
Product Overview
Description
Product Description

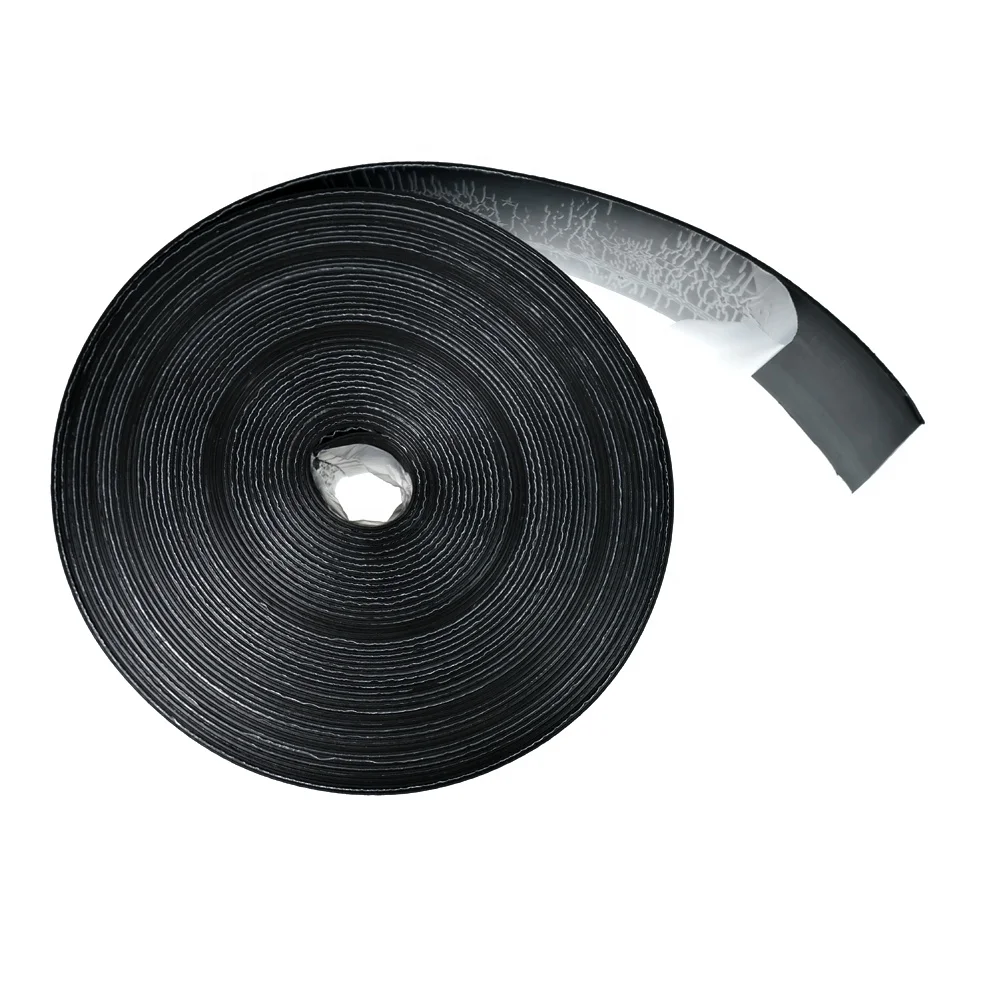

3LPP Heat Shrink Tape Wrapping

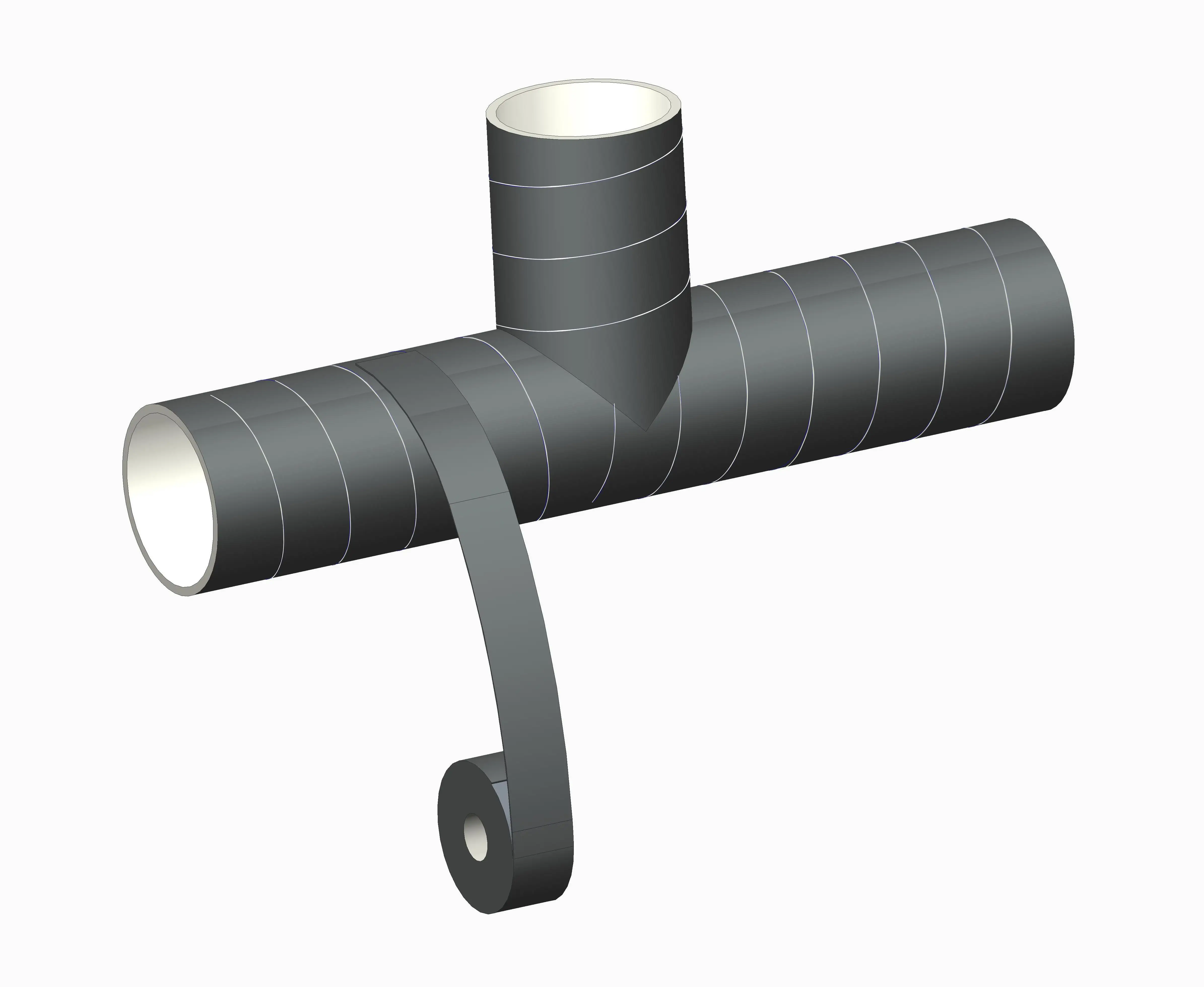

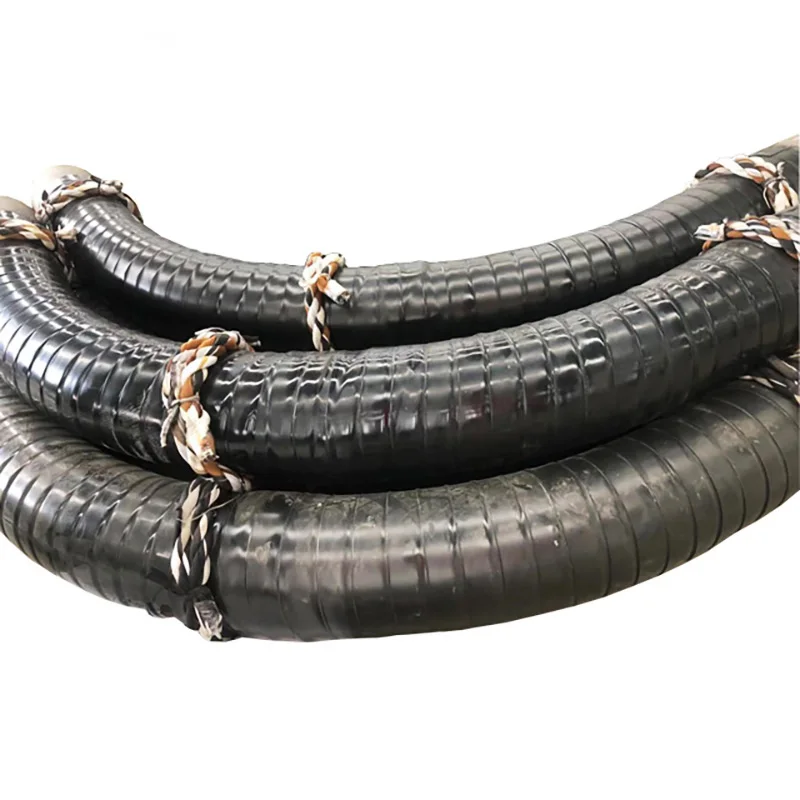

3LPP heat shrink wraparound tape for bends
Technical Data
No | Property | Unit | Requirements | CYG Typical Value |
1 | Impact resistance | J | ≥15 | ＞15 |
2 | Cathodic disbondment resistance - at 23 ℃ - at 80℃ | mm mm | ≤20 - | 2 11 |
3 | Peel strength layer to layer - at 23 ℃ -- inner layer/ inner layer -- outer layer/ inner layer -- outer layer/ outer layer - at 110 ℃ --inner layer/ inner layer -- outer layer/ inner layer -- outer layer/ outer layer | N/mm N/mm N/mm N/mm N/mm N/mm | ≥1.5 ≥1.5 ≥0.2 ≥0.2 ≥0.2 ≥0.2 | 16 17 16 1.1 0.5 1.2 |
4 | Peel strength To pipe surface at 23 ℃ at 110℃ To factory coating -- PE at 23 ℃ -- PE at 110 ℃ -- EP at 23 ℃ -- EP at 110 ℃ | N/mm N/mm N/mm N/mm N/mm N/mm | ≥1.0 ≥0.1 ≥0.4 ≥0.04 ≥0.4 ≥0.04 | 15.0 0.1 8.2 0.1 15.0 0.1 |
5 | Lap shear strength at 110 ℃ -- to pipe surface -- to PE-factory coating -- to EP-factory coating | N/mm2 N/mm2 N/mm2 | ≥0.05 ≥0.05 ≥0.05 | 0.08 0.1 0.08 |
No. | Specification (mm) | No. | Specification (mm) |
FRDS 001 | 100mm—1.2/1.0 | FRDS 004 | 100mm—1.0/0.8 |
FRDS 002 | 150mm—1.2/1.0 | FRDS 005 | 150mm—1.0/0.8 |
FRDS 003 | 200mm— 1.2/1.0 | FRDS 006 | 200mm—1.0/0.8 |
Detailed Images

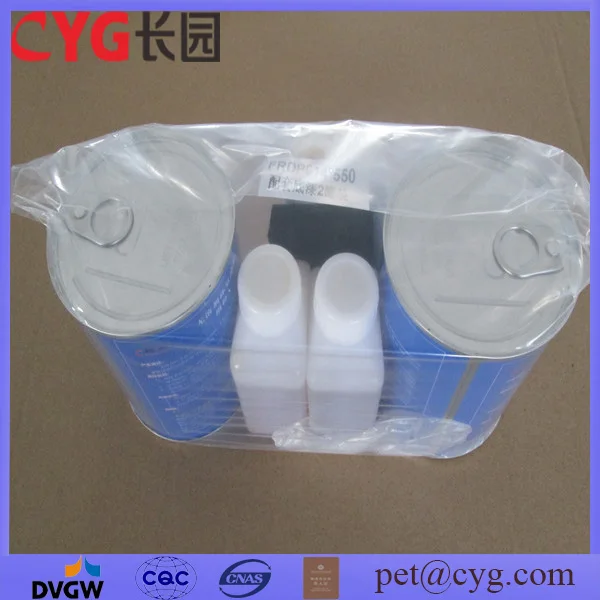

Two components: Solvent Free Epoxy Primer base + Curing agent to be used as the first layer of the 3LPP corrosion protection coating.
The primer quantity will be depend on the pipe diameter and designed primer thickness requirements.

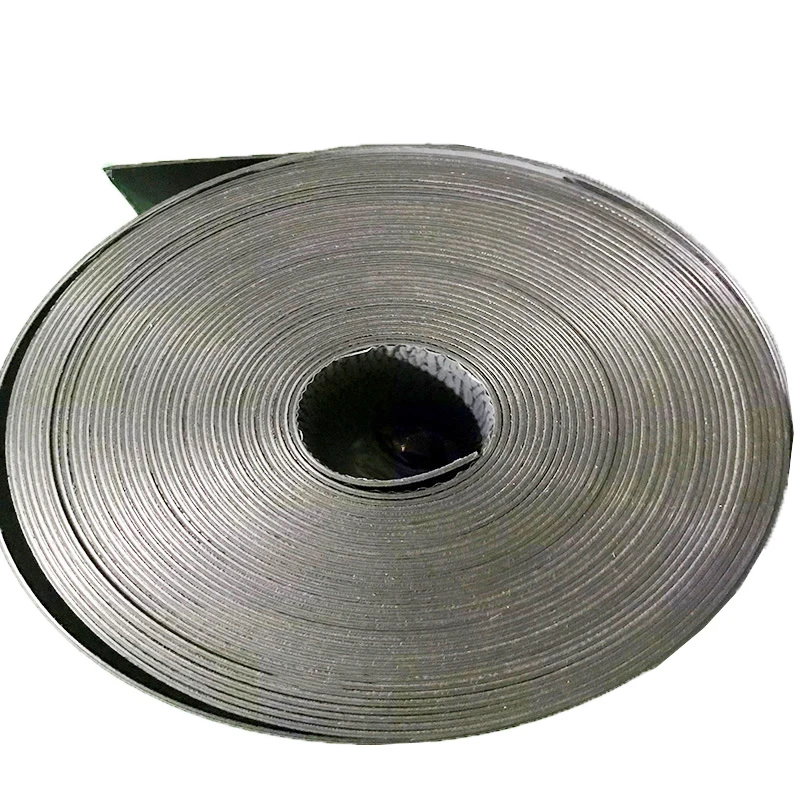

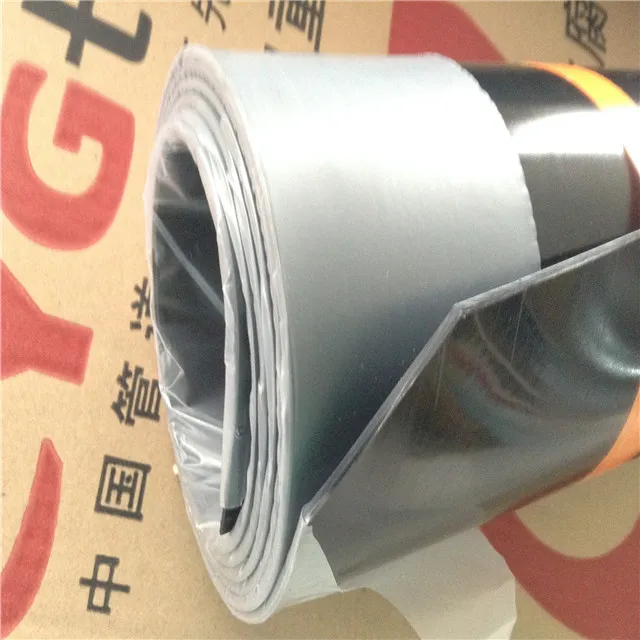

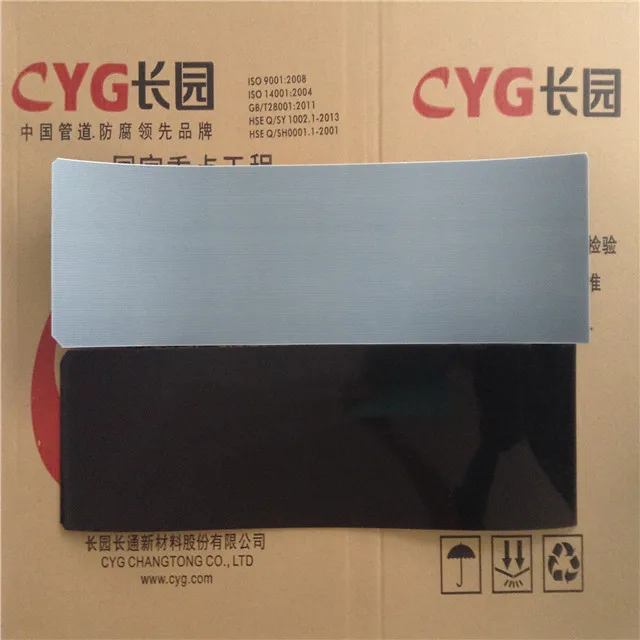

cross linked Polypropylene backing coated with high performance hot melt adhesive.
Related Products
FRY Tubular heat shrink tubes
CYG FRY heat shrink tubing designed for steel pipeline field joint protection.
3LPE heat shrink tapes
3LPE heat shrink tape is designed for wrapping pipe bend, T joints, or wrapping the whole pipe.
visco-elastic tapes
Self sealing heat shrink tape is a kind of excellent waterproof and corrosion prevention wrapping material for all kinds of pipes, flanges, bend, tanks, and other irregular
PE Cold Applied Tape
PE Cold Applied Tape is used to wrap the pipes and don't need to use heat it.
It's easy to install and can be wrapped directly by hand.
Fiberglass PP cold applied tapes
With the reinforced fiberglass, PP cold applied tape is more common to been used as outer tape.
Medium Wall Heat-shrinkable Tubing
Medium wall heat shrinkable tubing with hot-melt adhesive is used for low voltage insulator over lugs and ferrules.
Certificate
Market Performance

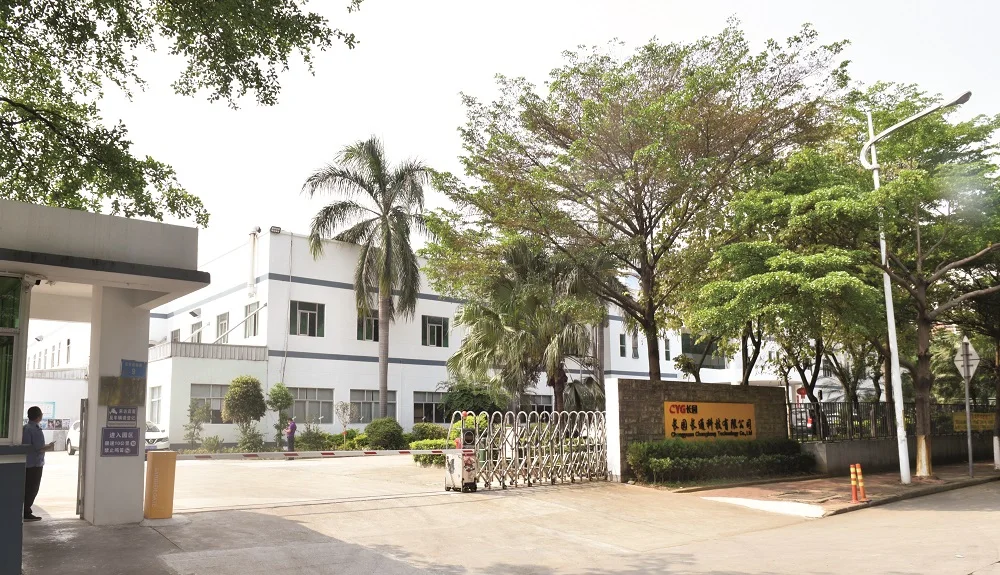

Company Introduction
CYG Changtong New material Co., Ltd. is a national high-tech enterprise with more than 20 years experience in the field of
pipeline corrosion protection. CYG is a Well-known Brand of Pipeline Corrosion Protection in China
CYG is the Member of Council in Chinese Society for Corrosion and Protection
CYG owns the qualification certificate of China Anticorrosion construction and Pipeline detection.
It is the Corporate Member of China Association of Petroleum Engineering Construction (CAPEC)
Stable supplier of PetroChina, Sinopec,China Gas Group, CNOOC, Indian Oil, Personas, etc.
High-temperature resistant 80℃heat shrinkable sleeve has been certified by DVGW.
CYG wins the works approval and products certification by China Classification Society (CCS)
pipeline corrosion protection. CYG is a Well-known Brand of Pipeline Corrosion Protection in China
CYG is the Member of Council in Chinese Society for Corrosion and Protection
CYG owns the qualification certificate of China Anticorrosion construction and Pipeline detection.
It is the Corporate Member of China Association of Petroleum Engineering Construction (CAPEC)
Stable supplier of PetroChina, Sinopec,China Gas Group, CNOOC, Indian Oil, Personas, etc.
High-temperature resistant 80℃heat shrinkable sleeve has been certified by DVGW.
CYG wins the works approval and products certification by China Classification Society (CCS)
FAQ
1.CYG pipeline field joint coating systems include many different kind of products, how can we choose the right product:
Reply: It depends on the the application environment and your performance requirements.

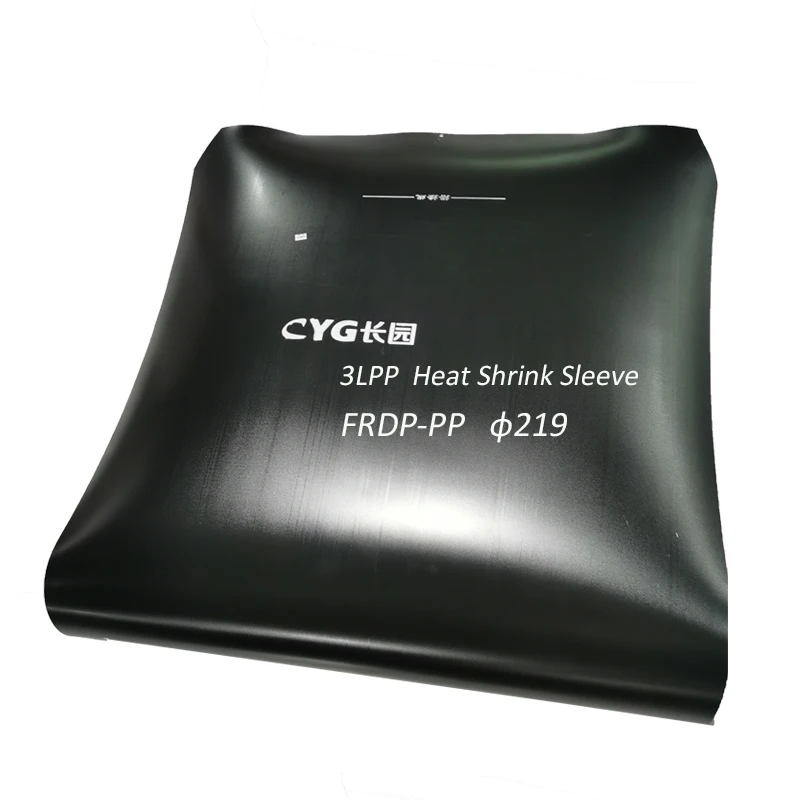

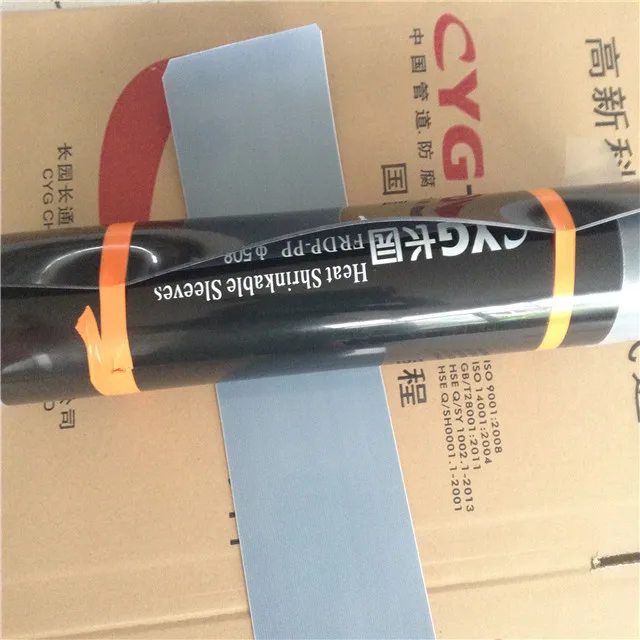

FRDP-PP heat shrinkable sleeve - 3LPP HSS is a kind of wraparound heat shrinkable sleeve is designed for 3-layer coated
Polypropylene pipe. It is mainly for high temperature requirements as 100℃ and 110℃.
The 3LPE shrink sleeve for field joint is mainly used for the 3-layer polyethylene coated pipeline weld joint, and the highest design temperature is up to 80℃.
The closure patch length and thickness are equal to sleeve axial length and thickness, respectively.
closure patch width: 120 mm for sleeves Φ168~Φ426 while 150 mm for sleeves > Φ426.
CYG field joint applied heat shrink sleeve including both 3LPE heat shrink sleeve and 3LPP heat shrink sleeve. CYG weld joint sleeve ( Heat shrink type ) has a wide range if service temperature. We offer the heat shrink sleeve with design temperature from -50℃ to 120℃ accordingly.
Reply: It depends on the the application environment and your performance requirements.
FRDP-PP heat shrinkable sleeve - 3LPP HSS is a kind of wraparound heat shrinkable sleeve is designed for 3-layer coated
Polypropylene pipe. It is mainly for high temperature requirements as 100℃ and 110℃.
The 3LPE shrink sleeve for field joint is mainly used for the 3-layer polyethylene coated pipeline weld joint, and the highest design temperature is up to 80℃.

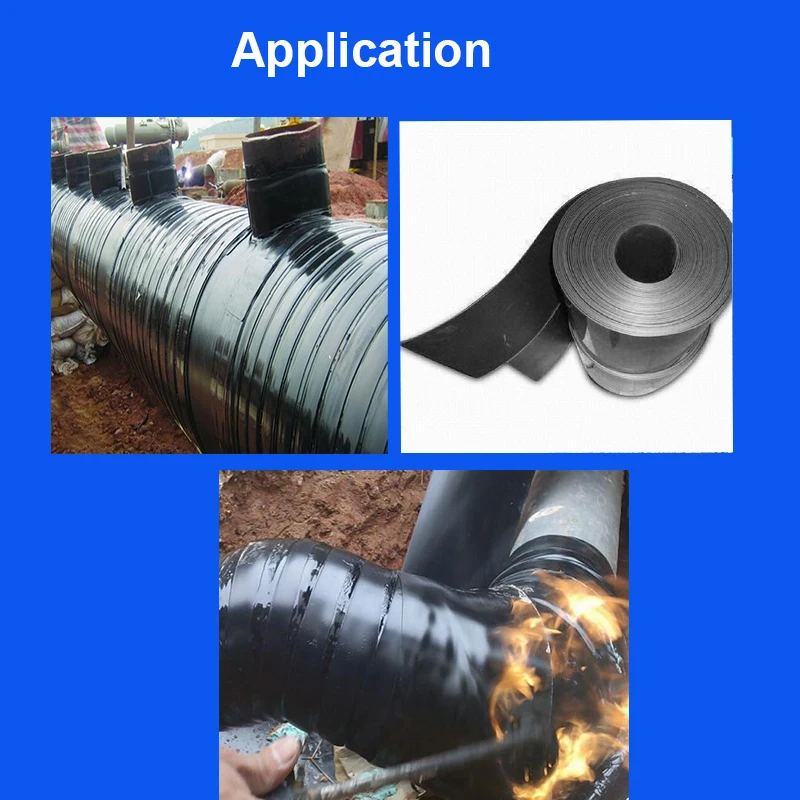

When you need to protect pipeline bends, elbows and T joints, then suggest to choose FRDS/ FRDS-PP heat shrink tape. It's a kind shrink tape with hot melt adhesive and PE backing/PP Backing, together with epoxy resign. The heat shrinkable tapes can be offered in flexible width and suitable for the irregular fittings, it's three layer type with the same structure as plant applied 3LPE coating /3LPP Coating, most importantly, we can offer according to your different technical requirements since we have our own R&D Team and CNAS Lab.
When your main pipeline is 3LPE coated pipeline, pls. choose FRDS, while when your main pipeline is 3lPP coated pipe, you need to choose FRDS-PP. The exact temperature need to compaire with the pipe design temperature.
To choose what kind of material, it depends on the mainline pipe coating, it's better to keep the same structure as the factory applied coating. Of course, If your environment is not suitable for heating, then we suggest you to choose cold applied tapes like visco-elastic tapes, PE/PP cold applied tapes.
2.How about the accessories of CYG 3LPP heat shrink sleeve for pipeline field joint?
The closure patch length and thickness are equal to sleeve axial length and thickness, respectively.
closure patch width: 120 mm for sleeves Φ168~Φ426 while 150 mm for sleeves > Φ426.
CYG field joint applied heat shrink sleeve including both 3LPE heat shrink sleeve and 3LPP heat shrink sleeve. CYG weld joint sleeve ( Heat shrink type ) has a wide range if service temperature. We offer the heat shrink sleeve with design temperature from -50℃ to 120℃ accordingly.
For more information about pipeline corrosion prevention materials, pls. feel free to contact us.
