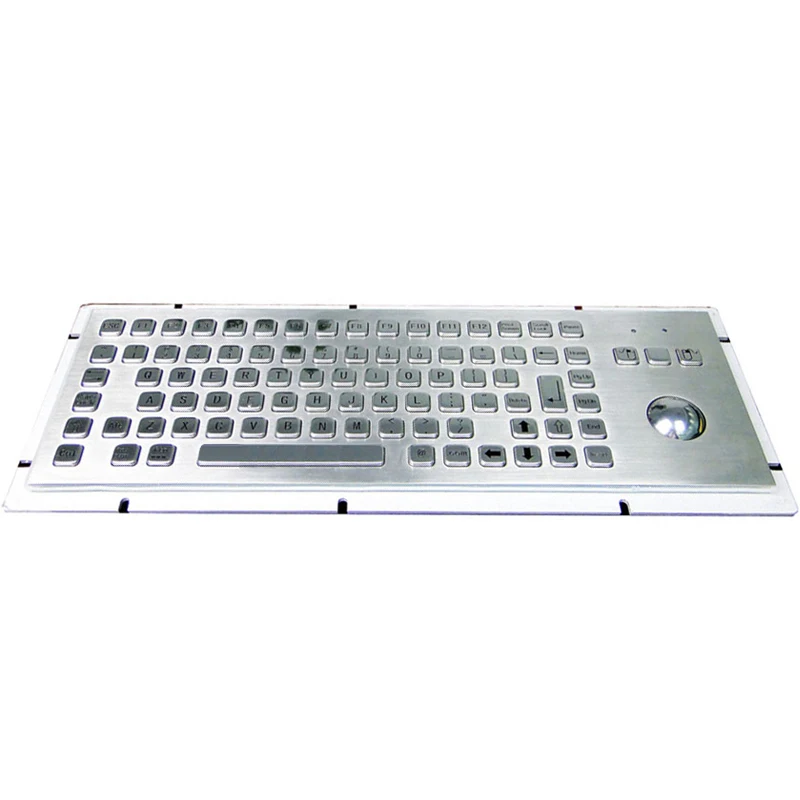

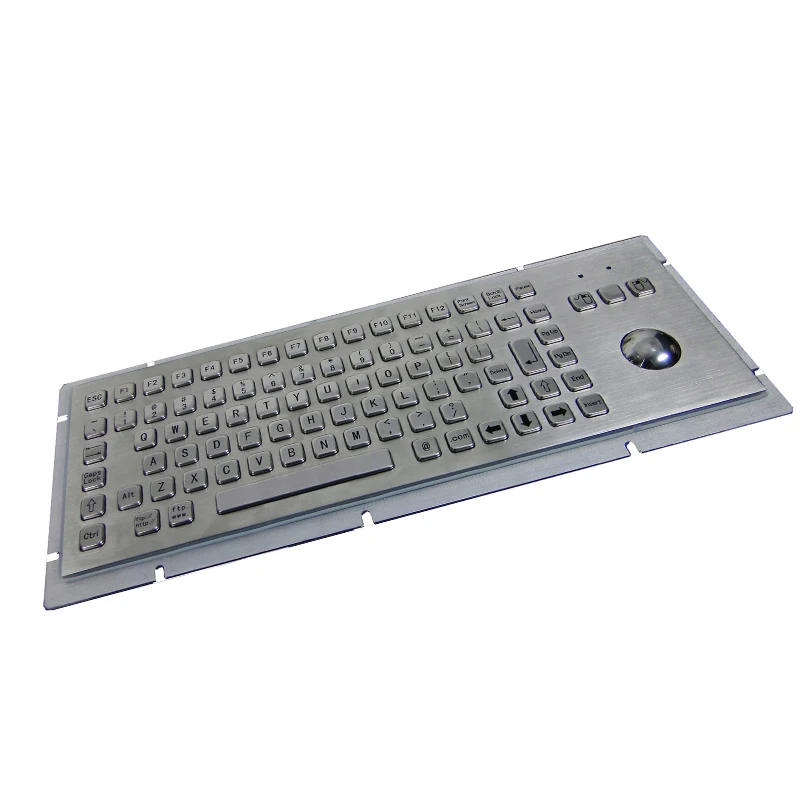

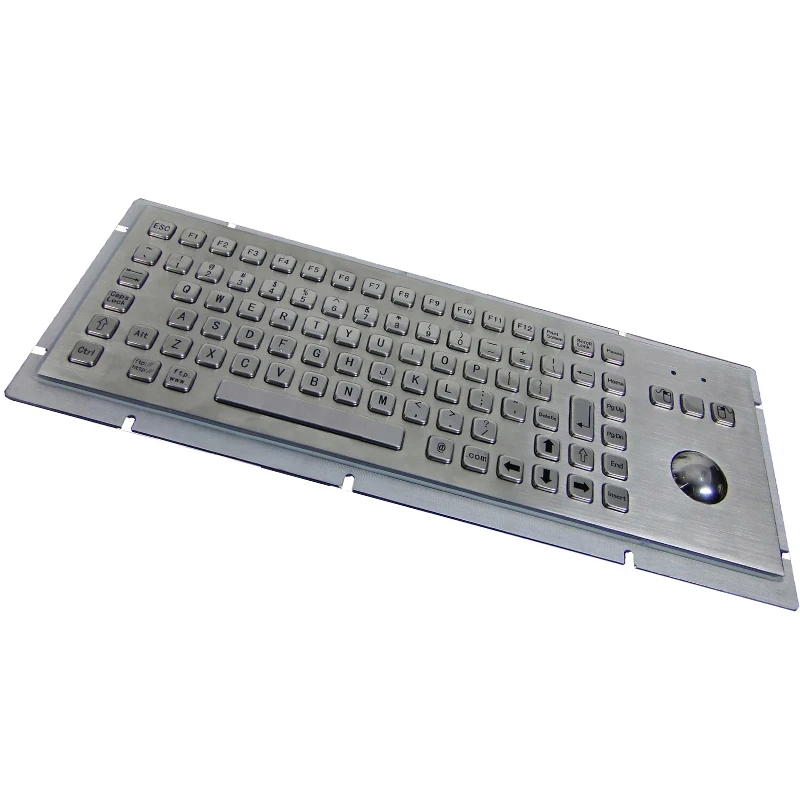

Industrial Keyboard Stainless Steel Metal Keyboard with Trackball Used for Kiosk

Items

Specifications

Key Features

- 89 keys( of them 10~12 function keys), panel mount
-Integrated trackball
-Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feel
-Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places
-Built from stainless steel, high vandal-proof
-Dust-proof and liquid-proof, meet IP65 requirement
- USB or PS2 interface available

- Custom layout available

Material

- Face plate: 304 stainless steel
- Keys: 304 stainless steel
- Trackball: 304 stainless steel (Dia: 38mm)

- Back plate: Aluminum

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification

FCC,CE,RoHs

Dimension

-Front panel: 392.00 x 135.00 x 32.10mm
  -Back panel: 416.00 x 159.00 x 32.10mm

Weight

2.2 kgs
