Portable wireless 5G outdoor indoor CPE router Qual comm X55 comdem mobile wifi 5G CPE
- Category: >>>
- Supplier: Zhenshi Intelligent (beijing) Technology Co. Ltd.
Share on (1600460939871):
Product Overview
Description
Product Description

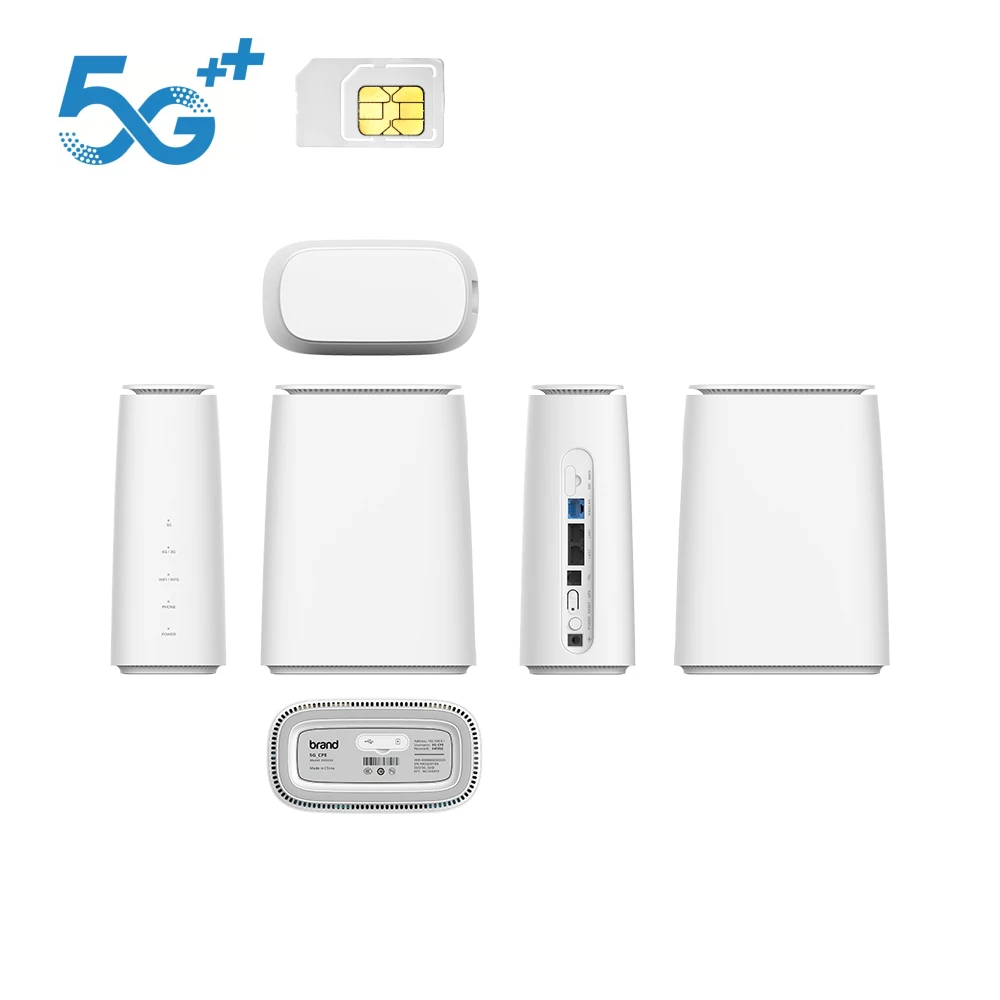

Portable wireless 5G outdoor indoor CPE router Qual-comm X55 comdem mobile wifi 5G CPE
Overview
Smart SRT856 is a wireless gateway integrating 5G/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services.
SRT856 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi enabled devices can access the Internet.
SRT856 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi enabled devices can access the Internet.
5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection. Plug in a 5G SIM card and convert the 5G signal to high-speed Wi-Fi so that non-5G devices can also enjoy 5G high-speed.
Specification
Technical Standard | Compatible with WCDMA, FDD-LTE, TDD-LTE,5G NR Sub-6GHz 802.11 a/b/g/n/ac/ax |

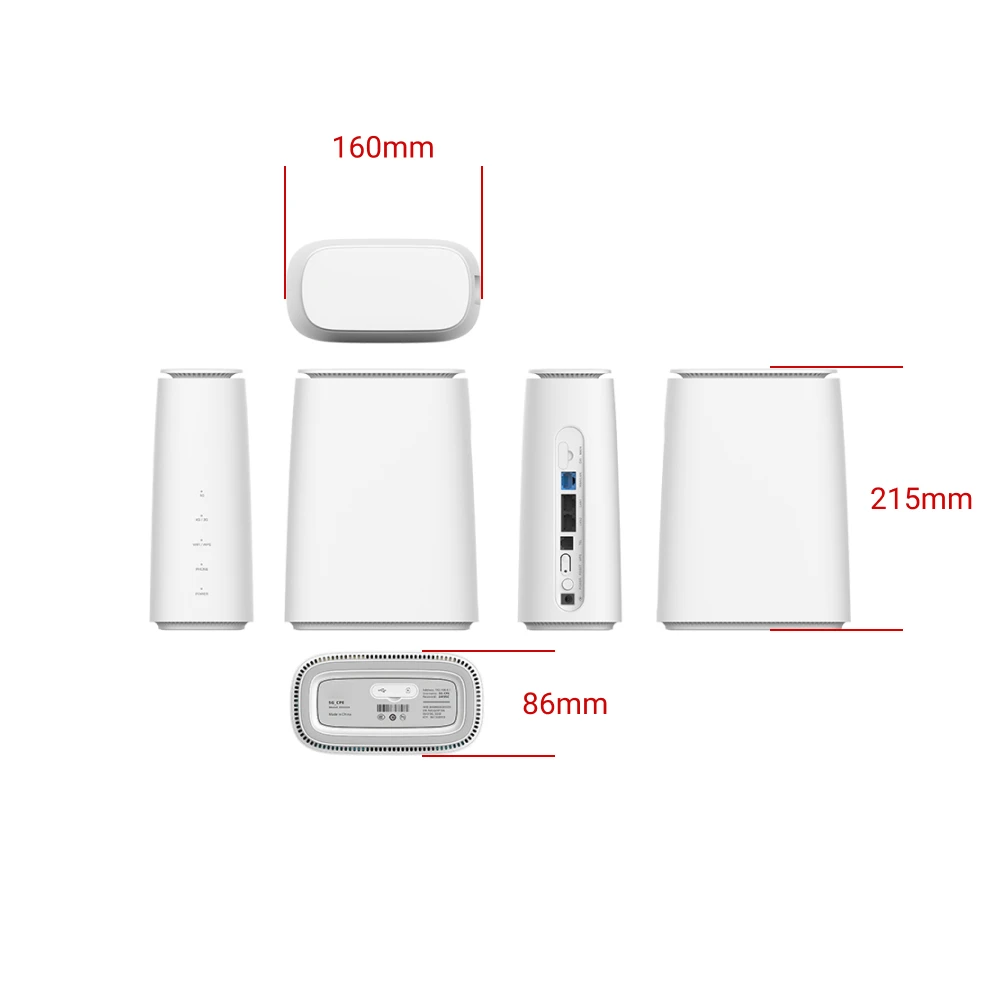

Dimension | 160*86*215mm |
Weight | About 1250g |
Frequency | EU: Region: Europe, Australia 5G NR Sub-6G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N78; LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B46 WCDMA: B1/B3/B5/B8 |
WIFI | Support WiFi6 2.4GHz&5.8GHz, WIFI 4*4 MIMO, 802.11 a/b/g/n/ac/ax, DBDC |
Maximum Data Throughput | 5G NR Sub-6GHz: MIMO 4*4, 256QAM, Downlink up to 3Gbps, Uplink up to 300Mbps LTE Cat20: MIMO 4*4, 256QAM, Downlink up to 2.0Gbps, Uplink up to 150Mbps DC-HSPA+: Downlink up to 42.4Mbps, Uplink up to 5.76Mbps |
Receive Diversity | Support Receive Diversity |
MIMO | Up to DL 4x4 MIMO |
Chipset | Qualcomm SDX55 + IPQ8072A |
Memory | Modem: 4Gb NAND + 4Gb LPDDR4 AP: Default 64Mb NOR+EMMC 128Gb+16Gb RAM |
power consumption | <36W |
Power Voltage | DC 12V/3A |
USIM/SIM | 4FF SIM card (Nano card) |
LED | Power Indication; 5G network Indication; 4G/3G Indication; Wi-Fi/WPS Indication Phone Indication |
USB | Support |
Antenna | Internal Antenna: LTE/NR*6, WIFI*4 |
Buttons | POWER, Reset, WPS |
Slic | Support |
Ethernet | 1WAN/LAN: 100Base/1000Base/5G Base automatic adaptive port 2LAN: 100Base/1000Base automatic adaptive port |
RJ11 | Support |
Reset | Pinhole |
ESD | ESD Protection circuit；Contact±8KV, Air±10KV |
Battery | Not Support |
Operating Temperature | Normal:0°C ~ +45°C |
Storage Temperature | -20° C ~ +70° C |
Humidity | 5%~ 95% |
Application Scenarios
