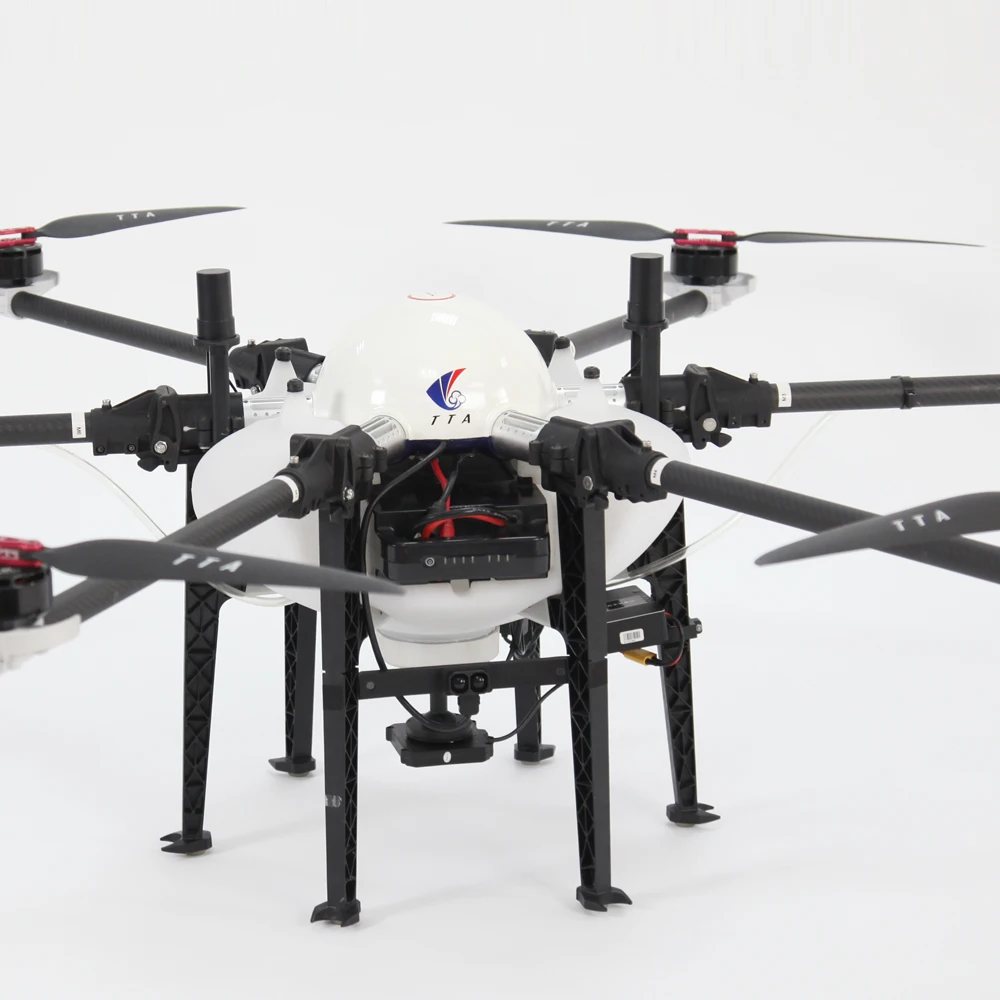

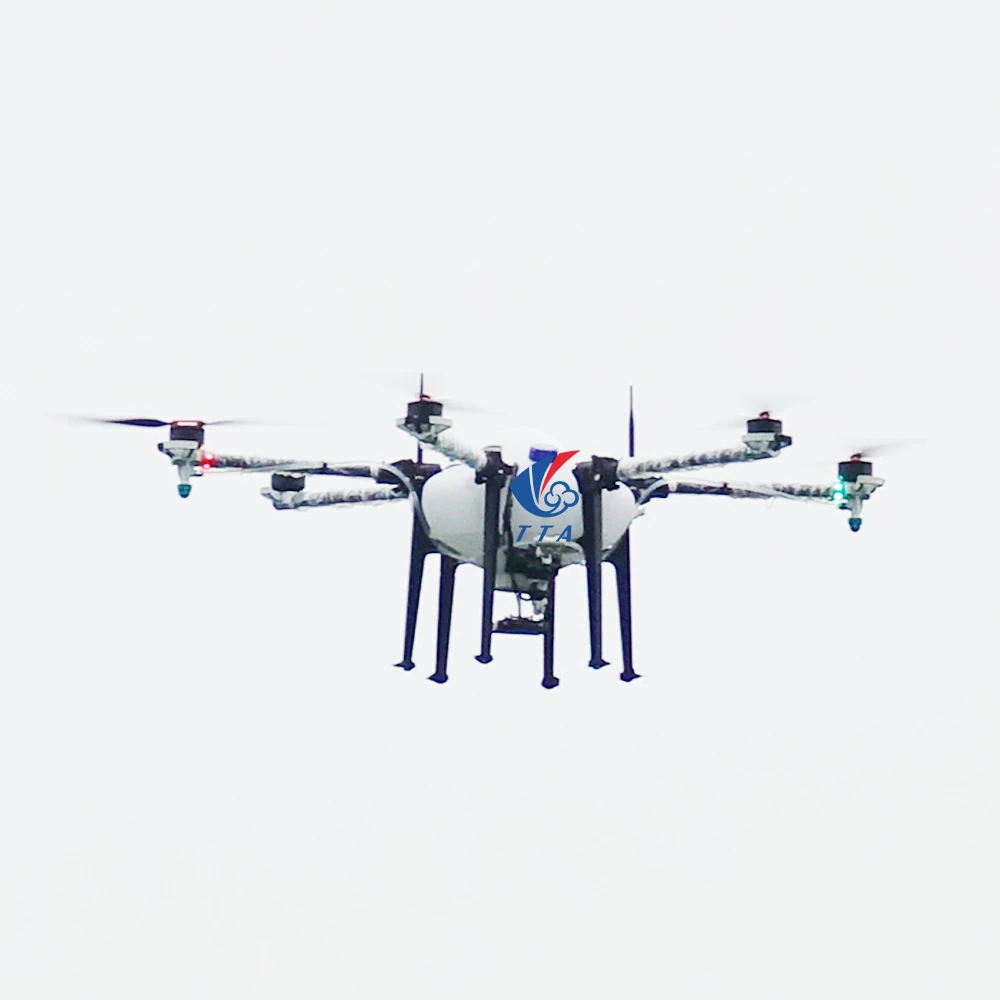

M6E-1 10L Drone 10KG Datalink Agricultural Drones Pesticide Sprayer
Easier to operate, easier to maintain, better water-proof, more durable and economical.
Model No. | M6E-1 | |
Diagonal wheelbase | 1290mm | |
Folded height | 601mm | |
Tank Volume | 10L | |
Work Efficiency | 0.8-1.0hectare/flight(5-10mins) | |
32~40 hectares/ 8 hours | ||
Flying | ||
Full payload Flying Time | 10-12min | |
Max Flying Time | 25-30min | |
Flying Speed | 0-15m/s | |
Working Speed | 4-6m/s | |
Flying Height | 3500m | |
Anti-wind | <12m/s | |
Spraying | ||
Spray droplet diameter | 80-200μm | |
Quantity of Nozzles | 2pcs(Can extend to be 4pcs) | |
Recommend Spray Speed | 4.8-6m/s | |
Spray Width | 4-5M | |
Spray Height | 2-4M above crop | |
Main Features
Different modes to set the route plan for your different demands ! One button fly!
1.Automatic route scanning for irregular farmland : Preset the working route on GCS ,find your crop field on Google Map, the route
will automatically appear. The start point,the final point and the working direction can all be set.
will automatically appear. The start point,the final point and the working direction can all be set.
2.Quick scanning mode: Operator only need to set A and B point and give the drone a direction order then the drone will fly and
spray automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape.
spray automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape.

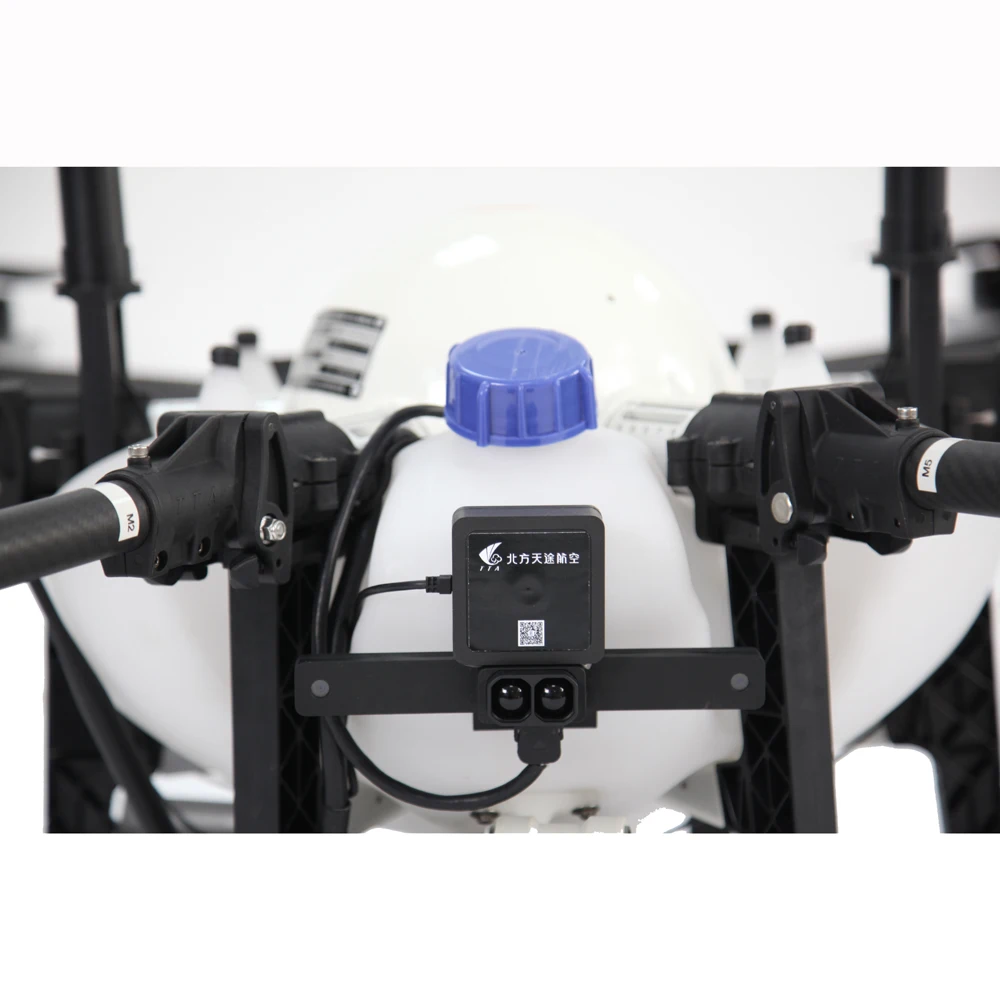

Terrain Following Modular

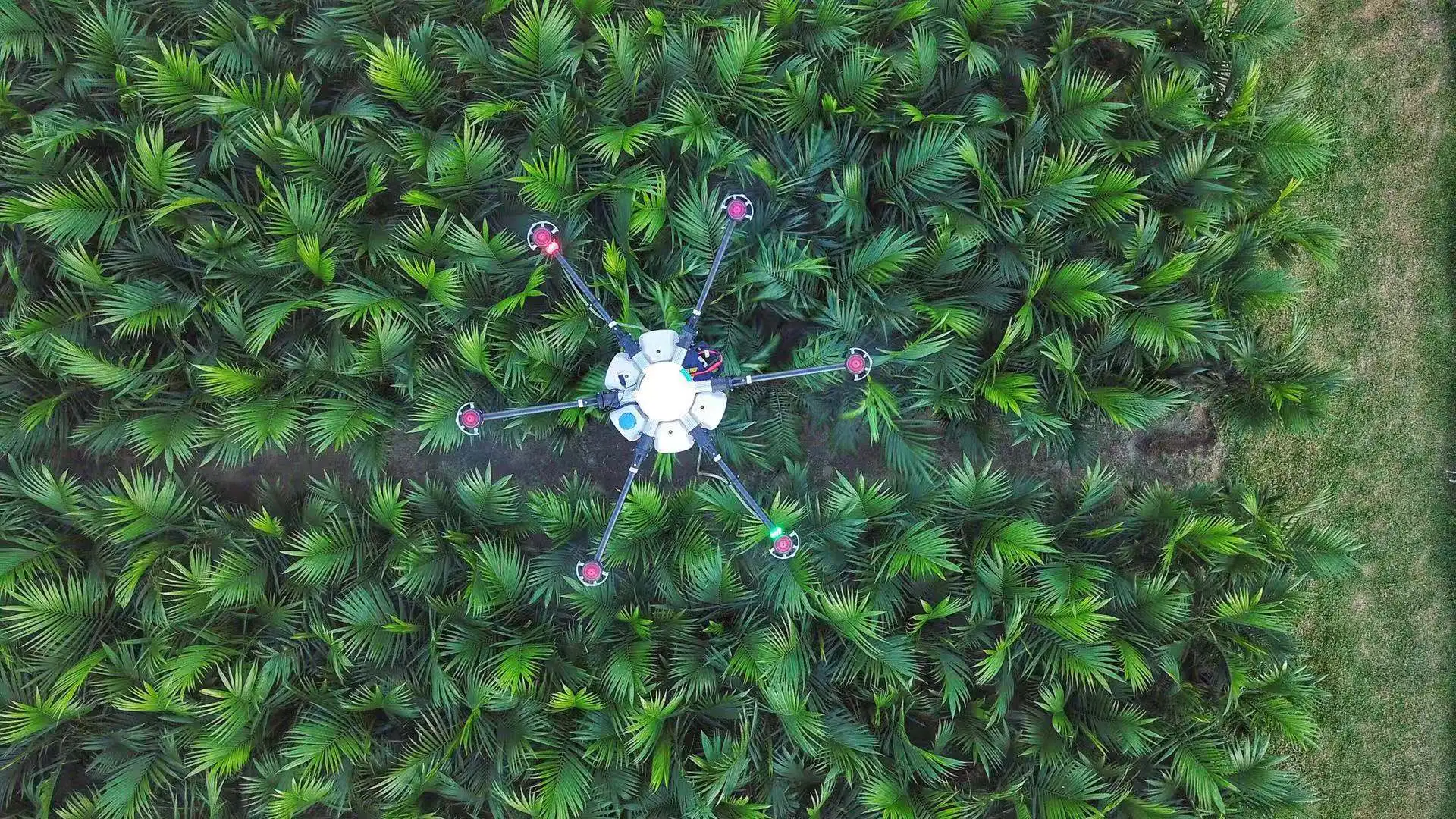

Terrain following modular make the drone has the ability to work on undulating crop field and make the spraying work much easier.
Dual 360°Ring LED indicators can to help distinguish drone front direction. Support night flight!
Germany adjustable flow speed and the nozzles.

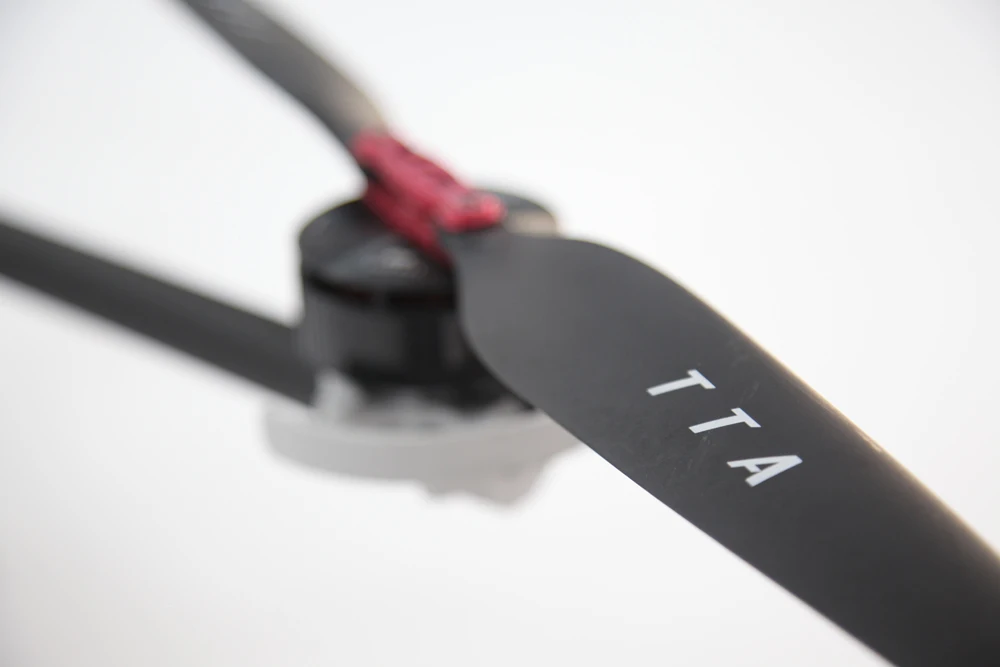

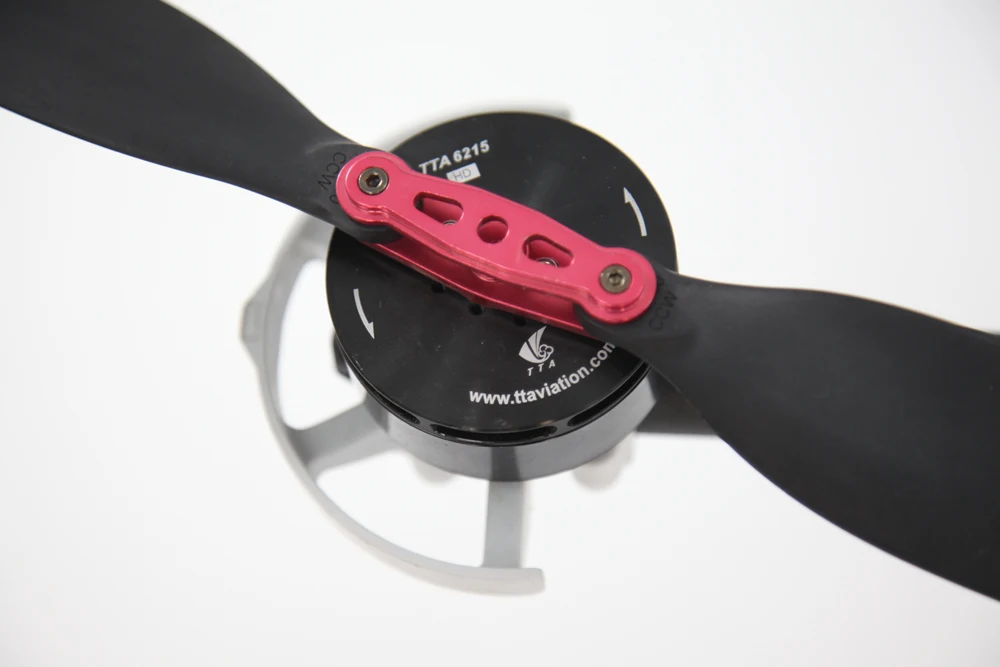

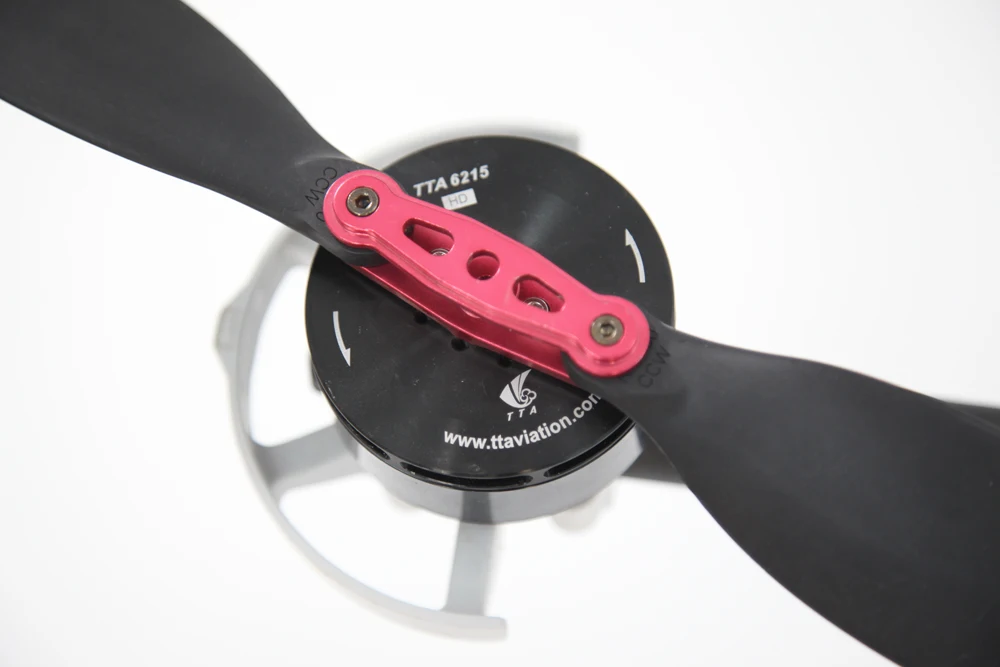

Industrial-class motor,efficient and reliable. And special designed motor holder which carries out fully preservation for the motor.
Germany adjustable flow speed and the nozzles.
Industrial-class motor,efficient and reliable. And special designed motor holder which carries out fully preservation for the motor.
Wide-angle FPV camera makes flying more safety !
Real time video monitoring let you know detail information of situation and your crop!
Dual LED light, Support night flight!
Real time video monitoring let you know detail information of situation and your crop!
Dual LED light, Support night flight!
Real time tracking the flight log from the GCS. And obviously to check where is sprayed and where is not according to the color.
The whole machine is water -proof and
it can be directly clean by water after spraying. And with the special industrial material,
the most important parts will be protected.
it can be directly clean by water after spraying. And with the special industrial material,
the most important parts will be protected.
Equipped with intelligent battery,only one piece battery ,portable push-in design.
The battery will memory the charge and discharge times automatically.
Low voltage protection.
The battery will memory the charge and discharge times automatically.
Low voltage protection.
Cloud service / Background management platform
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location, spraying log, etc.
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location, spraying log, etc.
Precheck and After-check
You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.
Remote controler
Quick release structure.
The drone can be easily assemble, disassemble and even simple repair right by crop field.
Easy to transport.
Easy to maintain and low spare parts cost.

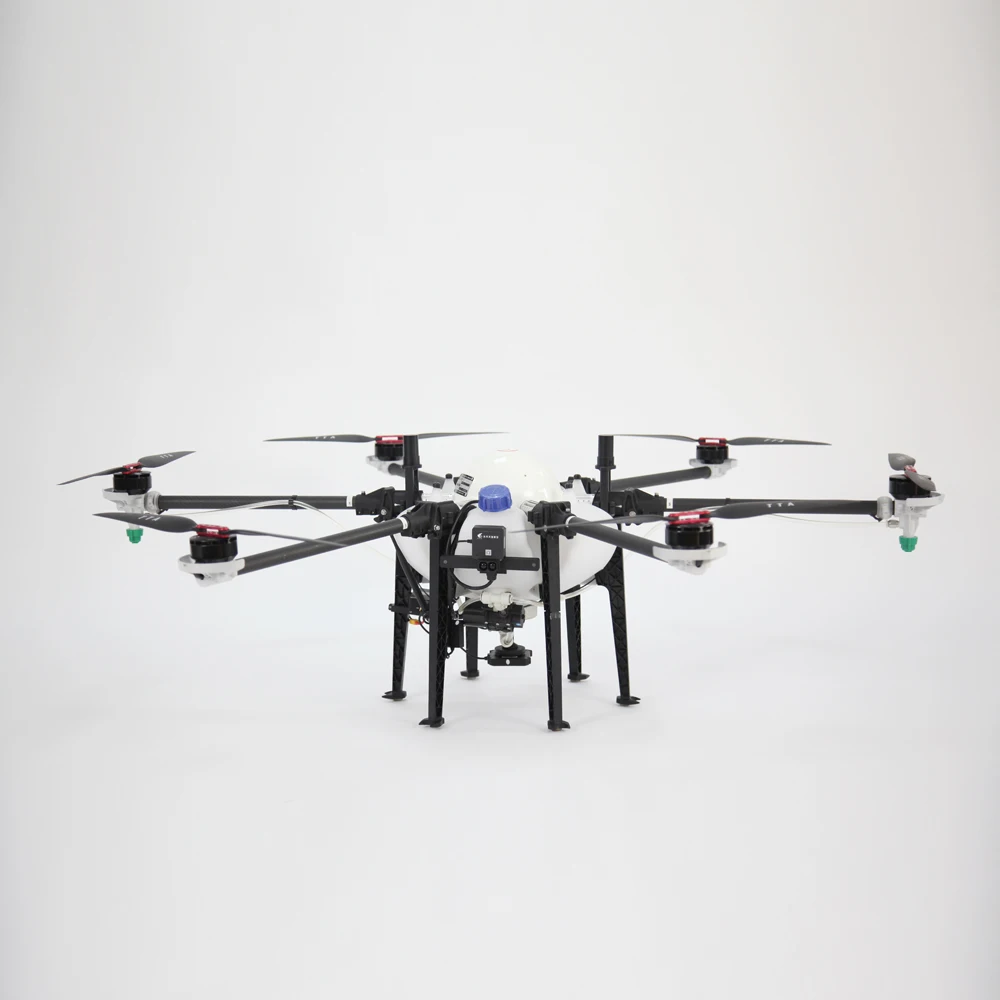

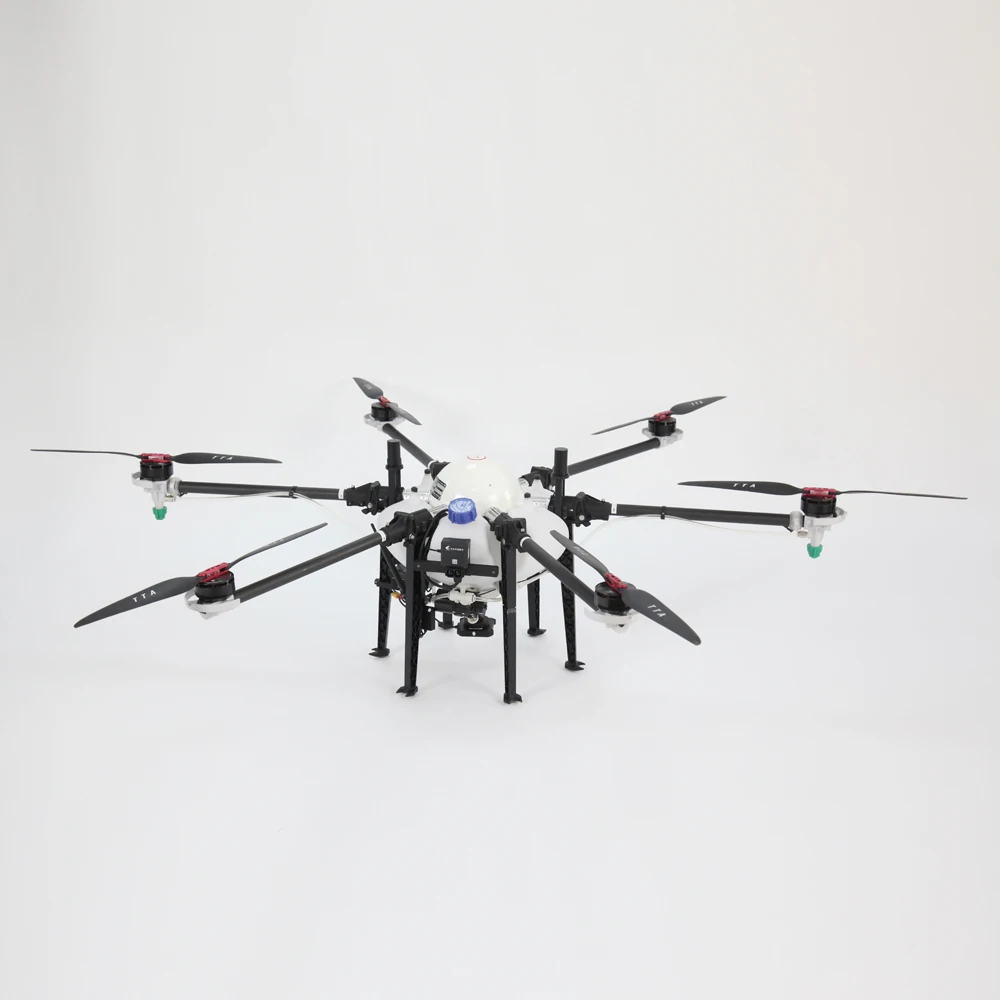

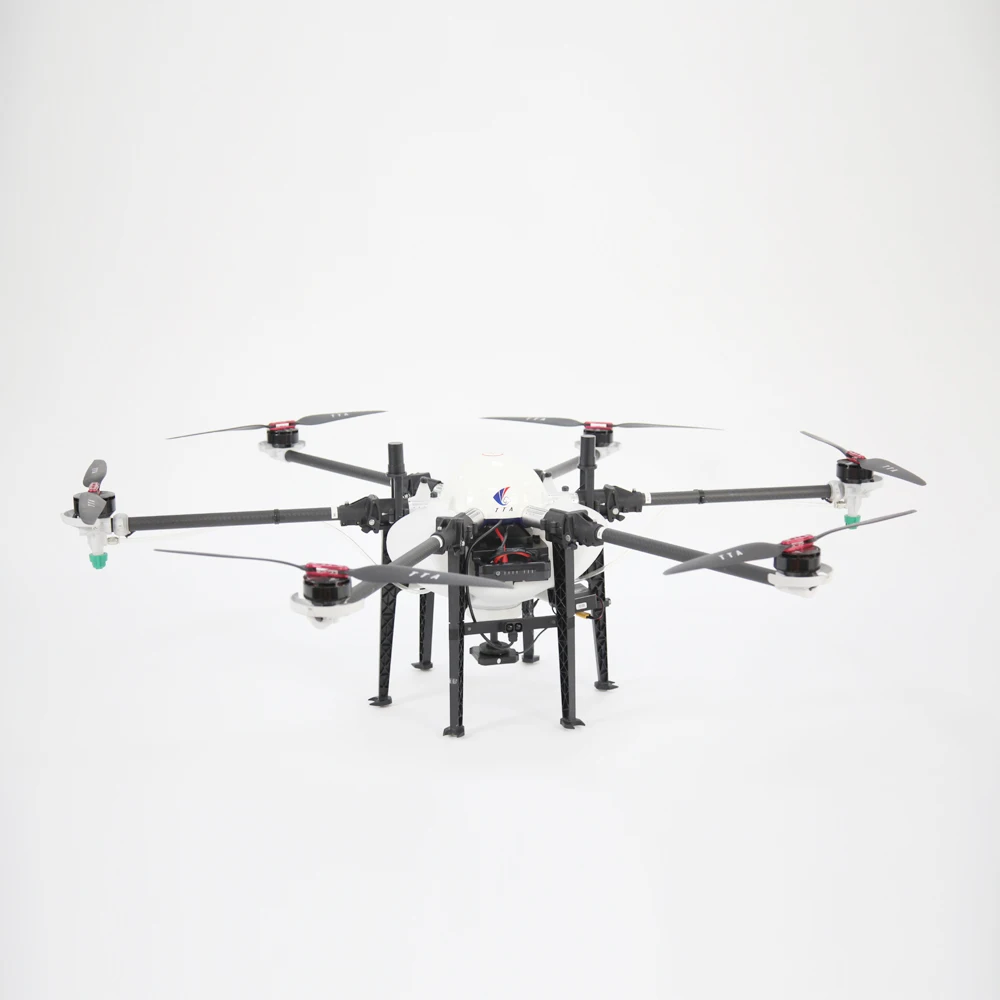

Detailed Images
Our Service
Pre-Sales
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
*TTA Education is the bigest AOPA UAV pilot training
school. we supply free training for our customer.
* Engineers available to service machinery overseas.
*Good warranty service. Supply 7days return.
*24h online service to help the customer .
Packing & Delivery

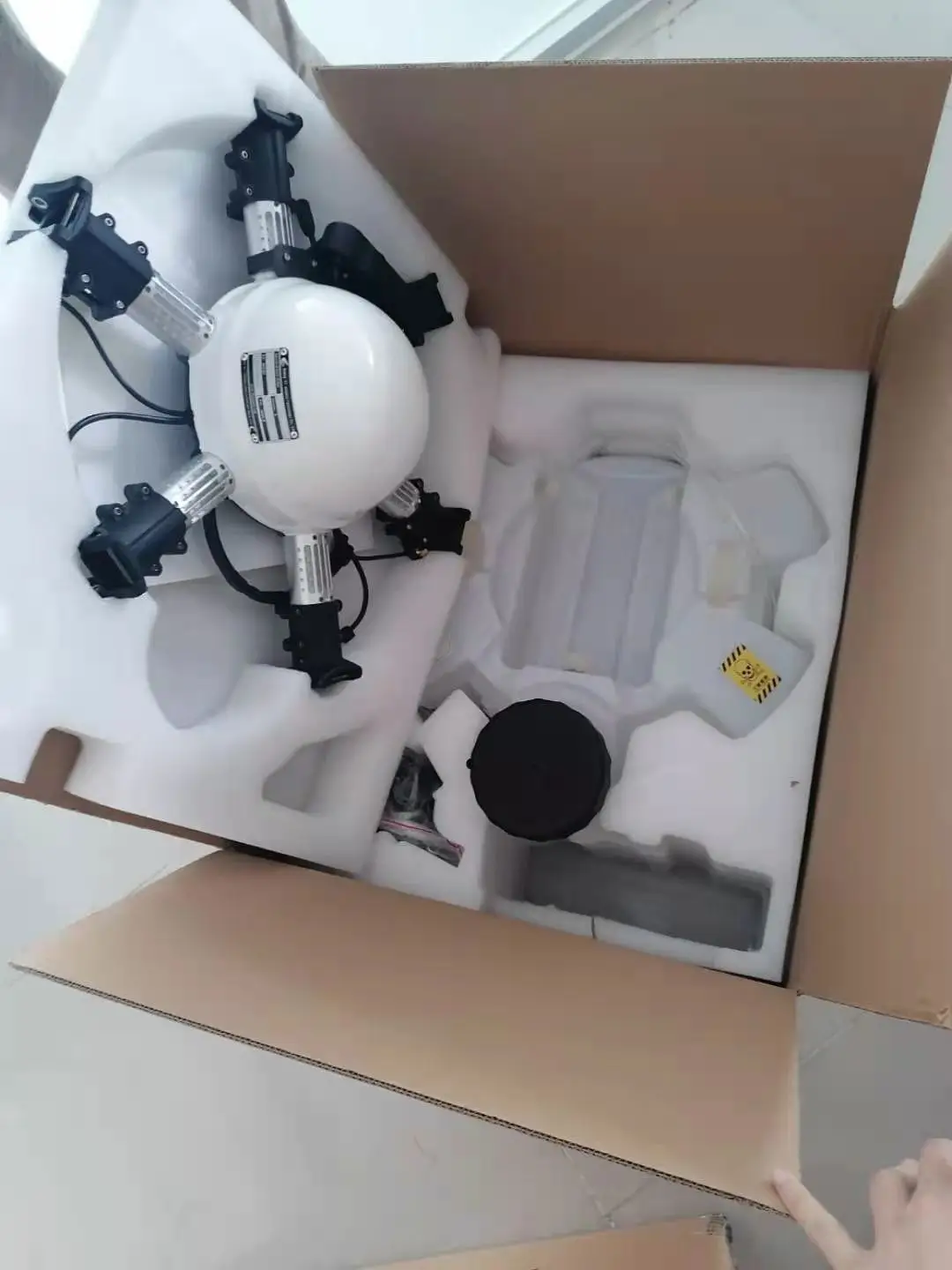

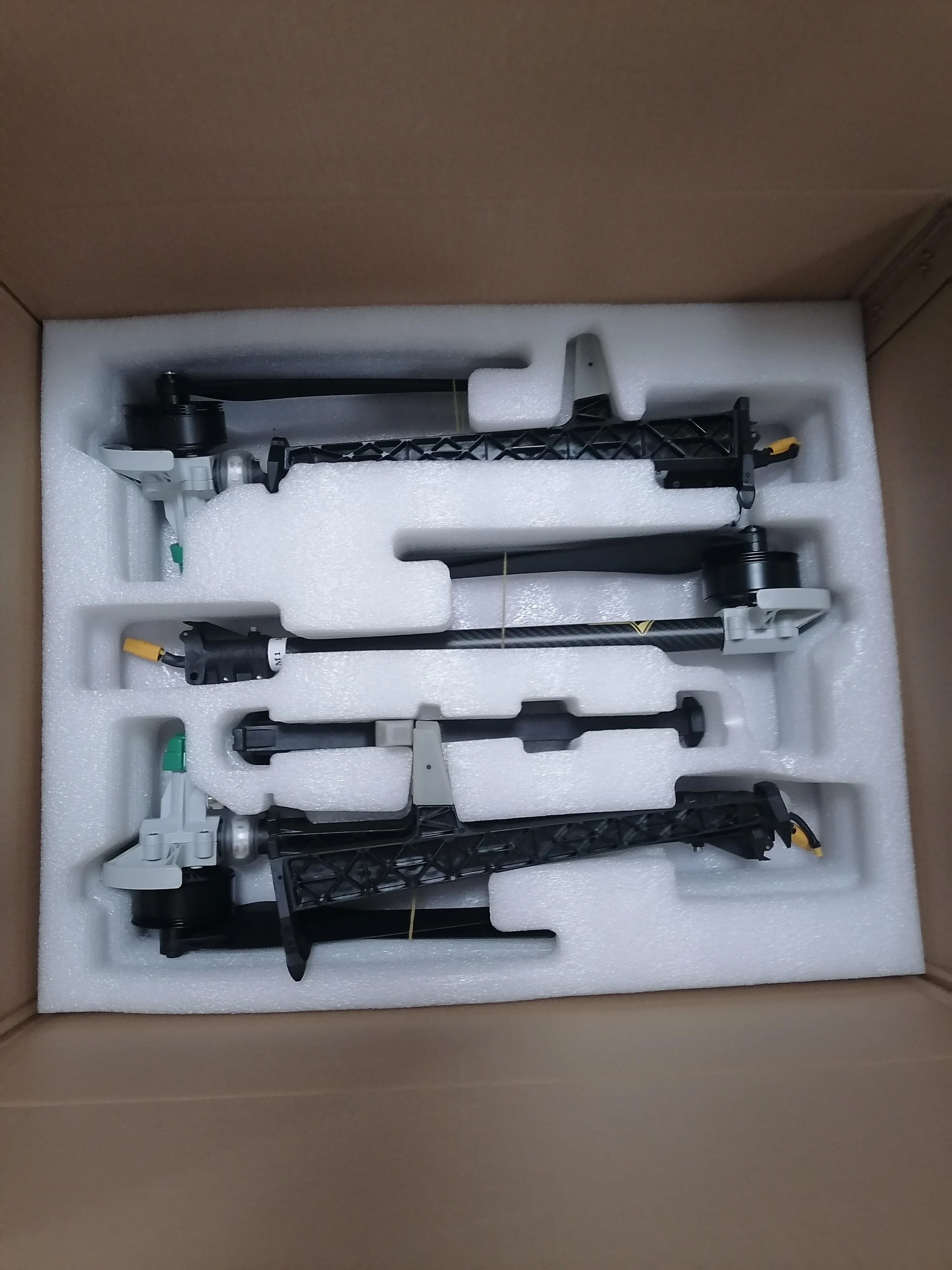

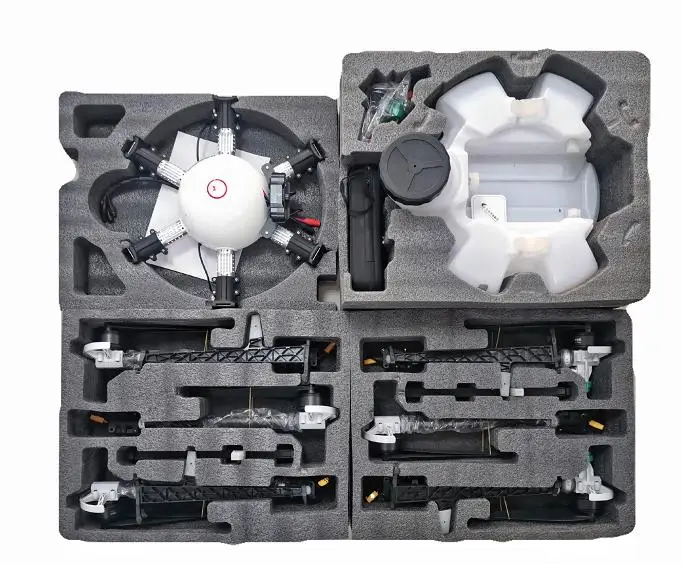

The drone is packaged by two small portable cartons and the two small cartons can be put in one complete carton. Which compressed the volume and make the transport easier. And we have designed special foam according to the drone structure. The drone inside the box will be fixed.
