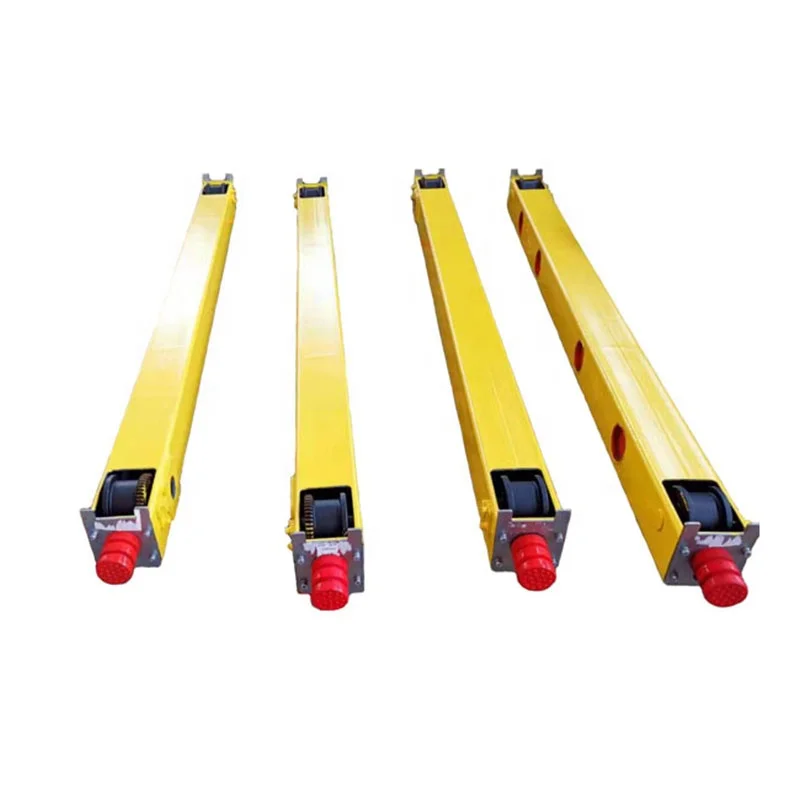

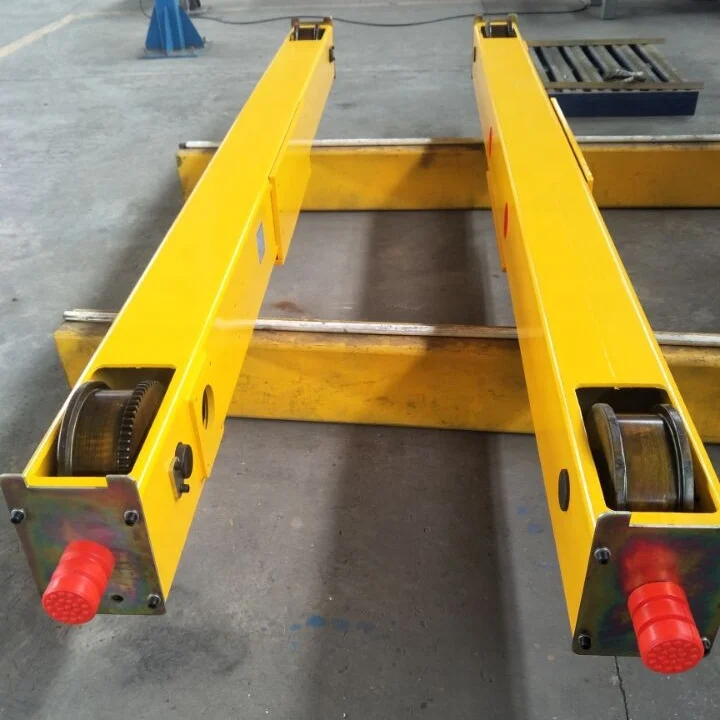

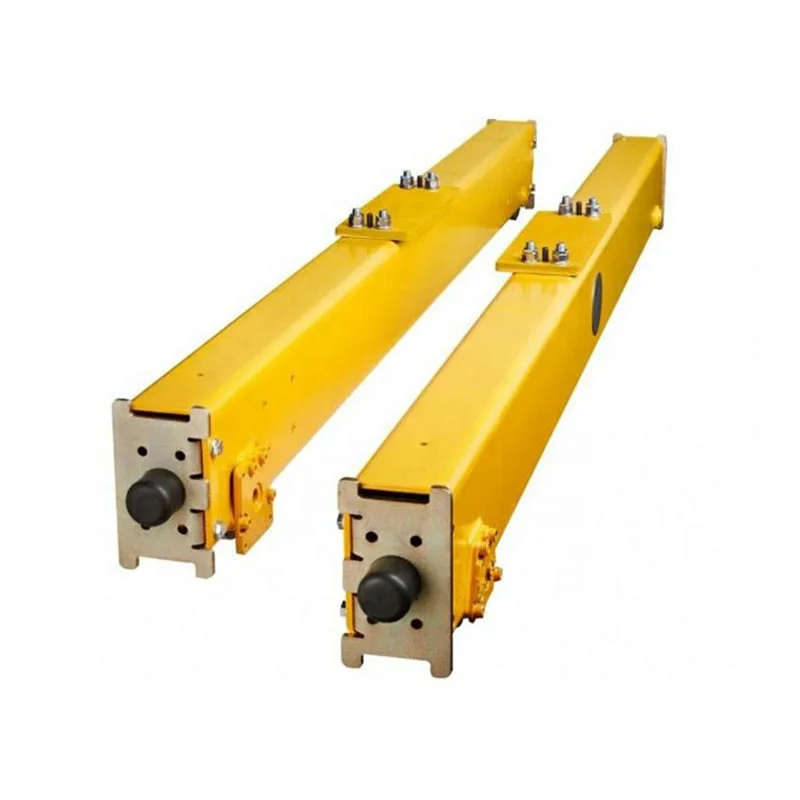

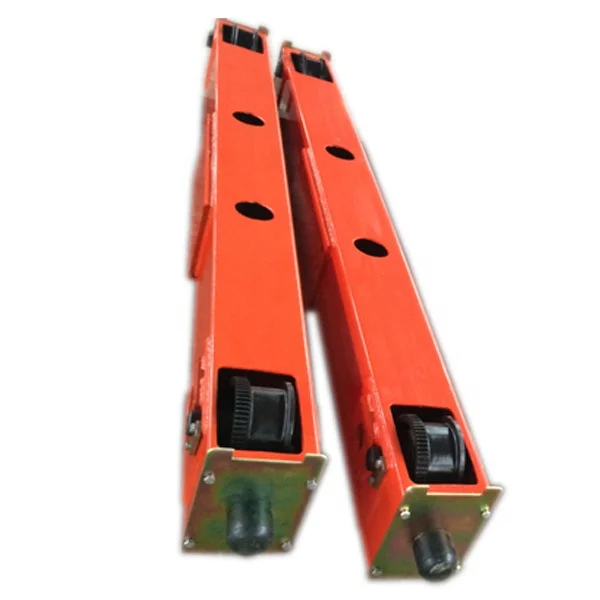

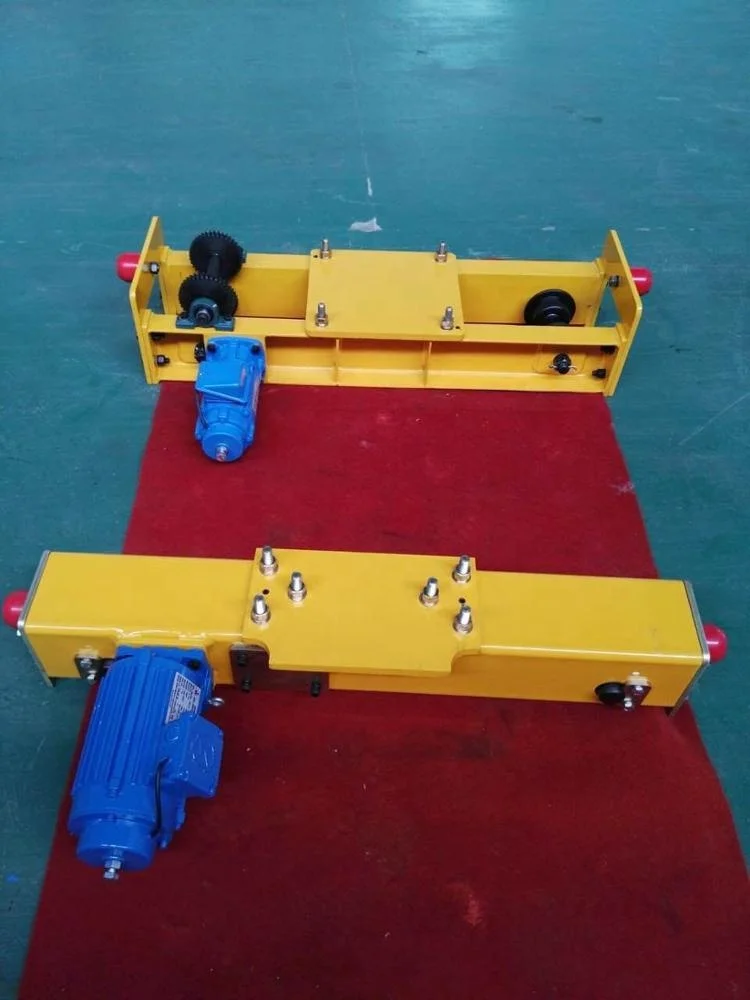

bridge crane Parts 5 ton overhead Crane end beam with running 2 ton end carriage of crane
- Category: >>>
- Supplier: Chongqing Shanyan Crane Machinery Co. Ltd.
Share on (1600460957364):
Product Overview
Description
Product Description

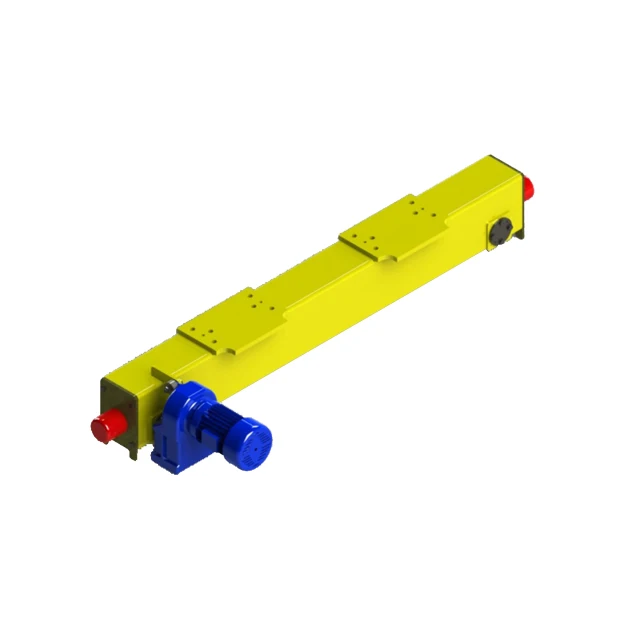

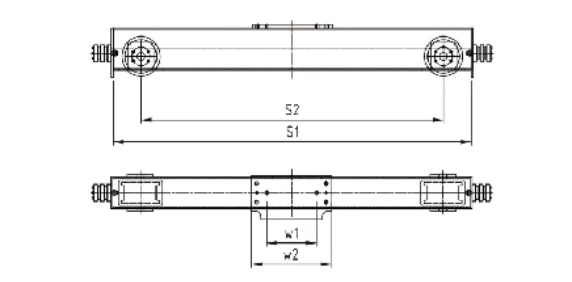

1. EUS European single girder end carriage
| Model | Crane | Rectangular | Wheel size | Moter power (20m/min) | Moter power (30m/min) |
| EUS90-15 | 1.6t-7.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW |
| EUS90-20 | 1.6t-11.5m | ||||
EUS90-25 | 1.6t-16.5m | ||||
| EUS90-30 | 1.6t-22.5m | ||||
| EUS125-15 | 3.2t-7.5m |
150*200*8
|
U125*60 |
FA27-0.37KW |
FA27-0.55KW |
| EUS125-20 | 3.2t-11.5m | ||||
| EUS125-25 | 3.2t-16.5m | ||||
| EUS125-30 | 3.2t-22.5m | ||||
| EUS125-35 | 3.2t-28.5m | ||||
| EUS160-15/20/25/30/35 | 6.3t-7.5/11.5/16.5/22.5/28.5m | 150*250*8 | U160*70 | FA37-0.55KW | FA37-0.75KW |
| EUS200-20/25/30/35 | 12.5t-11.5/165/22.5/28.5m | 200*250*8 | U200*70 | FA47-0.75/1.1KW | FA47-1.1KW |
| EUS250-20/25/30/35 | 16t-11.5/16.5/22.5/28.5m | 200*300*8 | U250*80 | FA57-1.1/1.5KW | FA57-1.5KW |

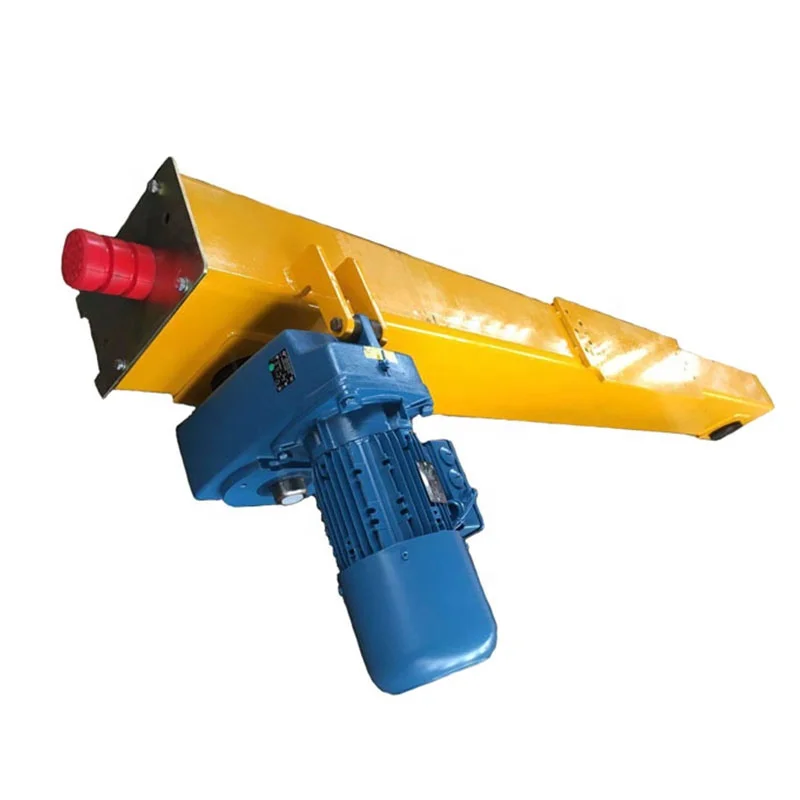

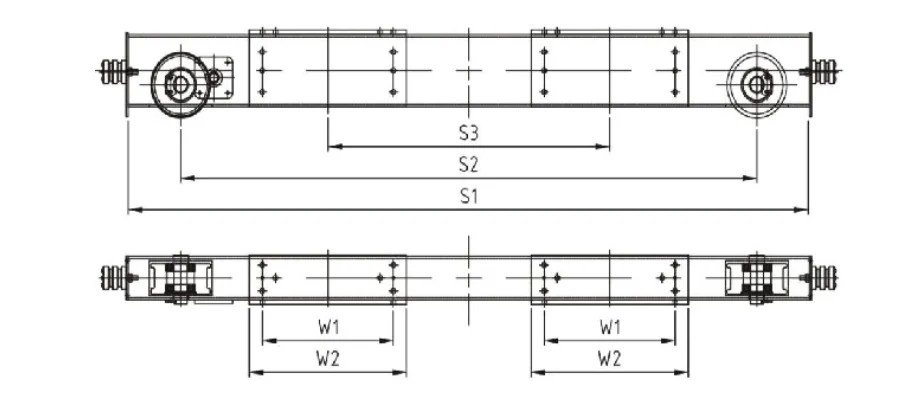

2. EUD European double girder end carriage
| Model | Crane | Rectangular | Wheel size | Moter power (20m/min) | Moter power (30m/min) |
| EUD90-20 | 1.6t-7.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW |
| EUD90-25 | 1.6t-11.5m | ||||
EUD125-25 | 1.6t-16.5m | 150*200*8 | U125*60 | FA27-0.37KW | FA27-0.55KW |
| EUD125-30 | 1.6t-22.5m | ||||
| EUD125-35 | 3.2t-7.5m | ||||
| EUD125-40 | 3.2t-11.5m | ||||
| EUD160-25 | 3.2t-16.5m | 150*250*8 | U160*70 | FA47-0.75KW | FA47-0.75KW |
| EUD160-30 | 3.2t-22.5m | ||||
| EUD160-35 | 3.2t-28.5m | ||||
| EUD200/250/315-35/40/45 | 12.5/16/32t-16.5/2.5/28.5m | ··· | ··· | ··· | ··· |
Our Company

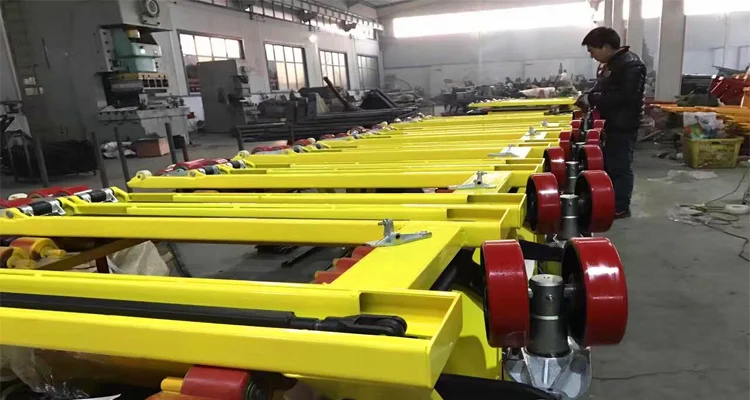

Our Factory

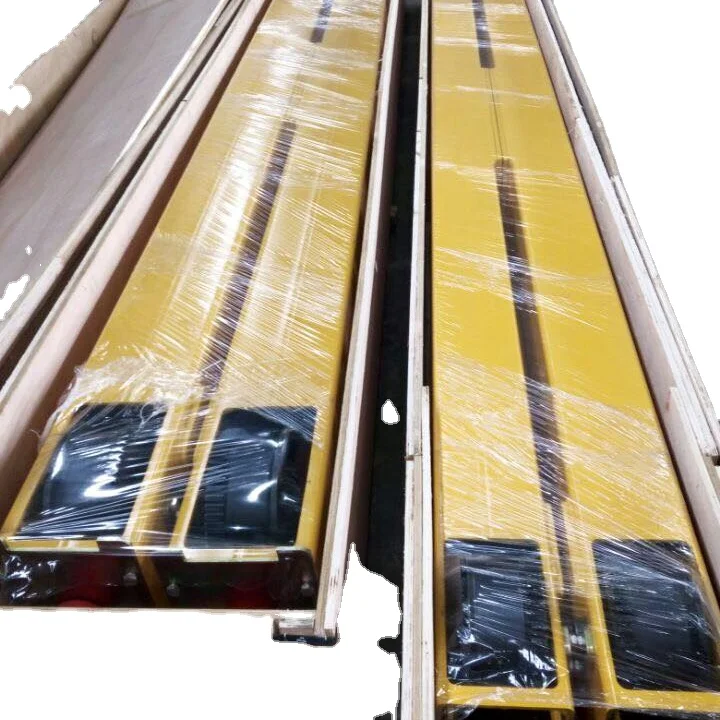

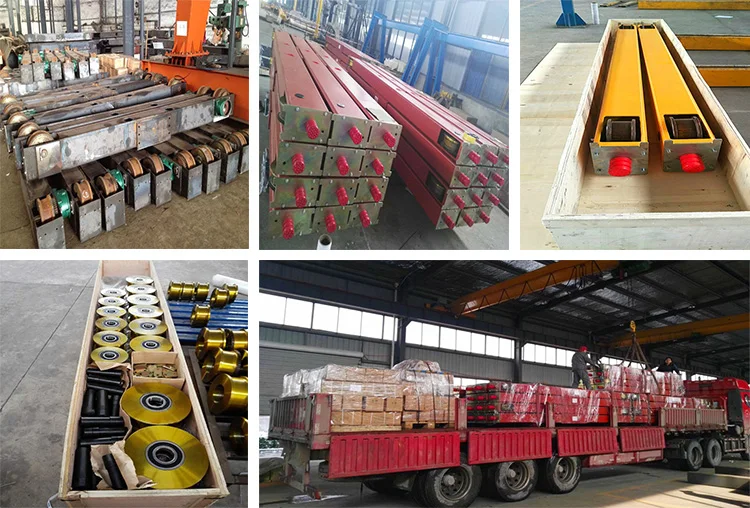

Packing & Delivery
