Manufacturers produce transformer comprehensive tester HY2789 assembly line test

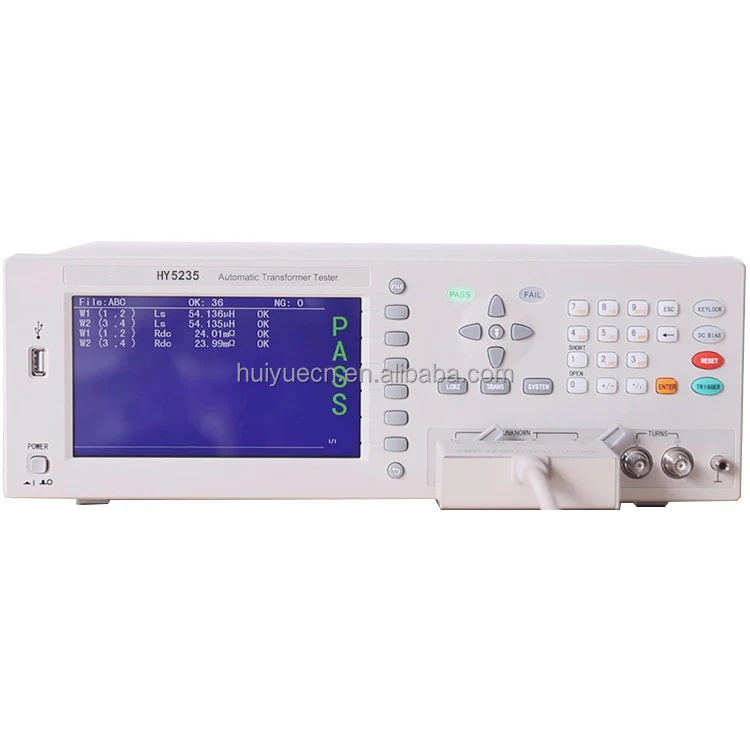

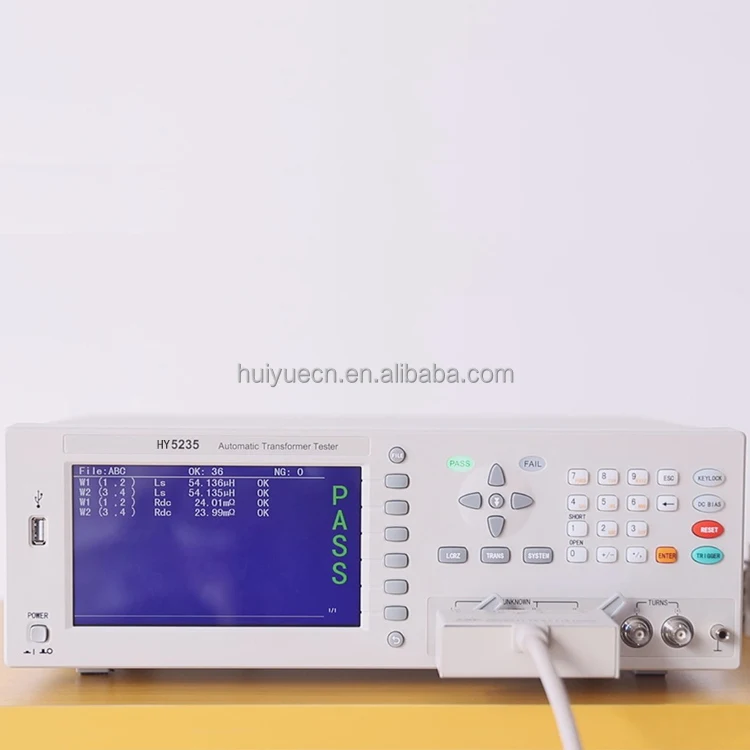

Integrate the transformer scanning box and the host together, namely: all-in-one machine
Programmable up to 24/48/50 pin transformers
Divided into 2 channels, 24P per channel
Support cross-channel testing
HY2789-i24P/i48P/i50P: 20Hz-200kHz, resolution 1mHz
HY2789A-i24P/i48P/i50P: 20Hz-300kHz, resolution 1mHz
HY2789B-i24P/i48P/i50P: 20Hz-500kHz, resolution 1mHz
HY2789C-i24P/i48P/i50P: 20Hz-1MHz, resolution 1mHz
HY2789-i10P/i20P: with power transformer forward and reverse test function
You can also choose the traditional operation interface (two different operation experiences)
Overall size: 400mmx132mmx300mm
technical parameter
Functions and Parameters | Display range | ||
Test parameters(LCR) | C,L,X,B,R,G,D,Q,ESR,Rp,DCR,θ,|Z|, |Y|,TURN,P | |Z|,R,X,DCR | 0.01 mΩ~99.9999MΩ |
Test parameters (transformer) | Turns Ratio, Turns, Inductance, Capacitance, Leakage Inductance, Phase, Quality Factor, AC Resistance, DC Resistance, Balance, Pin Short | |Y|,G,B | 0.00001μS~99.9999S |
Test signal level | 0.005~2Vrms(customizable:0.005~5Vrms) | C | 0.00001pF~9.99999F |
Signal source output impedance | 10Ω/CC,25Ω,50Ω,100Ω,10/100Ω | L | 0.00001μH~99999.9H |
| Test speed | Fast: 75 times/sec, medium speed 20 times/sec, slow speed 6 times/sec (frequency above 1kHz), super fast: 150 times/sec | D | 0.00001~9.99999 |
Trigger method | Internal, Manual, Automatic, External, Bus | Q | 0.01~99999.9 |
Internal DC Bias Voltage | -10VDC ~ +10VDC | Turns-Ratio | 1:0.01~100:1 |
Equivalent Circuit | Series Parallel | θ(RAD) | -3.14159~3.14159 |
| Range method | automatic / manual | θ(DEG) | -179.999 o~179.999 o |
Comparators | ten grades,BIN0~BIN9,NG,AUX | Δ% | -999.999%~999.999% |
PASS/FAILLED show | |||
Host volume and weight | 400mmx132mmx300mm,weight 8.5Kg | ||
The improvement of the test speed of the instrument can relatively greatly reduce the cost of the factory. In order to improve the test speed, we have adopted a new MCU and a new high-speed sampling technology, so as to meet the requirements of high stability, to achieve a faster measurement speed, even at a lower frequency of 100Hz, can also achieve a high test speed. The test speed of the comprehensive tester cannot be simply measured by how many milliseconds the sampling time is. We also conducted a comprehensive test on the classic transformer comprehensive tester on the market. The measured speed PK.

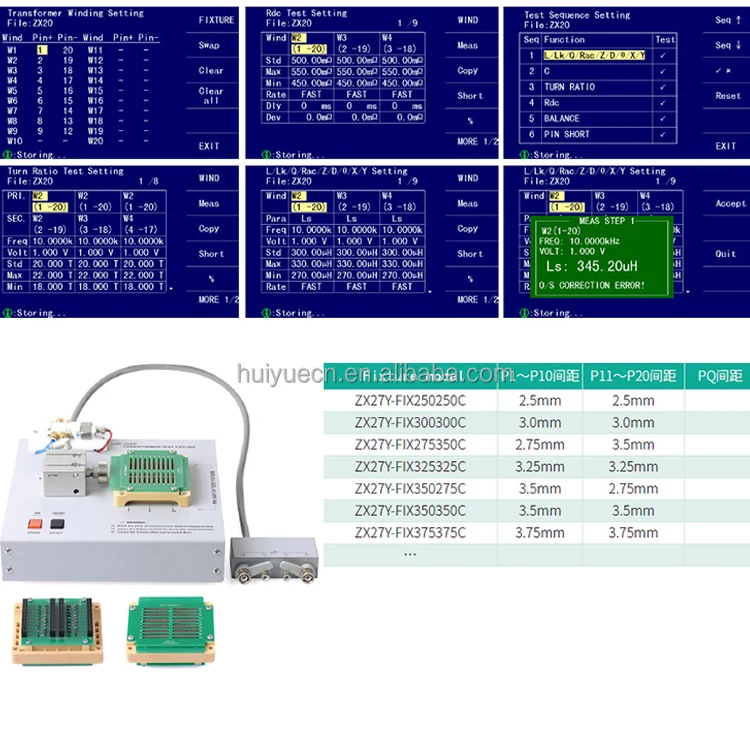

In view of the fact that most users are quite proficient in computer operation, in order to improve the editing efficiency of data, we have developed transformer data editing software for customers
Using this software, the customer can quickly edit the transformer data directly on the computer. After editing, it can be directly saved to the U disk, or the data can be directly sent to the instrument through the network interface or USB interface for direct recall.
The instrument supports saving test setup condition files to a USB flash drive
Supports saving measurement results to a USB flash drive
U disk can support format FAT16, FAT32 file system
Internal support for 100 sets of setting files
The 20Pin test setting file is compatible with the mainstream *2819XB, ZX2786 and other comprehensive testers on the market, saving users the trouble of updating and setting the test file again.
Support file search function
Using this software, the customer can quickly edit the transformer data directly on the computer. After editing, it can be directly saved to the U disk, or the data can be directly sent to the instrument through the network interface or USB interface for direct recall.
The instrument supports saving test setup condition files to a USB flash drive
Supports saving measurement results to a USB flash drive
U disk can support format FAT16, FAT32 file system
Internal support for 100 sets of setting files
The 20Pin test setting file is compatible with the mainstream *2819XB, ZX2786 and other comprehensive testers on the market, saving users the trouble of updating and setting the test file again.
Support file search function

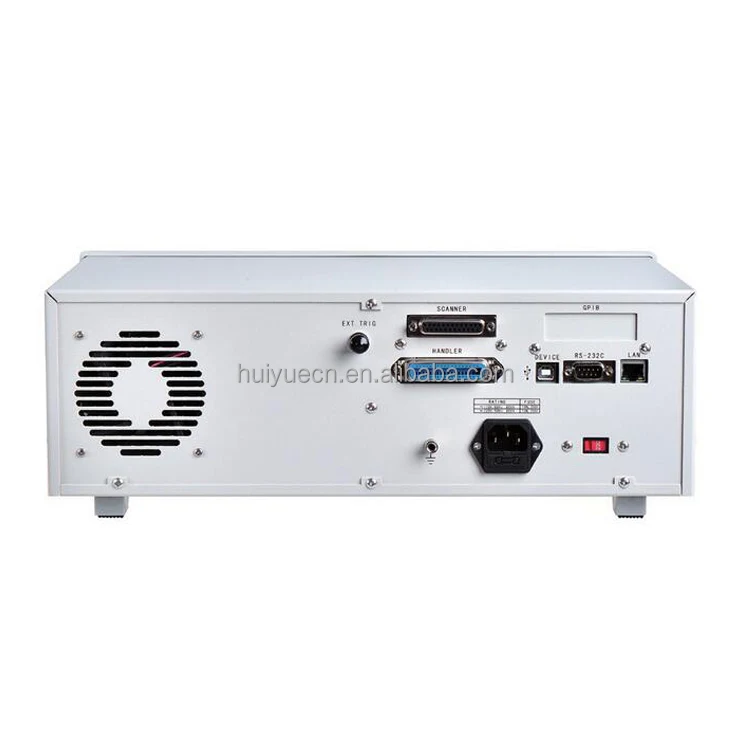

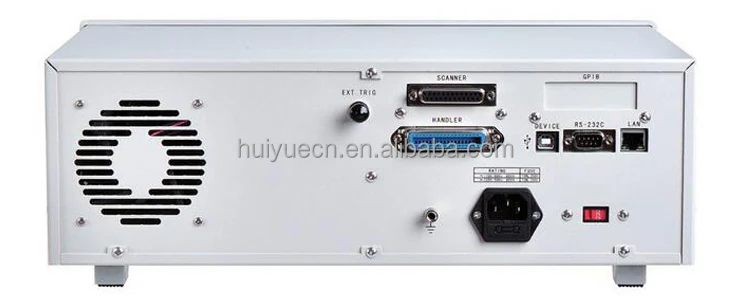

RS232C: standard serial communication interface, supports multiple baud rates
USBDEVICE: Compliant with standard USBTMC protocol
GPIB: General GPIB interface, SCPI commands
LAN: Compliant with LXI standard for fast networking
EXT.TRIG: BNC interface, which can be connected to the foot switch to realize the external trigger function.
HANDLER: used for automatic mechanical control, can output PASS, FAIL, various gear signals, accept external trigger signals, and can select the upper and lower edges (↑ or ↓) to trigger.
SCANNER: for connecting transformer scan boxes
USBDEVICE: Compliant with standard USBTMC protocol
GPIB: General GPIB interface, SCPI commands
LAN: Compliant with LXI standard for fast networking
EXT.TRIG: BNC interface, which can be connected to the foot switch to realize the external trigger function.
HANDLER: used for automatic mechanical control, can output PASS, FAIL, various gear signals, accept external trigger signals, and can select the upper and lower edges (↑ or ↓) to trigger.
SCANNER: for connecting transformer scan boxes
