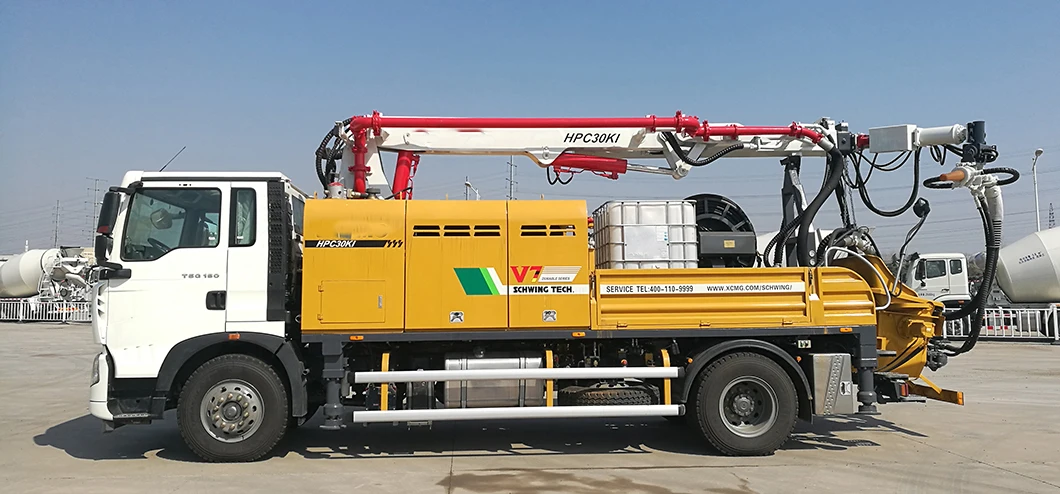

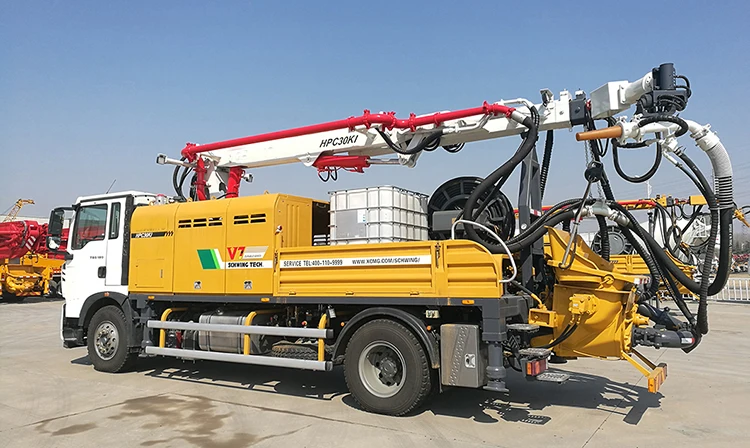

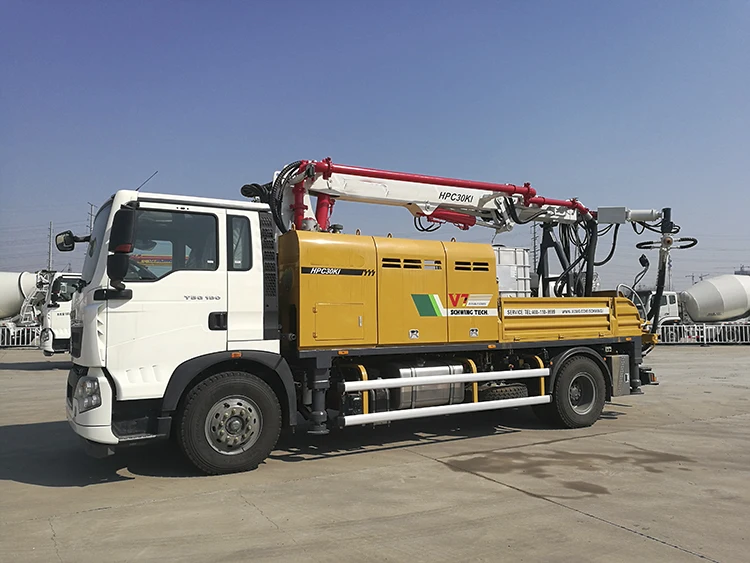

Concrete Spraying Chinese Machine HPC30KI Working Capacity 10.5cbm/min Spraying Shotcrete Machine
- Category: >>>
- Supplier: Hegong Heavy Industry (hefei) Co. Ltd.
Share on (1600460964700):
Product Overview
Description
Product Description
| Description | Unit | | Parameter value | |
| Traveling system | Overall weight | kg | 16000 | |
| | Outline dimension (L×W×H)(Incl. conveying pipe) | mm | 9360×2500×3660 | |
| | Rated power of engine | kW/rpm | 132 /2400 | |
| | Emission standard of engine | | China V | |
| | Gradeability | % | 30 | |
| | Turning radius | m | 9.5 | |
| | Max. speed/hour | km/h | 90 | |
| Spraying system | Max. spraying height | m | 18 | |
| | Max. spraying width | m | 29.6 | |
| | Max. front spraying distance | m | 15 | |
| | Min. permissible tunnel height for spraying operation | m | 4 | |
| | Max. operation depth | m | 7 | |
| | Axial rotation of nozzle seat | ° | 360 | |
| | Axial swing of nozzle seat | ° | 240 | |
| | Nozzle brushing along deflection angle X | ° | 8×360 | |
| Pumping system | Max. theoretical spraying capacity | m3/h | 30 | |
| | Max. pumping pressure | MPa | 8 | |
| | Concrete cylinder diameter/stroke | mm | 180/1000 | |
| | Hopper capacity | L | 500 | |
| | Max. permissible aggregate diameter (pumping/spraying) | mm | 22/16 | |
| | Burdening type | | Rock valve | |
| Air compressor | Volume of air supply | m3/min | 10.5 | |
| | Air pressure | MPa | 0.8 | |
| Accelerant agent | Delivery pressure | MPa | 0.8 | |
| | Accelerant weighing/delivery capacity | l/h | 60~600 | |
