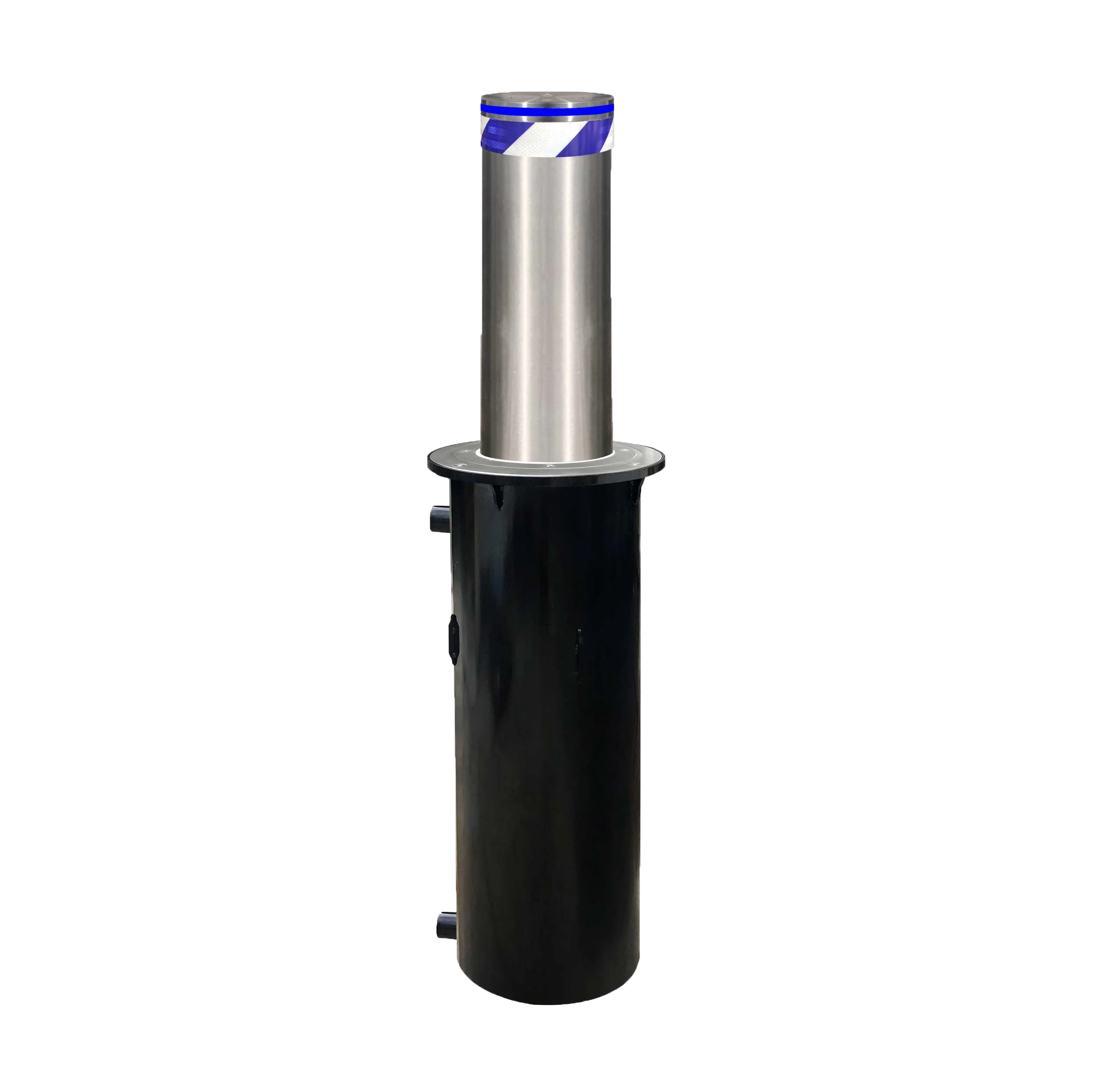

Automatic Road Stainless Steel Parking Rasing Hydraulic Bollard Price System
- Category: >>>
- Supplier: Shenzhen Zento Traffic Equipement Co. Ltd.
Share on (1600460975433):
Product Overview
Description
Product Description
Color | Silver |
Raising/lowering speed | 3-6s(adjustable) |
Diameter | 275/220mm |
raised height | 600-800mm(optional) |
Material | 304 stainless steel |

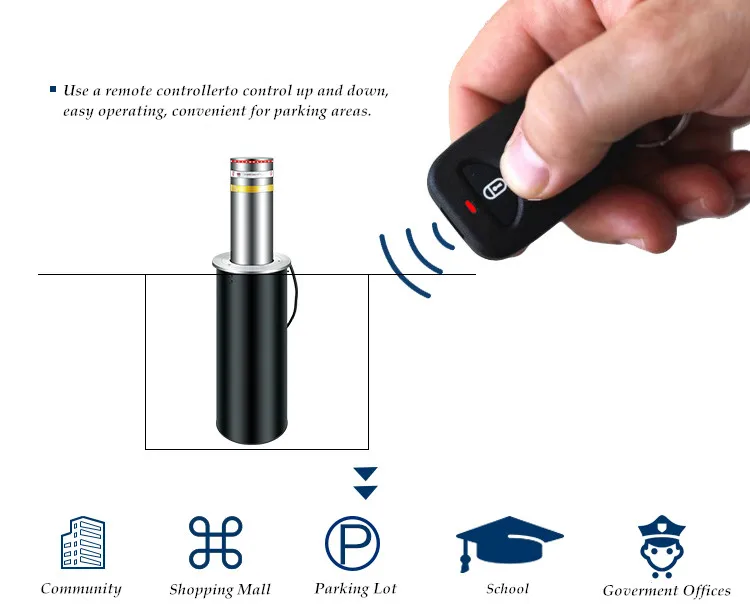

Control mode | remote control(≦50m) |
system control | hydraulic and electric control |
Working temperature | -30℃～+75℃ |
Embedded cylinder depth | 1100mm |
Lamp belt | LED lamp(Acrylic light circle) |
Power Supply | 220V/380V |
thickness | 6mm |
weight | 100-155kg |
anti-collision levels | K6 |
service life | 3 million times |
Drainage mode | natural drainage+External drainage system |

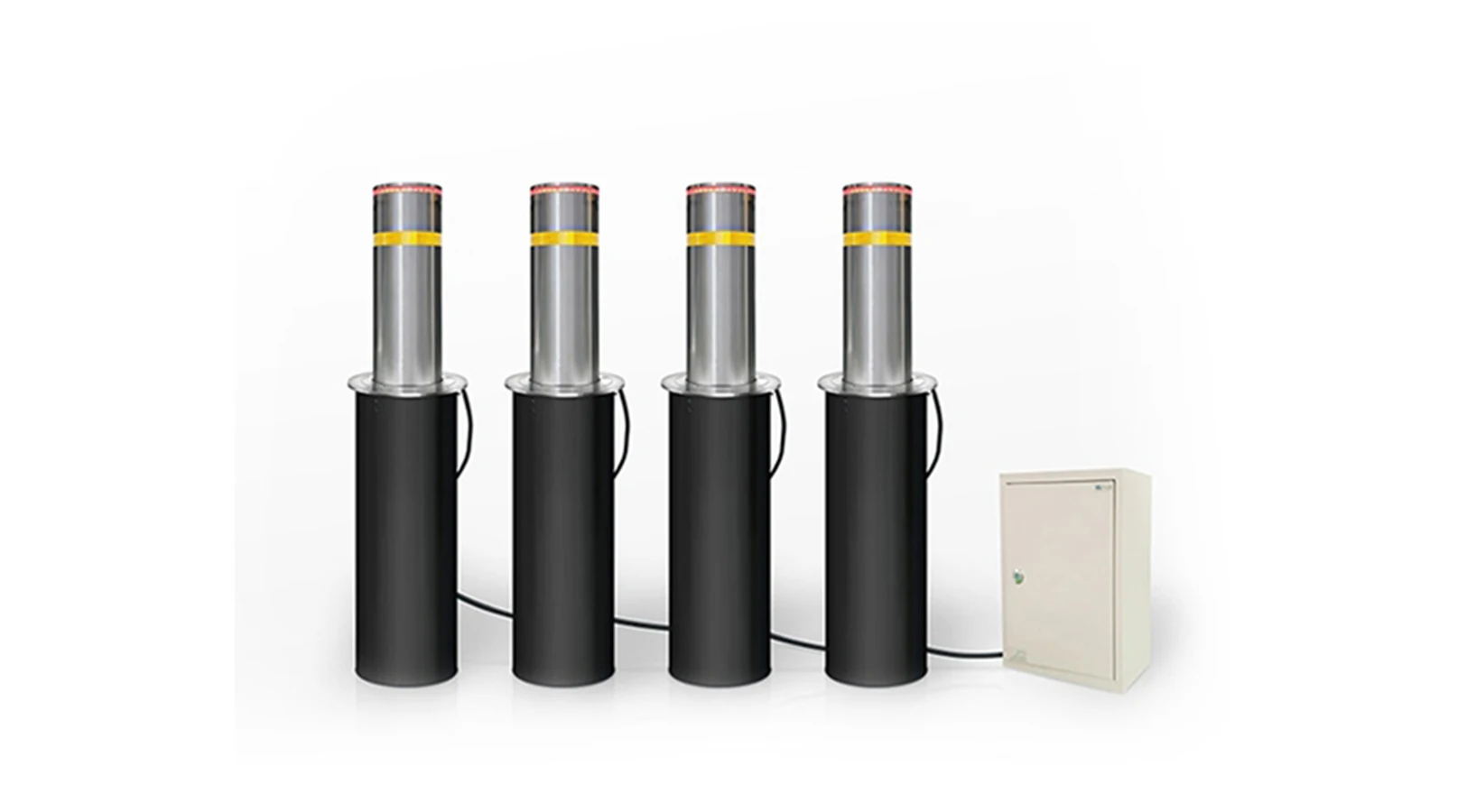

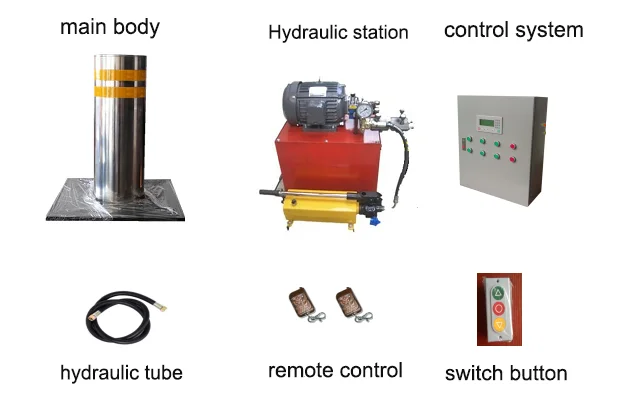

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.
Installation steps
1. Cut the ground surface and excavate,the foundation base need around 800mm and 1130mm.
2. Fill the bottom with 20-30mm pebble and sand as water seepage stratum.
3. Embed the bollard,make sure the head of the bottom is at the same level with the horizontal ground.
4. Install the wiring tube and drainage pipe.Make sure each wire should be secured by waterproof tape
to avoid water vapor permeated into the wire.
to avoid water vapor permeated into the wire.
5. Power on to test. Make sure the bollards can work well.Then cover the head of the bollard to avoid the concrete dirty it.All the drainage pipe hole need to be covered by structural adhesive.
6. Pour the concrete into the foundation base.Be careful to avoid the movement of bollard.
7. Tidy up the bollard head and ground surface, complete installation
Feature
1. Anti-collision：It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power：After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure：With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
4. Can be manually lowered in the event of a power outage
5. Linkage interface
6. Reversible operation according to requirements during ascent and descent
7. Noise during operation of the device≤60 dB
8. Waterproof integrated hydraulic drive
9. Control solenoid valve 24V
10. Control box display text adjustable (up, down, start, time control adjustment)
11. Display text in English
12. Water immersion performance：no leakage during 48 hours and normal lifting
13. Anti-corrosion performance level: 9
Detail

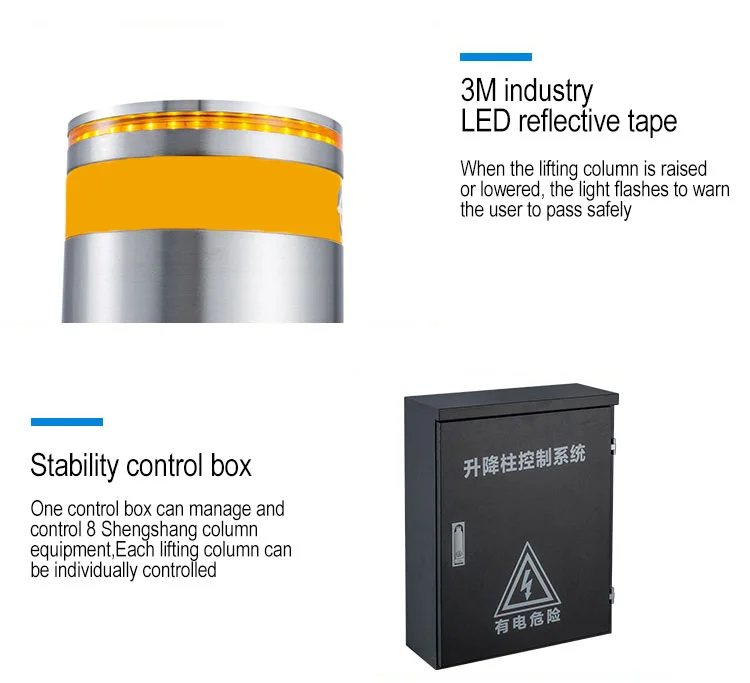

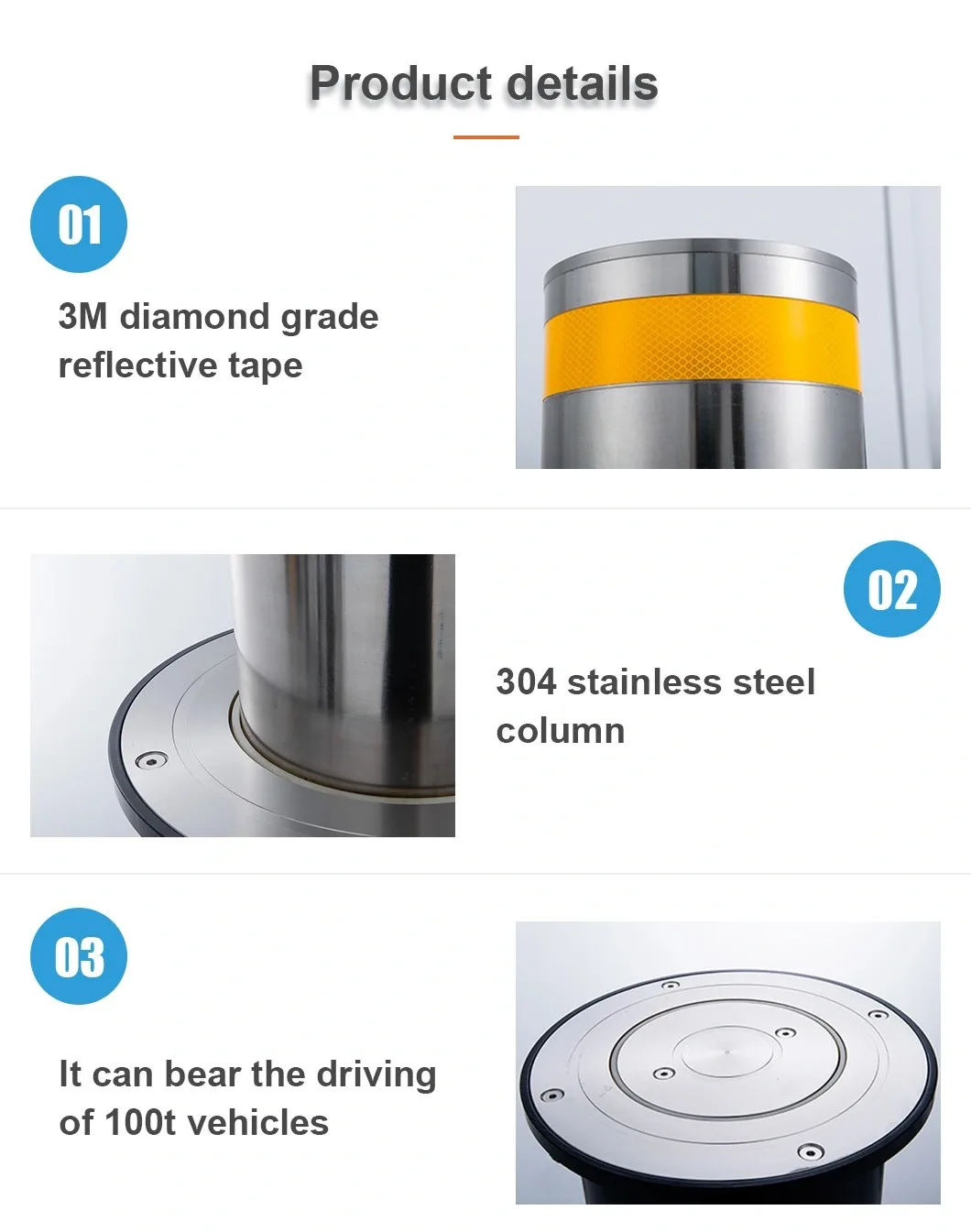

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.
1. Anti-collision：It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power：After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure：With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
4. Can be manually lowered in the event of a power outage
5. Linkage interface
6. Reversible operation according to requirements during ascent and descent
7. Noise during operation of the device≤60 dB
8. Waterproof integrated hydraulic drive
9. Control solenoid valve 24V
10. Control box display text adjustable (up, down, start, time control adjustment)
11. Display text in English
12. Water immersion performance：no leakage during 48 hours and normal lifting
13. Anti-corrosion performance level: 9
Detail
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.
Product Processing
Application:
Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;
Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..
Traffic: bus station, railway station, subway station, airport, etc..
Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..
Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.
Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..
Traffic: bus station, railway station, subway station, airport, etc..
Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..
Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.
Recommend Products
Company Profile
Our main product including Tripod Turnstile, Full Height Turnstile Gate, Flap Turnstile, Speed Lane Turnstile, Swing Barrier Turnstile, Turnstile Face Recognition Access Control, Sliding Turnstile, All Kinds of Personal Security Equipment, Parking Boom Barrier, Road Blocker Hydraulic Automatic, Parking Ticket Dispenser Machine, Bollard Automat Hydraulic, Automat Number Plate Recognition Camera Parking System, and Other Vehicle Equipment.
We have a professional sales team, management team, technical team and production team. Among them, because we have an excellent production team, we can achieve OEM/ODM, and our professional technical team can provide remote technical guidance and 24-hour technical services. At the same time, our sales team has professional knowledge and can communicate with customers. Real-time communication to help customers solve all problems.
About our customers

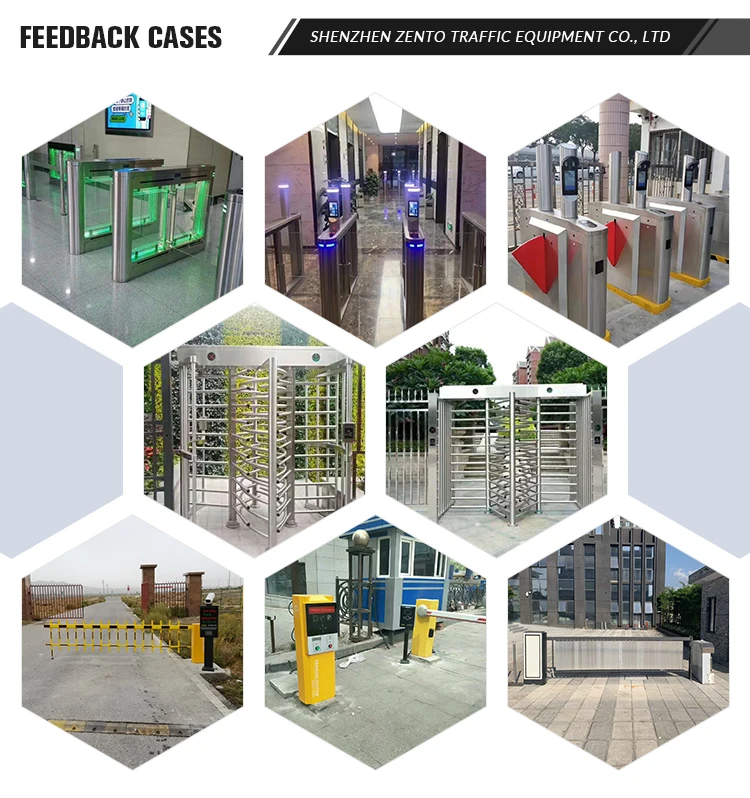

We have sold turnstiles to more than 50 countries, like Brazil, Chile, Pure, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, German, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya,Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on.
