Cheap Optical instrument Video Measuring Machine
- Category: Other Optics Instruments >>>
- Supplier: Dongguan,Yihui,Optoelectronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

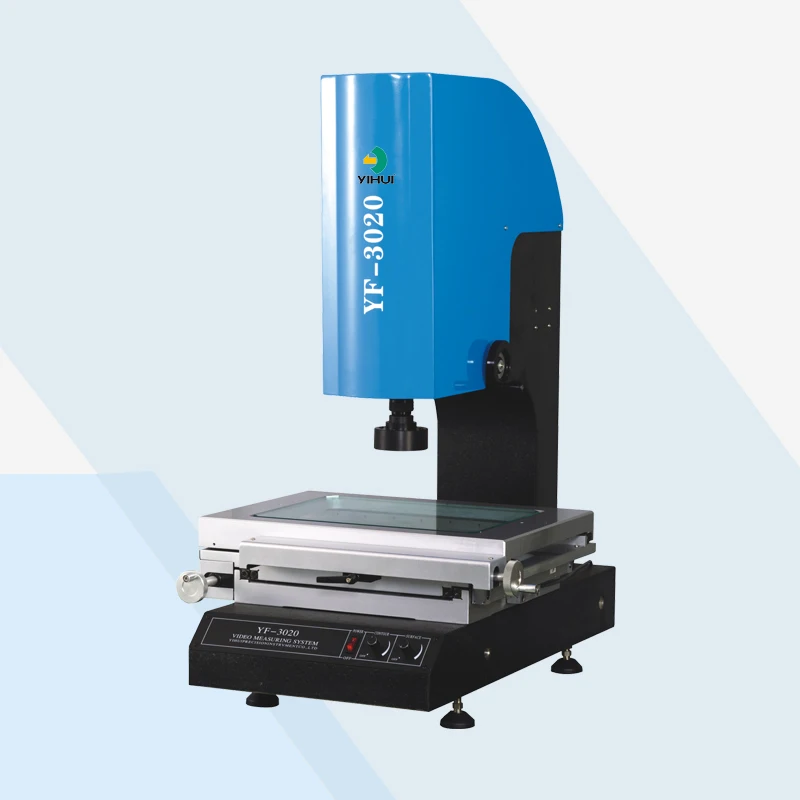

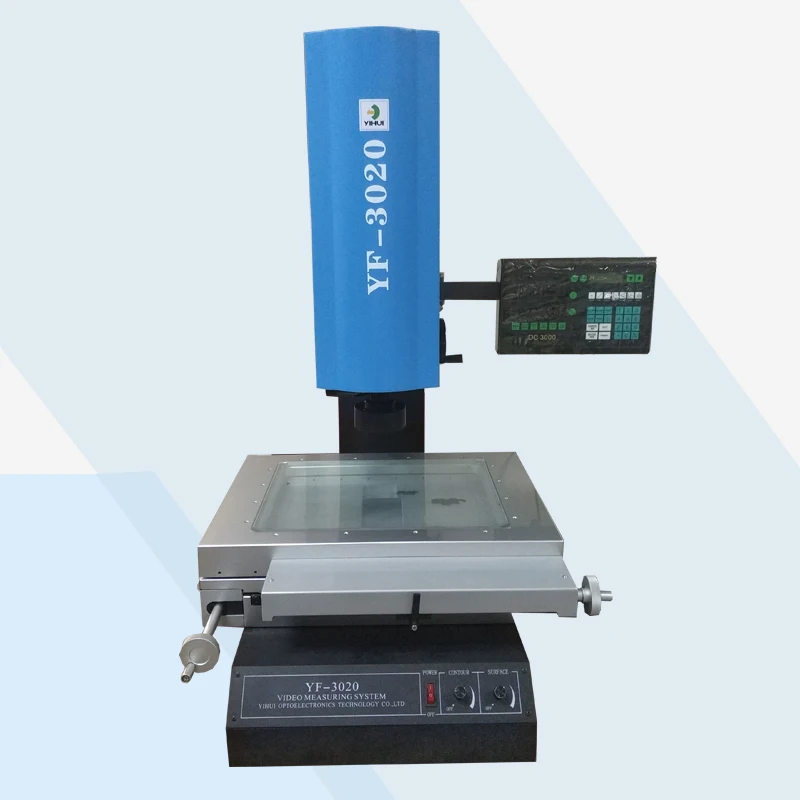

2D Manual Video Measuring System YF Series
I. Usage
YF Series is the basic type manual Video Measuring System developed by DG-YIHUI.
It has been widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II. Features

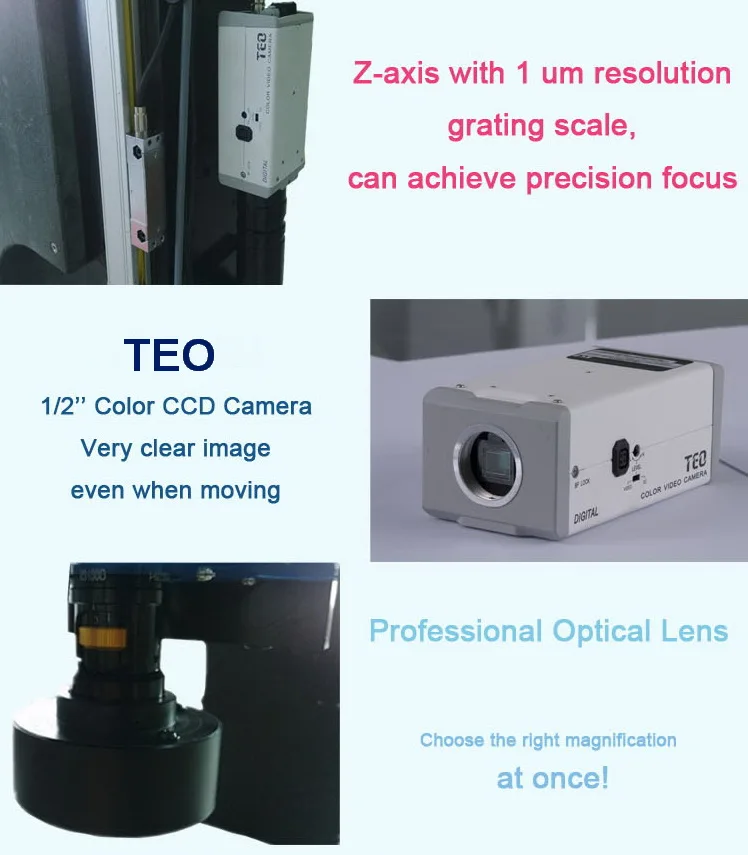

1. It adopts TEO™ 1 / 3’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the professional video card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The data also can be exported in Excel, Word to generate reports for statistical analysis.
4. Grade 00 JINANQING granite base and column, high stability.
It has been widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II. Features
1. It adopts TEO™ 1 / 3’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the professional video card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The data also can be exported in Excel, Word to generate reports for statistical analysis.
4. Grade 00 JINANQING granite base and column, high stability.
Structure
Specification
Code | 04171… | 001 | 002 | 003 | 004 | ||||||||
Model | YF-2010 | YF-3020 | YF-4030 | YF-5040 | |||||||||
Table | Metal Table Dimension(mm) | 404*228 | 500*330 | 606*466 | 706*606 | ||||||||
Glass Table Dimension(mm) | 260*160 | 350*280 | 450*350 | 550*450 | |||||||||
XY Stroke(mm) | 200*100 | 300*200 | 400*300 | 500*400 | |||||||||
Load Capacity | approx. 15 kg | approx. 20 kg | approx. 30 kg | approx. 35 kg | |||||||||
Weight (kg) | 180 | 260 | 315 | 500 | |||||||||
Dimension (L*W*H, mm) | 556*540*860 | 670*660*950 | 720*950*1020 | 800*1040*1020 | |||||||||
Measuring Targeting System (Standard Accessories) | Camera: TEO™ 1 / 3’’ Color CCD Camera | ||||||||||||
Zoom Lens: professional optical lens Magnification of field lens: 0.7~4.5X WD: 92mm | |||||||||||||
Video Magnification: 30~190X FOV: 7~1.1mm | |||||||||||||
Scale Resolution: 0.5 μm | |||||||||||||
Z Stroke(mm) | Standard | 150 | |||||||||||
Option | 200 | 200~350 | 200~450 | ||||||||||
Accuracy E1* | Ex, y ≤ (3.0+L/200) μm | ||||||||||||
Accuracy E2* | Exy ≤ (4.0+L/200) μm | ||||||||||||
Illumination | Surface light and transmission light adopt LED, brightness adjustable | ||||||||||||
Power | 110/220V(AC), 50/60HZ 30W | ||||||||||||
Packing & Delivery
Company Profile

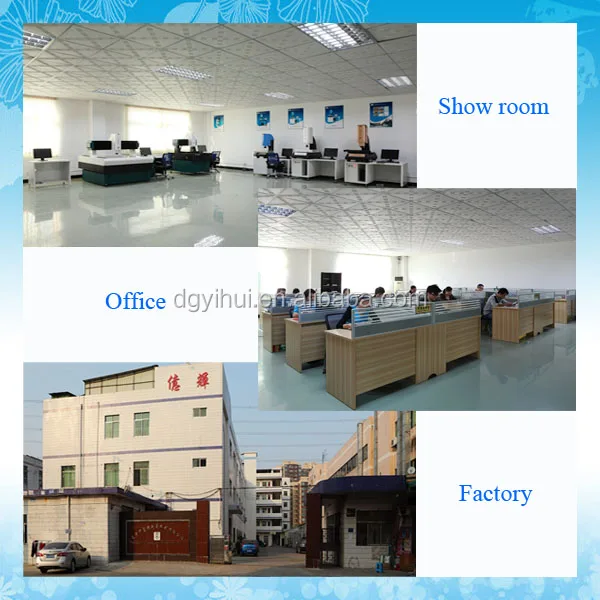

Dongguan Yihui Optoelectronics Technology Co., Ltd.
