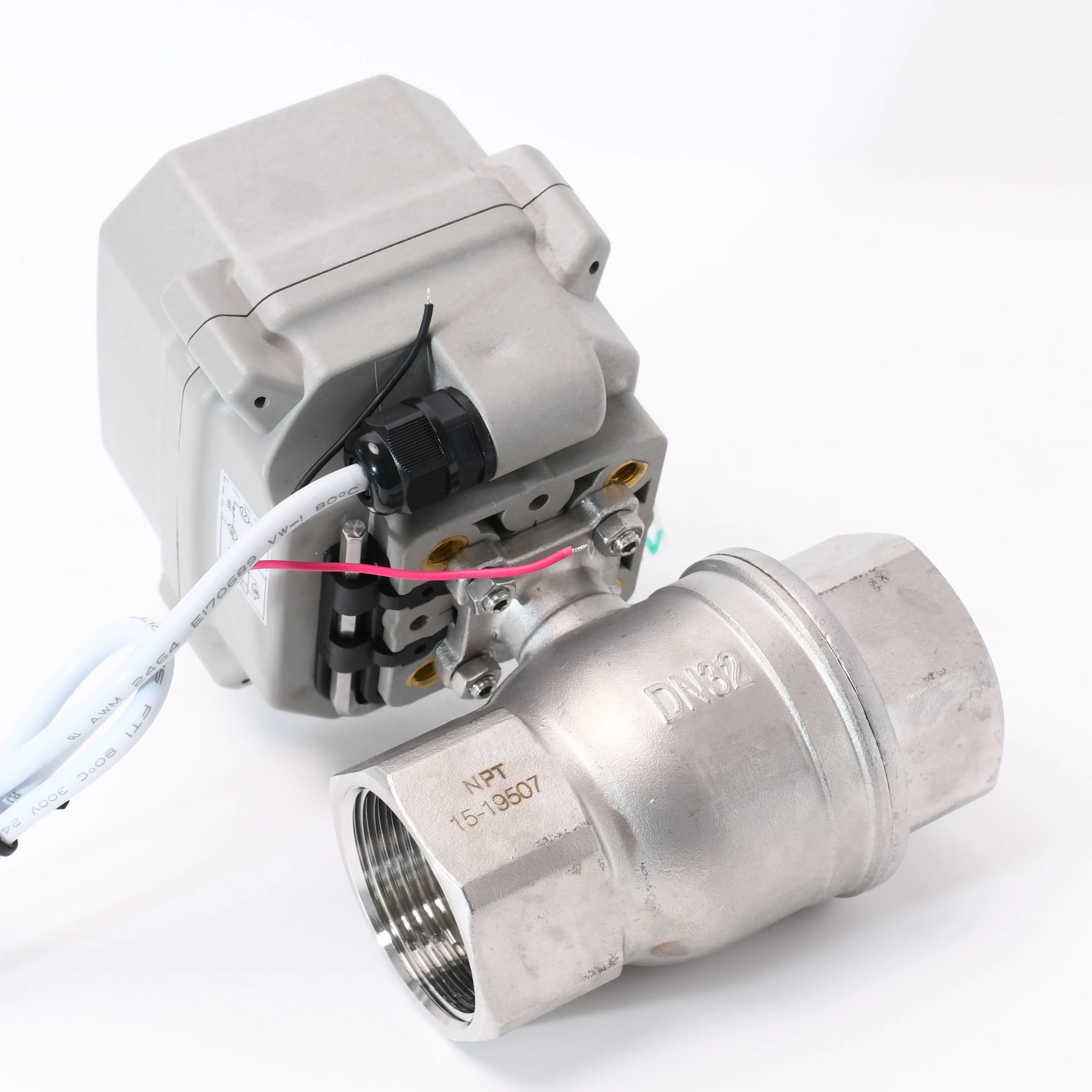

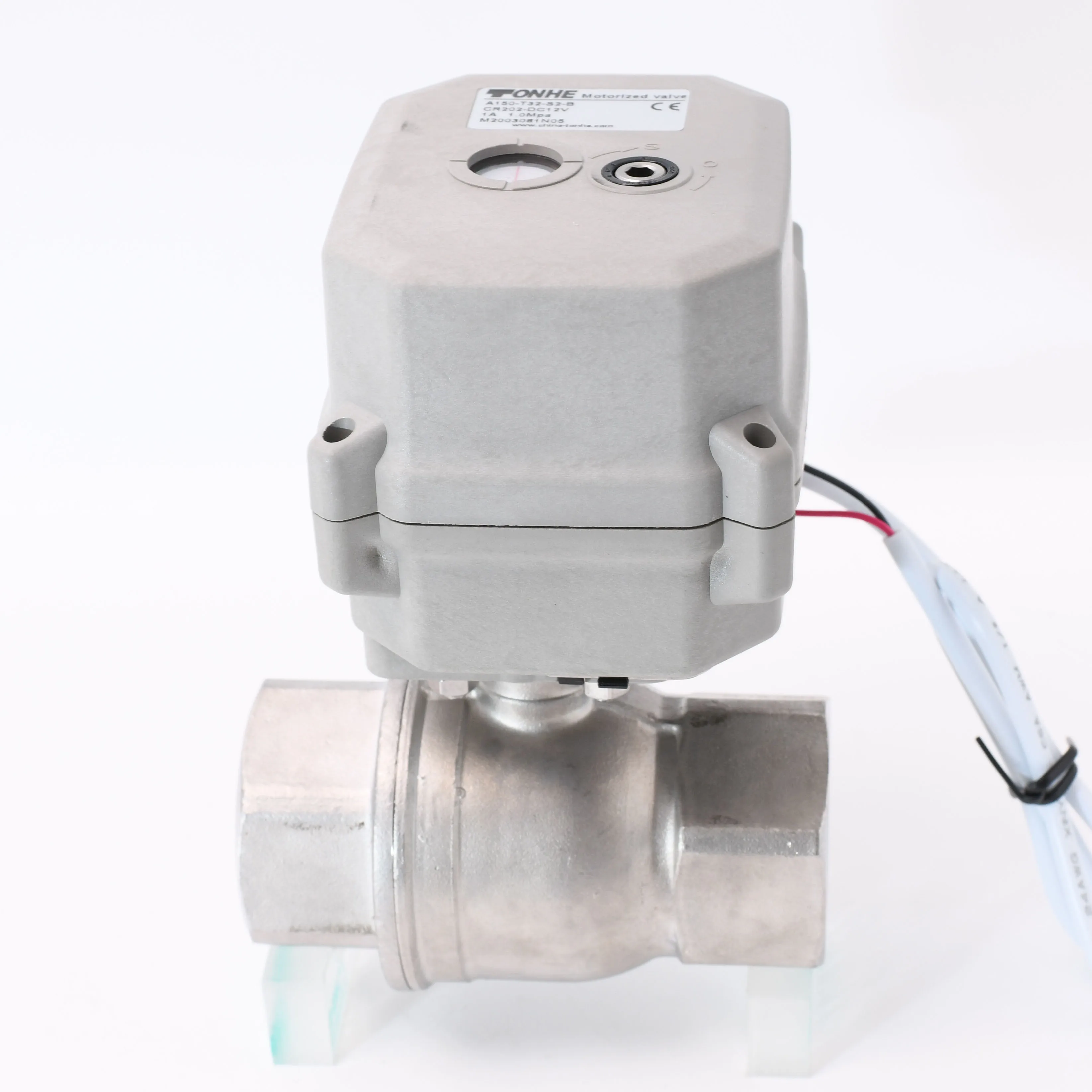

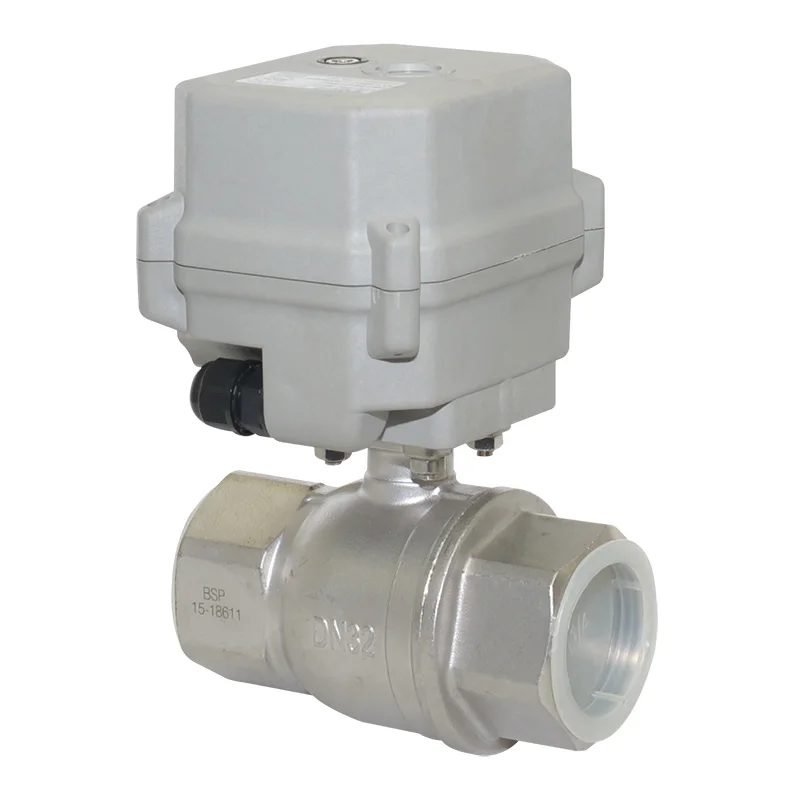

A150 Stainless Steel Motorized Ball Valve DN32 AC220v Normally Closed ISO 5211 Electric Ball Valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Share on (1600461361177):
Product Overview
Description
Product Description
A150 DN32 stainless steel CR202 AC110-230v motorized valve
A150 torque 15NM,with manual override,
Technical Parameters
Connection standard | ISO5211 F03,F05 |
Output axis specification | Female octagonal 9*9 or 11*11 |
Maximum working pressure | 1.0MPa |
Rated voltage | AC110-230v |
Wiring diagram | CR202 |
Life time | 70000 times(testing pressure is 0.4MPa, medium is water) |
Actuator material | Engineering Plastics PPO |
Torque force | 15 N.m |
Cable Length | 0.5m;1.5m (Optional ) |
Environment temperature | -15℃~60℃ |
Liquid temperature | 2℃~90℃ |
Manual operation | Yes |
Open/close indicator | Yes |
Protection class | IP67 |
Company quality management system | ISO 9001:2015 |

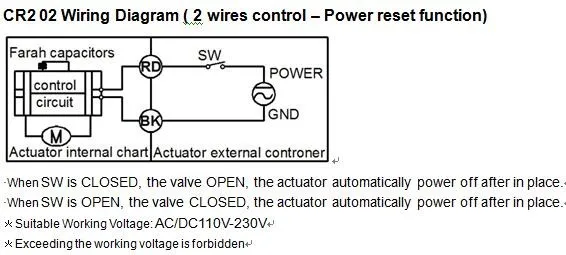

Wire Drawing below:
Application
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
5, actuator cable length 0.5m or 1.5m?
6,thread BSP or NPT?
TONHEFLOW is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Packaging & Shipping
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
