Product Overview
Description

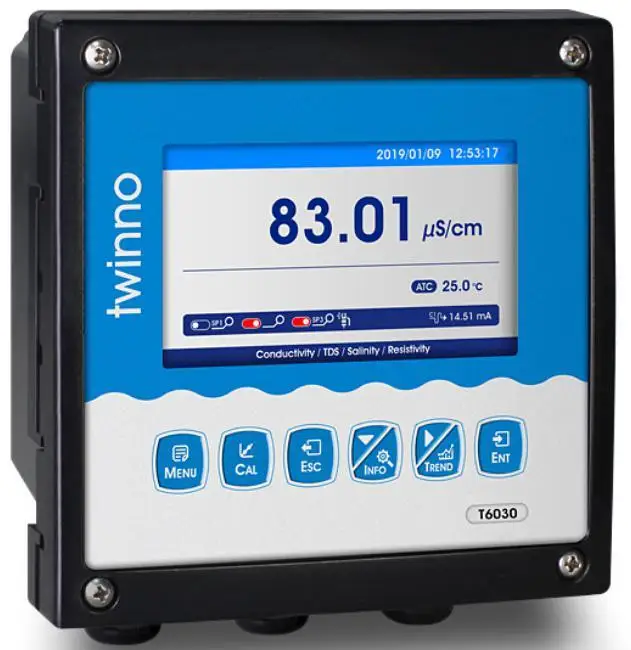

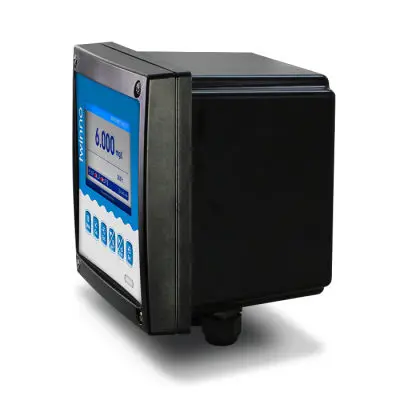

T6030 Online Conductivity / Resistivity / TDS / Salinity Meter
Industrial online conductivity meter is a microprocessor-based water quality online monitoring control instrument. This instrument is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, medicine, food and beverage, water treatment, modern agricultural planting and other industries.It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitor and control the conductivity, resistivity, TDS, salinity and temperature of aqueous solutions.
Instrument features:
Color LCD Display.
Intelligent menu operation.
Data Recording & Curve Display.
Manual or automatic temperature compensation.
Three sets of relay control switches.
High & low alarm, and hysteresis control.
4-20mA&RS485Multiple output modes.
Password protection founction to prevent misoperation by non-staff.
Technical parameters:
(1)Measuring range:
Conductivity:0~500mS/cm;
Resistivity:0~18.25MΩ/cm;
TDS:0~250g/L;
Salinity:0~700PPT; 0~70%; 0~700g/L;
Temperature:0~150.0ºC;
(2)Resolution:
Conductivity:0.01μS/cm;0.01mS/cm;
Resistivity:0.01KΩ/cm;0.01MΩ/cm;
TDS:0.01mg/L;0.01g/L;
Salinity:0.01PPT;0.1%;0.01mg/L;
Temperature:0.1ºC;
(3)Basic error:±0.5%F.S;
Temperature:±0.3ºC;
(4)Stability:±0.2%F.S/24h;
(5)Two current output:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(6)Signal output:RS485 MODBUS RTU;
(7) Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(8)Power supply:
85~265VAC±10%,50±1Hz,power ≤3W;
9~36VDC,power consumption≤3W;
(9)Dimensions:144x144x118mm;
(10)Installation:
Panel,wall mounting and pipeline ;
Panel opening size:138x138mm;
(11)Protection level:IP65;
(12)Weight:0.8kg;
(13)Working environment:
Operating temperature:-10~60ºC;
Relative humidity: ≤90%;
No strong magnetic field interference except the geomagnetic field.
