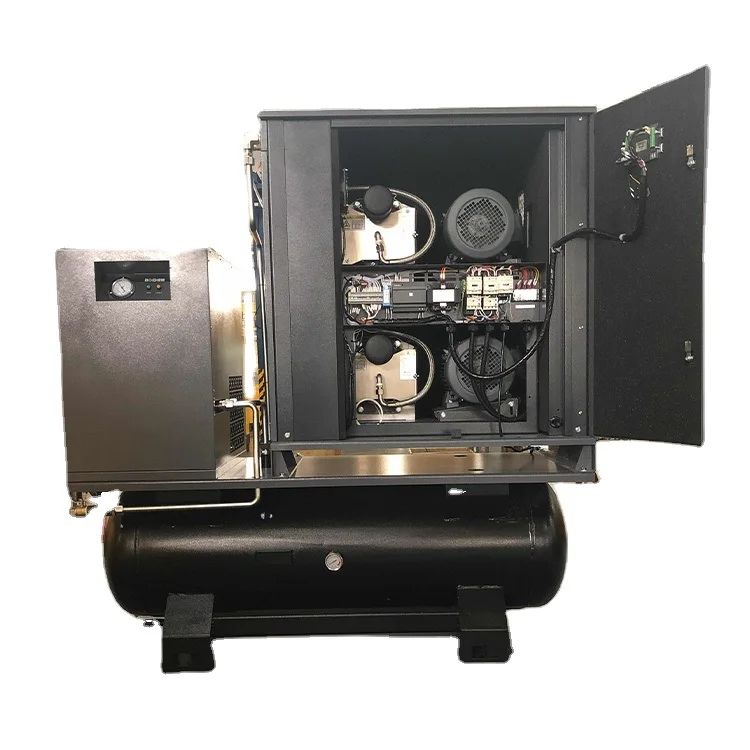

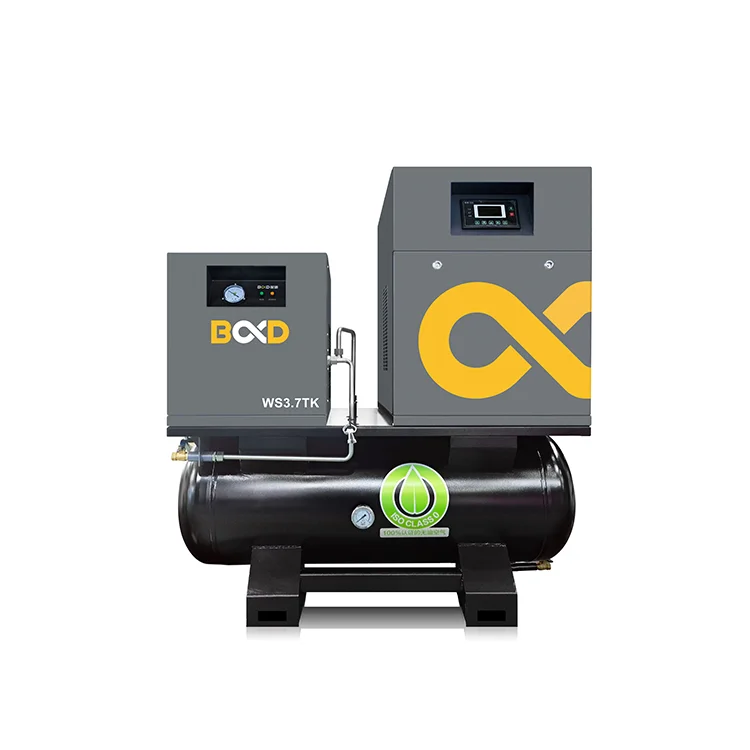

WS3.7TK 3.7 7.5 KW Oil Free Air Compressor Oil Free Vacuum Pump Oil Free Scroll Air Compressors
- Category: >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (1600461595012):
Product Overview
Description
WSTK Series
●Easy installation, small footprint and ready to use after installation;
●High-performance belt-driven fixed speed airend,less consumable parts and higher stability;
●Small torque change, high balance, small vibration,balanced operation and easy to use;
●Certified 100% oil-free compressed air, continuous and smooth air supply,reliable operation and clean air guaranteed;
●Integration of the compressor, refrigerated air dryer and the air receiver tank, installationport of the precision filters reserved, easy to install and use.

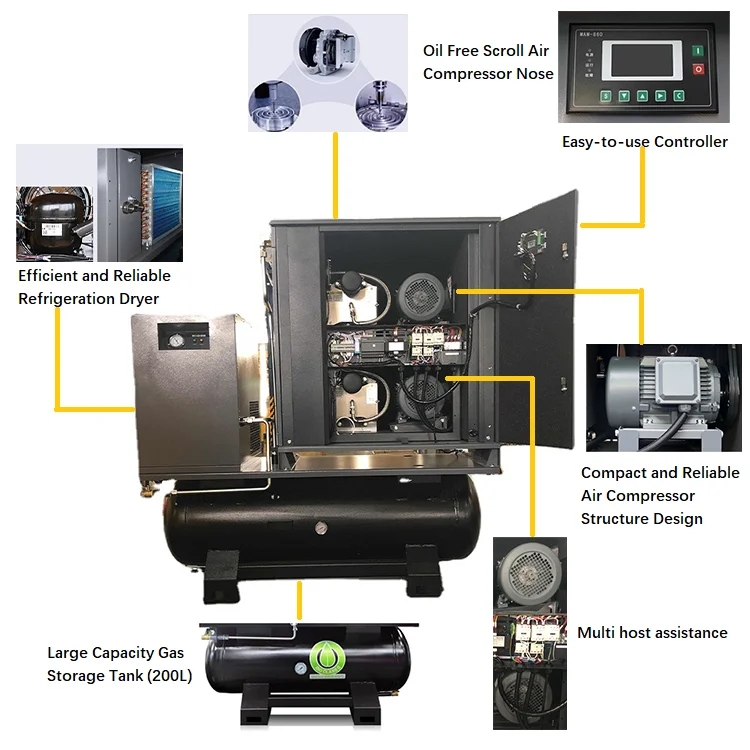

1. All oil-free scroll air compressor head
●Efficient and reliable oil-free scroll head with minimal spare parts.
●Ultra-quiet centrifugal fan. Ensure adequate cooling of the handpiece.
●Perfect dynamic and static scroll meshing motion. There is no mechanical friction in the air compression chamber. No lubricating medium is required.
●Reliable motion mode. Guarantees long-life use and low-cost maintenance.
●High-precision core parts processing. Ensure um-level processing accuracy
●Efficient and reliable oil-free scroll head with minimal spare parts.
●Ultra-quiet centrifugal fan. Ensure adequate cooling of the handpiece.
●Perfect dynamic and static scroll meshing motion. There is no mechanical friction in the air compression chamber. No lubricating medium is required.
●Reliable motion mode. Guarantees long-life use and low-cost maintenance.
●High-precision core parts processing. Ensure um-level processing accuracy

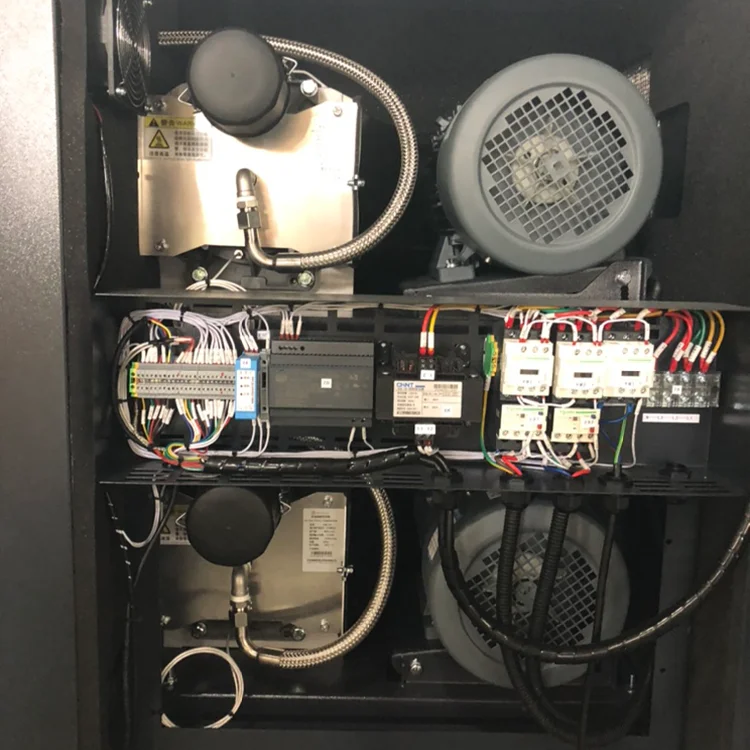

2. Compact and reliable air compressor structure design
●The structure design is compact. The host and the motor are used. The upper and lower arrangement is driven by pulleys, which greatly reduces the floor space.
●Adopt Siemens motor. The motor has high reliability. The motor terminal box faces outwards. It is convenient for line connection and maintenance.
●Adopt double belt design. Improve transmission reliability.
●A rubber shock absorber is installed at the bottom of the bracket. Shock absorption and noise reduction.
●The air intake is increased, the air intake baffle and the sound-absorbing sponge are pasted. Reduce noise escape.
●Adopt Siemens motor. The motor has high reliability. The motor terminal box faces outwards. It is convenient for line connection and maintenance.
●Adopt double belt design. Improve transmission reliability.
●A rubber shock absorber is installed at the bottom of the bracket. Shock absorption and noise reduction.
●The air intake is increased, the air intake baffle and the sound-absorbing sponge are pasted. Reduce noise escape.
3. Large capacity gas storage tank (200L)
●Horizontal gas storage tank, the feet are stable and reliable, and can be placed on the level ground for direct use.
●A forklift support beam is set at the bottom of the gas storage tank, which is convenient for quick transfer with a manual forklift.
●Large capacity 200L gas storage tank, to meet the needs of customers for stable gas consumption. Reduce pressure pulsations.
●A forklift support beam is set at the bottom of the gas storage tank, which is convenient for quick transfer with a manual forklift.
●Large capacity 200L gas storage tank, to meet the needs of customers for stable gas consumption. Reduce pressure pulsations.
4. Simple and applicable controller
●The parameter setting is simple, convenient and fast.
●You can get started without complicated professional knowledge.
●It can realize the automatic start and stop of the compressor, and can realize automatic loading and unloading according to the gas demand of customers.
●The cold dryer does not need a separate switch button. The start-up of the air compressor and the refrigerating machine adopts linkage control. Just operate the controller of the air compressor to start and stop the dryer.
●The parameter setting is simple, convenient and fast.
●You can get started without complicated professional knowledge.
●It can realize the automatic start and stop of the compressor, and can realize automatic loading and unloading according to the gas demand of customers.
●The cold dryer does not need a separate switch button. The start-up of the air compressor and the refrigerating machine adopts linkage control. Just operate the controller of the air compressor to start and stop the dryer.
5. Efficient and reliable refrigeration dryer.
●The panel of the refrigerating machine is simple, and the power supply is connected to the air compressor. No external power supply is required.
●The refrigeration dryer adopts high-efficiency stainless steel plate evaporator. Eliminate heat transfer performance degradation caused by manufacturing errors
●Industrial grade refrigeration compressor. Long life, obvious cooling effect, no noise.
●Encrypted cooling plate cools faster, with lower leakage rate and longer service life. Thickened copper pipes are safe and durable.
●The panel of the refrigerating machine is simple, and the power supply is connected to the air compressor. No external power supply is required.
●The refrigeration dryer adopts high-efficiency stainless steel plate evaporator. Eliminate heat transfer performance degradation caused by manufacturing errors
●Industrial grade refrigeration compressor. Long life, obvious cooling effect, no noise.
●Encrypted cooling plate cools faster, with lower leakage rate and longer service life. Thickened copper pipes are safe and durable.
6. Multi-machine assistance
●It can carry multiple hosts and rely on backup to work together.
●The method of layering incense is adopted to double the gas volume.
●It can carry multiple hosts and rely on backup to work together.
●The method of layering incense is adopted to double the gas volume.
Why do you need 100% oil-free compressed air?
★1. To protect the equipment and reduce the production cost.
★2. 100% oil-free air reliably guarantees the production of high-quality products.
★3. To meet the national environmental protection requirements.
★4. Oil-free compressed air is needed everywhere In applications such as equipment operation, cleaning, drying and testing, etc.
★5. To reduce scrap metals, improve the product quality and enhance the market power.
★2. 100% oil-free air reliably guarantees the production of high-quality products.
★3. To meet the national environmental protection requirements.
★4. Oil-free compressed air is needed everywhere In applications such as equipment operation, cleaning, drying and testing, etc.
★5. To reduce scrap metals, improve the product quality and enhance the market power.
Why Choose B&D Oil-free Scroll Compressors?
1. Excellent Reliability
It can meet the world's highest level of oil-free compressor air standards.
2. Energy-saving Type and Low Noise
There is no contact between the moving and static scrolls, the body vibration is small, and the noise is low.
3. low Maintenance Cost
With a small number of parts, long service lifetime and low consumables.
4. Easy Installation
With all-in-one design, therefore it is ready-to-use, convenient and fast.
1. Excellent Reliability
It can meet the world's highest level of oil-free compressor air standards.
2. Energy-saving Type and Low Noise
There is no contact between the moving and static scrolls, the body vibration is small, and the noise is low.
3. low Maintenance Cost
With a small number of parts, long service lifetime and low consumables.
4. Easy Installation
With all-in-one design, therefore it is ready-to-use, convenient and fast.
Model | Motor Power KW | FAD m³/min | Rated Pressure Range Mpa | Dimensions (L*w* H)mm | Net Weight kg |
WS3.7TK | 3.7 | 0.4 | 0.65-0.8 | 1290*600*1353 | 350 |
WS7.5TK | 7.5 | 0.8 | 0.65-0.8 | 1490*800*1558 | 650 |
Application industries: food (breweries, beverages and other food processing plants), medical (clinics, hospital gas supply, pharmaceutical processing, etc.), new energy vehicles (braking systems, air conditioning systems), oxygen warehouses, laboratories, printing, chemicals, Precision drawing and other fields.
Food and Beverage Industry
Provides 100% pure, oil-free air for a variety of applications (such as fermentation, packaging ~aeration, transport ~ filling and capping, cleaning ~ instrumentation origin). Certified to ISO 8573-1CLASS 0 (2010), there is no compromise on the purity of the final product, ensuring no risk of contamination.
Pharmaceutical Industry
100% oil-free air is essential to prevent process contamination (eg fermentation, aeration, tablet coating, packaging and
bottling, automated production lines). CLASS 0 eliminates all risks and maintains the high quality and professional brand
reputation of the product.
Air separation industry
Use the purest air to produce medical oxygen, security nitrogen, etc.
Pharmaceutical Industry
100% oil-free air is essential to prevent process contamination (eg fermentation, aeration, tablet coating, packaging and
bottling, automated production lines). CLASS 0 eliminates all risks and maintains the high quality and professional brand
reputation of the product.
Air separation industry
Use the purest air to produce medical oxygen, security nitrogen, etc.
Petrochemical industry
Certified pure 100% oil-free, reliable compressed air is essential to keep production running continuously.
Capable of operating in extreme temperature and humidity conditions, high performance and reliability are essential.
Electronics industry
Capable of operating in extreme temperature and humidity conditions, high performance and reliability are essential.
Electronics industry
It is extremely important to produce clean, dry, high-quality air with optimum energy efficiency.
Applications include removing microscopic debris from computer chip surfaces and motherboards.
Instrument air
To ensure the reliability of pneumatic control and execution components, as well as to meet the cleanliness requirements of the production workshop, the compressed air produced by the dry oil-freescrew air compressor can meet the above requirements.
Applications include removing microscopic debris from computer chip surfaces and motherboards.
Instrument air
To ensure the reliability of pneumatic control and execution components, as well as to meet the cleanliness requirements of the production workshop, the compressed air produced by the dry oil-freescrew air compressor can meet the above requirements.
