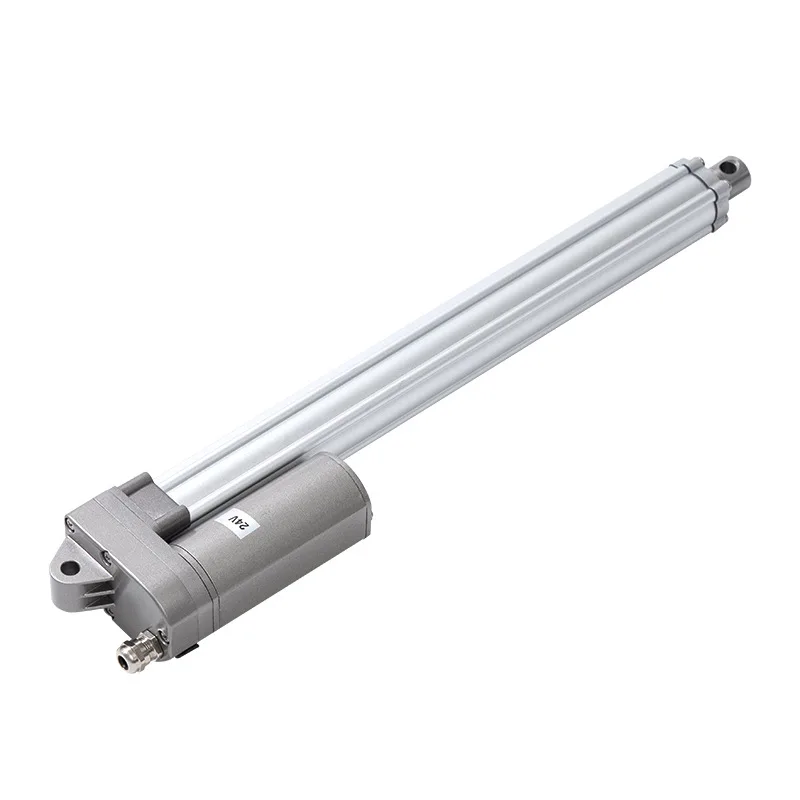

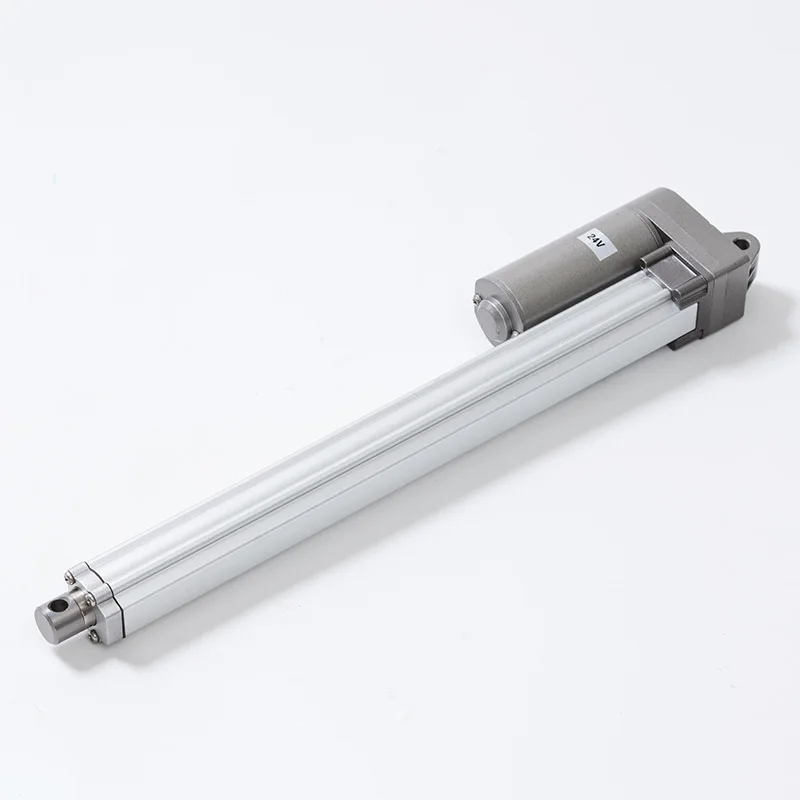

Primopal Industrial equipment drive support waterproof electric actuator DC motor small size easy to install
- Category: >>>
- Supplier: Shanghai Primopal Precision Motor Co. Ltd.
Share on (1600461597449):
Product Overview
Description
Product Paramenters
| Code | Maximum dynamic load | Self-locking force | Deceleration ratio | Pitch | Speed ±10%(mm/s) | Max. travel (without potentiometer) | Max. Stroke (with potentiometer) | |
| (N) | (N) | - | (mm) | No load | Full load | (mm) | (mm) | |
| A | 2,000 | 3,000 | 40:1 | 3.17 | 5 | 4 | 500 | 200 |
| B | 1,600 | 2,200 | 30:1 | 3.17 | 7 | 5.5 | 500 | 200 |
| C | 1,200 | 1,600 | 20:1 | 3.17 | 10 | 8 | 500 | 200 |
| D | 700 | 900 | 10:1 | 3.17 | 10 | 14 | 500 | 200 |
| E | 300 | 400 | 5:1 | 3.17 | 40 | 30 | 500 | 200 |
| F | 1,200 | 1,600 | 40:1 | 5 | 8 | 6 | 500 | 300 |
| G | 800 | 1,100 | 30:1 | 5 | 10.5 | 8 | 500 | 300 |
| H | 600 | 800 | 20:1 | 5 | 15 | 11 | 500 | 300 |
| I | 400 | 600 | 10:1 | 5 | 30 | 22 | 500 | 300 |
| J | 200 | 300 | 5:1 | 5 | 55 | 45 | 500 | 300 |
1. Data is measured at an ambient temperature of 20°C and stable voltage.
2. For example, when the load is 1,200N, the (C) gear is sufficient for the load. Of course, you can also select (F)(B) or (A), which will result in a higher load margin and safety factor, as well as a longer product life.
3. There are many factors that affect the 'customizable maximum stroke', such as load, speed, direction of force, frequency of use, etc., so it is necessary to combine with the real application scenario. If your required parameters are out of the optional range, please contact our sales engineers for further evaluation.

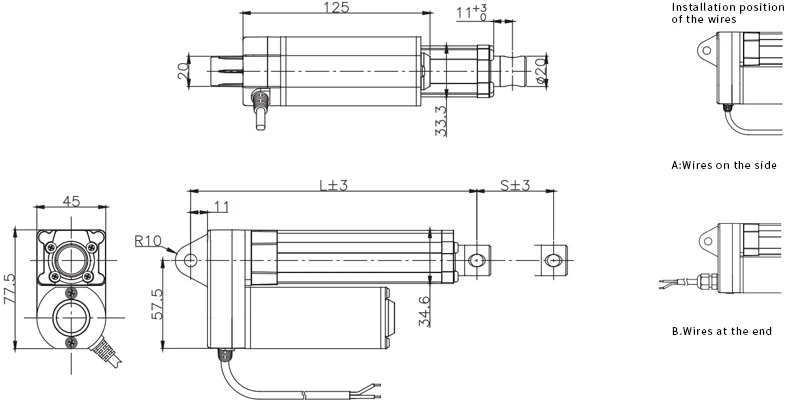

Dimensional drawing without potentiometer
| Spoke S(mm) | Installation Distance L (mm) |
| 50 - 300 | + 0 |
| 301 - 500 | + 12 |
| 501 - 600 | + 22 |
Dimensional diagram with built-in potentiometer
| Spoke S (mm) | Installation Distance L (mm) |
| 50 - 300 | + 0 |

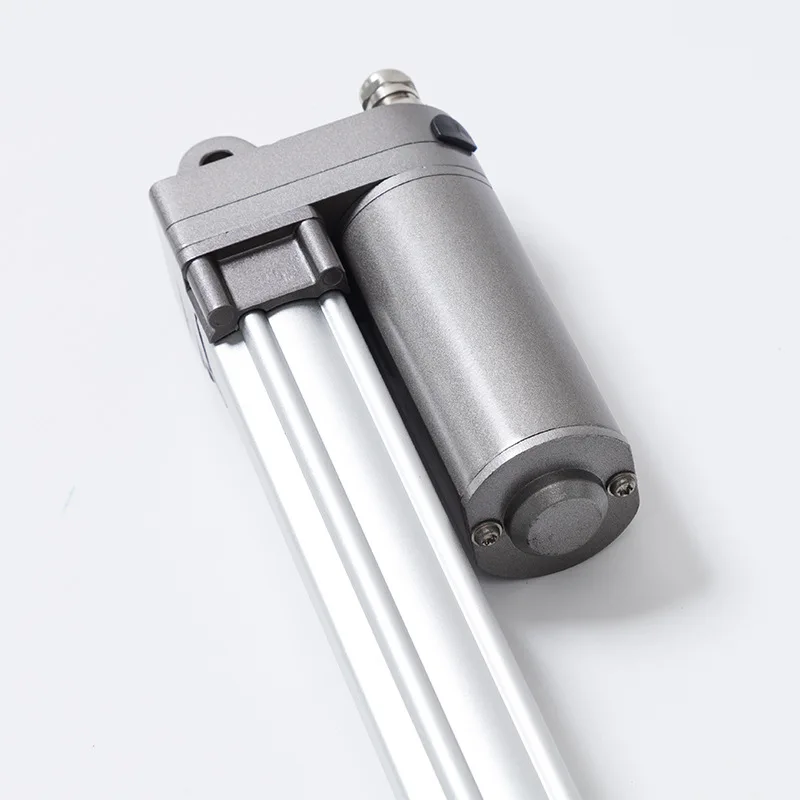

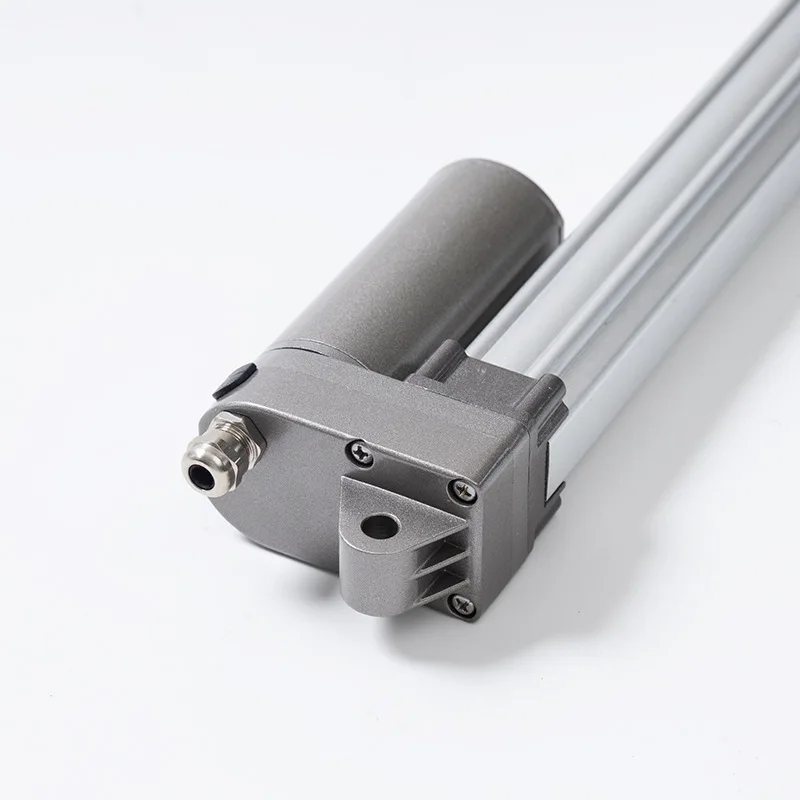

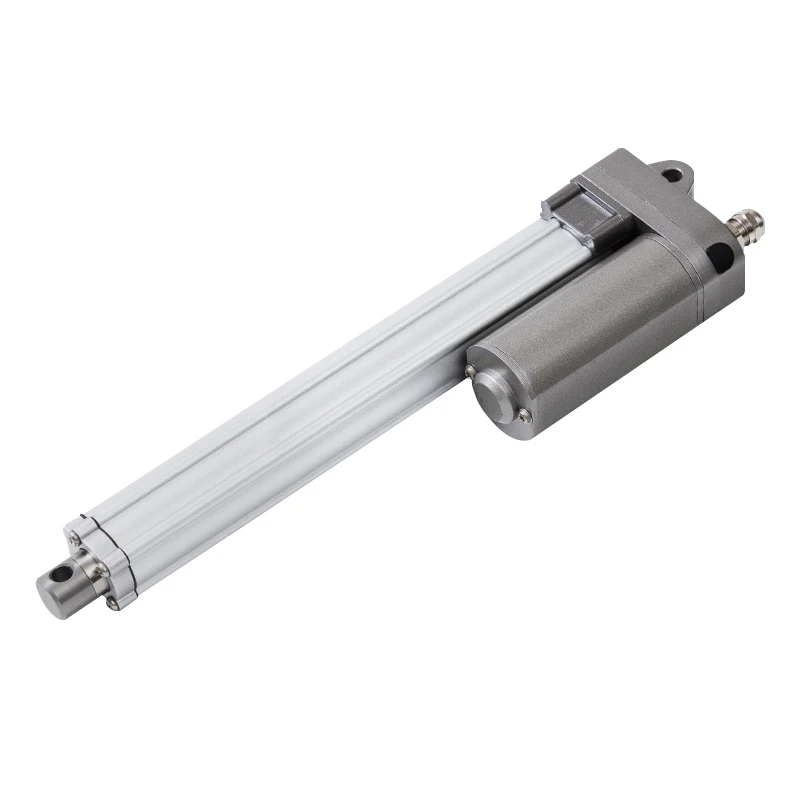

Product Show
Related Product

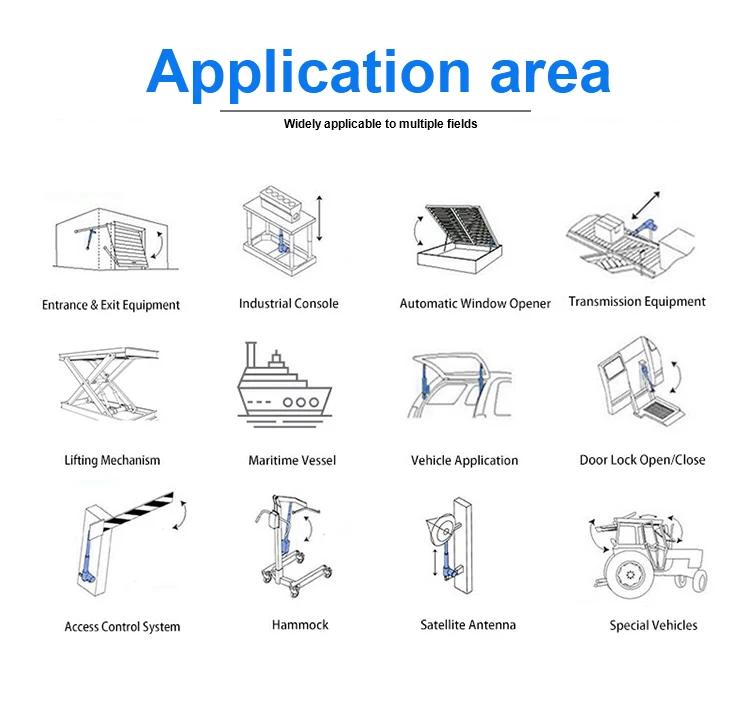

Application Scenario
Company Information
Primopal is a linear actuator solutions provider, a high-tech manufacturing company.
Main products: various types of linear actuators, voltage 6v-48v ,thrust 10N-15000N ,stroke: 10mm-1000mm ,speed: 1mm/s-150mm/s, Position Feedback: Hall sensor or other types of sensors, Protection Level: ip65/ip66 etc., Material :aluminum alloy, stainless steel, etc.
Our electric actuators are widely used in solar tracking, electric sofa/bed, massage chair, medical bed, industrial automation and other fields.
In order to obtain quick response and cost advantages, we have built a complete manufacturing chain integrating R&D, production and sales. Our management systems and product solutions are certified to ISO 9001:2015, ISO14001, OHSAS18000 and safety test reports. (CE, UL, KCC, etc.)
Certificate
z

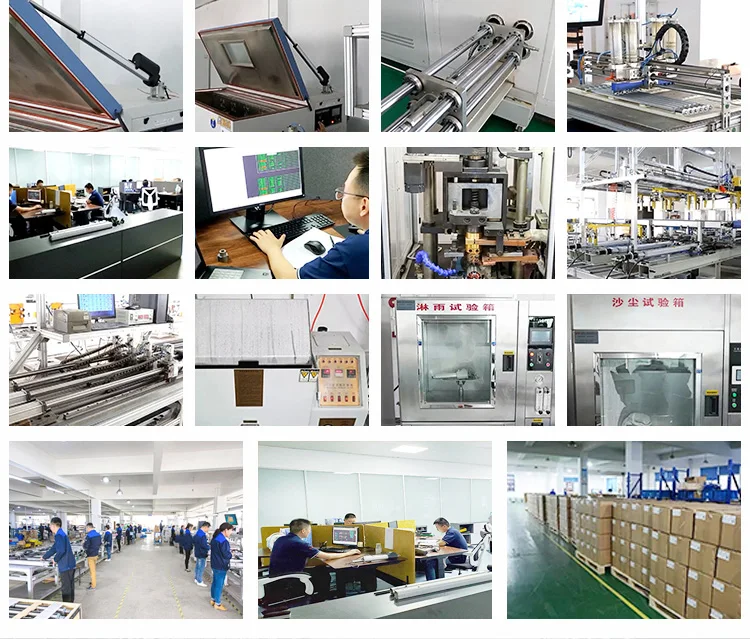

Factory Equipment
Our Service
we guarantee that any faulty item will be replaced free of charge.
1.reply your inquiry in 24 working hours.
2.Custom design is available.
3.unique solution can be provided to you by our well-traind and professional staff.
4.After sell service and technology support is available.
