Product Overview
Description
Clinical analytical instruments automatic hematology analyser 5 parts hematology analyzer manufacturers
Product Description

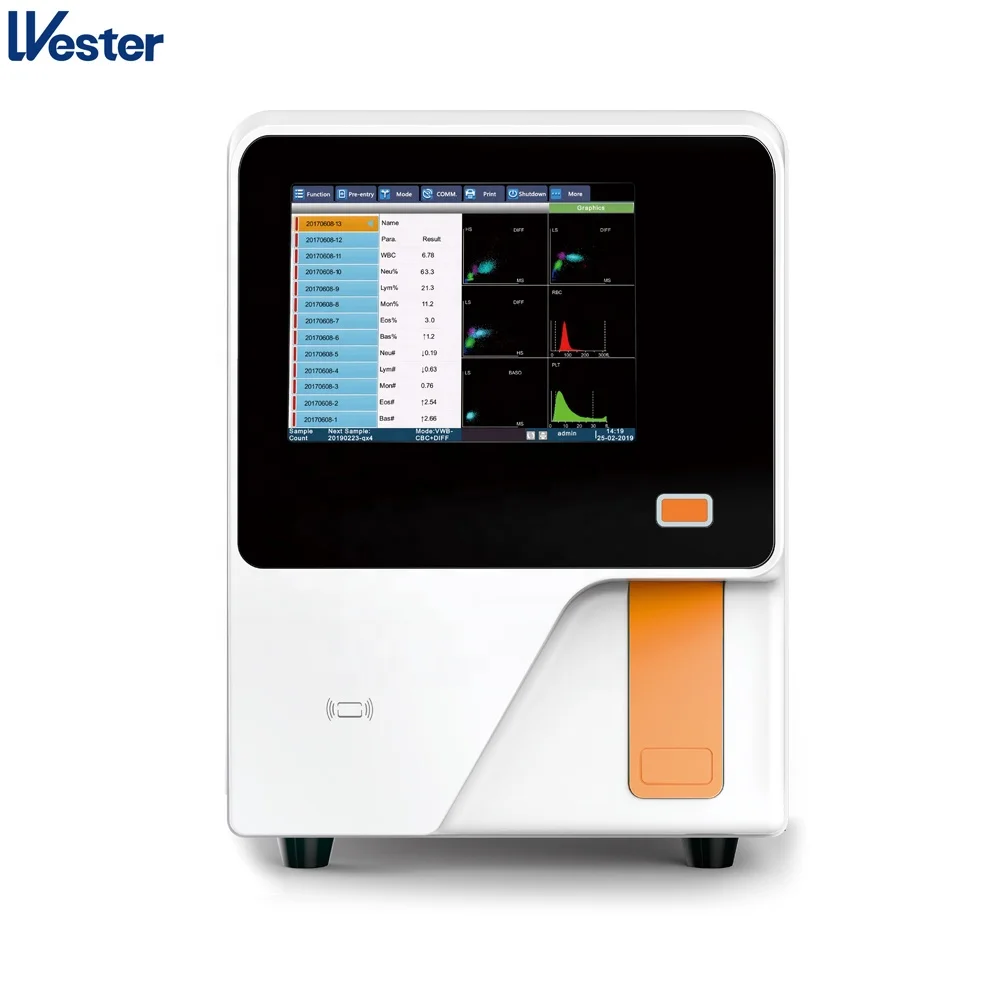

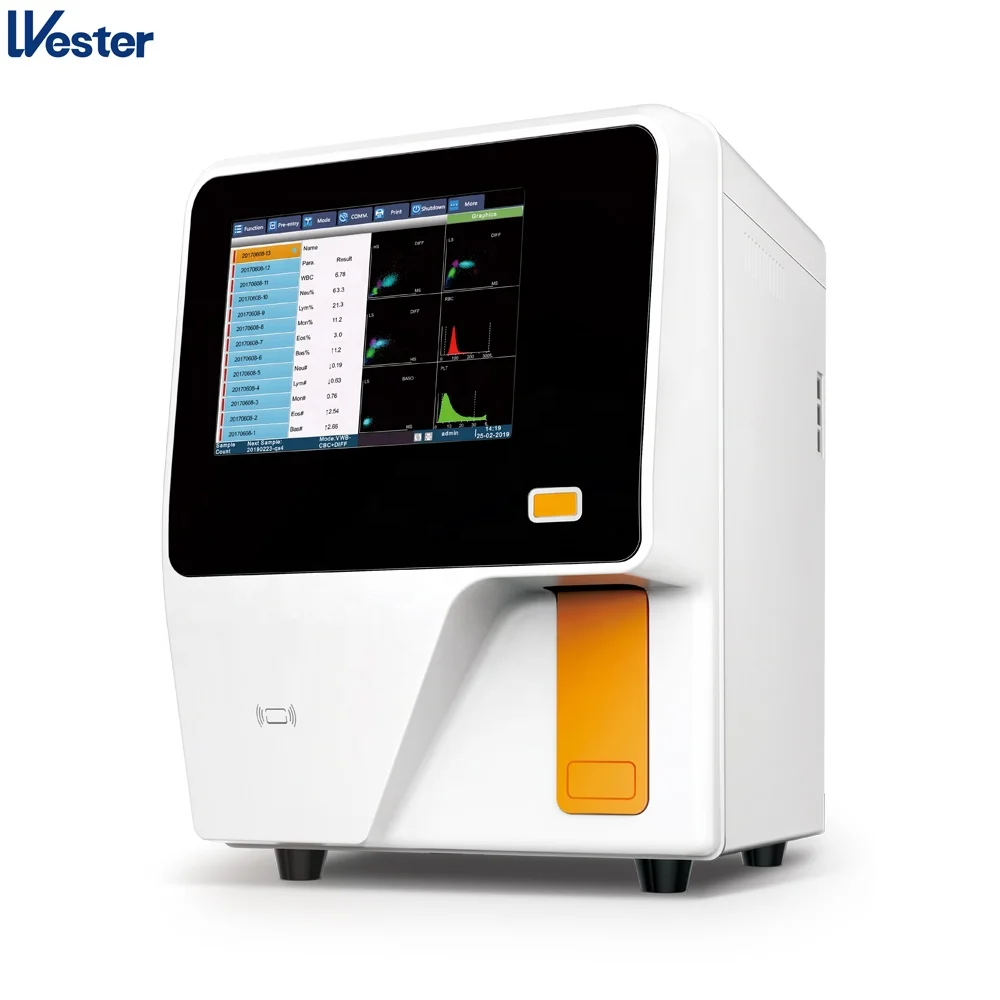

WS-7100 5-Part Fully Auto Hematology Analyzer

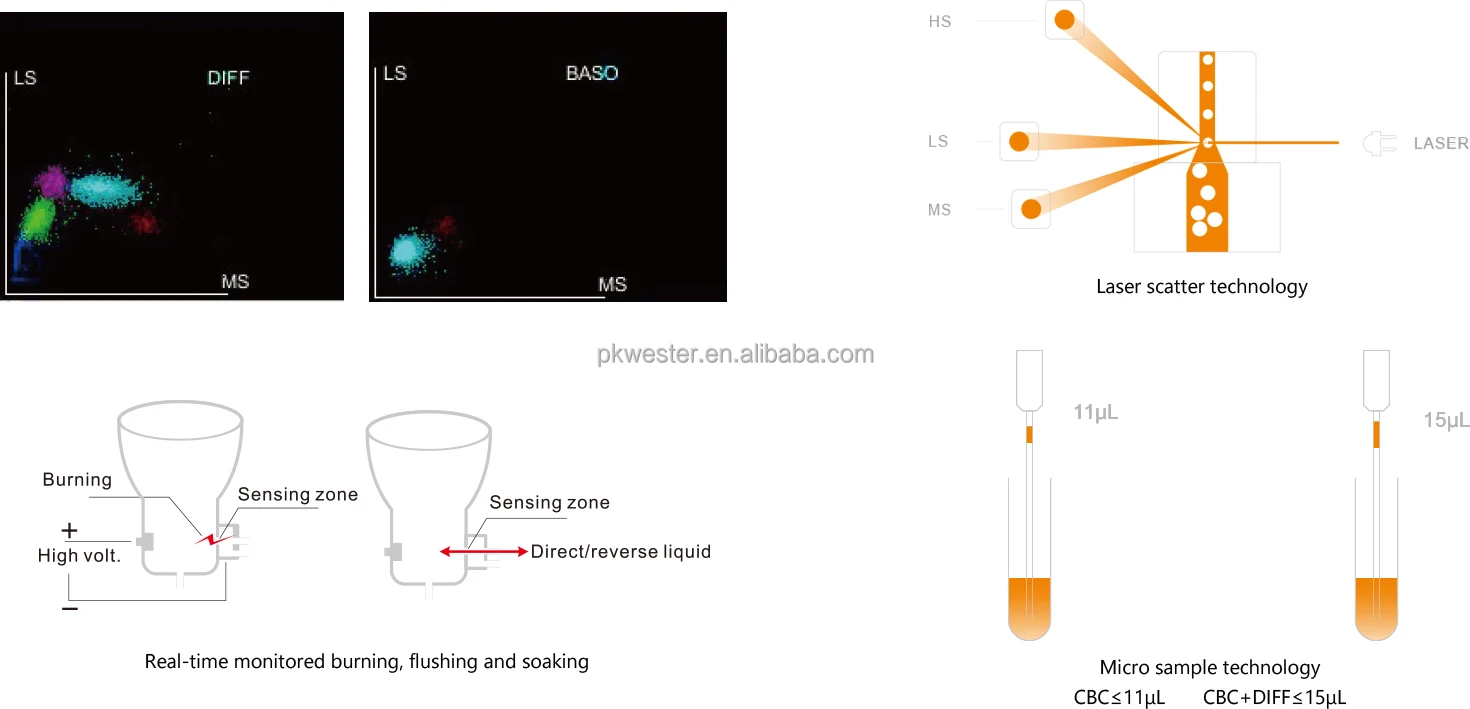

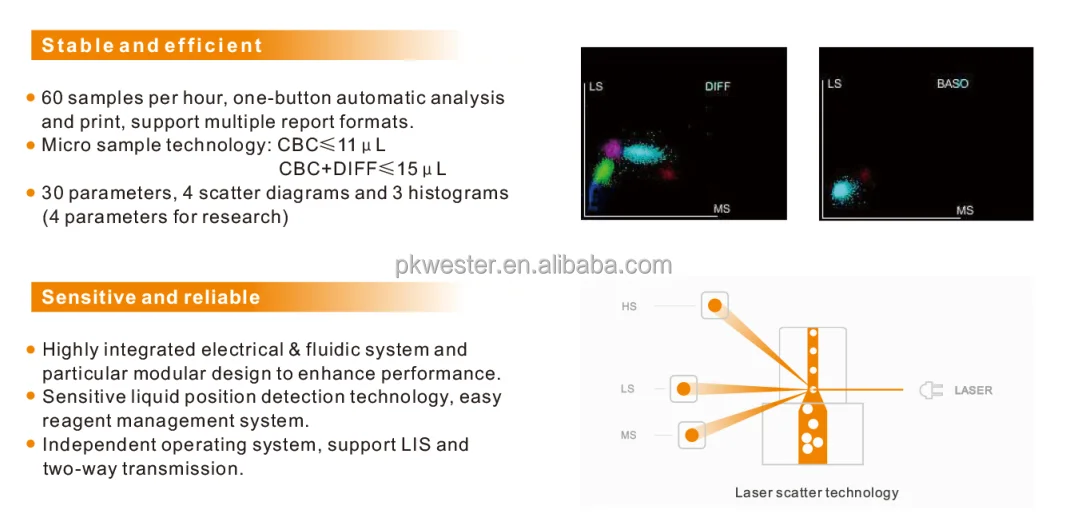

WS-7100 is 5-diff fully auto hematology analyzer with advantaged digital technology, laser scatter technology, flow cytometry
technology, intelligent anti-clog technology to ensure precise of the test results.

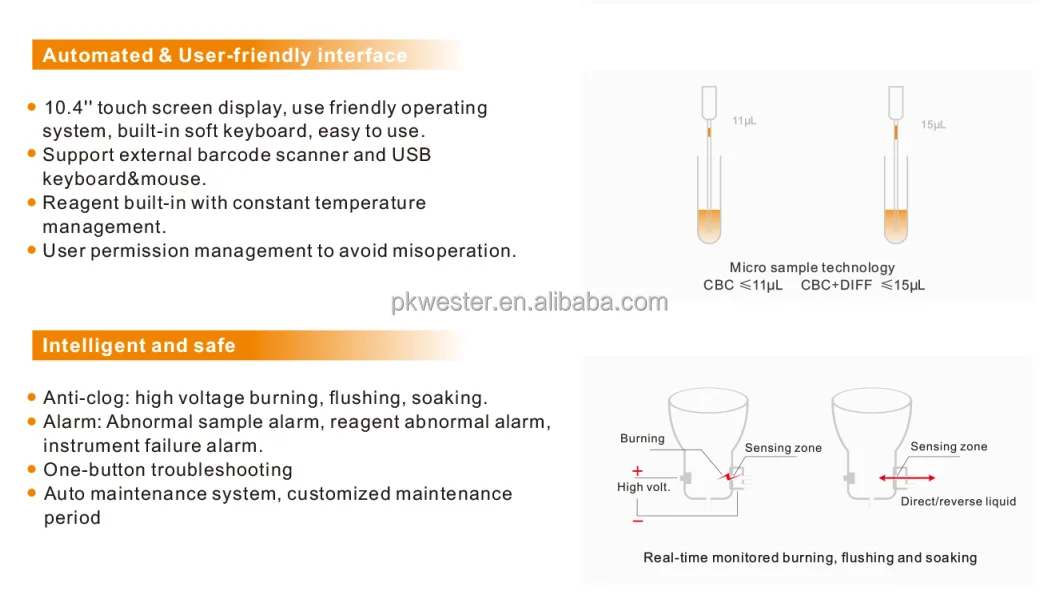

10.4'' touch screen display and user-friendly operating system will make your daily use comfortable
* Electrical Impedance method for determining the RBC and PLT data;
* Colorimetric method for determining the HGB;
* Laser-based flow cytometry for determining the WBC data
* 23 Parameters
* 4 Scatter diagrams
* 3 Histograms
* 8 Parameters of research
Linearity:
WBC: 1.0-99.9×109 /L
RBC: 0.3-7.0×1012 /L
PLT: 20-999×109 /L
HGB: 20-240g/L
WBC: 1.0-99.9×109 /L
RBC: 0.3-7.0×1012 /L
PLT: 20-999×109 /L
HGB: 20-240g/L
Specifications:
Principles | WBC: Semiconductor Laser Flow Cytometry Method RBC/PLT: Electrical Impedance Method HGB: Colorimetric method |
Throughput | 60 samples per hour |
Sample consumption | Venous / Capillary / Pre-diluted mode≤20μL |
Test mode | CBC+DIFF, CBC |
Calibration | Auto calibration, Manual calibration |
QC mode | L-J, X-B |
Operation Mode | Touch screen operation, also support USB keyboard & mouse |
Parameters | WBC, Neu#, Lym#, Mon#, Eos#, Bas# Neu%, Lym%, Mon%, Eos%, Bas% RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RWD-CV, PLT, MPV, PDW, PCT |
Linearity | WBC: 1.0-99.9×109 /L RBC: 0.3-7.0×1012 /L PLT: 20-999×109 /L HGB: 20-240g/L |
Display | 10.4'' touch screen display |
Storage | 50,000 sample results inclusive scatter diagrams and histograms |
Language | Multi-Language supported, user can on-line switch interface language |
Application | Baby/kid/women/man/normal/customized |
Working Environment | Temperature: 10-30℃ Humidity≤70% |
Dimension | Instrument Dimension: 364mm*498mm*431mm Net Weight: 26.5kg |
You May Like
Packing & Delivery
Standard Packing List | ||||
Item No | Description | Quantity | ||
1 | WS-7100 Main unit | 1set | ||
2 | WS-7100 Operation manual | 1pc | ||
3 | WS-7100 Installation guide (video) | 1pc | ||
4 | Qualified certificate | 1pc | ||
5 | Europe standard power cable | 1pc | ||
6 | Ground wire | 1pc | ||
7 | Spare fuse | 1pc | ||
8 | Diluent cap assembly | 1pc | ||
9 | Waste bottle cap assembly | 1pc | ||
10 | Waste bottle (soft) | 1pc | ||
