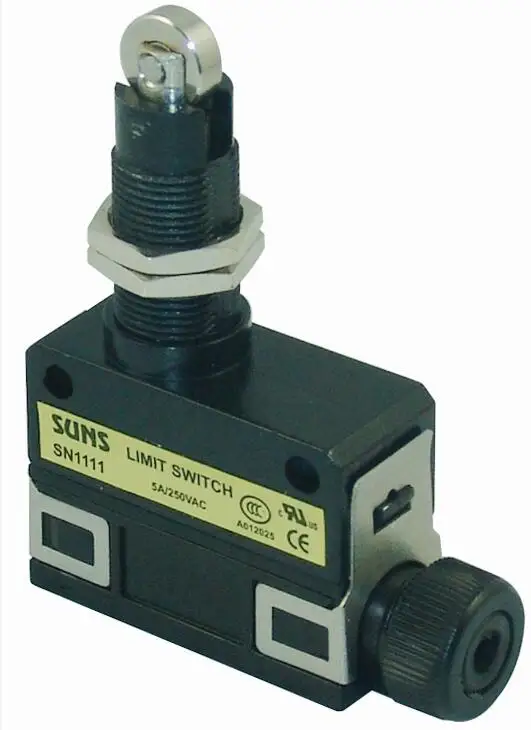

5A 250VAC limit switch
- Category: >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (1600462074796):
Product Overview
Description
| Features:Micro switches | |
| 1)Robust metal enclosure design | |
| 2)Compact space-saving and tightly gang mounting possible | |
| 3)High sealability oil-resistant/Immersion-proof type | |
| 4)Long mechanical life of 20 million operations | |
| 5)High sensitivity (M.D. =0.1mm) | |
| 6)Gold plated contact available for low current applications | |
| 7)M12 connector type available | |
| 8)UL CSA CE CCC Approved | |
| Specifications: | |
| Operating Speed: | 0.02mm-0.5m/sec |
| Operating Frequency: | 120ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Electrical Rating | Standard Load Type (Silver contacts5A/250VAC or 5A/30VDC |
| Low Current type (Gold Plated Contacts) 0.1A/250VAC or 0.1A/30VDC | |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 2×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -30~+80 ℃(-22~+176°F) without formation of ice |
| Humidity: | <98%RH |
| Weight: | ~80g |
| Degree of Protection: | IP67 |
Delivery Details:
FOB PortXIAMEN
Payment Terms:
TT or L/C
Minimum Order Quantity:
100 Piece/Pieces
Delivery Time:
2-4weeks
Product & Service
FAQ
1. A:Where is your company?
Q:We are a USA company and have our own manufacture factory in Fujian China.
2. A:Do you have any certifications?
Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance
3. A:What is your payment term ?
Q:T/T, L/C
4. A:Could I have some samples for testing ?
Q:Samples(Depends) can be sent per request on your express cost.
5. A:What is your delivery time ?
Q:Delivery lead time 2-4 weeks normally
Our Service
- Provide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc.
- Offer customized solution to clients based on various situations
- Satisfactory delivery service to domestic and international clients
- Promote extended after-sale service
Advantage
- Reliable supplier/partner for dozens of world leading manufacturers
- Provide value added service and flexible
- Maintain leading-edge technology through continuous innovation
- Provide most reliable products and services
- Offer the most complete switch portfolio
- Stable work force with people-oriented management style
