3U high density Micro blade server SY312 S24R G3 the third generation

Micro Blade Server Barebone

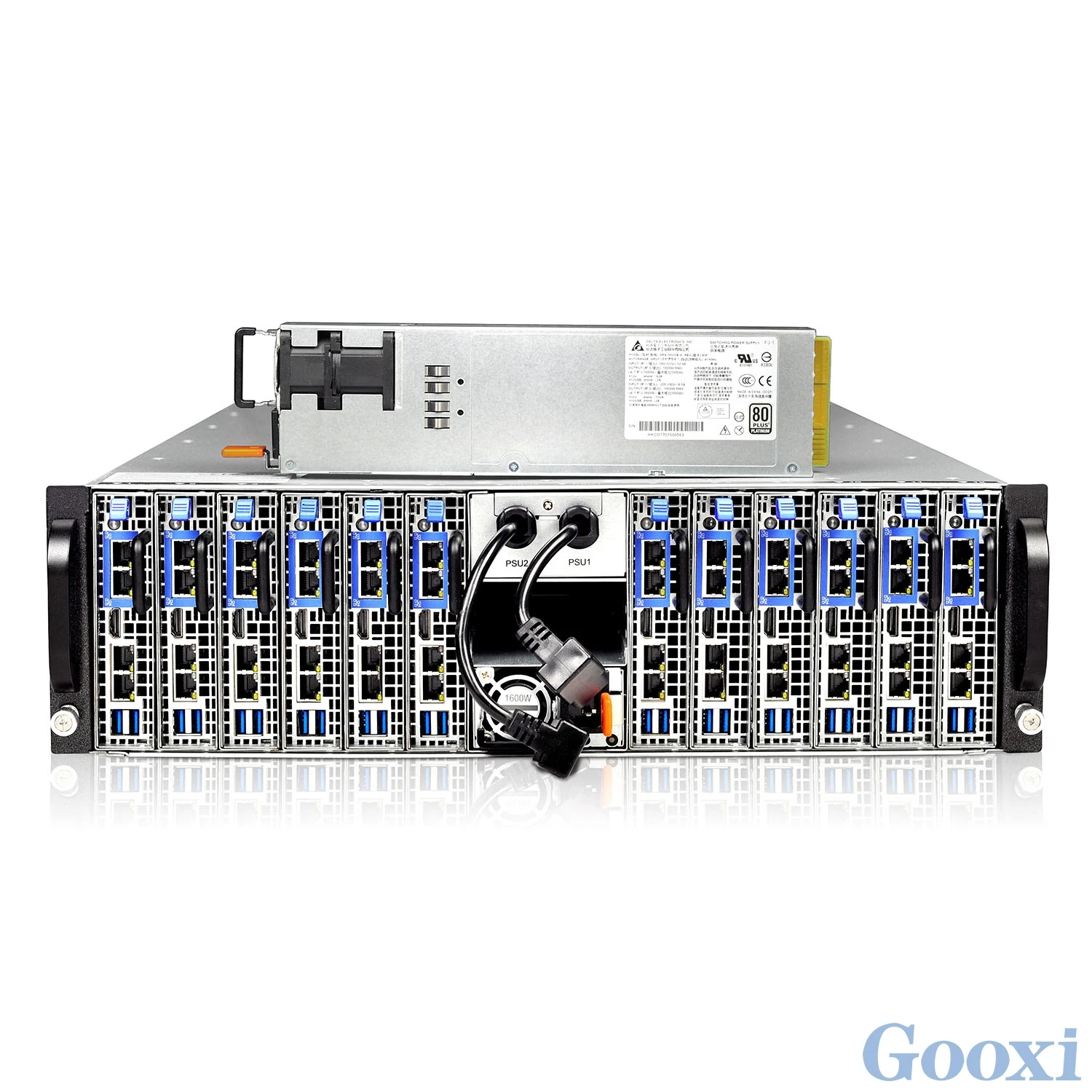

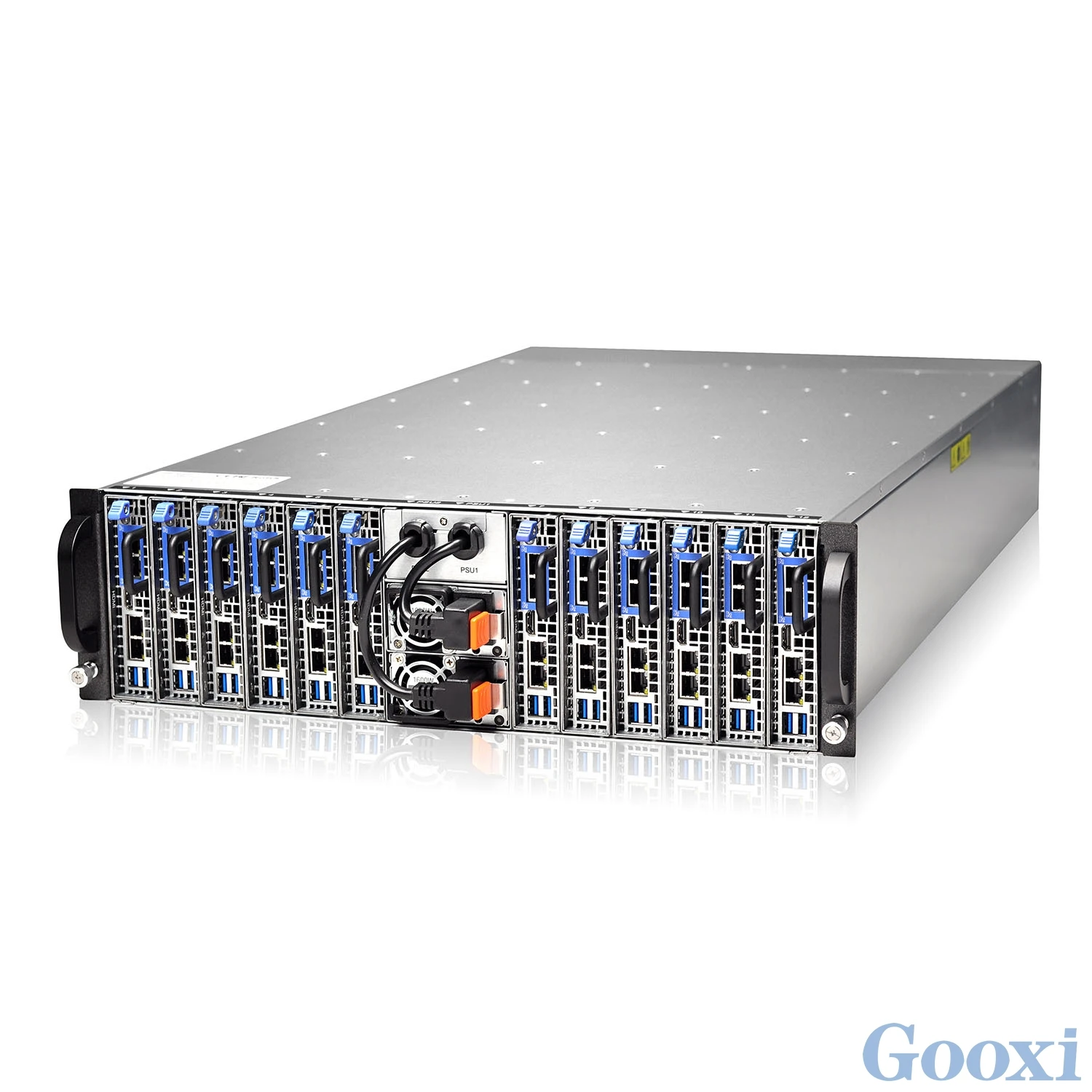

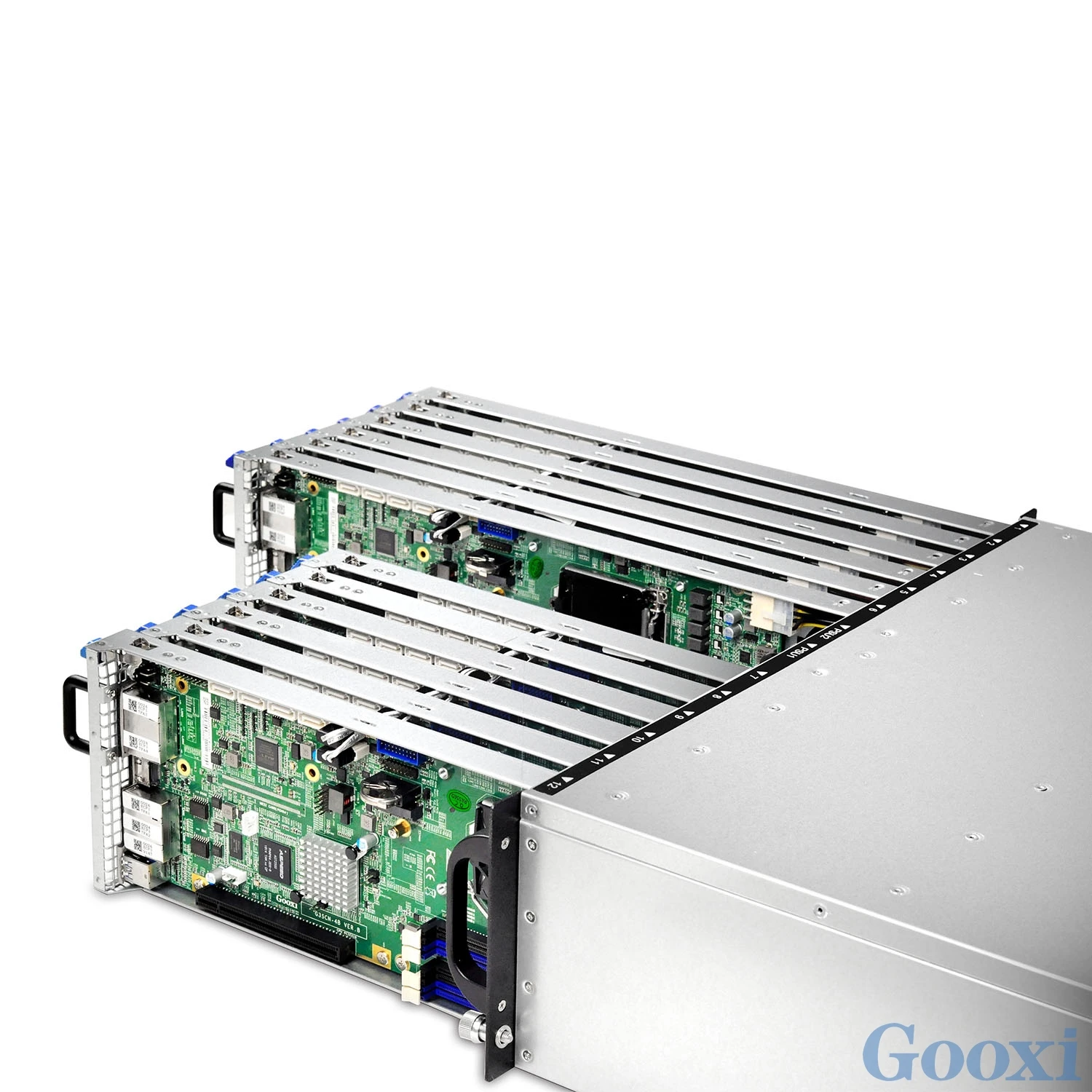

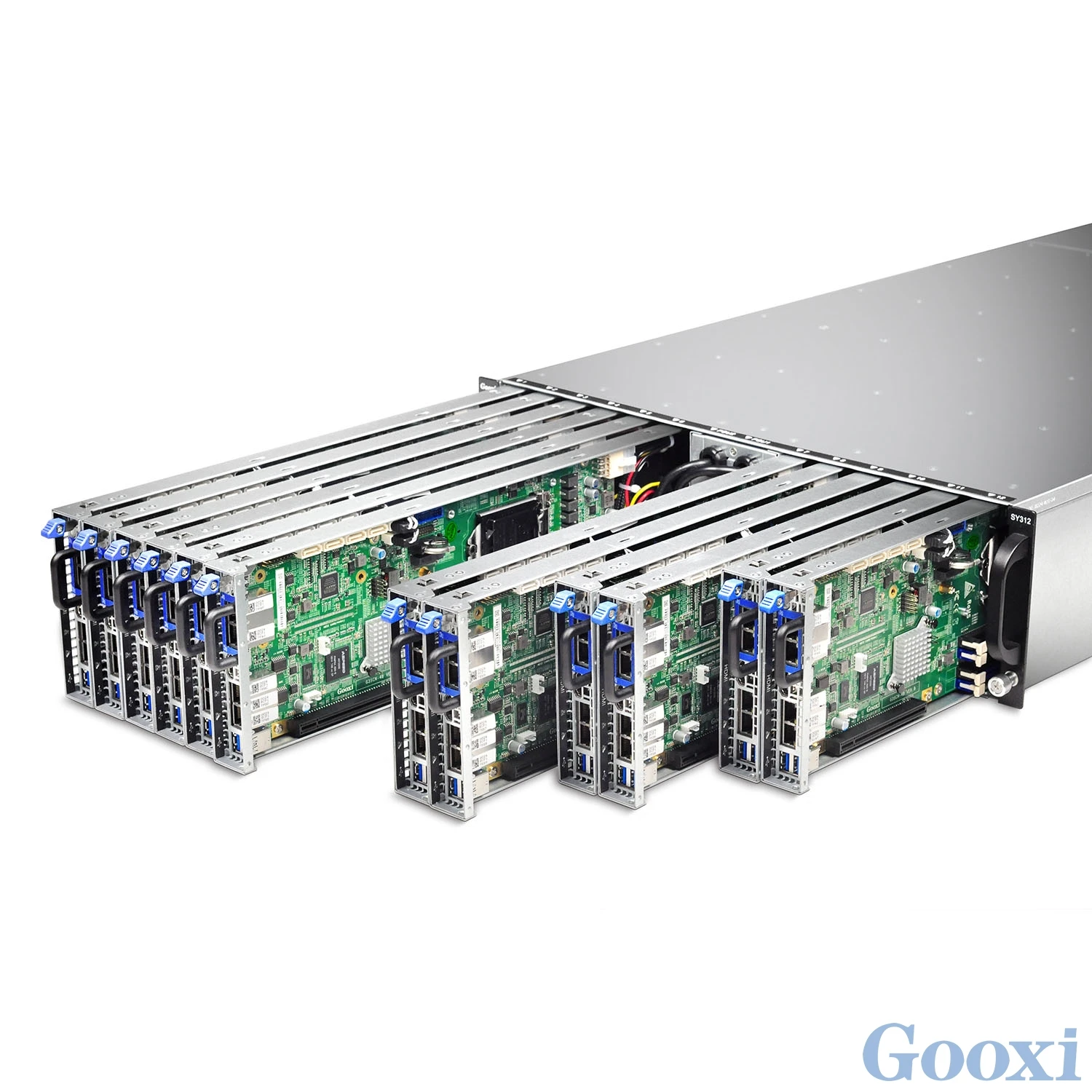

Gooxi SY312-S24R-G3 is a 3U high density Micro-Cloud Server that allows the system to support up to 12 hot-swap server nodes in a 3U chassis height, with each server node individually to operate according to the needs to flexible configure the number of server nodes.

Feature Highlights:

Customized and Flexible Configurations

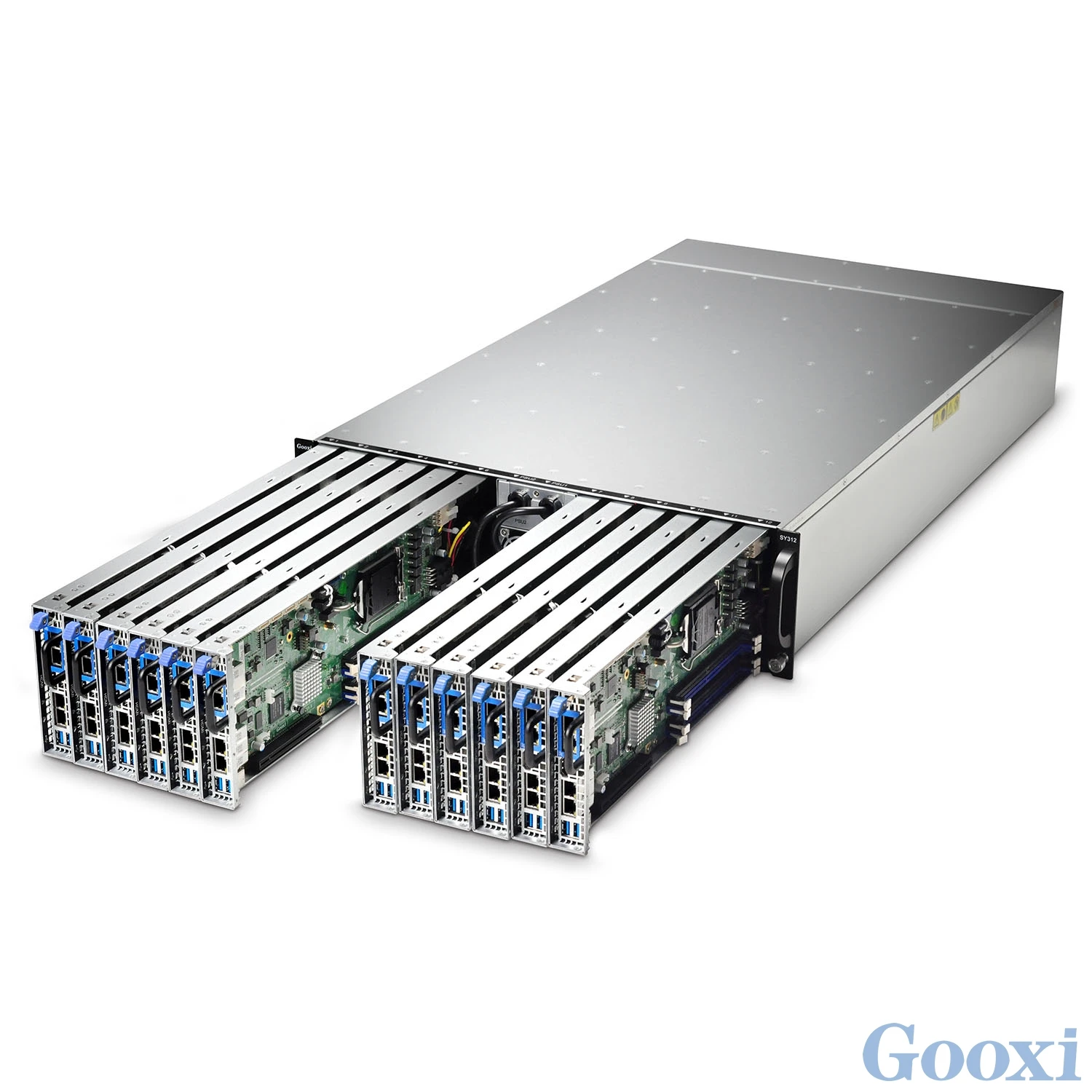

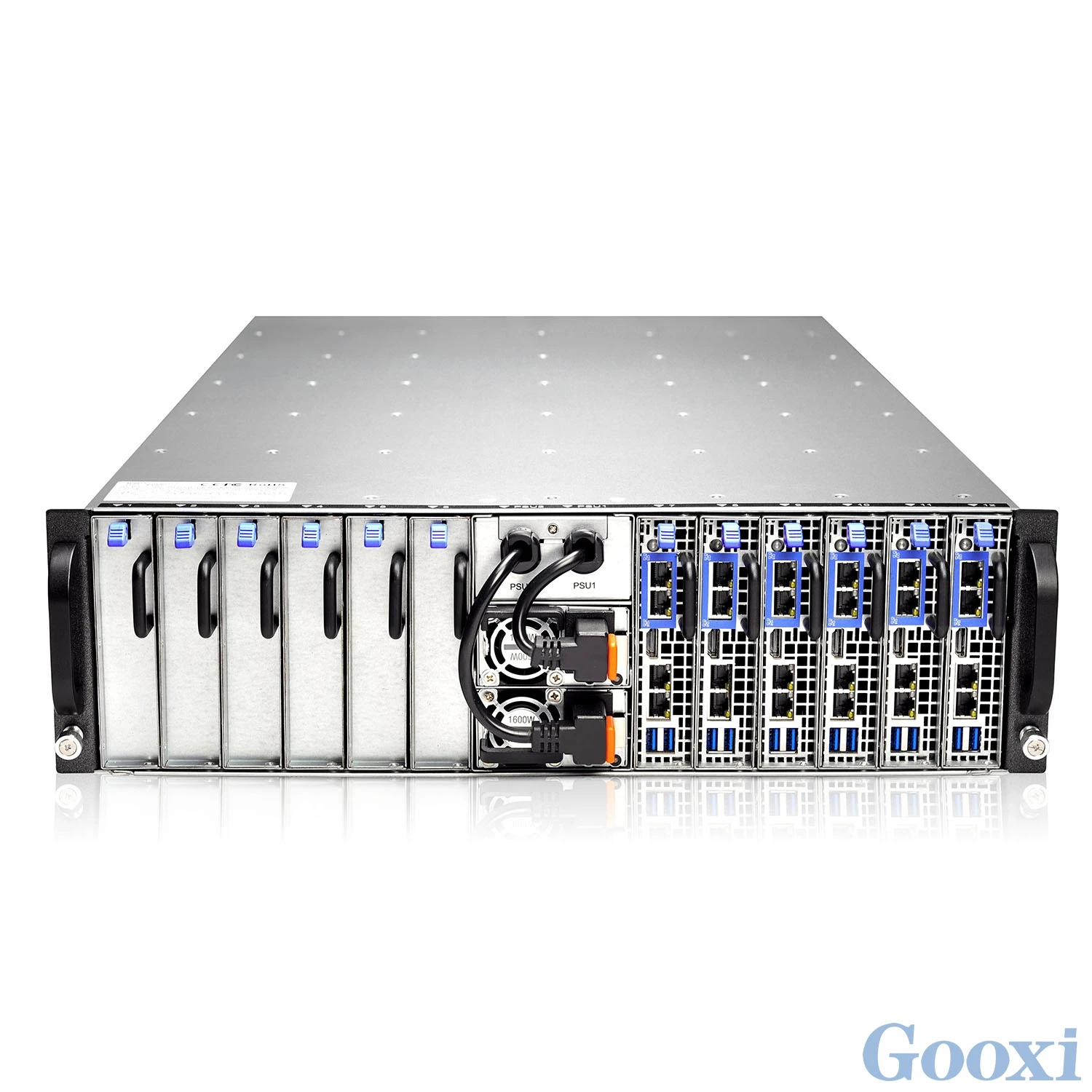

Max.12 nodes in a system to fulfill requirements upon application needs based on 3, 6, 9 or 12 nodes configuration. Each node supports 4x DIMM slot, capacity up to 128GB ECC DDR4.

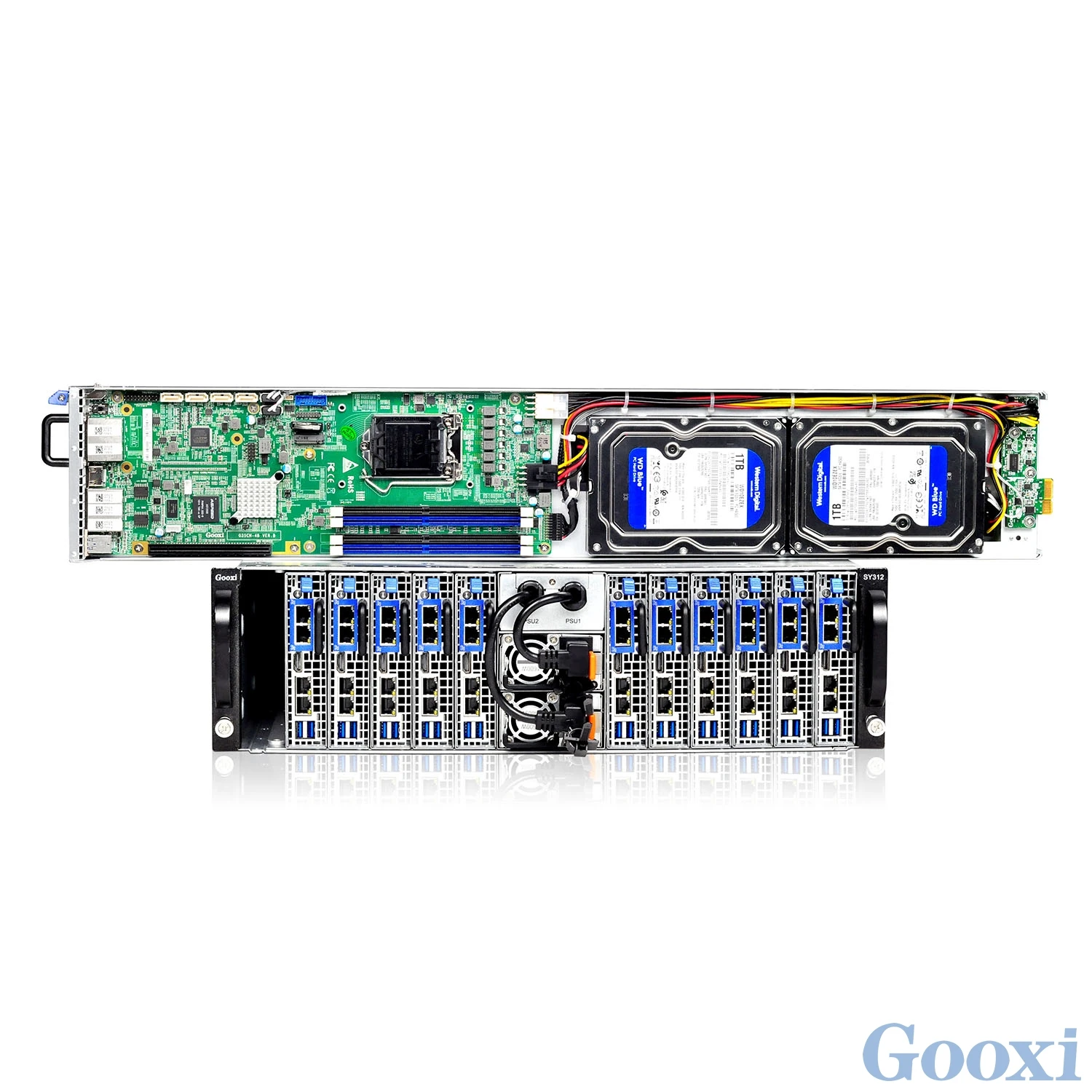

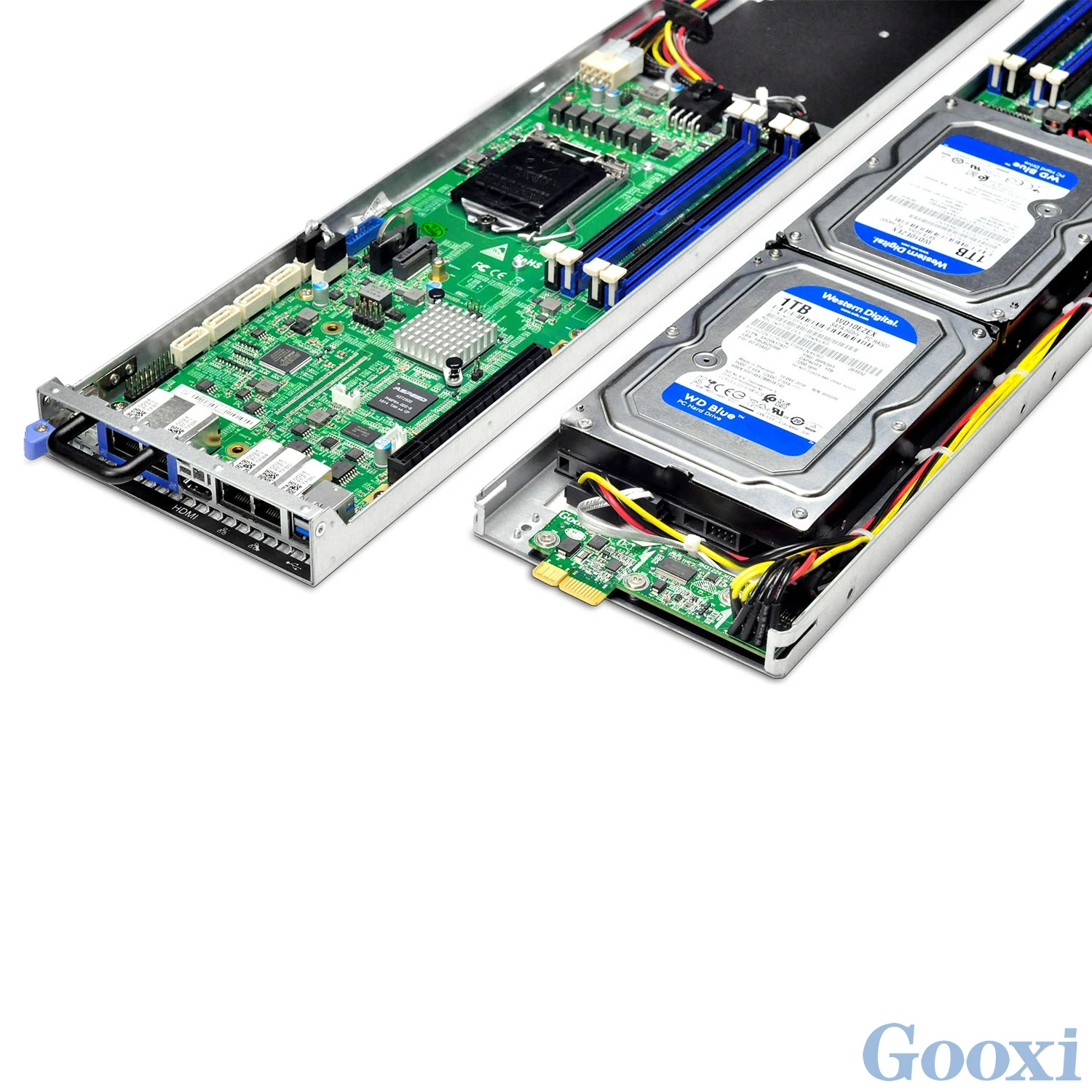

Each node supports up to 2x 3.5” or 4x 2.5” internal drives. Overall 24x 3.5” or 48x 2.5” internal drives support in a full configured system.

High Availability & Capability

Supports Intel® Xeon® E processor E-2100/2200 Series. Max 6Core+GT2, TDP up to 96W, Single Socket H4 (LGA 1151).

Centralized Power Supply, Strong Stability

The system equipped with 1+1 hot-swap 1600W 80+ Platinum Redundant PSU.
The use of centralized power supply and 1+1 Redundant power supply to ensure system stability.

Rear Smart Fan Control

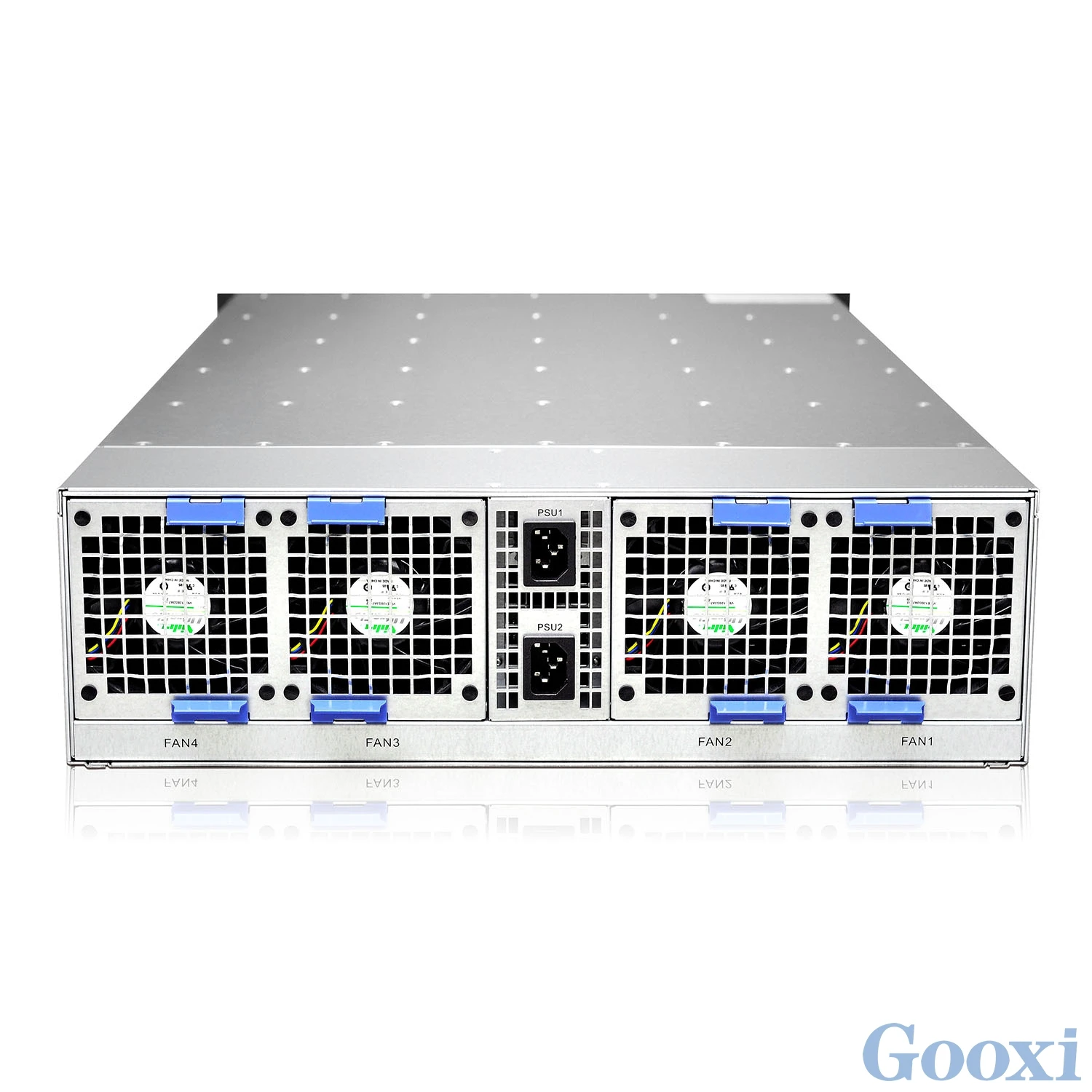

4x 9238 high-performance & hot-swap fan module with smart fan control and management on the chassis rear.
Anti-vibration mechanism design on fan module.

Remote Management

System Remote Management through IPMI2.0 Remote Management Technology and shared Gigabit Management Network Port.
Local HDMI-to-VGA port build-in benefits the serviceability.
