Pultrusion Round Durable Solid Fiber Glass 1mm 8mm 12mm Threaded Flexible Solid Fiberglass Rods
- Category: >>>
- Supplier: Chongqing Dujiang Composites Co. Ltd.
Share on (1600462355342):
Product Overview
Description
Products Description
Fiberglass Rods:Fiberglass rebar is a new kind of composite material, which is glass fiber, basalt fiber, carbon fiber as a
reinforcement material, combines with epoxy (resin) and curing agent, then through the Molding process.
reinforcement material, combines with epoxy (resin) and curing agent, then through the Molding process.
PROPERTY
•High corrosion resistance:The fiberglass used by the rebar is a durable material, and they are molded through the composite process. The life span is up to 100 years. They can be used as permanent support materials.
•A high tensile strength:The load is approximately double that of a steel bar with the same diameter
•Low weight:The weight is only 1/4 that of a steel bar with the same diameter, therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time.
•Anti-static:It has no electrical conductivity, and no sparks will be produced when being cut, it's particularly suitable for high gas zones.
• Non-flammable:It's non-flammable and has high thermal isolation.
•Cuttability:It avoids damages to cutter heads and does not delay excavation.
•Save cost:Use this material as reinforcing bars for roads and bridges, could reduce secondary repair costs.
•High corrosion resistance:The fiberglass used by the rebar is a durable material, and they are molded through the composite process. The life span is up to 100 years. They can be used as permanent support materials.
•A high tensile strength:The load is approximately double that of a steel bar with the same diameter
•Low weight:The weight is only 1/4 that of a steel bar with the same diameter, therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time.
•Anti-static:It has no electrical conductivity, and no sparks will be produced when being cut, it's particularly suitable for high gas zones.
• Non-flammable:It's non-flammable and has high thermal isolation.
•Cuttability:It avoids damages to cutter heads and does not delay excavation.
•Save cost:Use this material as reinforcing bars for roads and bridges, could reduce secondary repair costs.
APPLICATION
Construction, transportation industry, coal mine tunnel, parking structures, half coal roadway, slope support, subway tunnel, rock surface anchoring, sea wall, dam, etc.
•Tunnels and culverts
•Mine tunnel
•Civil Engineering
•Seawall dock
•Military Engineering
•Roads and Bridges
•Airport Runway
•Mountain slope support
•Formwork and reinforced concrete work
Construction, transportation industry, coal mine tunnel, parking structures, half coal roadway, slope support, subway tunnel, rock surface anchoring, sea wall, dam, etc.
•Tunnels and culverts
•Mine tunnel
•Civil Engineering
•Seawall dock
•Military Engineering
•Roads and Bridges
•Airport Runway
•Mountain slope support
•Formwork and reinforced concrete work
Diameter (mm) | Cross Section (mm2) | Density (g/cm3) | Weight (g/m) | Ultimate Tensile Strength (MPa) | Elastic Modulus (GPa) |
3 | 7 | 2.2 | 18 | 1900 | >40 |
4 | 12 | 2.2 | 32 | 1500 | >40 |
6 | 28 | 2.2 | 51 | 1280 | >40 |
8 | 50 | 2.2 | 98 | 1080 | >40 |
10 | 73 | 2.2 | 150 | 980 | >40 |
12 | 103 | 2.1 | 210 | 870 | >40 |
14 | 134 | 2.1 | 275 | 764 | >40 |
16 | 180 | 2.1 | 388 | 752 | >40 |
18 | 248 | 2.1 | 485 | 744 | >40 |
20 | 278 | 2.1 | 570 | 716 | >40 |
22 | 355 | 2.1 | 700 | 695 | >40 |
25 | 478 | 2.1 | 970 | 675 | >40 |
28 | 590 | 2.1 | 1195 | 702 | >40 |
30 | 671 | 2.1 | 1350 | 637 | >40 |
32 | 740 | 2.1 | 1520 | 626 | >40 |
34 | 857 | 2.1 | 1800 | 595 | >40 |
36 | 961 | 2.1 | 2044 | 575 | >40 |
40 | 1190 | 2.1 | 2380 | 509 | >40 |
More products
Production Line
About Us
Certifications

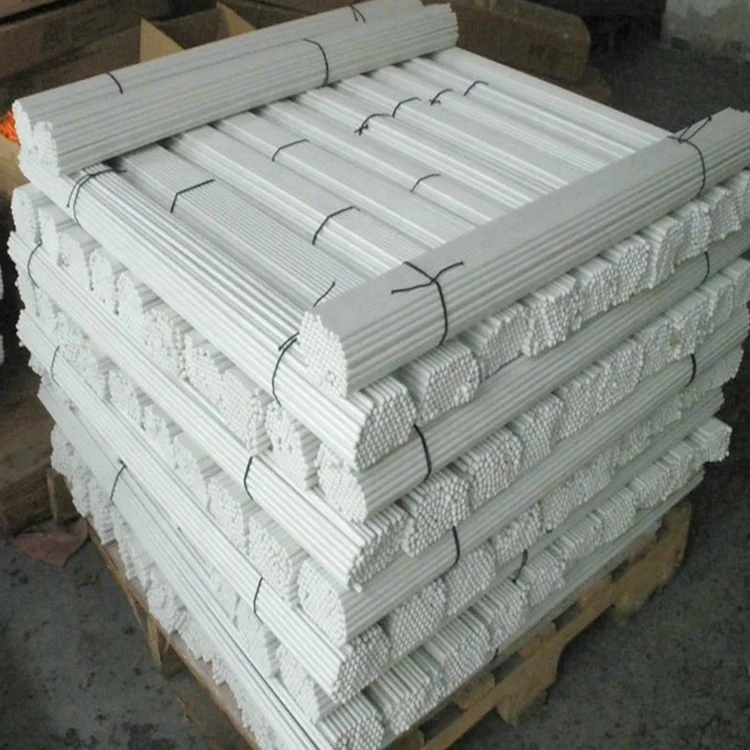

Shipping & Packing
FAQ
Q1:Are you a factory? Where are you located? A: We are a professional manufacturer with more than 20 years production experience
of composite materials, Our own factory locate in Chendu city, Sichuan province.
of composite materials, Our own factory locate in Chendu city, Sichuan province.
Q2:What's the MOQ? A: Usually 1 Ton, depend on
what products you need.
what products you need.
Q3:Package & Shipping.
A: Normal package:by carton, we accept OEM packing.
Q4:When can I offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price pls call us or tell us in your email , so that we can reply you priority.
Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but the free charge should be on your side. If you need a special size, We will charge the sample making fee which will be refund when you place an order.
Q6:What's your delivery time for production?
A:If we have stock , can delivery in 1-7 days ; if without the stock, need 5-30 days, depend on quantity.
