Top quality conference system 10X optical zoom wide angle 1080P hd USB ptz video conference camera

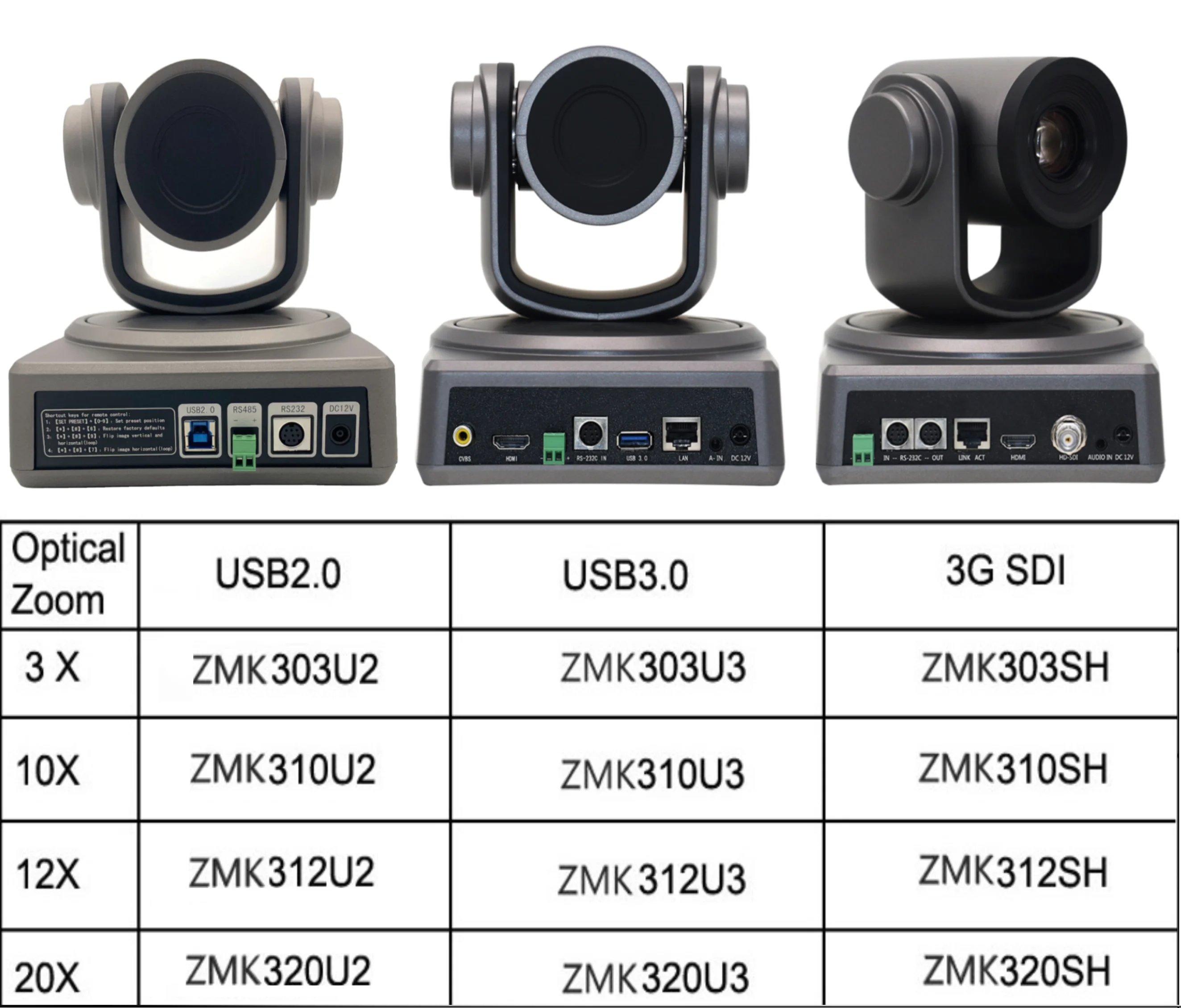

Model

ZMK310U2

Optical Parameter

Sensor

1/2.8" CMOS

Effective Pixels

16:9  2.1 Megapixels

Video Format

USB2.0: 1080p30,720p30,

640X480p30, 320X240p30,

Optical Lens

10X,F1.6~F3.5,f=4.7mm~47mm

Horizontal View Angle

10X,55°(wide-angle)~5.8°(distal)

Minimum illumination

0.1Lux

White Balance

Auto/indoor/outdoor/Manual

Focus

Auto/Manual

Noise-Signal Ratio

>50dB

Input/Output interface

HD video interface

USB 2.0

Control signal interface

8 mini DIN(RS232)/3.81 pin(RS485)

Control signal format

Start bit:1bit,data bit:8bit,stop bit:1bit,baud rate:9600/4800/2400bps

Power interface

HEC3800 power socket

Support operating system

Windows 7, Windows 10,  Linux

USB protocol

UVC1.1

Encoding

MPEG/YUY2

USB interface PTZ control

USB interface PTZ control

Mechanical Parameter

Pan-Tilt

Horizontal Angle: ±170°(Max speed: 100° /s);

Vertical Angle: -30° to +90°(Max speed: 60° /s)

Preset accuracy:±0.1°

No. of Preset Positions:255

Colour

Steel gray

Power adapter

AC110V-AC220V switch DC12V/2A

Input voltage

DC12V(DC11.5-DC12.5V)

Power dissipation

12W(Max)

Storage Temperature

-10℃~+60℃

Working  Temperature

0℃~45℃

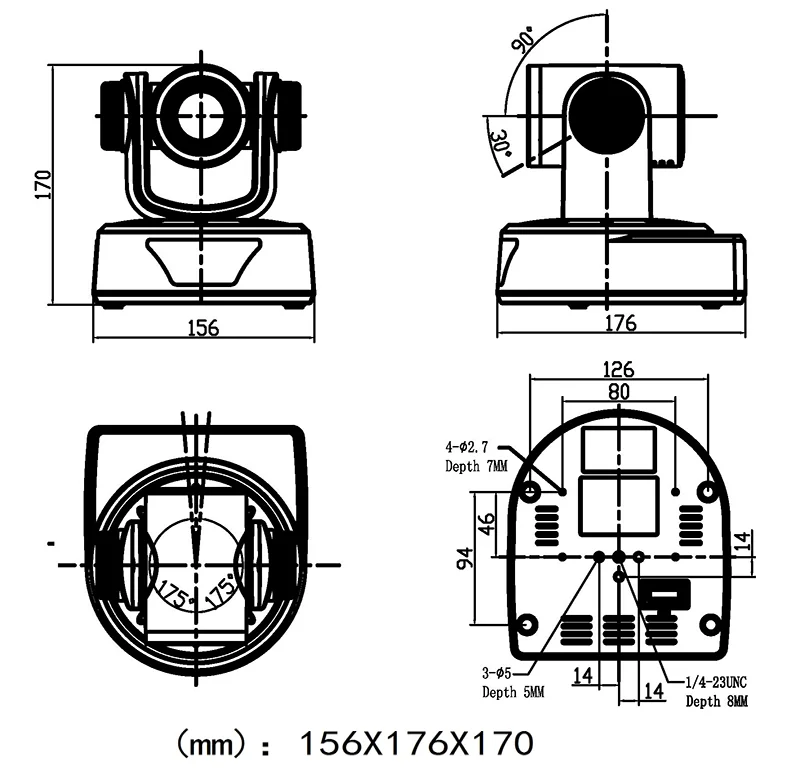

Dimensions

(Length)155 × (Width)176 x (Height)170mm

Weight(Net weight)

2.5KG(1.3KG)

Environment

Indoor
