Grain Storage Silos 500 10000Ton Galvanized Steel Assembled Paddy Roce Silos
- Category: Silos >>>
- Supplier: Henan,Haokebang,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Grain storage bins, in another name is grain storage silos or steel grain storage silos, which is used for farm purpose, rice mill, flour mill, soybean-oil mill, animal feed mill plant, brewery plant and so on, the high quality steel grain storage sbins can be used to store grain (such as corn, maize, bulk wheat, corn, rice, paddy, sorghum, soya etc.), animal feed, cereal seeds, plastic pellet, wooden pellet etc.

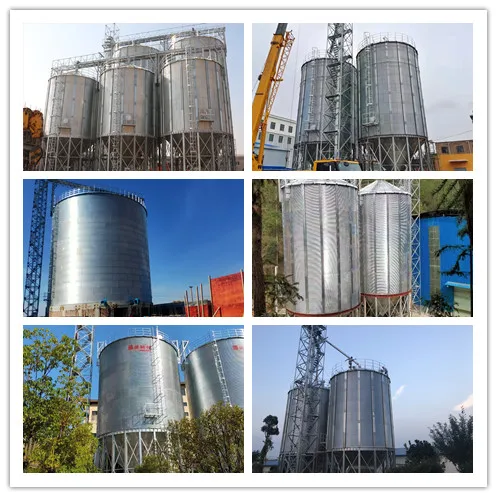

Below is the steel storage silo we did for our clients.
Specifications
| Project | Layer Number | V(m3) | C(t) | Dia(m) | H(m) |
| TCZK03605 | 5 | 69 | 52 | 3.667 | 9.56 |
| TCZK05509 | 9 | 275 | 206 | 5.500 | 15.49 |
| TCZK10013 | 13 | 1379 | 1034 | 10.084 | 23.61 |
| TCZK12815 | 15 | 2618 | 1964 | 12.834 | 27.99 |
| TCK05505 | 5 | 147 | 110 | 5.500 | 7.29 |
| TCK13715 | 15 | 2701 | 2026 | 13.750 | 20.87 |
| TCK18321 | 21 | 6693 | 5020 | 18.334 | 28.60 |
| TCK25621 | 21 | 13484 | 10113 | 25.668 | 30.60 |
The above data is for reference only, for more details, please contact us
Details
 | The roof beam is made of C-shaped steel, the upper part is connected with the tio ring of the silo, the lower part is connected with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top. |
The coaming of the silo is made of 275g/m2 galvanized steel plate. The coaming is gradually thicjened from top to bottom according to the stress of each layer. |  |

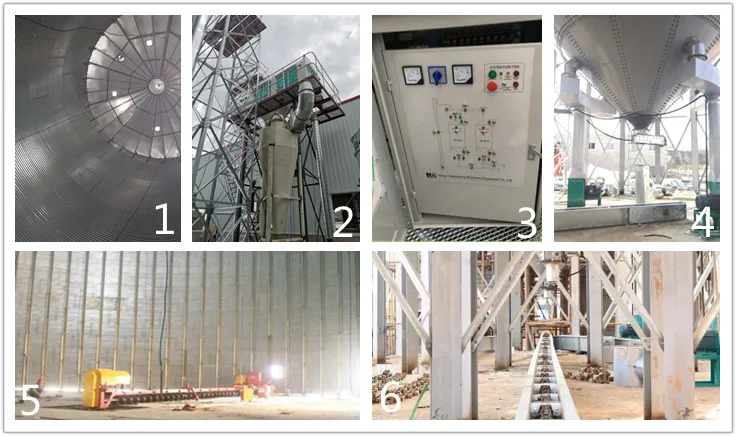

Accessory Equipment
1.Temperature measurement system
The temperature measuring cable is suspended on the temperature measuring beam of the silo top framework, and the temperature sensors are distributed on the electricityon the cable.
2.Clean up the system&Dedusting system
Long screen body, goog cleaning effect. Fully enclosed frame, good sealing and dust proof performance. Small power, high output, stable and reliable operation.
In the process of grain circulation and cleaning, there will be a lot of dust, which is not conducive to the quality of grain, further processing and encironmental sanitation. Dust remocal equipment can effectivel quppress dust.
3.Electric Control Cabinet
Produced by Schneider. PLC control, easy to operate.
4.Ventulation System
Including fan and out ring air suxt, inner air duct, silo top induced draft fan and natural ventulation window auciliary ventilation, which can take the maximum amount of indoor heat and ensure the quality of grain.
5.TDSL Series Cleaning Machine
The design is half open structure, to ensure easy operation;
6.TGSS Series Chain Conveyor
The chain conveyor structure has been designed for ease of installation, operation and maintenance.
