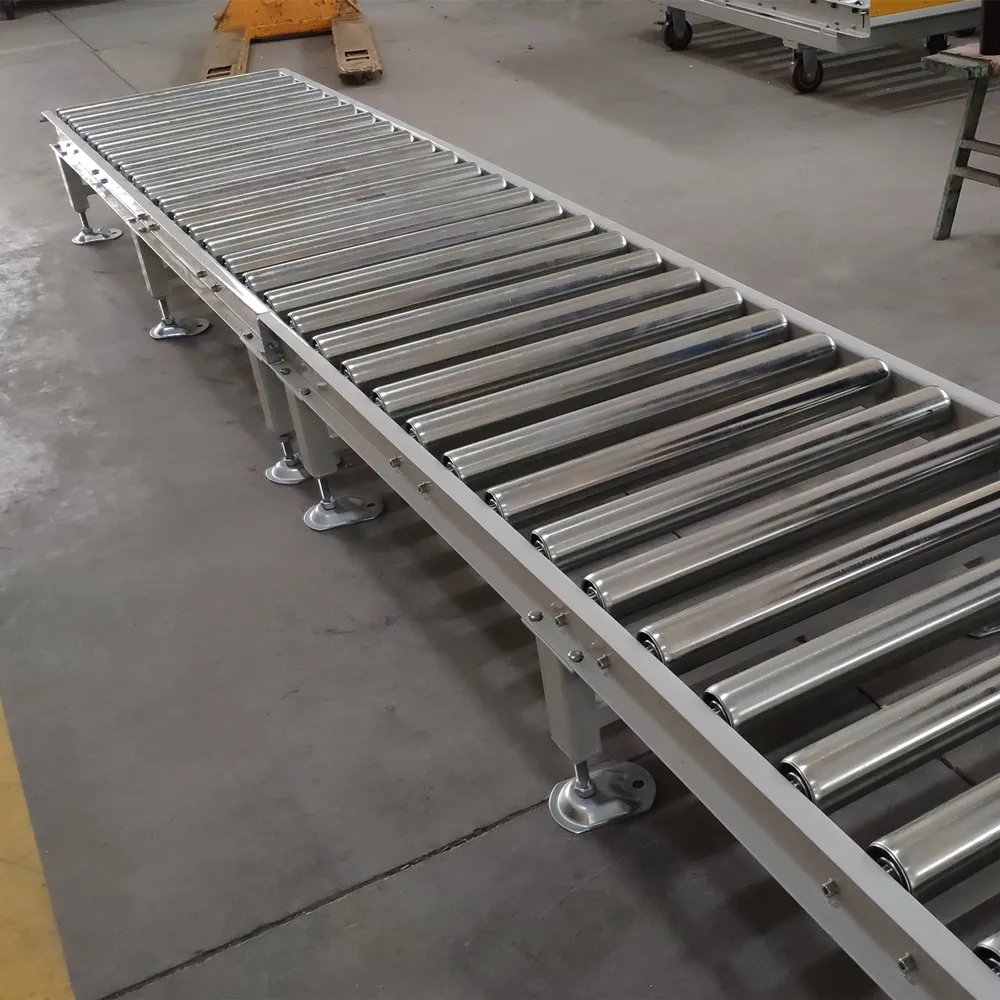

Carbon steel gravity roller conveyors Technical Video
- Category: >>>
- Supplier: Wuxi Huiqian Logistics Machinery Manufacturing Co. Ltd.
Share on (1600462500429):
Product Overview
Description
Product Overview

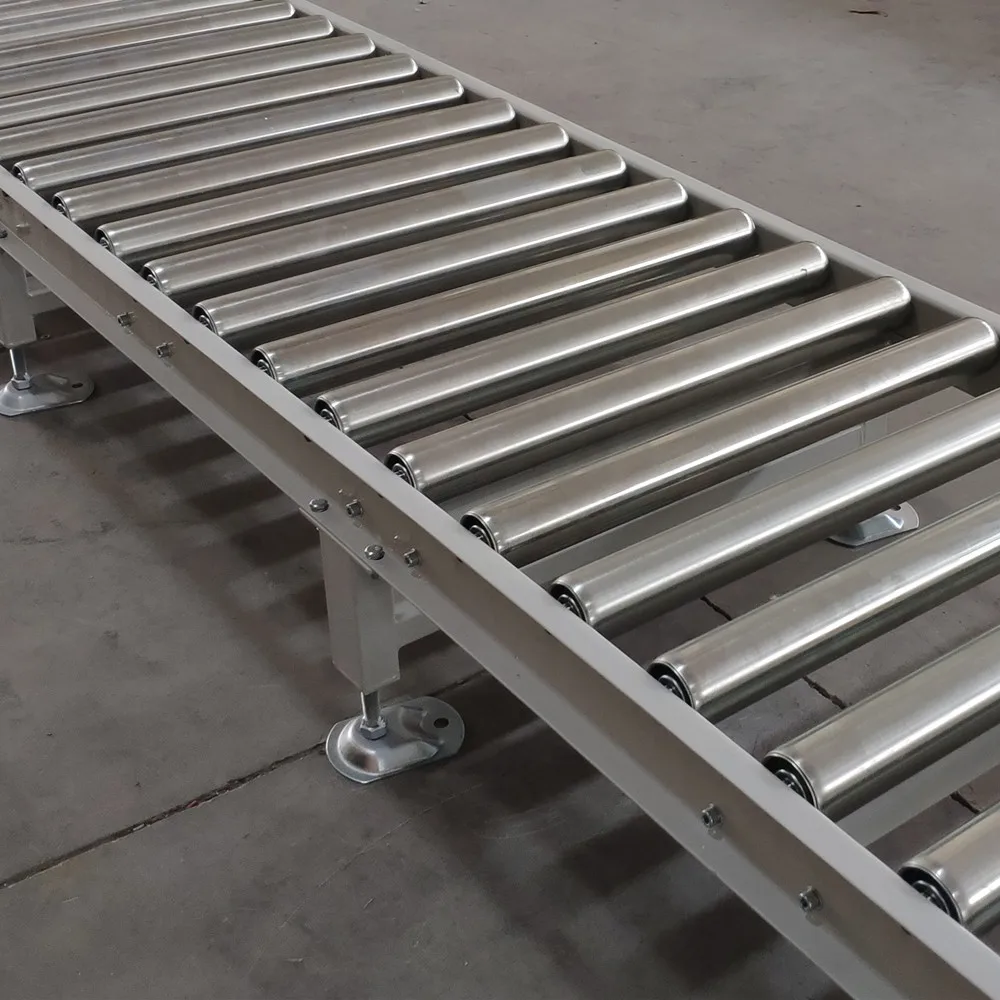

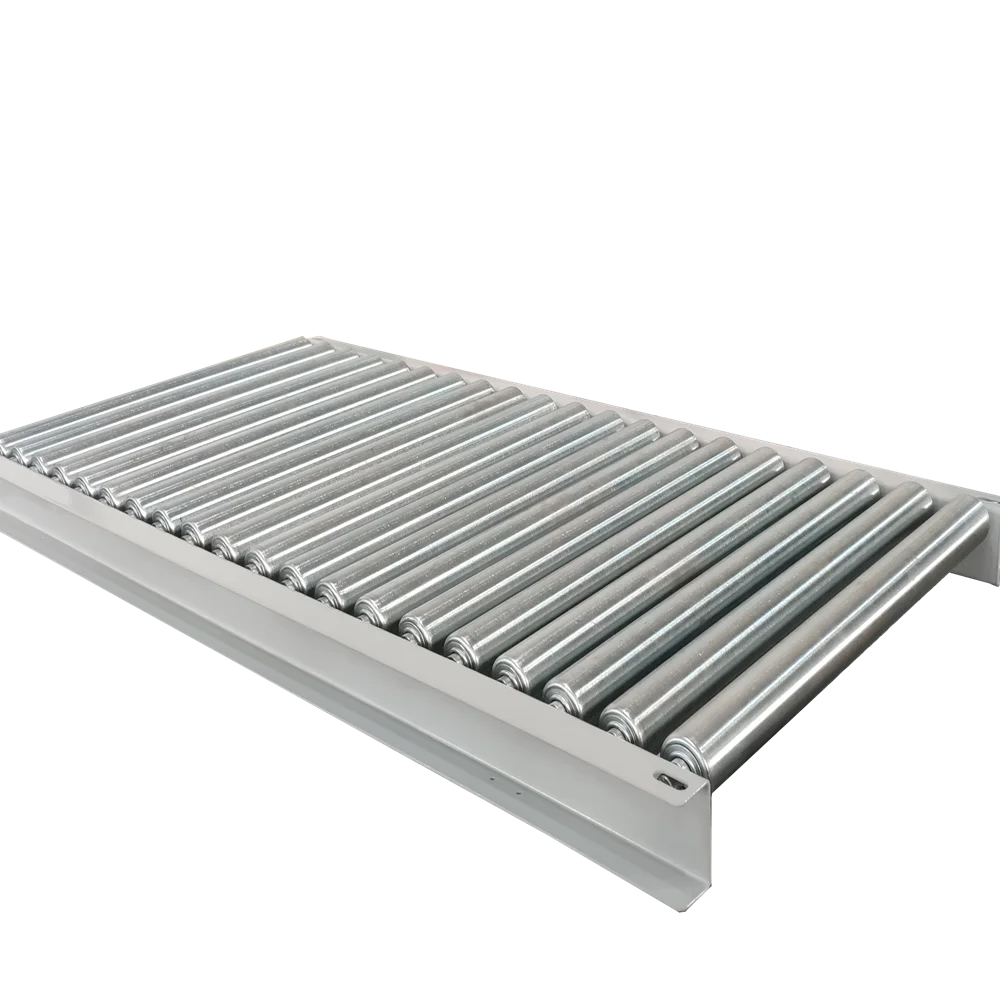

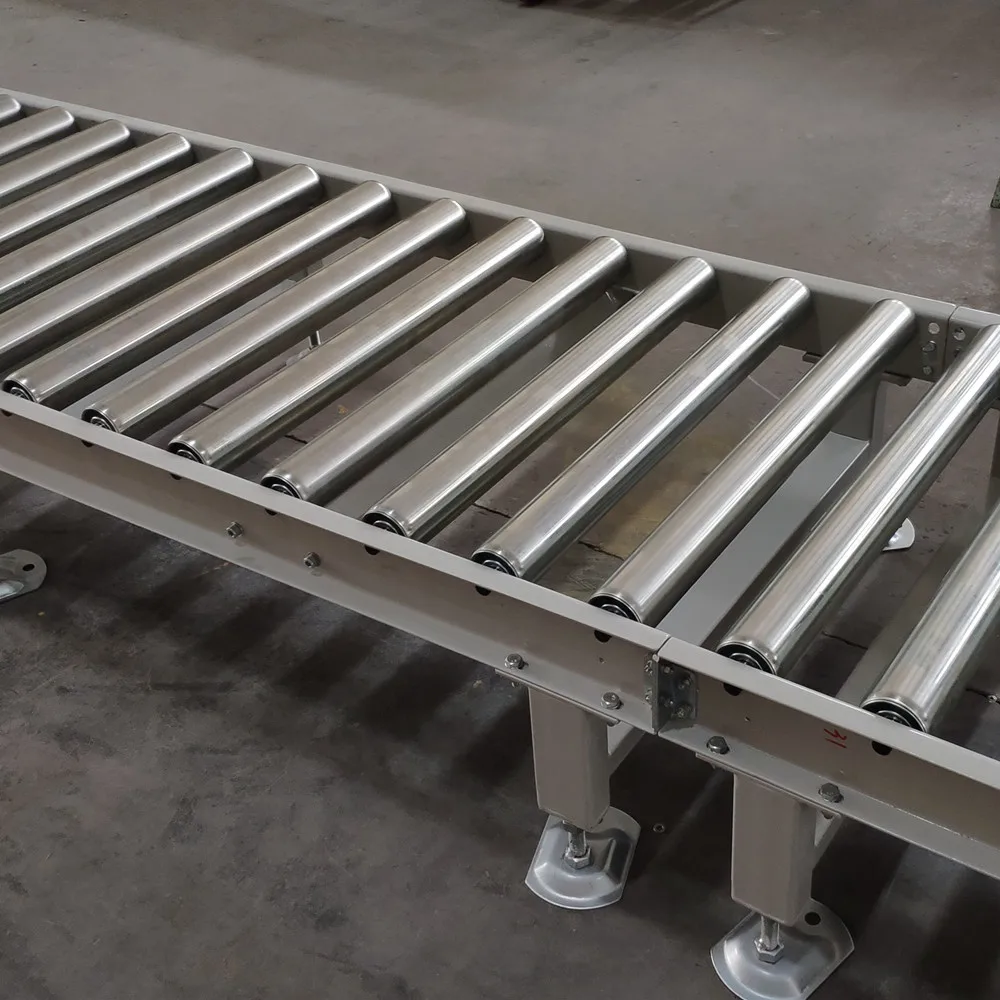

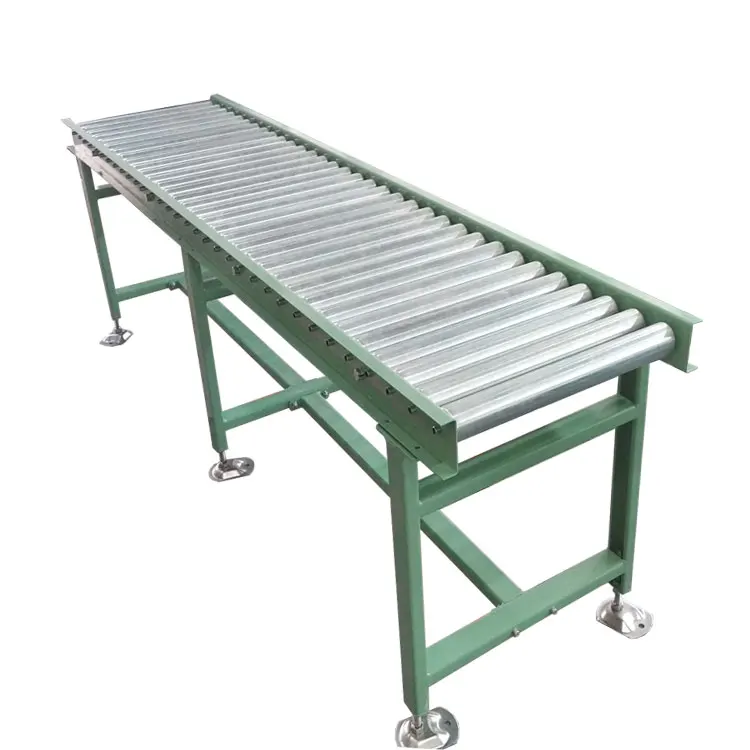

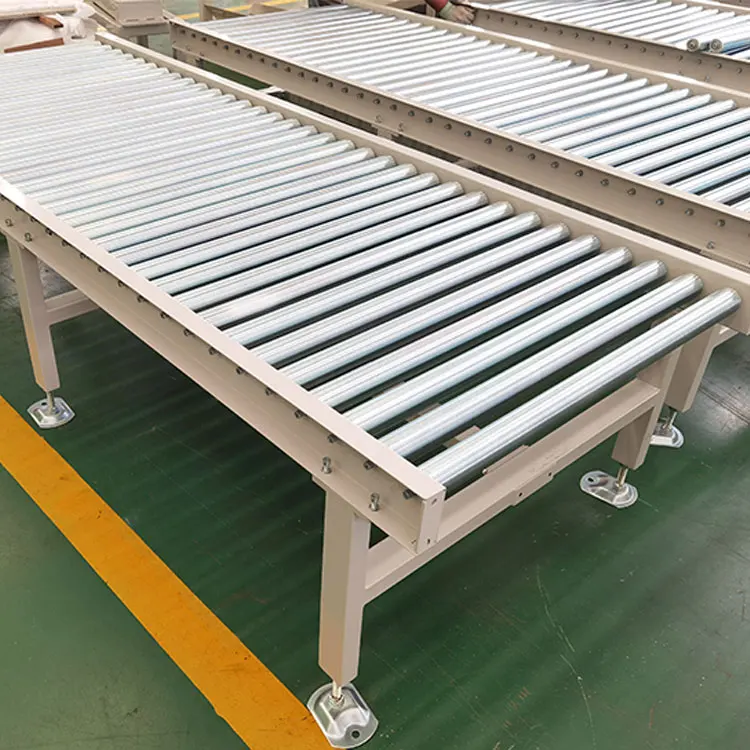

Steel Gravity Roller Conveyors
Steel Gravity Roller Conveyors are available in a variety of roller diameters to meet your exact application requirements. They are usually used in the assembly lines to transport parts by the operator's push between the stations close to each other. They can also be mounted on shelves in stock areas. Thanks to the rollers mounted at an inclination of about 4 - 5º, as long as the goods are removed from the front in the long shelves, the rear side moves forward and provides ease of loading and unloading. They are used in sorter systems and reject stations. If the products accelerate freely on the angled conveyor, the braking system can control the speed at certain intervals. Because they are modular, they are comfortable to use in all areas and can be replaced. The long service life of these conveyors and the failure of the conveyors provide a great advantage.
FEATURES AT A GLANCE
Low maintenance cost
Zero energy cost
Long service life
Low noise level
Easy montage
Modular design and flexible revision
Zero energy cost
Long service life
Low noise level
Easy montage
Modular design and flexible revision
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Name | Gravity roller conveyor |
1 | Conveyor length | 3000mm |
2 | Conveyor width | 500mm |
3 | Conveyor height | 750mm |
4 | Load capacity | 400kg/m |
5 | Application | Food, chemical, package, etc |
Name | Material | Item | Data | Unit |

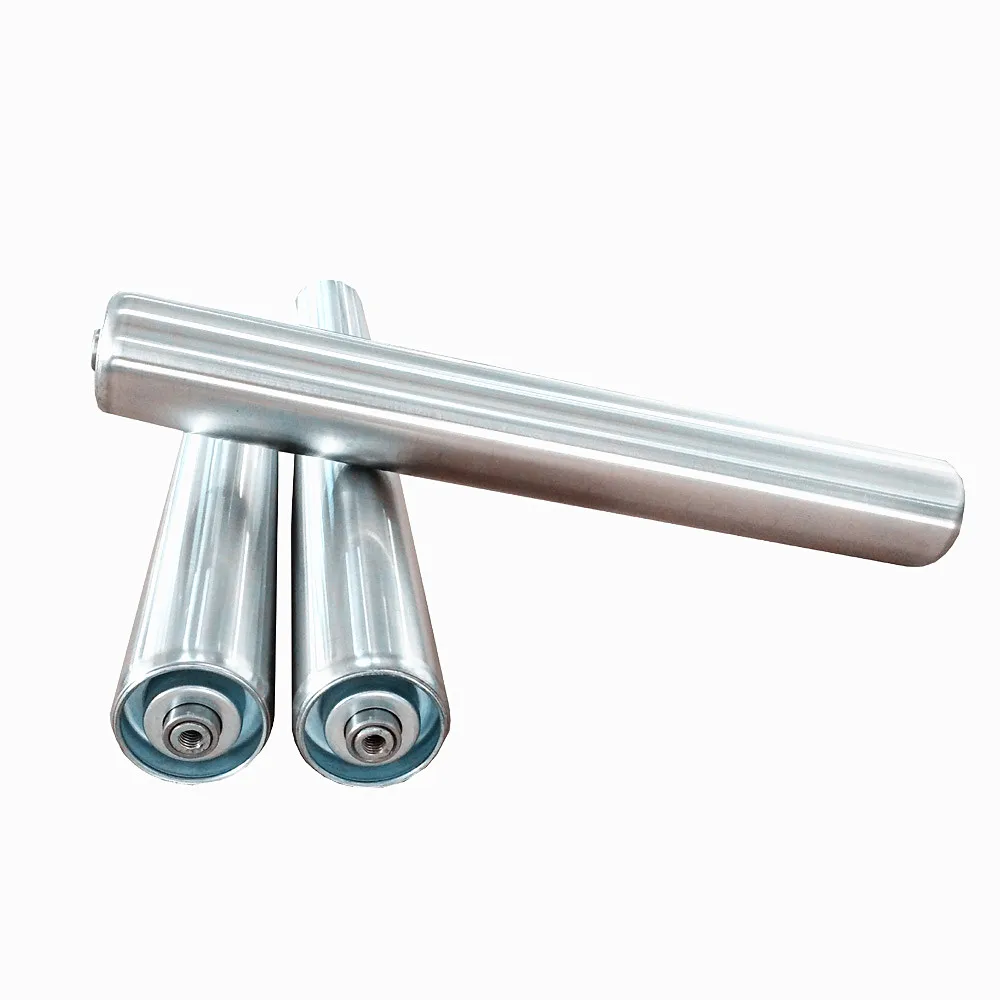

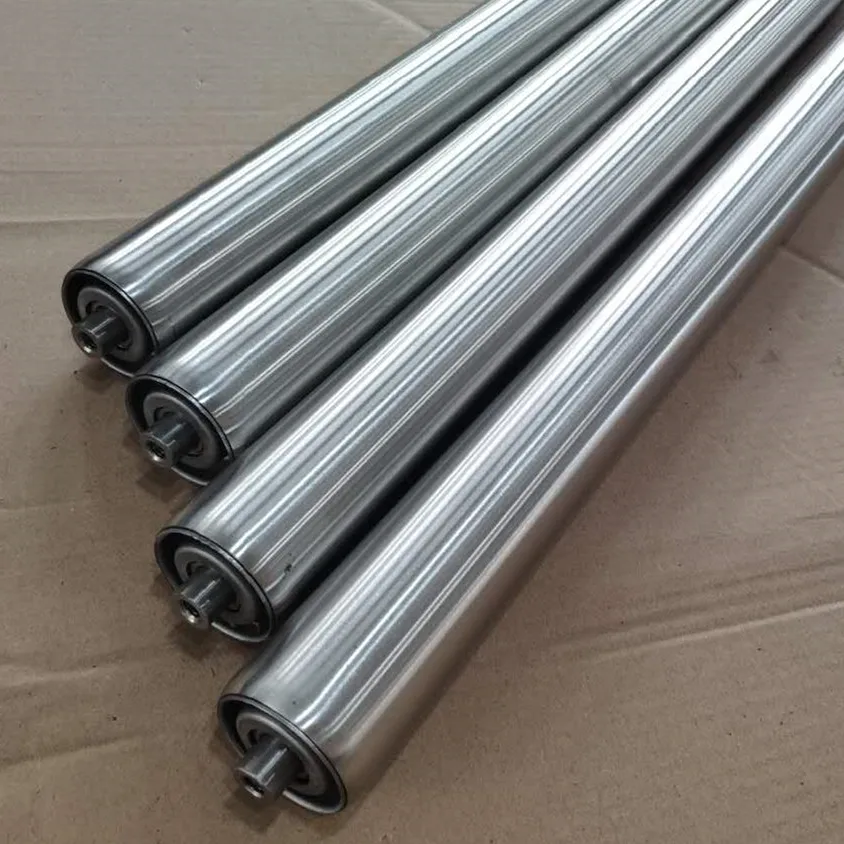

Roller | Normal steel | dia | 50 | mm |
width | 500 | mm | ||
pitch | 100 | mm | ||
Frame | Normal steel | width | 30 | mm |
height | 90 | mm | ||
Legs | Normal steel | profile | 3060 | mm |
height | 600 | mm |
Successful Project
Project in Japan
Project in Thailand
Project in Thailand
SIMILAR PRODUCTS
Company Profile

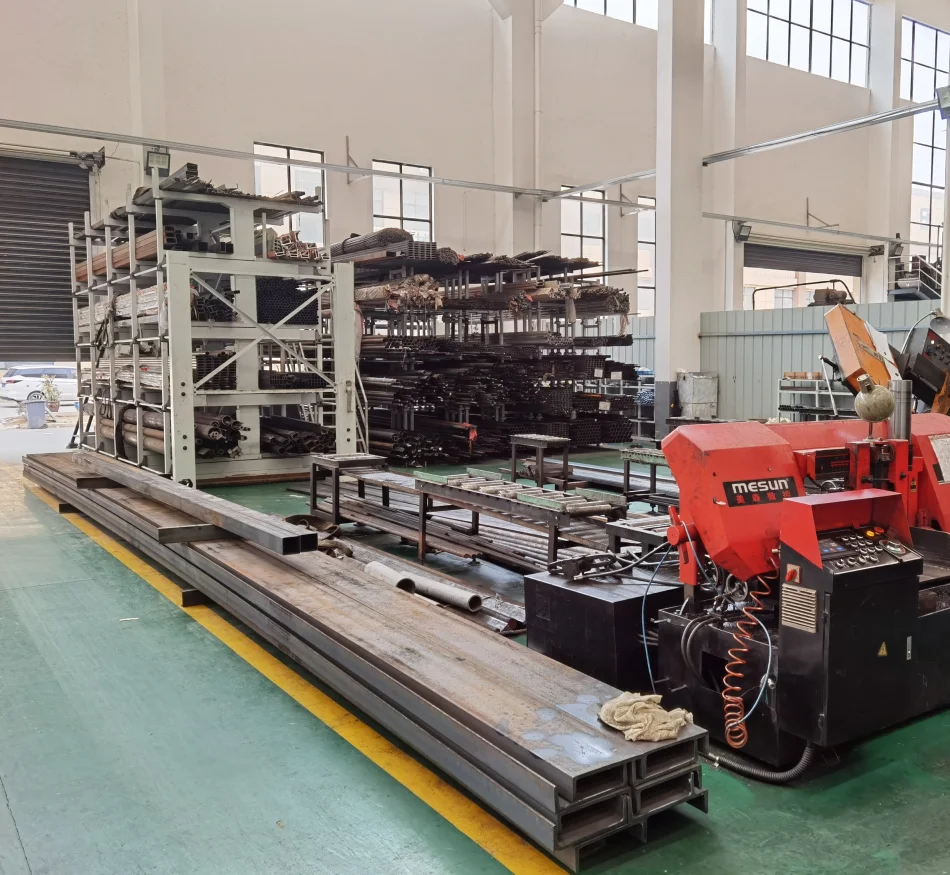

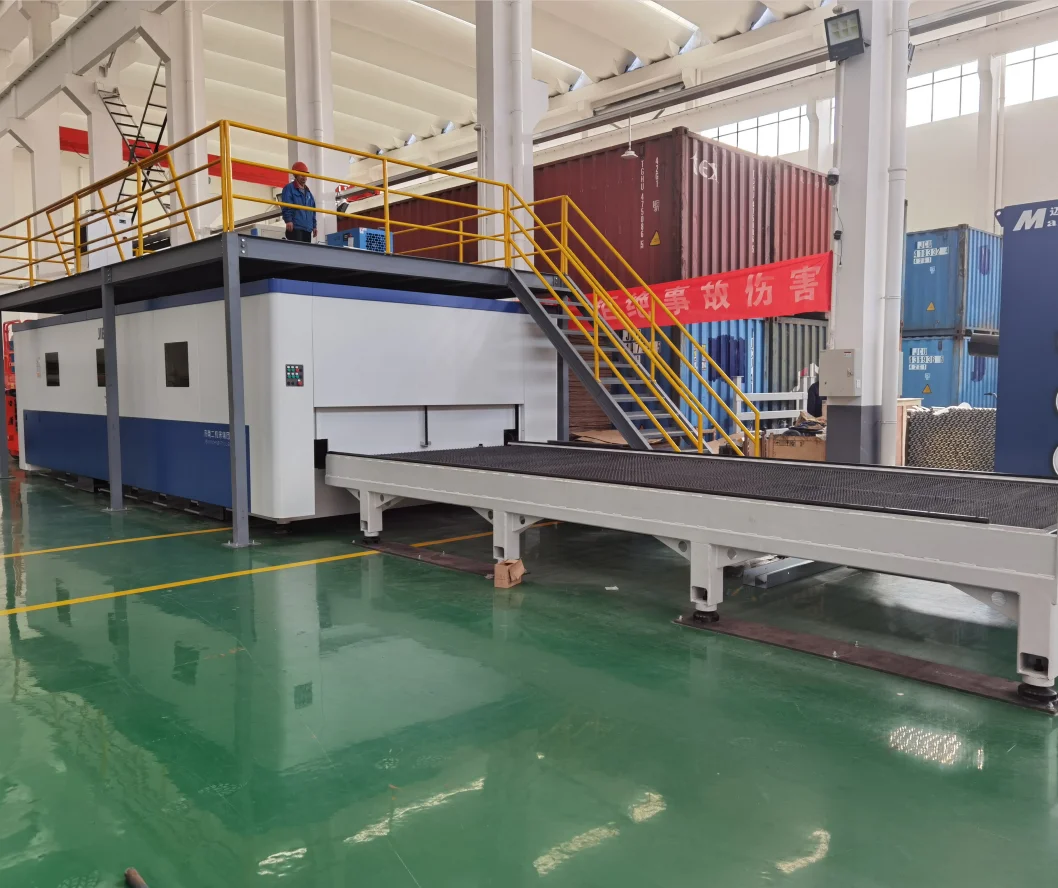

Wuxi Huiqian logistics machinery manufacturing Co., Ltd was registered in 2012, on the basis of digesting and absorbing advanced Japanese technology and logistics equipment manufacturing experience, specializing in logistics transportation integrated system. From standard parts, unit modules to complete conveyor projects are fully completed by us to guaranty the good quality.
