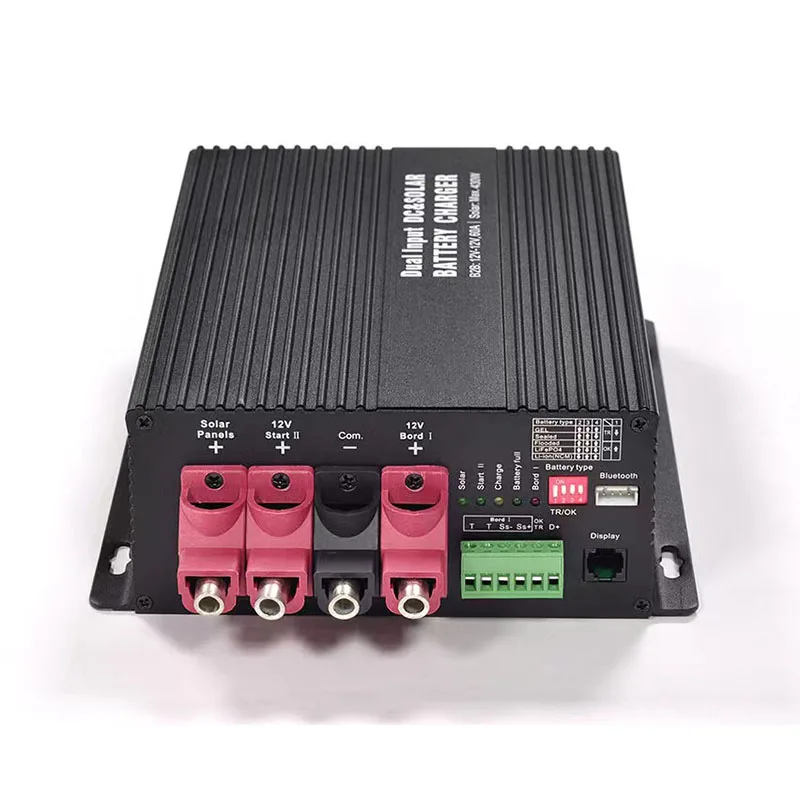

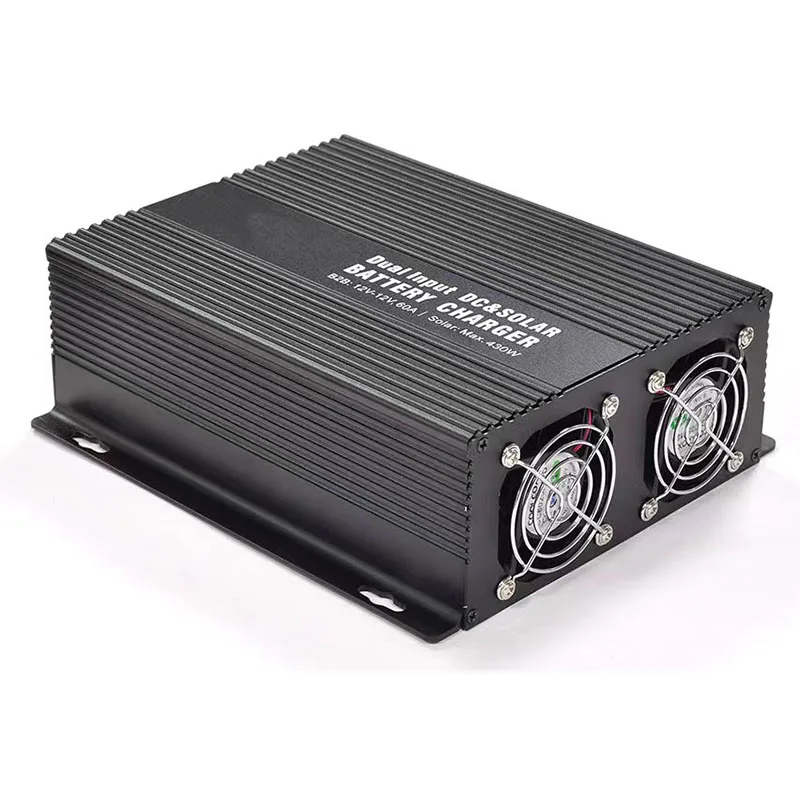

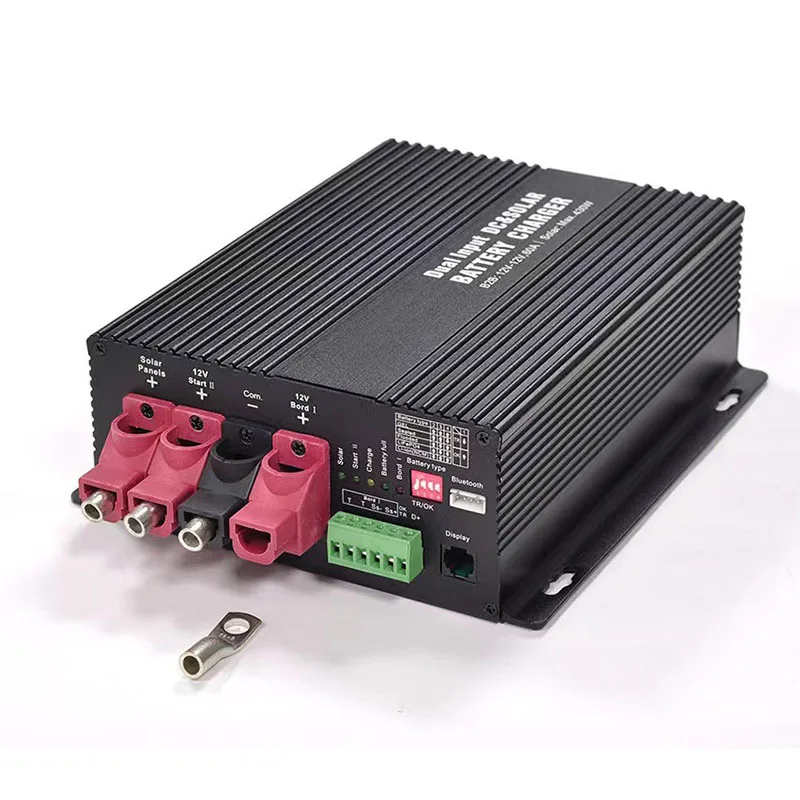

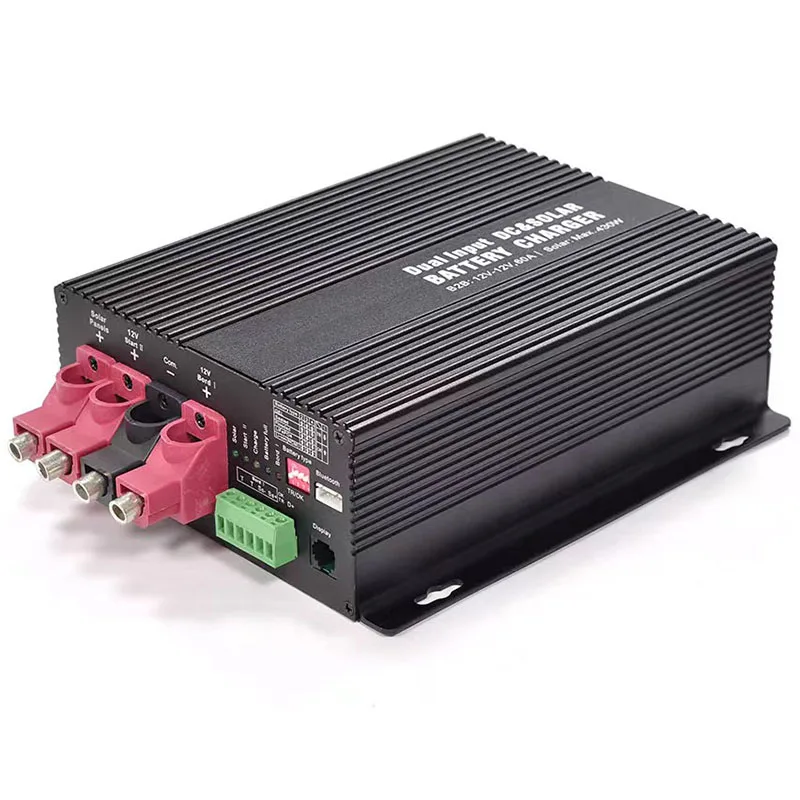

MPPT Solar 30a DC DC Booster 60a Solar Battery smart vehicle battery charger
- Category: >>>
- Supplier: Guangzhou Moli E-Commerce Co. Ltd.
Share on (1600462554654):
Product Overview
Description
Battery charging parameter
Battery type | Equalizing | Boost | Float | HVD | LVD | Constant voltage charging time |
GEL | - | 14 .3V | 13 .8V | 15 .5V | 11V | 2h |
Sealed | 14 .6V | 14 .4V | 13 .5V | 15 .5V | 11V | 2h |
Flooded/AGM | 14 .8V | 14 .7V | 13 .5V | 15 .5V | 11V | 2h |
LiFePO4 | - | 14 .4V/13 .9V 14 .2V/14 .6V | 13 .8V | 15 .5V | 11V | 2h |
Lithium- ion (NCM) | - | 12 .6V | 12 .5V | 13 .5V | 9 .3V | 2h |

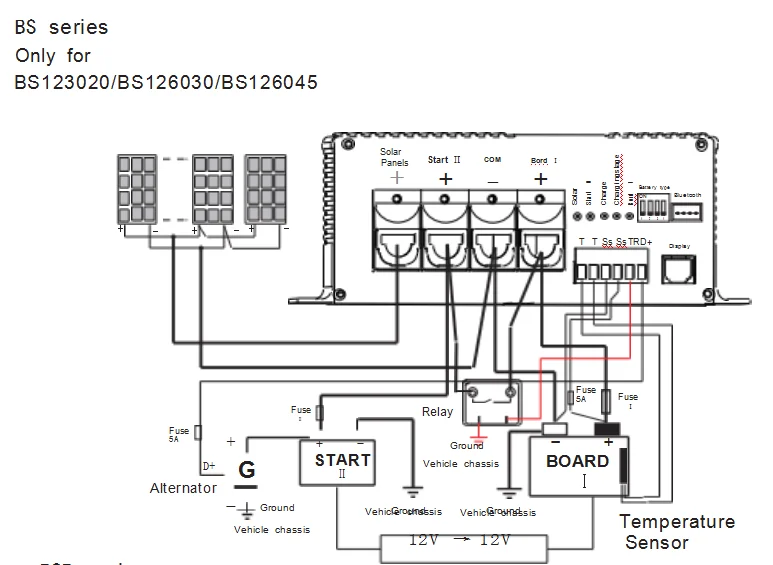

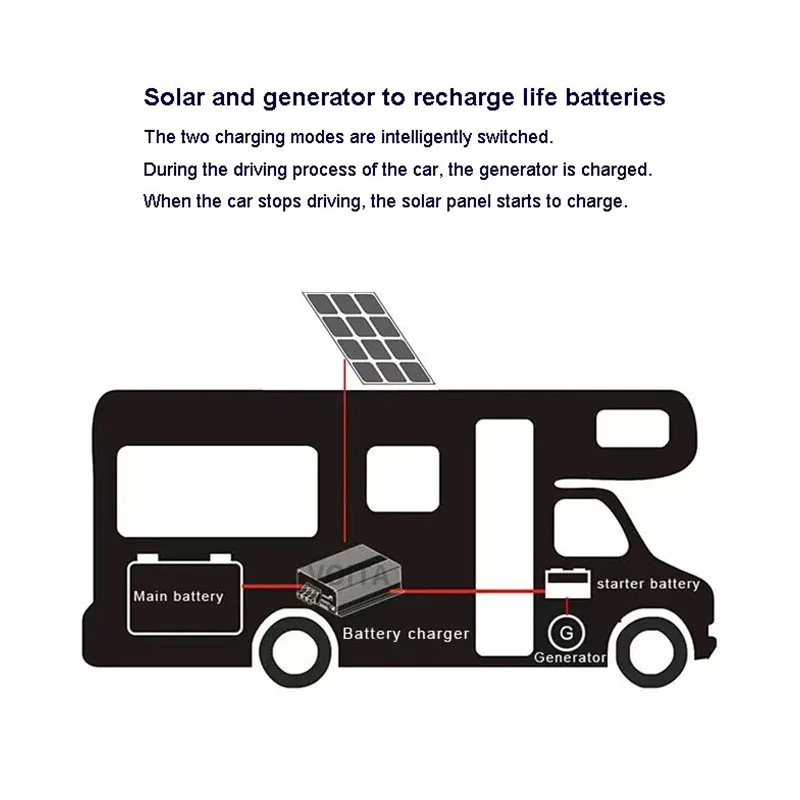

DC- DC charger that can charge the main battery through the alternator,and starter battery, or Solar panels charge the main battery (some models) , DC- DC battery charger designed specifically for motorhomes , campers , ships , etc .
B2B Charge
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle , you can also use one battery to charge another battery
1.When the vehicle is running , the vehicle alternator can quickly charge the main battery through charger at full power

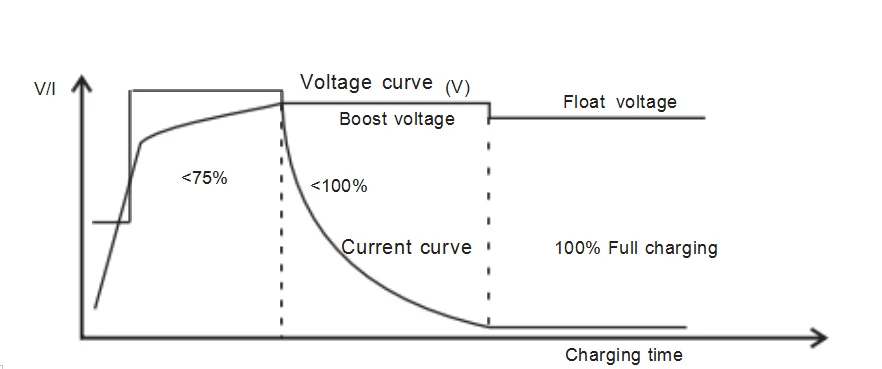

2 .The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard . charging curve charging
MPPT Solar Charge
1.The charger can increase the charging efficiency of the solar panel by 10-30% through
MPP technology (search for the maximum power point)
2 . The charger can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charge curve charging
3 . When the vehicle is not used for a long time , you can maintain a small trickle charge flow for the starter battery to ensure that the starter battery has enough electricity to start the vehicle
B2B Charge
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle , you can also use one battery to charge another battery
1.When the vehicle is running , the vehicle alternator can quickly charge the main battery through charger at full power
2 .The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard . charging curve charging
MPPT Solar Charge
1.The charger can increase the charging efficiency of the solar panel by 10-30% through
MPP technology (search for the maximum power point)
2 . The charger can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charge curve charging
3 . When the vehicle is not used for a long time , you can maintain a small trickle charge flow for the starter battery to ensure that the starter battery has enough electricity to start the vehicle
Specification
Model | VT-BS126030 | |
Main battery | 12Vdc | VT-B2B1260 |
Main battery type | GEL, Sealed , Flooded , LifePO4, Lithium-ion | |
Vehicle starter battery | 12V | |
Starter battery type | Lead acid | |
DC-DC Max charging current | 60A | |
Solar Max charging current | 30A | 780W |
Solar max voltage | 50V | 60A |
Self-consumption current | 24Ma | 24mA |
Dimension | 190*194*70mm | 190*215*70mm |
Net Weight | 1.44KG | 1.6kg |
Accessory (Optional) | Monitor (MT-2) Blue tooth-Dongle (BT10) Temperature Sensor (TRS) RVs, exposed cars, campers, ships DC & SOLAR DC TO DC 12V to 12V DC Battery Charger for lithium / lead acid battery |
Product Description
Model List
Battery to Battery Mode
MODEL | INPUT OUTPUT Voltage→ Voltage | DC- DC Charger current | PV Charger current | Max . PV Power |
VT-B2B1230 | 12V→ 12V | 12V/30A | / | / |
VT-B2B1260 | 12V→ 12V | 12V/60A | / | / |
VT-B2B122425 | 12V→24V | 24V/25A | / | / |
VT-B2B242450 | 24V→24V | 24V/50A | / | / |
VT-B2B241260 | 24V→ 12V | 12V/60A | / | / |
Battery/solar to Battery Model(MPPT)
MODEL | INPUT OUTPUT Voltage→ Voltage | DC- DC Charger current | PV Charger current | Max . PV Power |
VT-BS123020 | 12V→ 12V | 12V/30A | 12V/20A | 250W |
VT-BS126030 | 12V→ 12V | 12V/60A | 12V/30A | 430W |
VT-BS126045 | 12V→ 12V | 12V/60A | 12V/45A | 620W |
VT-BS12242530 | 12V→24V | 24V/25A | 24V/30A | 820W |
VT-BS24245030 | 24V→24V | 24V/50A | 24V/30A | 820W |
VT-BS24126050 | 24V→ 12V | 12V/60A | 12V/50A | 685W |

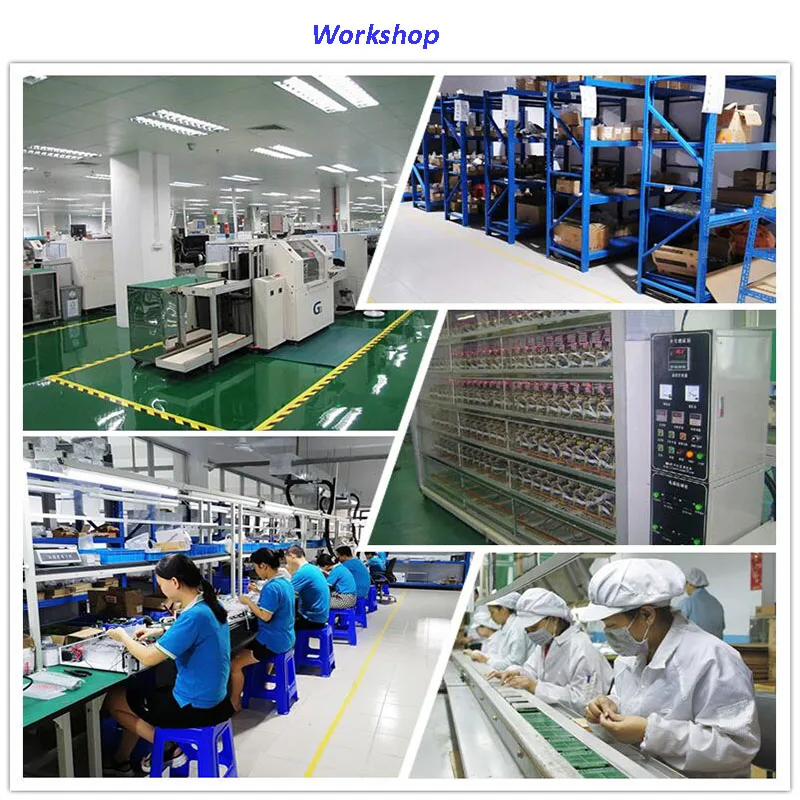

Company Profile
