Product Overview

Description



Customized outdoor large farm welded tarpaulin customized size quality pvc tarpaulin fish pond or tank






Product Details




Customized Outdoor Large Farm Welded Tarpaulin Customized Size Quality PVC Tarpaulin Fish Pond Or Tank,made With Iron Wire Mesh Frame,Iron Wire Mesh Structure Which Is Required To Help The Tarpaulin Fish Tank Fabric To Hold Its Shape And Withstand The Water Pressure.The Range Capacities Is From 3m3 To 50m3,Also Custom Made As Sizes From You.We Make And Lay A Blanket Between The Wire Mesh And PVC Cloth In Order To Reduce The Friction From The Iron Wire And PVC Cloth.

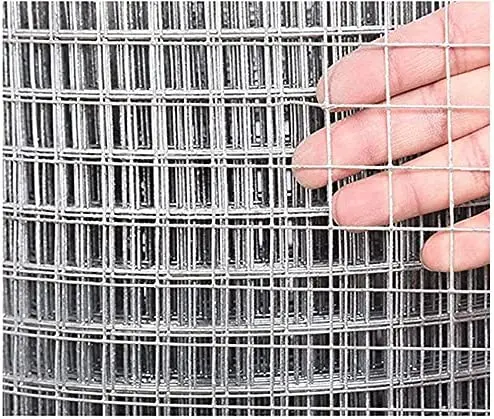

Size Of Iron Wire Mesh: 5 X 5cm
Wire Thickness: 2mm Diameter

Assemble Guide:
Step 01:Choose Flat Ground Without Sharp Stone,root And Iron Wire,and Other Debris.
Step 02:Put iron Wire Mesh on the Ground,and Open Iron Wire Mesh Form One Circle.twist The Wire Mesh Around The Ends From Top To Bottom By This Iron Wire Coil Connect At The Seam.
Step 03:Place One Non-woven Protective Film Inside The Circle Wire Mesh.
Step 04:Put The Pvc Cloth With Eyelet Inside The Non-woven Protective Film.
Step 05:Install The Outlet And Drain Toilet.
Step 06:Through Fixing Iron Wire Steel Pipe With Iron Wire Mesh,which Can Keep Pond Safety And Don't Move.
Step 07:Connect Water Hose Across The Top Of Fish Tank To Fill Water Into Fish Tank


Product name
Biofloc Fish Farming Tank
Material
pvc tarpaulin 0.50mm
Workmanship
by high frequency welding
Volume
5000-7500liter
Warranty
24 months based on receiving fish tank
Terms of payment
L/C,T/T,Western Union,PayPal
Tolerate temperature
-30 to +70℃
shape of fish pond
round shape
Material of frame
galvanized iron wire mesh


Specification


Code
Capacity
Diameter(m)
Depth(m)
Thickness of PVC
Keep fish  500g/fish
Keep fish   800g/fish
Keep fish      1000g/fish
1
5m³
2.00
1.50
0.5mm
200
125
100
2
7m³
2.50
1.50
0.5mm
280
175
140
3
11m³
3.00
1.50
0.5mm
440
275
220
4
14m³
3.50
1.50
0.5mm
560
350
280
5
19m³
4.00
1.50
0.5mm
760
475
380
6
24m³
4.50
1.50
0.5mm
960
600
480
7
30m³
5.00
1.50
0.5mm
1200
750
600
8
36m³
5.50
1.50
0.5mm
1440
900
720
9
42m³
6.00
1.50
0.5mm
1680
1050
840
10
58m³
7.00
1.50
0.5mm
2320
1450
1160
11
75m³
8.00
1.50
0.5mm
3000
1875
1500







1.Assemble need 5 to 10 minutes
2.Sturdy and durable
3.Lifespan is 7-8 years approx.





Usage:
Widely used in Aquaculture,Biofloc fish farming.






Size Of Iron Wire Mesh: 5 X 5cm
Wire Thickness: 2mm Diameter
