Product Overview

Description



Product Description

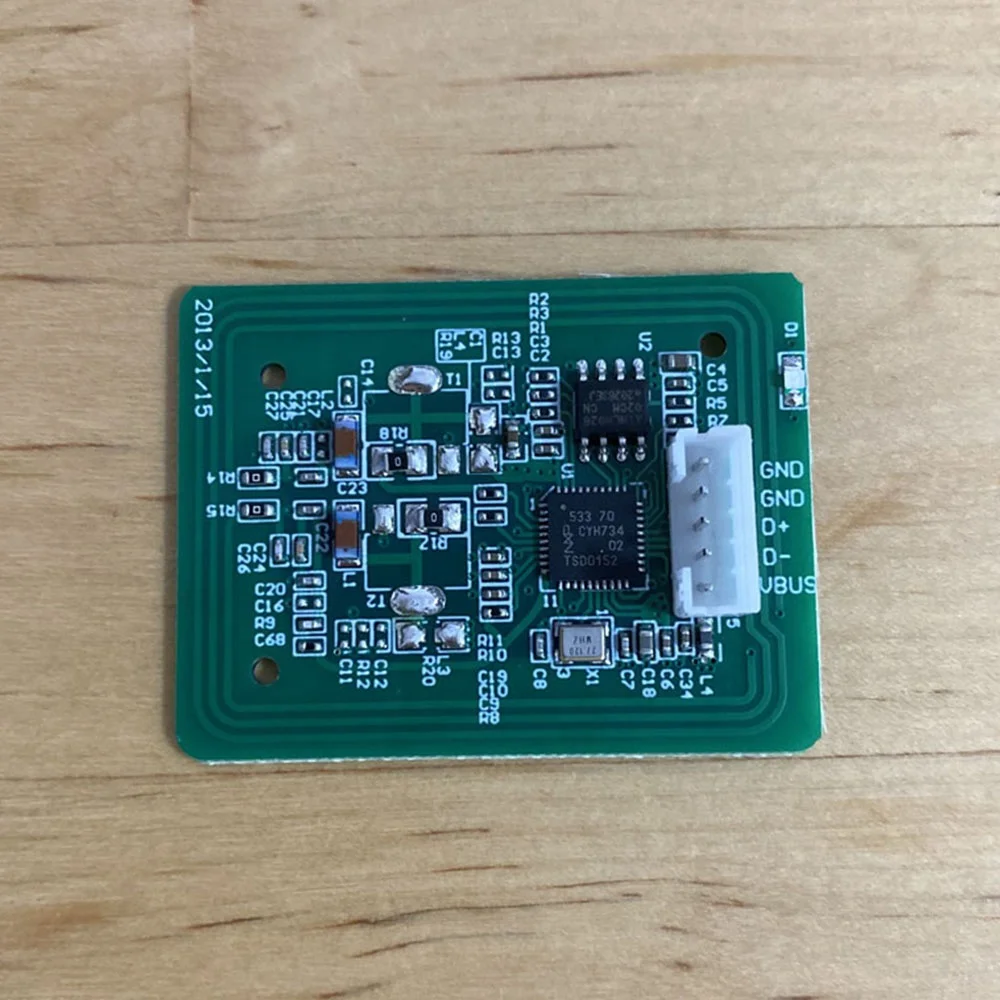

NCR533-M Contactless Smart Card Reader Module



• CONVENIENT
Small size, convenient for embedded development
• INTEROPERABLE
Supports major card ICs, standards and technologies in just one device
• FAST
Transaction time optimized with 424 kbs support in ISO/IEC 14443 for maximum end-user acceptance
• READY TO USE
Driver support for all major PC operating systems



NCR533-M is a small NFC reader module developed based on 13.56 MHz contactless technology, for fast and easy integration to embedded systems.Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only Mifare® and ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.

NCR533-M is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, this product can also read and write more quickly and efficiently. The proximity operating distance of NCR533-M is up to 5 cm, depending on the type of contactless tag in use.

Furthermore, the NCR533-M is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

This NCR533-M is ideal for both secure personal identity verification and online micro-payment transactions. Other applications for NFC reader include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.


Typical applications:
• Network access control
• Micro-payment
• NFC mobile tag
• Public transportation terminals
• Automatic fare collection
• Physical access control
• Customer loyalty
• Time and attendance
• Contactless public phones
• Vending machines
...


Specification


PARAMETER
NCR533-M Contactless Smart Card Reader Module
Host Interface
USB 2.0 full speed (12 Mbps)
Supported Standards
ISO 14443 Part 1 to 4
Supported Card Chips
• Lascom cards
• MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa™, Calypso, CD21
• NFC Forum Tag types 1/2/3/4
Data Transfer Rate
106, 212, 424 kpbs, depending on card IC
Antenna
Integrated
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.01.14 for:
• Windows® 7/8/ 8.1/10 (32 and 64 Bit)
• Windows® Server 2003/2008/2012
• MacOS 10.10.x,10.11.x, 10.12.x
• Linux 2.6.x (32 and 64bit)
• Android 4.0 and higher
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

50mA, excluding card
Dimensions

43 x 33 x 6 mm
Weight

5.5g ± 5%
Operating Temperature Range

0° to 50° C (32° to 122° F)
Storage Temperature Range

-25 to 85°C (-4 to 140°F)
Operating Humidity Range

Up to 95% RH non-condensing
Connector

1.5 m USB cable with USB type A connector
Status Indicator

LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
Yes


Company Profile


Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.

We provide solutions from hardware to software:
- Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions;
- Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules；

Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.


OEM & ODM
Support customer customization and provide personalized smart card solutions
