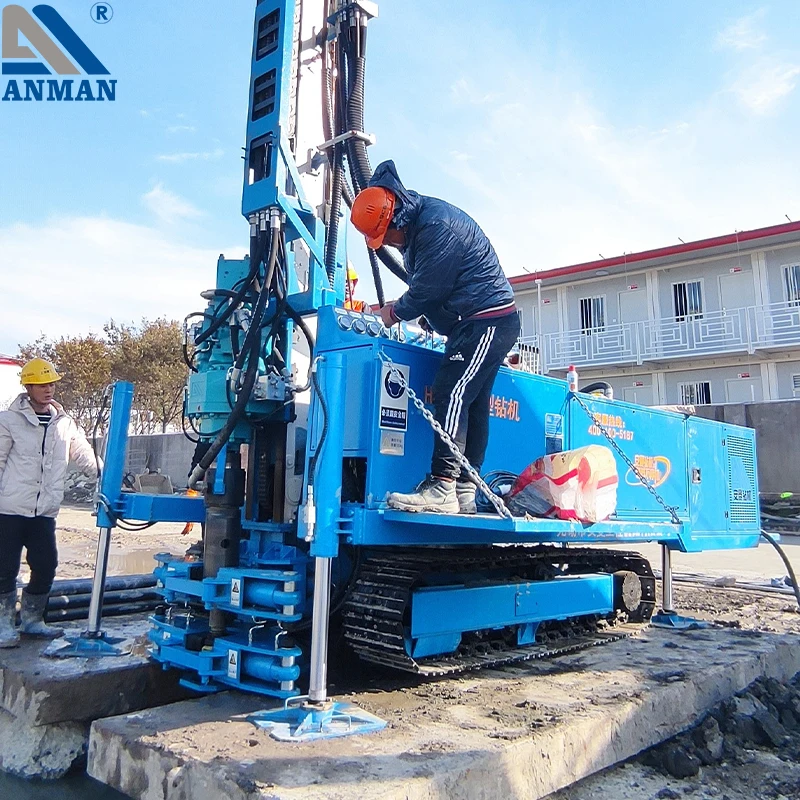

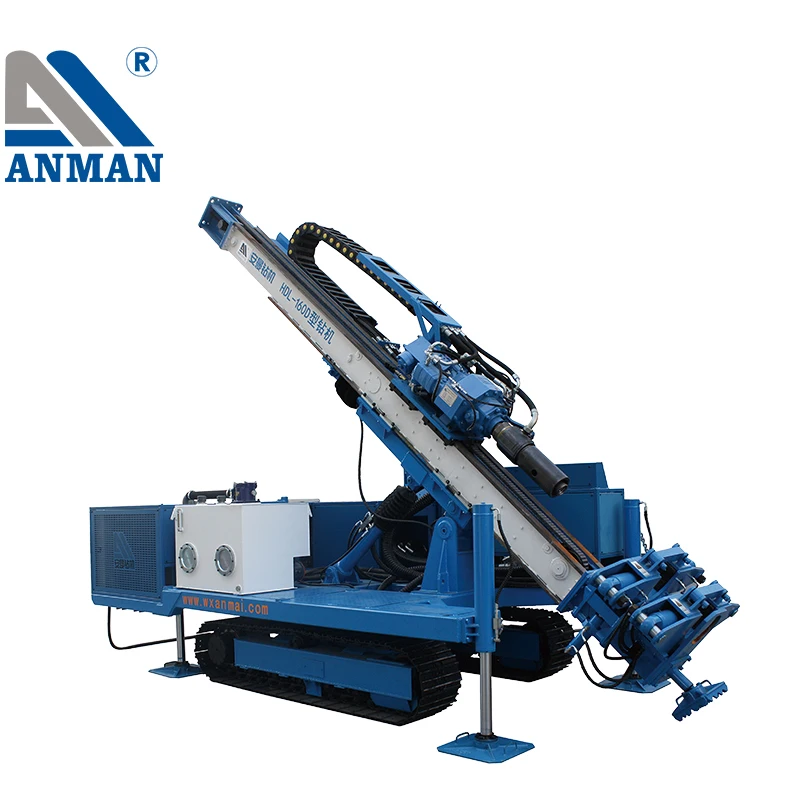

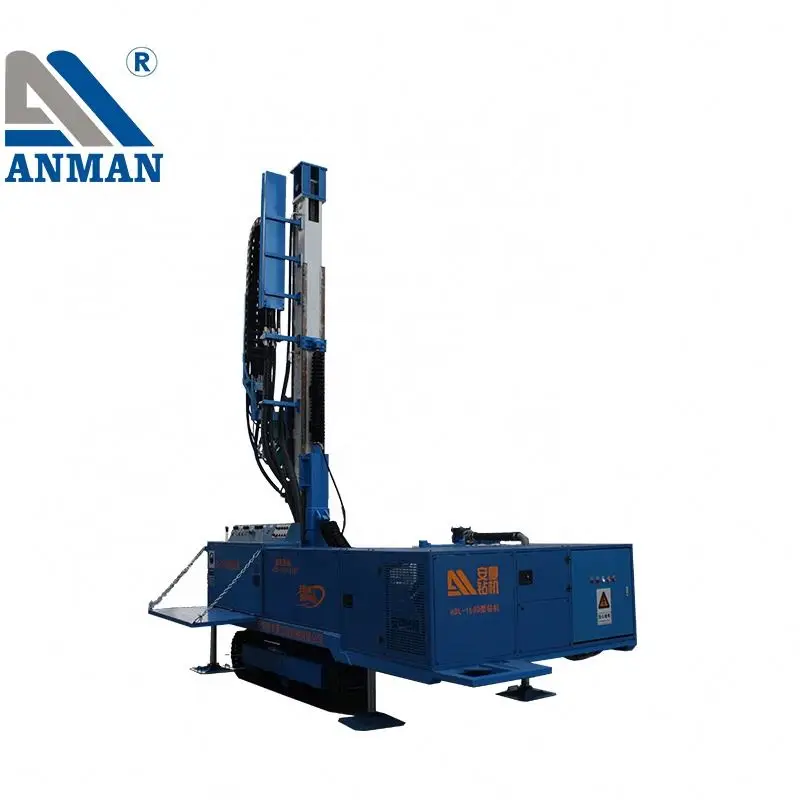

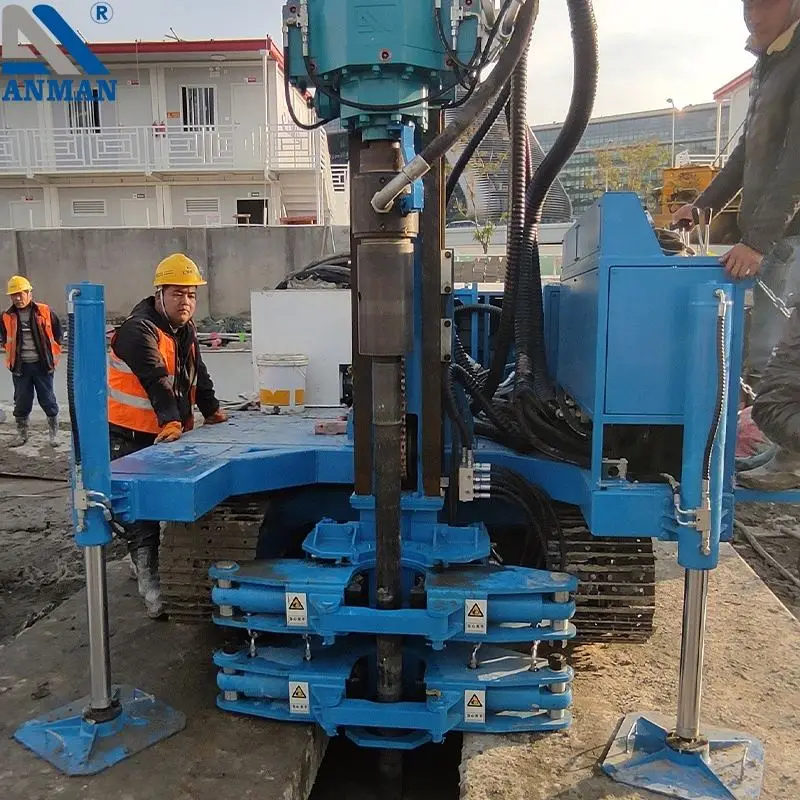

HDL 160C Chinese Factory Price drill machine spare part drill bits top drive type multifunctional drilling rig
- Category: >>>
- Supplier: Wuxi Antian Engineering Technology Co. Ltd.
Share on (1600462997641):
Product Overview
Description
VR
Products Description
HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.

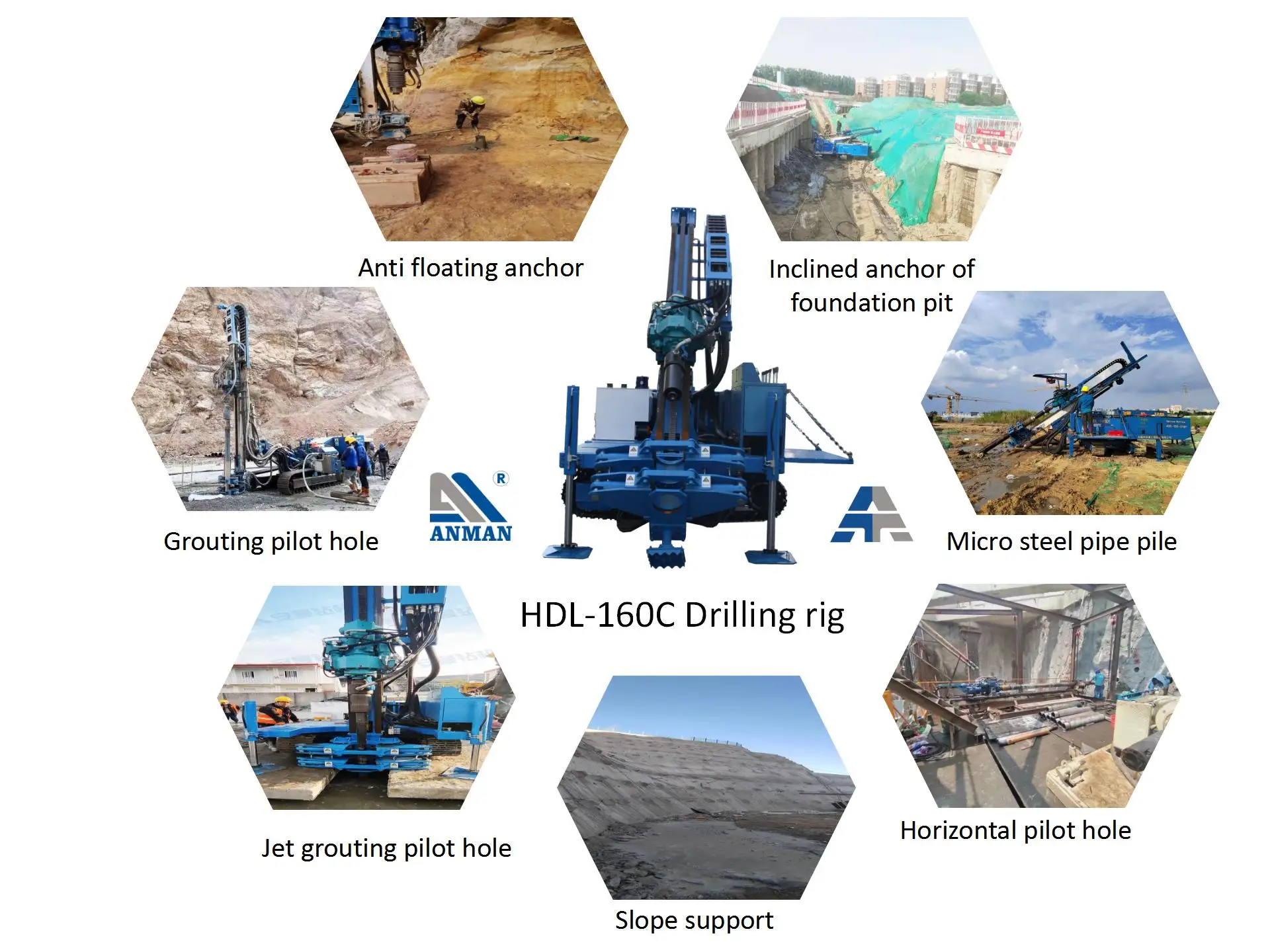

Application
PRODUCT SPECIFICATIONS
HDL-160C Chinese Factory Price drill machine spare part drill bits top drive type multifunctional drilling rig
Model number | HDL-160C |
Hole diameter(mm) | Φ150~Φ250 |
Hole depth(m) | 140~180 |
Rod diameter(mm) | Φ73,Φ89,Φ133,Φ146,Φ168,Φ194,Φ219 |
Hole angle(°) | 0~90 |
Output speed of rotary head(max)(r/min) | 135 |
Output torque of rotary head(max)(N.m) | 8400 |
Lifting speed of rotary head(m/min) | 5,23 |
Feeding speed of rotary head(m/min) | 10,45 |
Input power(Diesel)(kW) | 119 |
Dimension(L*W*H)(mm) | 6400*2300*2400 |
Vertical Working Dimension (L*W*H)(mm) | 4700*3100*6400 |
Weight(kg) | 7500 |
Impact power of rotary head（max）(N.m) | 650 |
Impact frequency of rotary head（max）(b/min) | 2300 |
Rated lifting force (kN) | 80 |
Rated feeding force (kN) | 40 |
Feeding stroke(mm) | 3400 |
Sliding stroke(mm) | 1200 |
Climbing angle(°) | 20 |
Working pressure(MPa) | 21 |
Walking speed(m/h) | 800 |
Gripper diameter(mm) | Φ73~Φ250 |

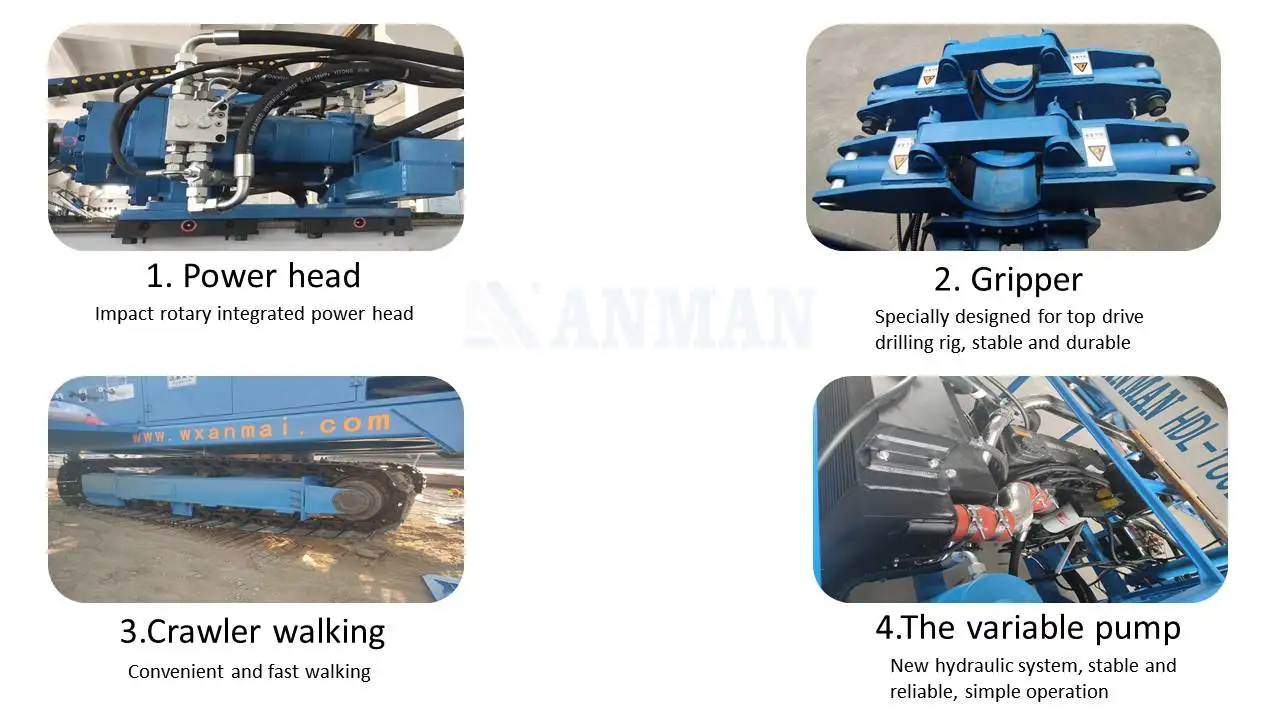

Details

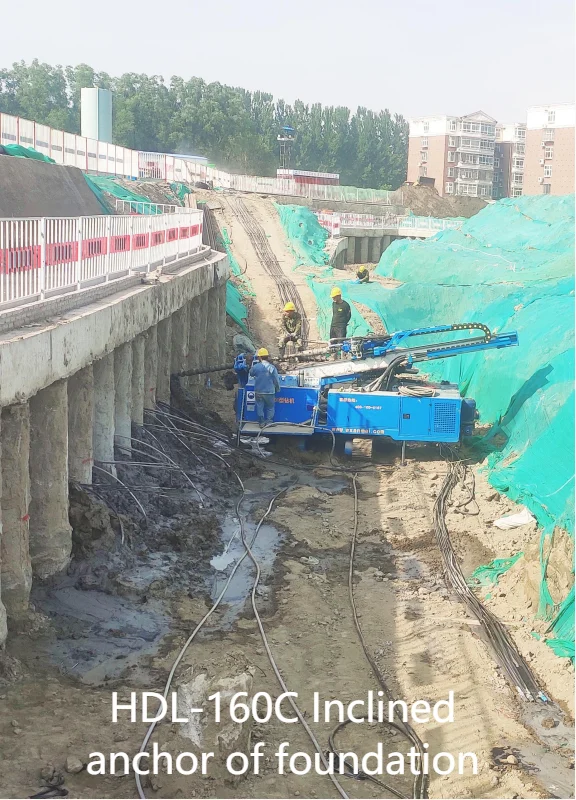

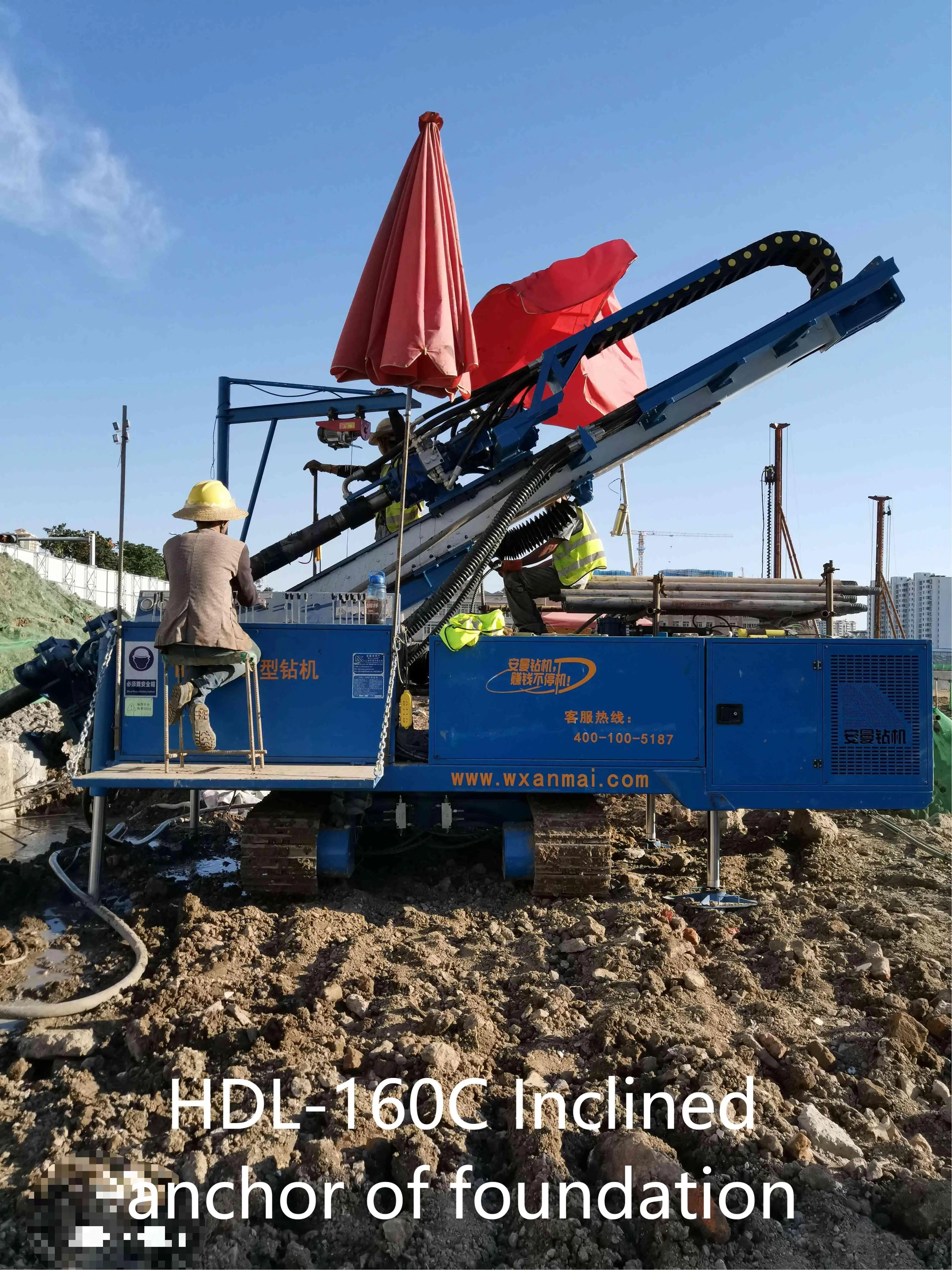

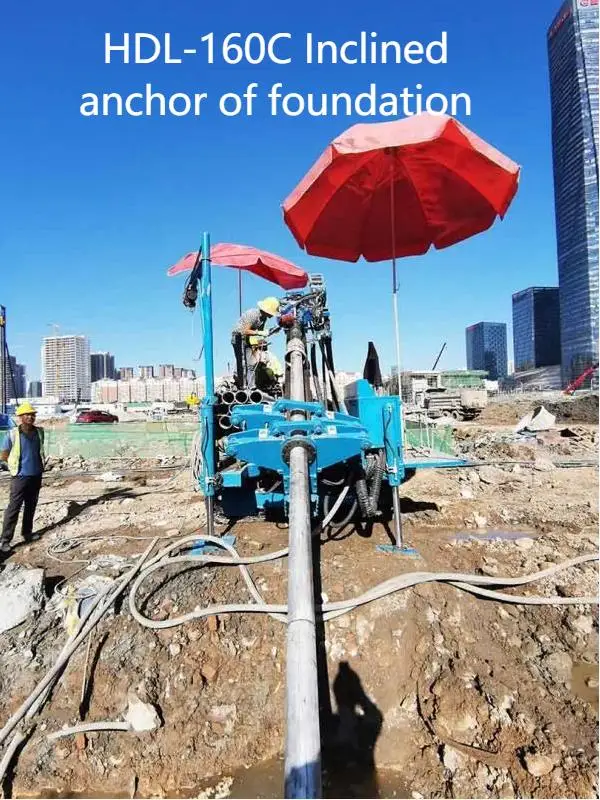

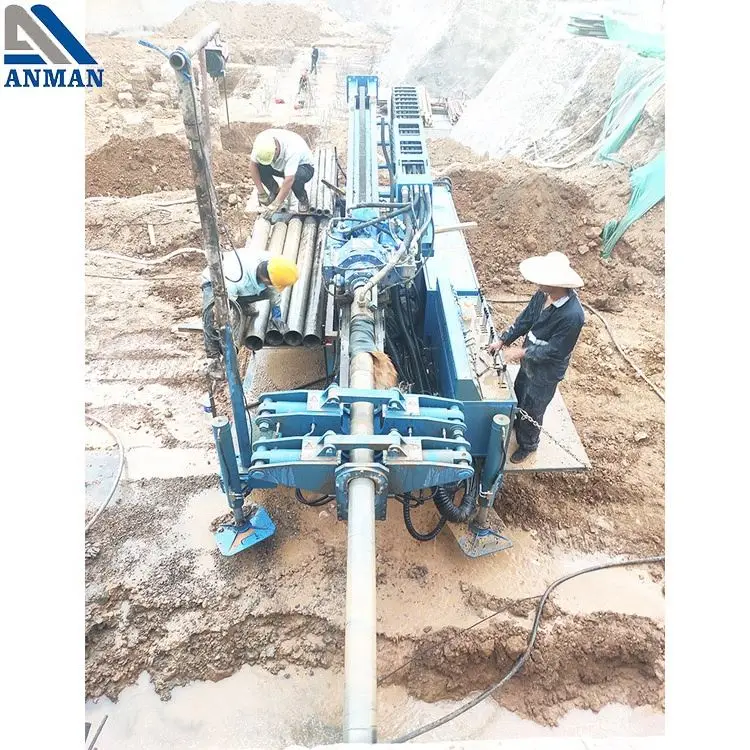

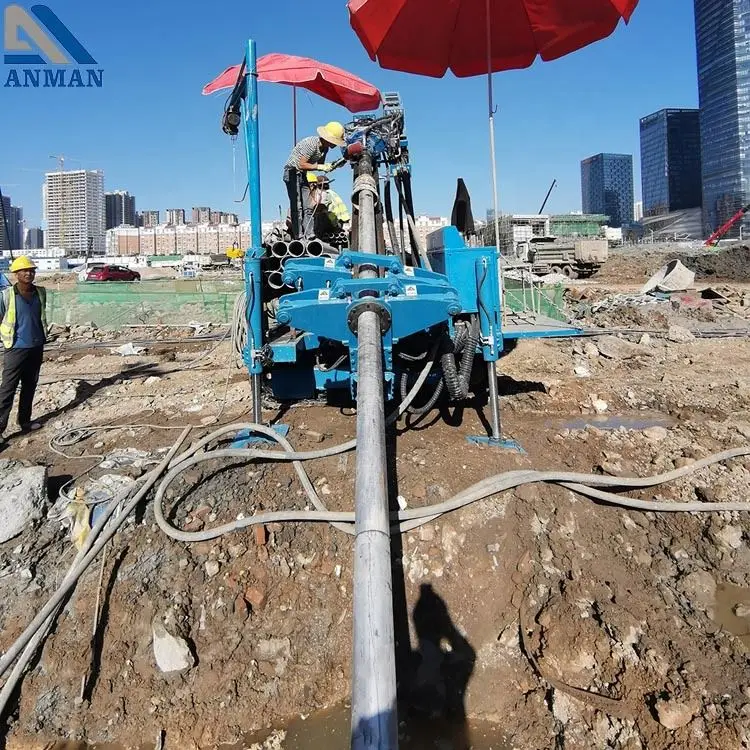

Successful projects
