TR15DV Oil Free Pump Carbon Vane 513702
- Category: >>>
- Supplier: Shanghai Masen Industrial Co. Ltd.
Share on (1600463034871):
Product Overview
Description
Product Description
MASEN is a vacuum pump parts shop ,supplys all kinds of vacuum pump parts
Dimensions: 55-39-4 mm

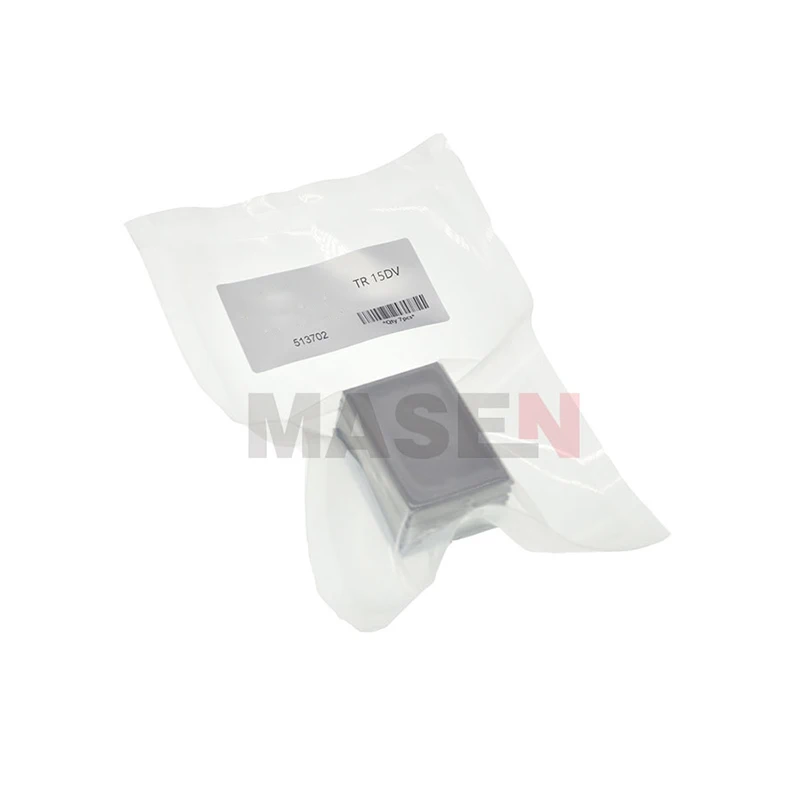

Original Vane 513702
7 Vanes Per Set
For Pump Model:
•TR15DV
Original Vane 513702
7 Vanes Per Set
For Pump Model:
•TR15DV
.More Carbon Vane for Vacuum Pump
For Pump Model | Vane NO. | Vanes/Set |
•DLT15 •KLT15 •TL15 •TLV15 •VLT15 •VTN15 | 513702 | 6 |
TR15DV | 513702 | 7 |
•TR40DE •TR40V •TR41V | 518943 | 6 |
DLT40 •KLT40 •VLT40 •TR40DV •TR41DV •DTN40 •DTN41 | 518943 | 7 |
•VTA60 •VTA80 | 523778,526886,523851 | 4 |
DTA80 •KTA80/1/2/3/4 | 523778,526886,523851 | 6 |
VTA100 | 525977,525351,523889 | 4 |
•DTA100 •KTA100 | 525977,525351,523889 | 6 |
VTA140 | 526627,525421,523885 | 4 |
•KTA140 •DTA140 | 526627,525421,523885 | 6 |
507051 | 4 | |
507051 | 6 | |
DLT6 •TL6 •TLV6 •VLT6 | 513878 | 6 |
513431 | 6 | |
513431 | 7 | |
DLT10 •TL10 •TLV10 •VLT10 •VTN10 •TLD10 •TLD12 | 513455 | 6 |
TR10 | 513455 | 7 |
TR60 •TR60D •TR60DE •TR60V •TR61V | 515642 | 6 |
TR60DV •TR61DV | 515642 | 7 |
TL20 •TR20 | 516093 | 6 |
TR20DV | 516093 | 7 |
VLT60 •DLT60 | 526577 | 7 |
DTE10 •VTE10 | 526315 | 4 |
DTA40 •DTA60 •KTA60 | 523777 , 528802 | 6 |
TR80D •TR80V | 514870 , 526311 | 6 |
TR80DVV •TR81DVV | 514870 , 526311 | 7 |
•KTA80/5 | 528401 | 8 |
VFT25 •CLFT25 •CLFT26 | 507106 | 4 |
DTA50 •KTA50 | 523880 | 6 |
DTB500 •VTB500 | 527133，526392 | 5 |
DFT60 •VFT60 •CLFT60DV •CLFT61DV | 507108，524009 | 4 |
CLFT40 •CLFT41DV •VFT40 | 507107 , 524007 | 4 |
DFT80 •VFT80 | 524011，520201，507109 | 4 |
VFT140 •DFT140 | 524003，523556 | 4 |
CLFT100 •CLFT101 •CLFT101DV | 507110，524002 | 8 |
VFT100 •DFT100 | 507110，524002 | 4 |
VTR100 •VTR140 •DTR100 | 529267，529268 | 4 |
KTR100 •KTR140 •DTR140 | 529267，529268 | 7 |
CLFT141V •CLFT141DV | 524142 | 8 |
VTF180 •DFT180 •DTF180 | 524004 | 4 |
•DTB180 •DTB250 •VTB180 •VTB250 •VTB251 | 526623 , 526098 , 527958 | 5 |
How to Replace the Carbon Vane /Carbon Blade ?

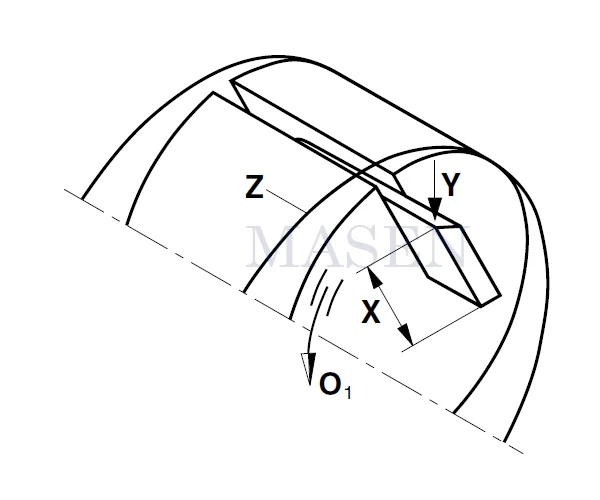

If the minimum height has already been reached or if the blades have fallen below this level the whole blade set must be changed.NOTICE:Do not undo the slotted nuts (Fig. 4/w1) on the housing lid (Fig. 5/b). Only the screws (Fig. 4/s) need to be removed to change the blades.Before refi tting the blades clean out the housing and the rotor slots with compressed air. Place the blades, with the radius outwards (Fig. 6/Y), such that the bevel is in the direction of rotation (Fig. 6/O1) and
corresponds with the radius of the housing (Fig. 6/Z).Before refi tting the end cover (Fig. 5/b) redistribute the grease from the bearing cover (Fig. 5/c) on to the appropriate bearing. It is important that the shaft end is completely clean so that no grease can enter the housing, this could mix together with carbon dust and give a viscous paste which would result in the blades becoming stuck in the rotor slots. When re-fi tting the end cover tighten the bolts evenly so that the end cover fi ts correctly onto the fixing pins. As soon as the cover is almost touching the housing, we recommend during further tightening of the bolts, the fan is moved in both directions. This can be achieved by taking the grill at the cooling air exit (F) away. This then ensures that the blades are sitting correctly in their slots and avoids any edge damage. Refi t the suction grid (Fig. 4/G).
NOTICE
Care should be taken that the bearing does not become contaminated.
corresponds with the radius of the housing (Fig. 6/Z).Before refi tting the end cover (Fig. 5/b) redistribute the grease from the bearing cover (Fig. 5/c) on to the appropriate bearing. It is important that the shaft end is completely clean so that no grease can enter the housing, this could mix together with carbon dust and give a viscous paste which would result in the blades becoming stuck in the rotor slots. When re-fi tting the end cover tighten the bolts evenly so that the end cover fi ts correctly onto the fixing pins. As soon as the cover is almost touching the housing, we recommend during further tightening of the bolts, the fan is moved in both directions. This can be achieved by taking the grill at the cooling air exit (F) away. This then ensures that the blades are sitting correctly in their slots and avoids any edge damage. Refi t the suction grid (Fig. 4/G).
NOTICE
Care should be taken that the bearing does not become contaminated.

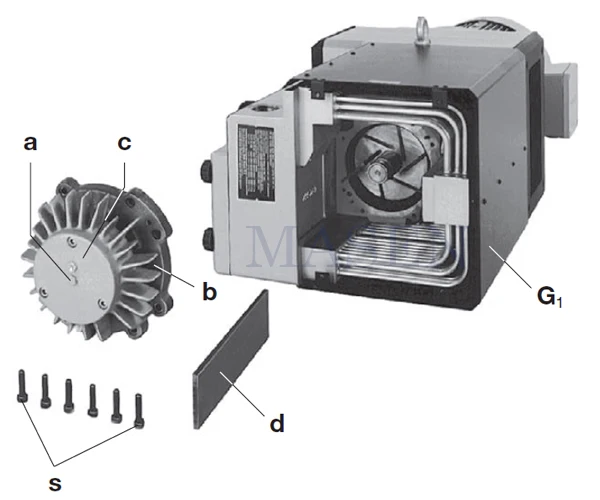

a ---Bolt
b---Housing Lid
c---Bearing Cover
d---Blade
s--Screws

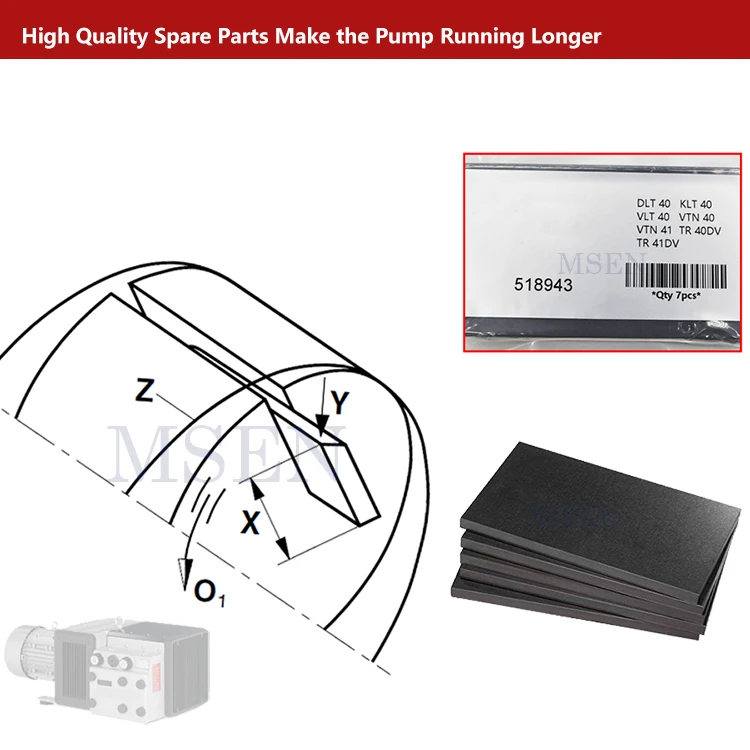

O1--Direction of Rotation
X---Minimum Heigh
Y---Slanting Side of the Blade
Z---Drilled Holes in the Housing
More Pump Parts
Repair Parts Maintainence parts for Return Valve,Check Valve,Sealing Kits,Cooling Fan, Coupling,Coupling insert,Filter Clasp,Cooling Oil Pipe,Fuel tank gasket,Carbon vanes
Company Profile
FAQ
1. Do you supply Vacuum Pumps?
Yes, we supply vacuum pumps in a good price
3.Do you support customization?
Yes, if the vacuum pump parts you want is not standard, we can customize them for you
4.How about the quality of the vacuum pump parts
Each vacuum pump parts are tested by many customers, they choose us----MASEN
