Product Overview
Description
1 ru dual input edfa 16*23 1550 wdm 64 puertos preamplifier 32 puerto aoi laser ba edfa optical amplifier
Product Description
Technical Index
| Technical Parameters | WS-56EYA2U |
| Wavelength | 1535-1565nm |
| Input power range | -5dBm~+10dBm(normal input -2dBm~+5dBm) |
| Output optical power | 33dBm~40dBm(WDM -1dBm) |

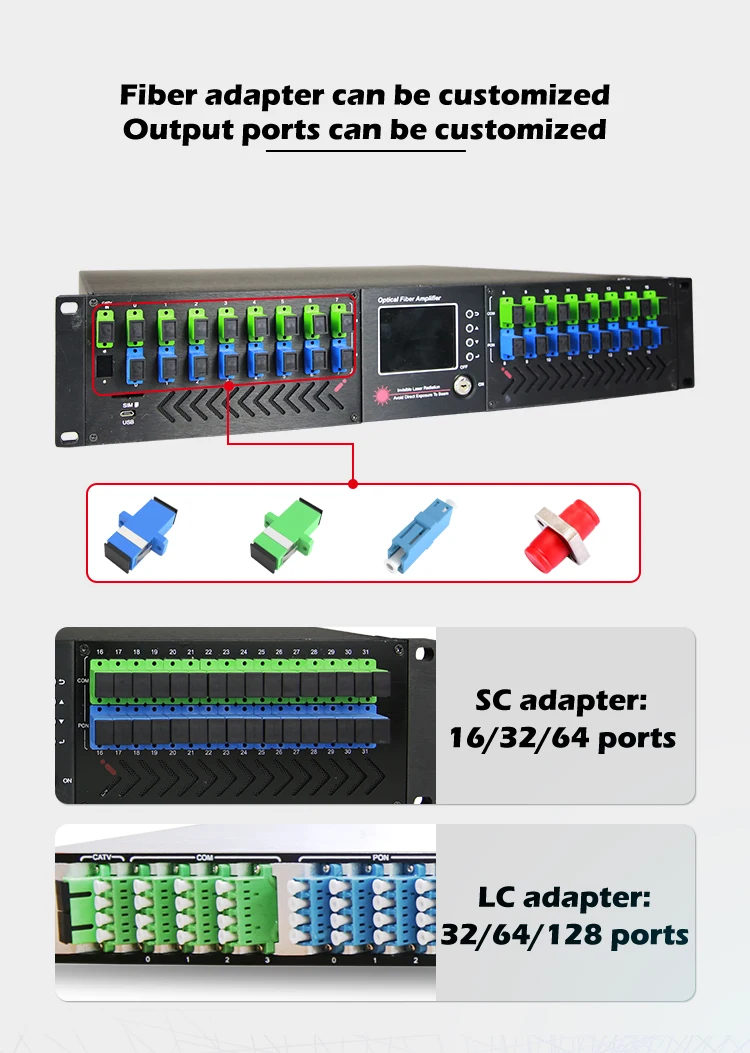

Output port | SC: 16/32/64;LC: 32/64/128 |
| Noise figure | ≤ 5.0dB(Pin=0dB) |
Polarization dependence loss (PDL) | < 0.3dB |
Polarization dependence gain (PDG) | < 0.4dB |
Polarization mode dispersion (PMD) | < 0.3dB |
Pump leakage power | < -30dBm |
Echo loss | ≥ 56dB |
| Optical connector | SC/APC;SC/PC;LC/APC;LC/PC |

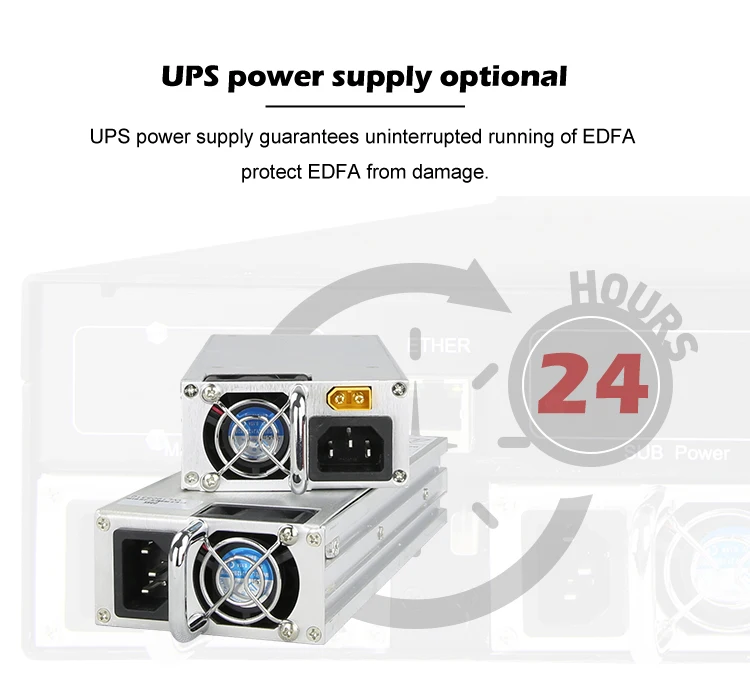

| Supply voltage | 220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V) |
| Consumption | ≤ 100w |
| Working temperature | -5℃ ~+42℃ |
| Storage temperature | -30℃ ~ +80℃ |
| Maximum working relative humidity | Max 95% non-condensing |
| Warranty | 13 months |
| Weight | 12kg |
Product net size | 465(L)*480(W)*89(H) |
Package dimension | 640(L)*640(W)*200(H) |

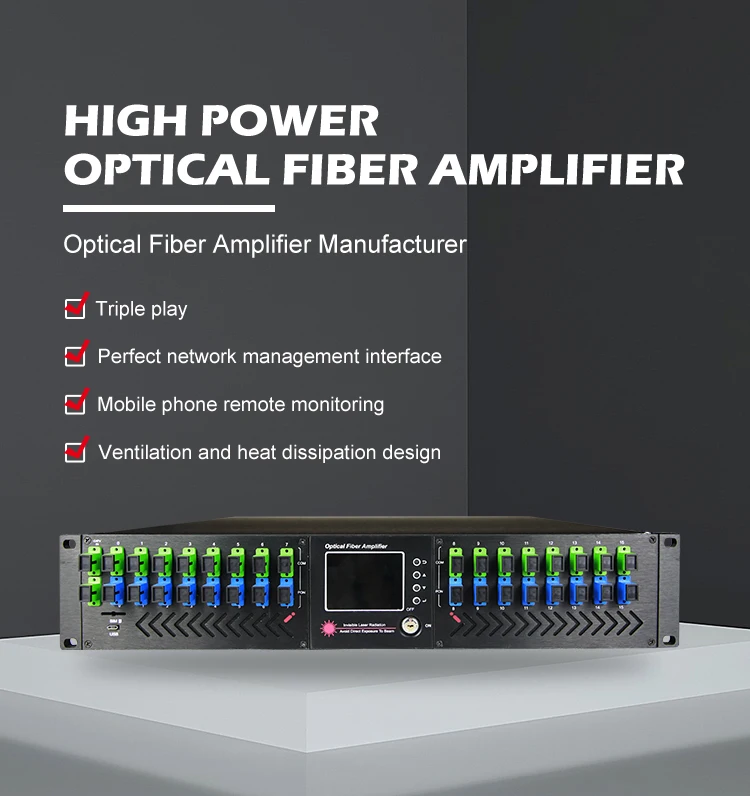

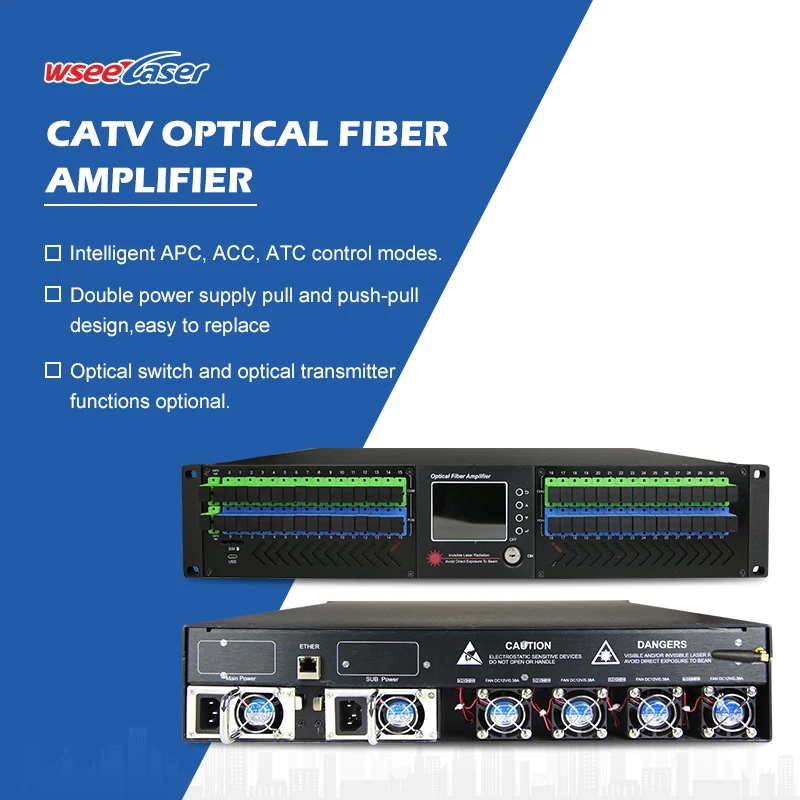

High-power multi-port output fiber optical amplifier with a gain spectrum bandwidth of 1535~1565nm. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities. Can build CATV large Medium-sized optical fiber transmission network .
